416 Stainless Steel
NAITE TECH
- Stainless Steel
416 / UNS S41600 / EN 1.4005
Excellent
CNC machining, Forging, Drilling, Grinding
$$ - Moderate
- High Strength, - Corrosion Resistant, - Wear Resistant
High strength and wear resistance depend on heat-treatment condition. Corrosion resistance is moderate and intended primarily for mild service environments.
Precision Machined Parts / Shafts / Fasteners / Valve Components
August 2026
Overview
416 Stainless Steel Overview
416 stainless steel is a free-machining martensitic stainless steel designated UNS S41600. Sulfur is added to improve chip breaking and machining performance compared with general-purpose martensitic grades such as 410 stainless steel.
Unlike 304 stainless steel and 316L stainless steel, 416 can be hardened and tempered after machining. This makes it useful for precision mechanical components that require efficient machining together with higher final strength or hardness.
The sulfur addition that improves machinability also reduces corrosion resistance and weldability. For this reason, 416 is best suited to machined components used in relatively mild environments rather than welded structures or chloride-rich service.
Where higher hardness and wear resistance are more important than machining productivity, 420 stainless steel should also be considered.
416 is commonly selected when a component requires:
Excellent machinability
Good chip breaking
High machining productivity
Heat-treatable strength
Precision turning and drilling
Magnetic material behavior
Moderate corrosion resistance
Its main engineering advantage is straightforward:
416 is designed to make stainless steel parts easier and more efficient to machine.
For applications dominated by CNC turning, drilling or threading, 416 can provide a better manufacturing balance than less machinable stainless grades.
416 is one of the most machinable conventional stainless steels.
Its sulfur modification improves chip breaking and supports efficient turning, drilling, threading and other repetitive machining operations.
Typical benefits include:
Better Chip Control / Higher Machining Productivity / Good Surface Finish / Reduced Cutting Difficulty
For a detailed material comparison, see 410 vs 416 Stainless Steel.
416 is martensitic and can be hardened and tempered after machining.
A typical manufacturing sequence is:
Annealed Material → CNC Machining → Hardening → Tempering → Finish Grinding if Required
This allows most material removal to be completed while the alloy remains easier to machine.
Where substantially higher hardness and wear resistance are required, 420 stainless steel may provide a better fit.
416 provides useful corrosion resistance in indoor, atmospheric and mildly corrosive environments.
Its corrosion resistance is generally lower than 410 stainless steel because sulfur-rich inclusions can reduce resistance to localized corrosion.
For applications where corrosion resistance is more important than machining productivity, consider 304 stainless steel or 316L stainless steel.
416 is magnetic in both annealed and hardened conditions.
This is normal behavior for a martensitic stainless steel and can be useful where magnetic response is acceptable or required by the component design.
416 is generally not recommended for welding-intensive components.
Its sulfur additions and martensitic structure increase the risk of cracking, high heat-affected-zone hardness and reduced weld toughness.
Where welding is a major manufacturing requirement, 304L stainless steel or 316L stainless steel is usually a better starting point.
416 is particularly well suited to bar-stock components produced by CNC turning, milling, drilling and threading.
Typical components include:
Shafts / Pins / Fasteners / Threaded Components / Fittings / Valve Components / Bushings / Precision Turned Parts
For manufacturing-focused information, see 416 Stainless Steel Parts Manufacturing.
416 and 410 stainless steel both belong to the martensitic stainless family, but they are selected for different reasons.
416 Stainless Steel
Better Machinability / Better Chip Breaking / Precision Machining Focus
410 Stainless Steel
Better General Corrosion Resistance / Better Overall Mechanical Balance / General-Purpose Martensitic Grade
The main trade-off is:
416 sacrifices some corrosion resistance and welding performance in exchange for substantially better machinability.
For a detailed comparison, see 410 vs 416 Stainless Steel.
416 is a free-machining, heat-treatable martensitic stainless steel for precision components where machining productivity is more important than maximum corrosion resistance or weldability.
Properties
416 stainless steel is a sulfur-modified martensitic stainless steel. Its chemistry is designed primarily to improve machinability while retaining the ability to develop higher strength and hardness through heat treatment.
The values below are representative for UNS S41600. Exact limits should always be confirmed against the applicable material specification and Mill Test Report.
Element | Typical Specification Range |
|---|---|
Chromium (Cr) | 12.0–14.0% |
Carbon (C) | ≤ 0.15% |
Manganese (Mn) | ≤ 1.25% |
Silicon (Si) | ≤ 1.00% |
Phosphorus (P) | ≤ 0.060% |
Sulfur (S) | ≥ 0.15% |
Molybdenum (Mo) | ≤ 0.60% |
Iron (Fe) | Balance |
The relatively high sulfur content is the defining feature of 416. It promotes manganese-sulfide inclusions that improve chip breaking and machining performance, but also reduce corrosion resistance, weldability and transverse ductility compared with 410 stainless steel.
The mechanical properties of 416 depend strongly on heat-treatment condition, section size and product form.
Representative properties for annealed bar material are shown below.
Property | Representative Value |
|---|---|
Tensile Strength | Approx. 515 MPa |
0.2% Yield Strength | Approx. 275 MPa |
Elongation | Approx. 30% |
Brinell Hardness | Up to approx. 260 HB |
These values should be used for general engineering reference rather than as guaranteed design values.
After hardening and tempering, 416 can achieve substantially higher strength and hardness than the annealed condition.
For applications where higher hardness and wear resistance are the primary requirements, 420 stainless steel may provide a more suitable balance.
Property | Approximate Value |
|---|---|
Density | 7.8 g/cm³ |
Elastic Modulus | 200 GPa |
Thermal Conductivity | Approx. 25 W/m·K |
Specific Heat | Approx. 460 J/kg·K |
Electrical Resistivity | Approx. 0.57 µΩ·m |
Thermal Expansion | Approx. 10 × 10⁻⁶ /K |
Magnetic | Yes |
The relatively low thermal expansion of martensitic stainless steels can be useful for precision mechanical components where dimensional change with temperature is a design consideration.
Machinability is the primary reason engineers select 416.
Sulfur additions promote easier chip breaking and reduce the cutting difficulty normally associated with stainless steel.
416 is especially suitable for:
CNC Turning / Drilling / Threading / Tapping / Milling / Automatic Screw Machining
Compared with 410 stainless steel, 416 generally provides better chip control and higher machining productivity.
Compared with 303 stainless steel, both are designed for machining, but their metallurgy is different:
303 → Austenitic + Free-Machining + Non-Hardenable
416 → Martensitic + Free-Machining + Heat-Treatable
For a detailed comparison, see 303 vs 416 Stainless Steel.
Yes. 416 is a martensitic stainless steel and can be hardened and tempered after machining.
This is one of the main differences between 416 and free-machining austenitic grades such as 303 stainless steel.
A typical production route is:
Annealed Bar → Rough or Finish Machining → Hardening → Tempering → Grinding if Required
A representative full-annealing range is approximately:
815–900°C
followed by controlled cooling.
Annealing reduces hardness and prepares the material for machining or subsequent heat treatment.
Exact treatment should follow the applicable material specification and heat-treatment procedure.
A representative hardening range is approximately:
925–1010°C
followed by an appropriate quench.
The final hardness and mechanical properties depend on:
Austenitizing temperature
Section thickness
Quenching method
Tempering temperature
Tempering time
Heat-treatment distortion should be considered for precision parts.
Tempering is used after hardening to adjust the balance between:
Hardness / Strength / Toughness / Dimensional Stability
Lower tempering temperatures generally retain higher hardness, while higher tempering temperatures reduce hardness and improve toughness.
For many martensitic stainless steels, intermediate tempering ranges can produce reduced impact toughness. Heat-treatment parameters should therefore follow the specified mechanical-property requirement rather than using a generic cycle.
For hardness-focused applications, also compare 420 stainless steel.
416 provides moderate corrosion resistance suitable for many indoor, atmospheric, freshwater and mildly corrosive mechanical applications.
However, its corrosion resistance is lower than 410 stainless steel because sulfur-rich inclusions can become preferential sites for localized corrosion.
416 is not normally preferred for:
Seawater / High-Chloride Environments / Aggressive Chemical Service / Severe Crevice Conditions
Where corrosion resistance is more important than machining speed, consider:
Environment | General Suitability |
|---|---|
Dry Indoor Service | Good |
Atmospheric Exposure | Good |
Freshwater | Good / Application Dependent |
Mild Industrial Environment | Moderate to Good |
Coastal Environment | Limited |
Chloride Process Environment | Limited |
Direct Seawater | Not Preferred |
Aggressive Chemical Service | Evaluate Another Grade |
Actual corrosion performance also depends on temperature, surface condition, deposits, crevices and exposure time.
416 can develop significantly higher hardness after heat treatment than annealed austenitic stainless steels.
This makes it useful for mechanical components requiring:
Strength / Surface Durability / Moderate Wear Resistance / Precision Machined Geometry
However, 416 is primarily a machinability-focused grade, not a maximum-wear-resistance grade.
When wear resistance or final hardness is the dominant requirement, 420 stainless steel or 440C Stainless Steel should be considered.
416 is magnetic.
Its martensitic structure produces a clear magnetic response in both annealed and hardened conditions.
If a non-magnetic or very low magnetic response is important, an austenitic grade such as 304 stainless steel or 316L stainless steel may be more appropriate, although cold working can increase magnetic response in austenitic stainless steels.
System | Designation |
|---|---|
Grade | 416 Stainless Steel |
UNS | S41600 |
EN Material Number | 1.4005 |
EN Designation | X12CrS13 |
JIS | SUS 416 |
EN 1.4005 is commonly compared with 416, but exact chemistry and product-standard requirements should be checked rather than assuming complete interchangeability.
ASTM A582 / A582M
A key specification for free-machining stainless steel bars.
This is particularly relevant to 416 because the grade is commonly supplied as machining bar stock.
ASTM A276 / A276M
May apply to stainless steel bars and shapes depending on product and purchasing requirements.
EN 10088-3
Relevant to stainless steel long products such as bars, rods and sections.
The governing material standard should always match the actual product form.

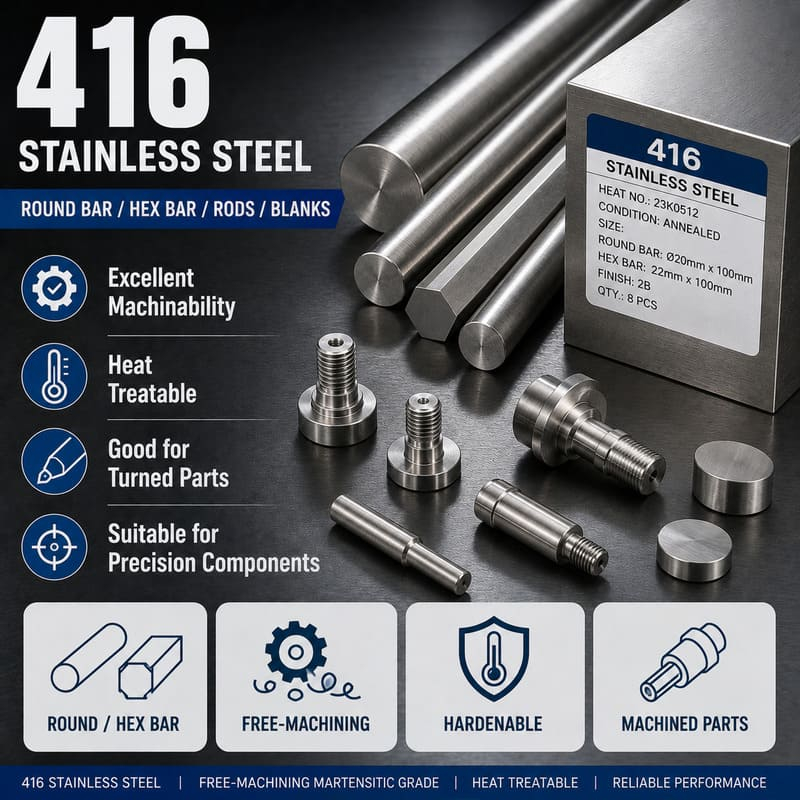

416 is most commonly supplied as:
Round Bar / Hex Bar / Square Bar / Flat Bar / Ground Bar / Precision Bar Stock
Round and hex bars are particularly common for CNC turning and automatic machining.
Plate and sheet are not normally the primary product forms for 416 because the grade is mainly selected for machined bar-stock components.
For production-focused information, see 416 Stainless Steel Parts Manufacturing.
For controlled engineering purchases, specifying only “416 stainless steel” may not provide enough information.
A material callout should identify, where applicable:
UNS Grade / Material Standard / Product Form / Dimensions / Material Condition / Heat-Treatment Requirement / Certification Requirement
For example:
416 / UNS S41600 / ASTM A582 / Annealed Bar / Diameter as Drawing
The final requirement should follow the drawing and purchasing specification.
416 stainless steel is best understood as:
Free-Machining + Heat-Treatable + Magnetic + Moderate Corrosion Resistance
Choose 416 primarily when efficient machining and heat-treatable mechanical properties are more important than maximum corrosion resistance, welding performance or extreme hardness.
For nearby material choices:
410 Stainless Steel → Better general corrosion and mechanical balance
420 Stainless Steel → Higher hardness and wear resistance
303 Stainless Steel → Free-machining austenitic alternative
316L Stainless Steel → Much stronger corrosion-resistance focus
440C Stainless Steel → Higher hardness and bearing/wear applications
Manufacturing
416 stainless steel is primarily selected for machining-intensive components. Its sulfur-modified chemistry provides excellent machinability, while its martensitic structure allows hardening and tempering after machining.
Manufacturing Process | Compatibility |
|---|---|
CNC Machining | ✅ Excellent |
CNC Turning | ✅ Excellent |
Milling | ✅ |
Drilling | ✅ Excellent |
Threading / Tapping | ✅ Excellent |
Grinding | ✅ |
Forging | ✅* |
Heat Treatment | ✅ |
Laser Cutting | — |
Sheet Metal Processing | — |
Bending / Forming | — |
Welding | —* |
Brazing | —* |
Deep Drawing | — |
Stamping | — |
Metal 3D Printing | — |
Casting | — |
* Process feasibility depends on product form, condition and engineering requirements.
416 is best treated as a bar-stock machining grade, rather than a general sheet-forming or welded-fabrication stainless steel.
Machinability is the strongest manufacturing advantage of 416 stainless steel.
Its sulfur addition improves chip breaking and reduces the long, difficult chips commonly associated with many stainless steels. This makes the grade especially suitable for repetitive machining and precision turned components.
Typical machining operations include:
CNC Turning / Milling / Drilling / Threading / Tapping / Boring / Reaming
416 is often selected for components manufactured from round or hex bar where machining productivity is a major cost factor.
Compared with 410 stainless steel, 416 generally provides easier machining and better chip control.
For an austenitic free-machining alternative, see 303 stainless steel.
For manufacturing-focused information, see 416 Stainless Steel Parts Manufacturing.
416 is particularly well suited to CNC turning and automatic bar machining.
Typical turned components include:
Shafts / Pins / Threaded Parts / Bushings / Fittings / Valve Stems / Fasteners
Its free-machining behavior can support:
Stable chip formation
Efficient material removal
Good dimensional control
Good machined surface finish
Higher production efficiency than less machinable stainless grades
Actual cutting parameters should be adjusted to the material condition, bar diameter, tooling and required surface finish.
416 performs well in drilling, tapping and thread-cutting operations because of its improved chip-breaking characteristics.
This is especially useful for components containing:
Deep Holes / Multiple Drilled Features / Internal Threads / External Threads / Repeated Fastener Features
Sharp tooling, rigid setups and suitable cutting fluids remain important for maintaining dimensional accuracy and tool life.
416 can be milled effectively in the annealed or machinable condition.
For precision features such as:
Flats / Slots / Pockets / Keyways / Cross Holes
stable workholding and sharp cutting tools help maintain dimensional control and surface quality.
For complex machined parts, turning and milling may be combined within the same production route.
Grinding is commonly used when hardened 416 components require tighter dimensional control or improved surface finish.
Typical grinding applications include:
Shaft Diameters / Bearing Surfaces / Sealing Surfaces / Precision Fits / Hardened Functional Features
A common production route is:
CNC Machining → Heat Treatment → Finish Grinding
This allows most material removal to be completed before hardening while preserving final dimensional accuracy after heat treatment.
Where higher final hardness is the primary requirement, 420 stainless steel or 440C Stainless Steel may provide a better material fit.
416 can be hardened and tempered after machining.
A typical manufacturing sequence is:
Annealed Bar → Rough Machining → Semi-Finish Machining → Hardening → Tempering → Finish Grinding
The exact sequence depends on:
Final hardness
Dimensional tolerance
Section thickness
Distortion sensitivity
Surface-finish requirement
Precision components should include appropriate machining allowance where finish grinding is planned after heat treatment.
Hardening can introduce dimensional change or distortion, particularly in:
Long shafts
Thin sections
Asymmetrical components
Parts with significant section changes
Components with tight concentricity requirements
For high-precision parts, the manufacturing plan should consider heat-treatment distortion before final machining dimensions are established.
This is one reason finish grinding is often used after hardening.
416 can be hot worked or forged under controlled conditions, although it is much more commonly purchased as bar stock for machining.
Forged material normally requires appropriate post-forging heat treatment to restore the required material condition.
For most precision components, machining from bar is the more typical manufacturing route.
416 is generally a poor choice for welding-intensive components.
Its sulfur additions improve machinability but reduce weldability, while the martensitic structure can produce hard and crack-sensitive heat-affected zones.
Welding may require careful control of:
Preheat / Filler Selection / Heat Input / Post-Weld Heat Treatment
Where welding is a major design requirement, 304L stainless steel, 316L stainless steel or another more weldable grade should usually be considered.
416 is not normally selected for extensive sheet-metal forming, deep drawing or stamping.
Its typical commercial use is:
Machined Bar Stock
rather than:
Formed Sheet Components
For stainless parts requiring extensive bending, drawing or sheet fabrication, grades such as 304 stainless steel, 304L stainless steel or 316L stainless steel are generally better starting points.
416 machined components can receive a range of mechanical and surface finishing operations depending on the application.
Typical options include:
Machined Finish / Grinding / Polishing / Passivation / Bead Blasting / Laser Marking
Machined Finish
416 can produce a good machined surface because of its free-machining characteristics.
Grinding
Useful for hardened components requiring precision dimensions or improved bearing and sealing surfaces.
Polishing
Can improve surface appearance and reduce roughness, although polishing does not change the grade's fundamental corrosion limitations.
Passivation
Passivation may be used after machining or finishing to remove free iron contamination and support a clean stainless surface.
The process should be suitable for the material and final service environment.
Carbon-Steel Contamination Control
Machined stainless components should be protected from unnecessary carbon-steel contamination during:
Handling / Grinding / Deburring / Finishing / Storage
Embedded iron can create localized rust staining even when the base material is stainless steel.
Dedicated or properly cleaned tooling and handling practices may be appropriate where surface cleanliness is important.
For controlled 416 components, manufacturing documentation may include:
Material Grade Verification / Mill Test Report / Heat Number / Heat-Treatment Certification / Dimensional Inspection / Surface Inspection
Where required by the project, additional verification can be agreed before production.
416 material should be verified against the specified grade and product standard.
Typical identification includes:
416 / UNS S41600
Where material certification is required, the MTR should be reviewed for the applicable:
Heat number
Chemical composition
Material specification
Product form
Material condition
For hardened components, final performance depends strongly on the heat-treatment cycle.
Where required, heat-treatment documentation may include:
Treatment Condition / Hardness Result / Batch Identification / Certification
The required hardness or mechanical condition should be defined before production.
Positive Material Identification may be considered where additional alloy verification is required by the project.
PMI requirements and acceptance criteria should be agreed before production.
PMI does not replace the full material certificate or confirm the complete heat-treatment condition.
416 is best suited to manufacturing routes centered on:
Bar Stock → CNC Machining → Heat Treatment → Finish Grinding if Required
Its strongest manufacturing advantages are:
Excellent Machinability / Good Chip Control / Heat-Treatable Strength / Precision Bar-Stock Production
Its main limitations are:
Poor Weldability / Limited Formability / Lower Corrosion Resistance than 410, 304 or 316L
For machining-focused stainless components, 416 offers a very different balance from 410 stainless steel, 420 stainless steel and 303 stainless steel.
Selection
416 stainless steel is mainly used for precision machined components where machining productivity, chip control and heat-treatable mechanical properties are more important than maximum corrosion resistance.
Typical applications include:
Shafts / Pins / Fasteners / Threaded Components / Bushings / Fittings / Valve Components / Pump Components / Precision Turned Parts / Automatic Screw-Machine Parts
416 is well suited to turned shafts, pins and cylindrical components produced from round bar.
Its machinability supports efficient production of:
Diameters / Shoulders / Threads / Grooves / Cross Holes
Where higher final hardness is required, the part can be hardened and tempered after machining.
The free-machining behavior of 416 makes it suitable for components containing significant threaded features.
Typical examples include:
Studs / Screws / Threaded Shafts / Specialty Fasteners / Retaining Components
For applications requiring substantially better corrosion resistance, 304 stainless steel or 316L stainless steel should also be considered.
416 may be used for selected:
Valve Stems / Fittings / Pins / Shafts / Mechanical Internals
where moderate corrosion resistance and efficient machining are acceptable.
For chloride-rich or more corrosive process environments, 316L stainless steel or a higher-corrosion-resistance grade is usually more appropriate.
416 is especially useful for repetitive CNC-turned parts made from round or hex bar.
Its strongest value is often found where:
Machining Time + Tool Life + Chip Control + Repeated Production
directly affect manufacturing efficiency.
For production-focused information, see 416 Stainless Steel Parts Manufacturing.
Choose 416 when the design requires:
Excellent machinability
Efficient CNC turning
Good drilling and threading performance
Heat-treatable strength
Moderate final hardness
Magnetic material behavior
Bar-stock manufacturing
Moderate corrosion resistance
416 is especially attractive when a component will be machined extensively before final heat treatment.
416 is one of the better stainless choices when the part contains significant machining content.
Typical examples include:
Multiple turned diameters
Threads
Deep drilling
Reamed holes
Precision bores
Repetitive bar-fed production
If machining efficiency is more important than maximum corrosion resistance, 416 can offer a strong manufacturing advantage.
Unlike 303 stainless steel, 416 can be hardened and tempered.
This makes 416 useful when the design requires:
Free-Machining Behavior + Higher Final Strength or Hardness
within the same material.
416 should not be selected simply because it is easy to machine.
Another grade may be more appropriate when corrosion, welding, formability or extreme hardness dominates the design.
Main Requirement | Grade to Consider | Why |
|---|---|---|
Better General Corrosion Resistance | Less sulfur, better corrosion balance | |
Better Atmospheric / General Corrosion | Austenitic general-purpose corrosion resistance | |
Better Chloride Resistance | Molybdenum-alloyed austenitic grade | |
Higher Hardness & Wear Resistance | Hardness-focused martensitic grade | |
Very High Strength | 17-4 PH Stainless Steel | Precipitation-hardening strength |
Free Machining Without Heat Hardening | Austenitic free-machining alternative | |
Maximum Hardness / Bearing-Type Use | 440C Stainless Steel | Higher-carbon martensitic grade |
This is the most important comparison for 416.
410 stainless steel is a general-purpose martensitic stainless steel, while 416 is modified specifically for machinability.
416
Better machinability
Better chip breaking
Better suited to repetitive bar machining
410
Better general corrosion resistance
Better welding behavior
Better overall mechanical balance
Selection Principle
Choose 416 when machining productivity is the priority.
Choose 410 when corrosion resistance and a more balanced martensitic property profile are more important.
For a detailed comparison, see 410 vs 416 Stainless Steel.
420 stainless steel is selected primarily for higher hardness and wear resistance.
416 is selected primarily for machining efficiency.
416
Free-Machining
Better Chip Control
Precision Bar-Stock Machining
420
Higher Hardness
Better Wear Resistance
Hardness-Focused Mechanical Components
If the part requires significant machining but only moderate final hardness, 416 may be more efficient.
If hardness and wear dominate the design, 420 is usually the stronger candidate.
For a detailed comparison, see 416 vs 420 Stainless Steel.
Both grades are designed for improved machining, but they belong to different stainless families.
303 stainless steel is a free-machining austenitic stainless steel.
416 is a free-machining martensitic stainless steel.
Property | 303 | 416 |
|---|---|---|
Stainless Family | Austenitic | Martensitic |
Machinability | Excellent | Excellent |
Heat Treatable | No | Yes |
Magnetic | Usually Low | Yes |
Corrosion Resistance | Better | Lower |
Main Advantage | Machining + Austenitic Corrosion | Machining + Heat-Treatable Strength |
Selection Principle
Choose 303 when free machining is needed together with better general corrosion resistance.
Choose 416 when free machining is needed together with hardening and tempering capability.
For a detailed comparison, see 303 vs 416 Stainless Steel.
17-4 PH stainless steel provides substantially higher strength potential than 416.
416
Better machinability
Simpler bar-machining focus
Moderate final strength and corrosion resistance
17-4 PH
Higher strength
Better overall corrosion resistance
Precipitation-hardening capability
Choose 416 when machining productivity dominates.
Choose 17-4 PH when high structural strength is the primary requirement.
For a detailed comparison, see 416 vs 17-4 PH Stainless Steel.
This is an important selection question for precision-machined stainless parts.
Choose 303 stainless steel when you need:
Excellent machinability
Austenitic corrosion resistance
Better general atmospheric corrosion performance
No post-machining hardening requirement
Choose 416 when you need:
Excellent machinability
Heat-treatable strength
Magnetic material
Martensitic mechanical behavior
Bar-stock machining followed by hardening
The core difference is:
303 = Free-Machining Austenitic Stainless
416 = Free-Machining Heat-Treatable Martensitic Stainless
Choose 410 stainless steel when:
Better corrosion resistance is required
Machining productivity is not the dominant concern
Welding may be required
A general-purpose martensitic grade is preferred
Choose 416 when:
CNC machining productivity matters strongly
Chip breaking is important
Extensive drilling or threading is required
Heat treatment after machining is planned
416 is a strong choice for:
Precision Machined Parts / Shafts / Pins / Fasteners / Threaded Components / Valve Parts / Bar-Stock Production
Its main selection advantage is:
Excellent Machinability + Heat-Treatable Martensitic Properties
Consider another grade when:
410 Stainless Steel → Better general martensitic corrosion balance
420 Stainless Steel → Higher hardness and wear resistance
303 Stainless Steel → Free-machining austenitic alternative
316L Stainless Steel → Better chloride and general corrosion resistance
17-4 PH Stainless Steel → Much higher strength
440C Stainless Steel → Higher hardness and bearing/wear applications
Choose 416 when machining productivity is the primary requirement and moderate corrosion resistance is sufficient.
If corrosion resistance, welding performance or maximum hardness matters more than machining efficiency, another stainless steel grade is usually the better fit.
FAQs
Common engineering questions about 416 stainless steel machinability, heat treatment, corrosion resistance, hardness, welding and material selection.
416 is a free-machining martensitic stainless steel commonly designated UNS S41600. Sulfur is added to improve chip breaking and machining performance.
It is mainly used for precision machined components that require good machinability together with heat-treatable strength.
416 contains sulfur additions that promote manganese-sulfide inclusions. These inclusions improve chip breaking and reduce the cutting difficulty normally associated with stainless steel.
This makes 416 particularly suitable for CNC turning, drilling, threading and repetitive bar machining.
Yes. 416 is specifically modified for improved machinability and generally provides better chip control and machining productivity than 410 stainless steel.
The trade-off is lower corrosion resistance and poorer weldability.
410 vs 416 Stainless Steel
Yes. 416 is a martensitic stainless steel and can be hardened and tempered after machining.
The final hardness and strength depend on the hardening temperature, quenching method, tempering condition and section size.
Yes. A common manufacturing route is to machine 416 in the annealed condition and then harden and temper the component.
Precision parts may require finish grinding after heat treatment to correct distortion and achieve final dimensional tolerances.
416 can develop substantially higher hardness after hardening and tempering than in the annealed condition.
The achievable hardness depends on material chemistry, section size and heat-treatment condition. Where maximum hardness and wear resistance are the primary requirements, 420 stainless steel or 440C Stainless Steel may be more suitable.
416 provides moderate corrosion resistance for indoor, atmospheric and mildly corrosive mechanical applications.
Its sulfur content reduces corrosion resistance compared with 410 stainless steel and substantially more corrosion-resistant grades such as 304 and 316L.
416 is not normally recommended for direct seawater or severe chloride service.
For chloride-containing environments, 316L stainless steel, 2205 duplex stainless steel or another higher-corrosion-resistance grade should be evaluated.
Yes. 416 is magnetic because it has a martensitic stainless steel structure.
Magnetic response is normal in both annealed and hardened conditions.
Welding 416 is generally difficult and is not normally recommended for welding-intensive designs.
Sulfur additions and martensitic hardening increase the risk of cracking and hard heat-affected zones.
Where welding is important, 304L or 316L stainless steel is usually a better starting point.
Yes. CNC turning is one of the most common manufacturing processes for 416 stainless steel.
The grade is especially suitable for round and hex bar components such as shafts, pins, threaded parts, fittings and valve components.
Yes. Improved chip breaking makes 416 well suited to drilling, tapping and thread-cutting operations.
This is one reason it is frequently selected for precision parts containing multiple holes or threaded features.
Both grades are designed for improved machinability, but 303 stainless steel is austenitic and cannot be conventionally hardened by heat treatment.
416 is martensitic, magnetic and can be hardened and tempered. 303 generally provides better overall corrosion resistance.
303 vs 416 Stainless Steel
416 is primarily selected for machining productivity, while 420 stainless steel is selected more often for higher hardness and wear resistance.
Choose 416 when extensive machining is important. Consider 420 when final hardness and wear performance dominate the design.
416 vs 420 Stainless Steel
416 emphasizes machinability and conventional martensitic heat treatment, while 17-4 PH stainless steel is selected for substantially higher precipitation-hardened strength.
17-4 PH also generally provides a stronger corrosion-resistance balance than 416.
416 vs 17-4 PH Stainless Steel
Typical components include shafts, pins, fasteners, threaded parts, fittings, bushings, valve stems, pump components and precision turned parts.
416 is particularly attractive for components machined from round or hex bar.
416 Stainless Steel Parts Manufacturing
416 is commonly supplied as round bar, hex bar, square bar, flat bar, ground bar and other precision bar-stock forms.
Sheet and plate are much less central to the typical use of this free-machining grade.
Better General Martensitic Corrosion Resistance → 410 Stainless Steel
Higher Hardness & Wear Resistance → 420 Stainless Steel
Free Machining + Better General Corrosion → 303 Stainless Steel
Better Chloride Corrosion Resistance → 316L Stainless Steel
Higher Structural Strength → 17-4 PH Stainless Steel
Maximum Hardness / Bearing Applications → 440C Stainless Steel
If you are evaluating 416 stainless steel for a precision machined component, share your drawing, required material condition, heat-treatment requirements and operating environment. We can help review whether 416 provides the right balance of machinability, strength and corrosion resistance for your application.
