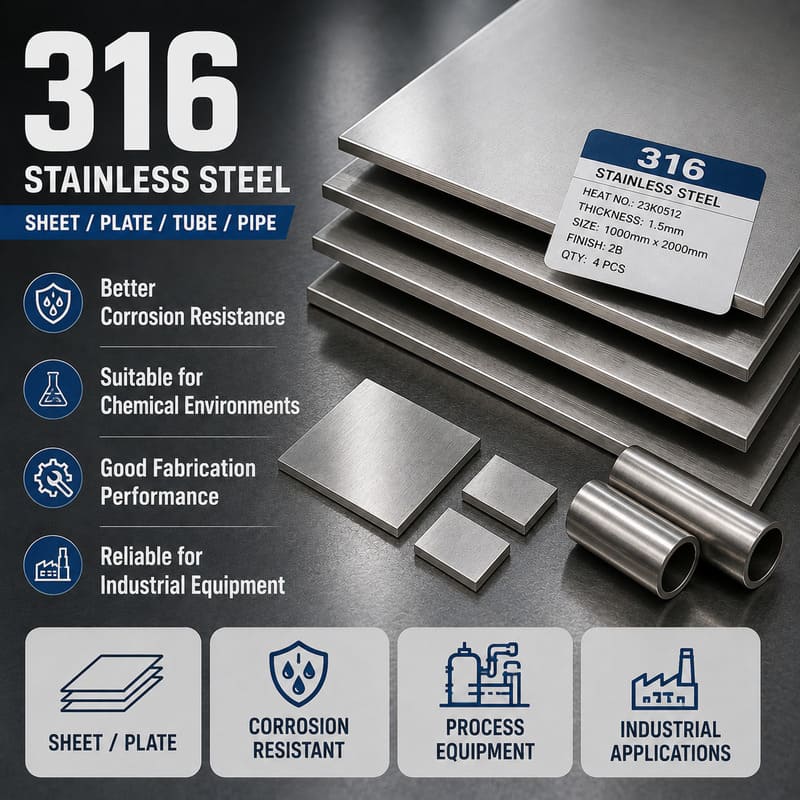

316 Stainless Steel: Properties, Corrosion Resistance & Applications

What Is 316 Stainless Steel?

316 stainless steel is a molybdenum-alloyed austenitic stainless steel developed to provide stronger resistance to localized corrosion than general-purpose grades such as 304.

It is commonly designated:

UNS S31600 / EN 1.4401 / X5CrNiMo17-12-2

The addition of approximately 2–3% molybdenum is the main feature that distinguishes 316 from 304. Molybdenum improves resistance to chloride-induced pitting and crevice corrosion and increases the grade's usefulness in process, food, fluid-handling and coastal environments.

316 retains the characteristic advantages of austenitic stainless steels:

• Good ductility

• Excellent formability

• Good weldability

• Good toughness

• Useful corrosion resistance

• Ability to strengthen through cold working

It cannot be hardened by conventional quenching and tempering.

316 vs 316L — Basic Difference

316 and 316L belong to the same chromium-nickel-molybdenum alloy family.

The main difference is carbon content.

316:
Carbon up to approximately 0.08%

316L:
Carbon limited to approximately 0.03%

The lower carbon content of 316L reduces the risk of chromium-carbide precipitation and sensitization during welding or prolonged thermal exposure.

For this reason:

316 → General corrosion-resistant mechanical and fabricated components

316L → Frequently preferred for extensively welded corrosion-resistant equipment

Modern low-carbon production practices can reduce the practical difference in some products, but the specified grade should always match the drawing and purchasing standard.

Chemical Composition & Properties of 316 Stainless Steel

Chemical Composition

Representative composition limits for UNS S31600 are shown below.

Actual composition requirements depend on the applicable product specification.

Role of the Main Alloying Elements

Chromium
Forms the passive chromium-rich surface film responsible for stainless-steel corrosion resistance.

Nickel
Stabilizes the austenitic structure and contributes to ductility, toughness and corrosion performance.

Molybdenum
Improves resistance to localized corrosion, particularly chloride-induced pitting and crevice corrosion.

Carbon
316 permits more carbon than 316L. Carbon can contribute to strength but increases the potential for sensitization when the material experiences certain welding or thermal cycles.

Representative Mechanical Properties — Annealed Flat Product

Representative minimum mechanical properties commonly associated with annealed 316 plate, sheet and strip include:

These values should be treated as representative engineering data rather than universal requirements.

Mechanical properties vary with:

Product Form / Thickness / Cold Work / Material Condition / Applicable Standard

Bar, tube, pipe and other forms may have different specified requirements.

Typical Physical Properties

Physical properties are approximate and vary with temperature and condition.

Corrosion Resistance & Environmental Performance

Corrosion resistance is one of the principal reasons for selecting 316.

Compared with 304, the addition of molybdenum provides improved resistance to localized corrosion in many chloride-containing environments.

However, 316 should not be described as universally resistant to seawater or all chemical environments.

General Corrosion Resistance

316 performs well in many:

• Indoor industrial environments

• Outdoor atmospheric environments

• Freshwater systems

• Food-processing environments

• Process equipment

• Mild chemical environments

• Coastal atmospheres

Its general corrosion performance makes it a common upgrade from 304 where additional corrosion margin is required.

Chloride Resistance

Molybdenum improves resistance to:

• Pitting corrosion

• Crevice corrosion

• Chloride-containing moisture

• Salt contamination

This does not make 316 immune to chloride corrosion.

Corrosion risk increases with:

• Higher chloride concentration

• Higher temperature

• Stagnant conditions

• Tight crevices

• Deposits

• Poor drainage

• Damaged or contaminated surfaces

Marine & Coastal Environments

316 is widely associated with marine-related applications, but the term “marine grade” should be used carefully.

It performs well in many:

• Coastal atmospheres

• Salt-spray environments

• Marine-adjacent equipment

Continuous seawater immersion requires more careful evaluation.

In direct seawater, particularly under stagnant or crevice conditions, localized corrosion can still occur.

For more severe chloride exposure, consider:

2205 Duplex

or:

2507 Super Duplex

Freshwater

316 generally performs very well in freshwater environments.

Suitability still depends on:

Water Chemistry / Chlorides / Temperature / Flow Conditions / Crevice Geometry

Chemical Resistance

316 is resistant to many chemicals used in industrial processing.

However, “chemical resistant” does not mean universal chemical compatibility.

Actual performance depends on:

• Chemical type

• Concentration

• Temperature

• pH

• Chloride level

• Contamination

• Exposure time

For aggressive reducing acids or severe chemical-processing environments, 904L or another higher-alloy stainless steel may be required.

Pitting Corrosion

The molybdenum content of 316 gives it better pitting resistance than 304.

Pitting risk nevertheless increases in:

High Chloride Concentration / Elevated Temperature / Stagnant Solutions / Deposits

For severe conditions, duplex or super duplex grades may offer a larger corrosion margin.

Crevice Corrosion

316 can experience crevice corrosion in locations such as:

• Gasket interfaces

• Threaded joints

• Lap joints

• Deposits

• Poorly drained geometries

Good component design can reduce risk by minimizing stagnant crevices and improving drainage.

Stress-Corrosion Cracking

Like other austenitic stainless steels, 316 can be susceptible to chloride stress-corrosion cracking under the wrong combination of:

• Tensile stress

• Chlorides

• Elevated temperature

Material selection for SCC-sensitive service should consider duplex stainless steels where appropriate.

Intergranular Corrosion & Sensitization

When 316 is exposed to certain thermal cycles, chromium carbides can precipitate at grain boundaries.

This may reduce corrosion resistance locally.

This consideration is particularly relevant to welding or prolonged exposure in the sensitization temperature range.

Where extensive welding is required without subsequent solution treatment, 316L is often preferred because its lower carbon content reduces sensitization risk.

Environmental Suitability

Key Engineering Characteristics

Improved Chloride Corrosion Resistance

The molybdenum addition is the principal engineering advantage of 316 compared with 304.

This makes 316 particularly relevant for:

Process Equipment / Food Equipment / Fluid Components / Coastal Equipment / Industrial Hardware

Excellent Formability

Annealed 316 has high ductility and can be:

• Bent

• Roll formed

• Stamped

• Deep drawn

• Sheet formed

It is suitable for fabricated enclosures, tanks, vessels and formed process components.

Good Weldability

316 can be welded using common stainless-steel welding processes.

However, when the component requires extensive welding and post-weld sensitization is a concern, 316L should be considered.

Moderate Machinability

316 can be machined successfully but is not a free-machining stainless steel.

Typical challenges include:

• Work hardening

• Ductile chip formation

• Cutting heat

• Tool wear

• Built-up edge under poor cutting conditions

For machining-intensive components used in mild environments, 303 may offer higher machining productivity.

Cold-Work Strengthening

316 cannot be conventionally heat hardened, but cold working can substantially increase:

• Strength

• Hardness

• Magnetic response

The resulting properties depend on the degree of cold deformation.

Good Low-Temperature Toughness

Austenitic structure provides useful toughness at low temperatures.

This characteristic distinguishes 316 from many martensitic stainless steels.

Key Limitations

Consider another material when the application requires:

Lower Cost in Mild Environments → 304

Extensive Welding / Lower Carbon → 316L

Higher Strength → 17-4 PH

High Strength + Better Chloride Resistance → 2205 Duplex

Severe Chloride Resistance → 2507 Super Duplex

Maximum Machinability → 303

High Hardness / Wear Resistance → 420 / 440C

Manufacturing Compatibility of 316 Stainless Steel

316 is compatible with a broad range of machining and fabrication processes.

Its manufacturing behavior is similar to other austenitic stainless steels, with work hardening being one of the most important production considerations.

CNC Machining

Compatibility: ✅ Good

316 can be:

Turned / Milled / Drilled / Tapped / Threaded / Bored

Because the material work-hardens readily, machining should maintain effective cutting engagement.

Avoid:

• Tool rubbing

• Excessive dwell

• Dull cutting edges

• Repeated light cuts into work-hardened material

Machining Behavior

Compared with free-machining stainless steels, 316 produces more ductile chips and can generate higher cutting loads.

Important machining factors include:

• Rigid machine setup

• Sharp tooling

• Positive cutting geometry

• Controlled feed

• Suitable coolant

• Reliable chip evacuation

Turning

316 can be turned successfully from round bar or tube stock.

Common turned components include:

Shafts / Fittings / Valve Components / Bushings / Connectors / Fluid-System Hardware

Drilling & Tapping

Compatibility: ✅ Good

Drilling and tapping require adequate feed to maintain cutting action rather than rubbing.

Chip evacuation is especially important in:

Deep Holes / Blind Holes / Small Threads

Sheet Metal Processing

Compatibility: ✅ Excellent

316 sheet and plate are suitable for:

Laser Cutting / Bending / Rolling / Stamping / Sheet Forming / Fabrication

Its high ductility allows significant deformation before fracture.

Bending

Compatibility: ✅ Excellent

316 bends readily in the annealed condition.

Design considerations include:

• Bend radius

• Material thickness

• Grain direction where relevant

• Springback

• Work hardening

Springback generally increases as the material becomes more heavily cold worked.

Deep Drawing

Compatibility: ✅ Excellent

316 can be deep drawn for tanks, containers, housings and formed process components.

Multiple forming stages or intermediate annealing may be required for severe deformation.

Welding

Compatibility: ✅ Excellent

Common processes include:

• TIG / GTAW

• MIG / GMAW

• Resistance welding

• Laser welding

• Other qualified fusion processes

Important considerations include:

• Filler metal selection

• Heat input

• Joint design

• Shielding

• Heat tint removal

• Post-weld cleaning

For heavily welded corrosion-resistant assemblies, 316L may be preferred because of its lower carbon content.

Forging

Compatibility: ✅

316 can be hot forged using appropriate temperature control.

The material should not be held unnecessarily long at forging temperatures, and the final condition may require suitable annealing depending on the product specification.

Grinding

Compatibility: ✅ Excellent

316 responds well to grinding for:

Dimensional Correction / Weld Blending / Surface Preparation / Controlled Finish

Stainless-dedicated abrasives should be used where contamination control matters.

Material Condition & Heat Treatment

Annealed Condition

316 is commonly supplied in an annealed condition.

Annealed material provides:

• High ductility

• Good formability

• Good toughness

• Moderate strength

This is the standard condition for many sheet, plate, bar, tube and pipe applications.

Cold-Worked Condition

Cold working can significantly increase:

• Yield strength

• Tensile strength

• Hardness

while reducing ductility.

Cold-worked 316 may also become more magnetic.

Mechanical properties should therefore be specified together with material condition where they are important to the design.

Solution Annealing

316 can be solution annealed.

A typical solution-annealing temperature range is approximately:

1040–1120°C

followed by sufficiently rapid cooling to limit carbide precipitation.

Exact temperature, hold time and cooling procedure should follow the applicable material and product specification.

Can 316 Be Hardened by Heat Treatment?

No.

316 cannot be hardened by conventional quenching and tempering.

If heat-treatable high strength is required, consider:

17-4 PH → High Strength

416 → Machinability + Heat-Treatable Martensitic Structure

420 / 440C → Higher Hardness

Sensitization Consideration

316 contains more allowable carbon than 316L.

When the material experiences prolonged exposure in the sensitization temperature range, chromium carbide precipitation may occur at grain boundaries.

For extensive welding or applications where post-weld solution treatment is impractical, 316L is often preferred.

Magnetic Behavior

Annealed 316 is generally non-magnetic or only weakly magnetic.

Cold deformation can create strain-induced magnetic response.

A magnetic response therefore does not automatically indicate incorrect material.

Surface Finish Compatibility

316 supports a wide range of mechanical and chemical surface finishes.

Finish selection can influence:

• Corrosion resistance

• Cleanability

• Appearance

• Surface roughness

• Contamination control

Passivation

Compatibility: ✅ Excellent

Passivation can remove free iron and surface contamination after proper cleaning.

Passivation supports the natural stainless-steel passive film but does not change the underlying alloy into a more highly alloyed grade.

Pickling

Compatibility: ✅ Excellent

Pickling is commonly used to remove:

• Heat tint

• Welding oxide

• Surface scale

• Embedded contamination

Correct acid chemistry and process control are important.

Mechanical Polishing

Compatibility: ✅ Excellent

316 can be mechanically polished to improve:

Appearance / Surface Smoothness / Cleanability

Electropolishing

Compatibility: ✅ Excellent

316 can be electropolished to reduce microscopic surface roughness and improve cleanability.

For highly welded sanitary or pharmaceutical systems, 316L is often preferred as the base alloy.

Brushing

Compatibility: ✅ Excellent

Brushed finishes are widely used for:

Equipment Panels / Enclosures / Housings / Architectural or Industrial Surfaces

Bead Blasting

Compatibility: ✅ Good

Bead blasting can produce a uniform matte finish.

Media and equipment should be controlled to prevent iron contamination.

Grinding

Compatibility: ✅ Excellent

Grinding is frequently used for:

Weld Blending / Surface Preparation / Precision Finishing

Laser Marking

Compatibility: ✅ Excellent

Suitable for:

Part Numbers / Serial Numbers / Identification / Traceability / Logos

Common Finish Options

Passivation ✅ / Pickling ✅ / Mechanical Polishing ✅ / Electropolishing ✅ / Brushing ✅ / Bead Blasting ✅ / Grinding ✅ / Laser Marking ✅

Surface Finish Selection Note

For corrosion-sensitive components, surface finish should not be considered only an appearance requirement.

Performance can also be affected by:

• Surface roughness

• Weld quality

• Heat tint

• Embedded iron contamination

• Crevices

• Grinding damage

• Cleaning procedure

• Chloride deposits

Where a specified corrosion or sanitary performance is required, the base grade, fabrication process and final surface condition should be evaluated together.

Typical Applications of 316 Stainless Steel

316 stainless steel is commonly used where the corrosion resistance of 304 may not provide sufficient margin, particularly in equipment exposed to moisture, salts, process fluids or selected chemical environments.

It is suitable for both machined components and fabricated equipment.

Chemical Processing Equipment

Typical Applications:

Valve Components / Pump Components / Fittings / Process Hardware / Equipment Housings / Fluid-Contact Components

The molybdenum addition gives 316 improved resistance to localized corrosion compared with 304.

Chemical compatibility should still be checked against the actual:

Chemical / Concentration / Temperature / pH / Chloride Content

Food & Beverage Equipment

Typical Applications:

Processing Equipment / Tanks / Fittings / Fluid Components / Equipment Frames / Washdown Components

316 is commonly selected where:

• Frequent cleaning is required

• Chloride-containing products are present

• Corrosion resistance beyond 304 is desirable

• Smooth or polished surfaces are required

For extensively welded sanitary systems, 316L is often preferred.

Tanks & Vessels

Typical Applications:

Process Tanks / Storage Vessels / Small Pressure-Related Components / Fabricated Containers

316 combines:

Corrosion Resistance / Formability / Welding Capability

making it useful for many industrial fabricated vessels.

Where the vessel contains aggressive chemicals or high chloride concentrations, a higher-alloy grade may be required.

Piping & Fluid Handling Components

Typical Applications:

Pipe Components / Fittings / Couplings / Connectors / Flanges / Valve Hardware / Pump Components

316 is commonly used where fluid-contact hardware requires better corrosion resistance than 304.

For welded pipe systems, 316L is frequently selected because of its lower carbon content.

Heat Exchanger Components

Typical Applications:

Tube Components / Plates / Fittings / Fluid Connections / Process Hardware

316 can provide useful resistance in many thermal-process environments.

Actual suitability depends on:

Fluid Chemistry / Chlorides / Temperature / Crevice Conditions / Cleaning Process

Coastal Equipment

Typical Applications:

Outdoor Hardware / Coastal Equipment Components / Marine-Adjacent Machinery / Fasteners / Structural Fittings

316 generally provides a better corrosion margin than 304 in salt-contaminated atmospheres.

Direct seawater service should be evaluated more carefully and should not be treated as automatically suitable.

Precision Machined Components

Typical Applications:

Fittings / Bushings / Valve Parts / Pump Parts / Connectors / Shafts / Threaded Components

316 can be CNC machined successfully where corrosion resistance is more important than maximum machining productivity.

For machining-intensive parts in mild environments, 303 may be more economical to machine.

Industrial Fabrications

Typical Applications:

Brackets / Frames / Equipment Panels / Housings / Supports / Welded Assemblies

316 is suitable where a fabricated stainless component requires better corrosion resistance than 304 but does not require the specialized performance of duplex or higher-alloy stainless steels.

When Should You Choose 316 Stainless Steel?

316 is a strong choice when the application requires better corrosion resistance than 304 and the component does not specifically require the low-carbon welding advantages of 316L.

Choose 316 When You Need

• Better chloride resistance than 304

• Good general corrosion resistance

• Good chemical resistance

• Excellent formability

• Good weldability

• CNC machining capability

• Sheet-metal fabrication capability

• Corrosion-resistant fluid components

• Industrial process equipment

• Coastal atmospheric performance

• A standard molybdenum-alloyed austenitic stainless steel

316 Is Especially Suitable When

304 Does Not Provide Enough Corrosion Margin

316 is often considered when the application includes:

Chlorides / Salt Contamination / Process Fluids / Frequent Washdown

The Component Requires Both Machining and Fabrication

316 can support:

CNC Machining / Laser Cutting / Bending / Forming / Welding / Grinding / Polishing

The Application Requires Corrosion Resistance but Not Very High Strength

316 is a corrosion-focused grade rather than a high-strength alloy.

If mechanical strength is the primary requirement, another stainless steel family may provide a better solution.

Welding Is Present but Not the Dominant Selection Issue

316 has good weldability.

Where extensive welding, post-weld corrosion resistance or sensitization control is a major concern, 316L should normally be evaluated.

Should You Choose 316 or 316L?

316 and 316L have very similar chromium, nickel and molybdenum alloy systems.

The most important difference is carbon content.

Choose 316 When

• The drawing specifically requires S31600

• Welding exposure is limited or properly controlled

• The application is primarily mechanical or fabricated

• Standard 316 mechanical-property requirements are desired

• The purchasing specification calls for 316 rather than 316L

Choose 316L When

• Extensive welding is required

• Post-weld solution annealing is impractical

• Sensitization risk should be minimized

• Welded process equipment is being produced

• Pharmaceutical or sanitary fabricated systems specify the low-carbon grade

Selection Note

316L should not automatically be described as “more corrosion resistant” than 316 in every environment.

Their basic alloy systems are very similar.

The main practical advantage of 316L is its lower carbon content and improved resistance to sensitization associated with welding or thermal exposure.

Consider Another Grade When...

316 Stainless Steel vs Similar Grades

316 vs 304 Stainless Steel

316 contains molybdenum, while 304 does not.

The molybdenum addition improves resistance to chloride-induced pitting and crevice corrosion.

Choose 316 when:
Chlorides, coastal exposure or more demanding corrosion conditions justify additional alloy content.

Choose 304 when:
The environment is mild and material cost is more important.

CTA:
Compare 304 vs 316 Stainless Steel

316 vs 316L Stainless Steel

316 and 316L provide broadly similar general corrosion resistance.

316L contains less carbon and is usually preferred for extensively welded corrosion-resistant equipment.

Choose 316 when:
The specification calls for standard S31600 and extensive welding is not the main concern.

Choose 316L when:
Low carbon and post-weld sensitization resistance are important.

CTA:
Compare 316 vs 316L Stainless Steel

316 vs 304L Stainless Steel

304L provides low-carbon welding performance but does not contain the molybdenum addition found in 316.

Choose 316 when:
Higher localized-corrosion resistance is more important.

Choose 304L when:
The environment is relatively mild and low-carbon welded fabrication is the main requirement.

316 vs 2205 Duplex Stainless Steel

2205 provides substantially higher mechanical strength and generally stronger resistance to chloride stress-corrosion cracking.

316 provides easier forming and belongs to the familiar austenitic stainless family.

Choose 316 when:
Moderate strength, fabrication flexibility and good corrosion resistance are sufficient.

Choose 2205 when:
Higher mechanical strength and stronger chloride resistance are required.

CTA:
Compare 316 vs 2205 Duplex Stainless Steel

316 vs 904L Stainless Steel

904L contains significantly higher alloy content and is intended for more aggressive corrosion environments.

Choose 316 when:
General industrial corrosion resistance is sufficient.

Choose 904L when:
More severe chemical corrosion resistance is required.

Standards, Specifications & Material Forms of 316 Stainless Steel

The correct purchasing specification depends on the product form.

Common Material Designations

Equivalent designations should always be checked against the applicable product specification rather than assumed to be completely interchangeable.

Common ASTM Specifications

ASTM A240 / A240M

Commonly applies to:

Plate / Sheet / Strip

This is one of the principal flat-product specifications for 316 stainless steel.

ASTM A276 / A276M

Commonly applies to:

Bars / Shapes

Relevant for many CNC-machined components produced from bar stock.

ASTM A479 / A479M

Commonly applies to:

Stainless Steel Bars and Shapes for Boiler and Pressure-Vessel Applications

ASTM A312 / A312M

Commonly applies to:

Seamless / Welded / Heavily Cold-Worked Austenitic Stainless Steel Pipe

ASTM A269 / A269M

Commonly applies to:

Seamless and Welded Austenitic Stainless Steel Tubing for General Service

Common European Standards

EN 10088-2

Commonly applies to:

Sheet / Plate / Strip

EN 10088-3

Commonly applies to:

Bars / Rods / Wire / Sections / Related Long Products

Common Material Forms

316 is commonly available as:

Sheet / Plate / Coil / Round Bar / Flat Bar / Square Bar / Hex Bar / Tube / Pipe / Rod / Wire / Forged Stock

Sheet & Plate

Commonly used for:

Laser-Cut Components / Tanks / Process Equipment / Brackets / Housings / Fabricated Assemblies

Round Bar

Commonly used for:

Shafts / Valve Components / Fittings / Bushings / Pins / CNC-Machined Components

Hex Bar

Commonly used for:

Fittings / Connectors / Nuts / Threaded Hardware / Fluid Components

Tube & Pipe

Commonly used for:

Fluid Handling / Process Equipment / Heat Exchanger Components / Industrial Piping

Common Material Conditions

316 may be supplied in conditions such as:

Annealed / Cold Worked / Cold Drawn / Solution Annealed

Mechanical properties should be reviewed according to the actual condition and product specification.

Common Surface Conditions

Depending on product form, common surface conditions can include:

No. 1 / 2B / BA / No. 4 / Ground / Polished / Cold Drawn / Peeled / Turned

Purchasing Specification Note

“316 stainless steel” alone may not provide enough information for a controlled engineering purchase.

Where material requirements are important, drawings or purchase documents should identify:

• Grade

• UNS / EN designation

• Applicable ASTM / EN specification

• Product form

• Dimensions

• Material condition

• Mechanical requirements

• Surface condition

• Surface roughness where applicable

• Material certification

• Heat / lot traceability

• Application-specific cleaning or corrosion requirements

For example:

316 / UNS S31600 / ASTM A276 / Annealed

provides clearer purchasing information than simply:

316 Stainless Steel

316 Stainless Steel Selection Summary

Choose 316 For

Corrosion-Resistant Mechanical Components / Process Equipment / Fluid Handling / Food Equipment / Tanks / Valves / Fittings / Coastal Equipment / General Fabrication

Choose 304 When

The corrosion environment is mild and lower material cost is preferred.

Choose 316L When

Extensive welding or reduced sensitization risk is important.

Choose 303 When

Machining productivity is more important than maximum corrosion resistance.

Choose 17-4 PH When

Substantially higher mechanical strength is required.

Choose 2205 Duplex When

High strength and stronger chloride resistance are required together.

Choose 2507 Super Duplex When

Severe chloride or seawater exposure requires substantially stronger localized-corrosion resistance.

Choose 904L When

Aggressive chemical service requires a higher-alloy stainless steel.

Material Selection & Engineering Support

Selecting 316 stainless steel should consider the actual corrosion environment, product form, manufacturing process, welding requirements and applicable material specification.

316 is commonly selected when better chloride resistance than 304 is required, but the application does not specifically require the low-carbon characteristics of 316L.

NAITE TECH can review the specified material together with the drawing, operating environment and manufacturing requirements before production.

Material Grade Review

316 can be reviewed against application requirements such as:

• Chloride exposure

• Chemical environment

• Operating temperature

• Required mechanical properties

• CNC machining requirements

• Sheet-metal fabrication requirements

• Welding requirements

• Surface finish

• Cleanability

• Product form

• Applicable ASTM / EN specification

• Certification and traceability requirements

Where another grade provides a better fit, typical alternatives include:

Lower Cost in Mild Environments → 304

Extensive Welding / Low-Carbon Requirement → 316L

Higher Machining Productivity → 303

Higher Mechanical Strength → 17-4 PH

High Strength + Better Chloride Resistance → 2205 Duplex

Severe Chloride / Seawater Service → 2507 Super Duplex

More Aggressive Chemical Service → 904L

Corrosion Environment Review

316 provides stronger resistance to chloride-induced localized corrosion than 304, but corrosion performance depends on the actual service environment.

Important factors include:

• Chloride concentration

• Chemical composition

• pH

• Operating temperature

• Wet or dry exposure

• Flow conditions

• Stagnant areas

• Crevice geometry

• Deposits

• Cleaning chemicals

• Surface condition

For direct seawater, elevated-temperature chloride service or aggressive chemical exposure, the environment should be evaluated before confirming 316 as the final material.

316 vs 316L Review

316 and 316L have very similar chromium, nickel and molybdenum alloy systems.

The main selection difference is carbon content.

316
Suitable for general corrosion-resistant mechanical and fabricated components where the specified grade is S31600.

316L
Commonly preferred when extensive welding or reduced sensitization risk is important.

If the component includes significant welding and post-weld solution treatment is impractical, 316L should normally be evaluated before final material selection.

Specification Review

For controlled projects, the material requirement can be reviewed together with:

• 316 / UNS S31600

• EN 1.4401

• Applicable ASTM / EN standard

• Material form

• Material dimensions

• Material condition

• Mechanical-property requirements

• Surface condition

• Surface roughness where applicable

• Certification requirements

• Heat / lot traceability

The drawing and purchase specification should take precedence over general website reference data.

Manufacturing Considerations

316 supports a broad range of machining and fabrication processes.

Material behavior should still be considered during production planning.

CNC Machining
316 work-hardens readily and produces ductile chips. Stable cutting engagement, suitable tooling and effective chip control are important.

Sheet Metal Fabrication
316 has excellent ductility and is suitable for laser cutting, bending, rolling, sheet forming and fabrication.

Welding
316 has good weldability, but extensive welded corrosion-resistant assemblies may benefit from selecting 316L.

Grinding & Polishing
316 responds well to grinding, brushing, polishing and other stainless-steel finishing operations.

Passivation & Electropolishing
Both can be used where surface cleanliness and corrosion performance are important.

Material Quality & Traceability for 316 Stainless Steel

Correct material identification and documentation are important for corrosion-resistant industrial components, process equipment and controlled material specifications.

Material Grade Verification

The specified material can be reviewed against the drawing and purchase requirements before production.

Typical material identification may include:

316 / UNS S31600 / EN 1.4401

The applicable product standard should also be confirmed where material certification is required.

Mill Test Reports

Mill Test Reports can be supplied for applicable materials and projects where certification is required.

Depending on the material source and specification, an MTR may include:

• Material grade

• Heat number

• Chemical composition

• Mechanical properties

• Product specification

• Material condition

• Product dimensions

Certificate of Conformity

A Certificate of Conformity can be provided for applicable projects where required.

Documentation requirements should be defined during quotation and purchasing.

Heat & Lot Traceability

Heat, lot or batch information can be maintained where project traceability requirements apply.

Traceability may be particularly useful for:

• Chemical-processing equipment

• Food-processing equipment

• Fluid-handling components

• Pressure-related components

• Controlled material specifications

• Repeat production

Incoming Material Inspection

Incoming 316 material can be checked for:

• Material identification

• Product form

• Dimensions

• Surface condition

• Visible damage

• Material documentation where required

Additional inspection or documentation requirements should be stated in the project specification.

PMI & Additional Material Verification

Where additional alloy verification is required, Positive Material Identification or another agreed verification method may be considered.

The inspection method, acceptance criteria and required documentation should be defined before production.

PMI can help verify alloy chemistry but does not replace the applicable material certificate or confirm every mechanical property.

Surface Condition & Contamination Control

For corrosion-sensitive stainless steel components, surface condition can affect final performance.

Important considerations may include:

• Embedded carbon-steel contamination

• Grinding contamination

• Heat tint

• Welding oxide

• Surface roughness

• Cleaning

• Pickling

• Passivation

For components exposed to chlorides or process fluids, post-fabrication cleaning requirements should be defined according to the application.

Documentation Support

Depending on project requirements, supporting documentation may include:

Material Certificate / MTR / CoC / Heat or Lot Records / Incoming Inspection Records / Dimensional Inspection Reports / Additional Agreed Quality Documentation

Quality & Traceability Note

Material certification and traceability requirements vary by project.

If the component requires a specific ASTM or EN specification, MTR, heat-number traceability, PMI, surface requirement or other controlled documentation, these requirements should be identified during quotation so they can be incorporated into material sourcing and production planning.

Technical References

The technical information on this page is intended for engineering reference and preliminary material selection.

Final material requirements should be verified against the specification applicable to the actual product form and application.

ASTM International

ASTM A240 / A240M
Stainless steel plate, sheet and strip.

ASTM A276 / A276M
Stainless steel bars and shapes.

ASTM A479 / A479M
Stainless steel bars and shapes for boiler and pressure-vessel applications.

ASTM A312 / A312M
Austenitic stainless steel pipe.

ASTM A269 / A269M
Austenitic stainless steel tubing for general service.

European Standards

EN 10088-2
Stainless steel sheet, plate and strip.

EN 10088-3
Stainless steel bars, rods, wire, sections and related long products.

Material Designations

AISI / ASTM Type: 316

UNS: S31600

EN Material Number: 1.4401

EN Designation: X5CrNiMo17-12-2

JIS: SUS 316

Additional Technical References

Material and corrosion information may also be reviewed against technical data published by:

• ASTM International

• World Stainless

• British Stainless Steel Association

• Major stainless steel producers

• Applicable customer or industry standards

Technical Note

General material data should not replace application-specific engineering assessment where corrosion, pressure, temperature, fatigue or regulatory requirements are critical.
