What Is 303 Stainless Steel?

303 stainless steel is a sulfur-modified austenitic stainless steel developed specifically for improved machinability. It is designated UNS S30300 and commonly corresponds to EN 1.4305.

Compared with 304 stainless steel, 303 contains a deliberately increased sulfur content. The sulfur forms manganese-sulfide inclusions within the steel, which improve chip breaking and reduce cutting resistance during turning, milling, drilling and threading.

This makes 303 particularly useful for precision-machined components produced from bar stock, especially where machining productivity and repeatability are more important than maximum corrosion resistance, weldability or forming capability.

The same sulfur additions that improve machinability also introduce important trade-offs. Compared with 304, 303 generally has:

• Lower resistance to pitting and crevice corrosion

• Poorer weldability

• Lower ductility

• Reduced cold-forming capability

• Poorer hot-working behavior

303 therefore should be treated as a specialized machining grade rather than a general-purpose stainless steel.

Why Is 303 Stainless Steel Commonly Specified?

Excellent Machinability
303 is one of the most widely used free-machining austenitic stainless steels and is significantly easier to machine than 304.

Improved Chip Breaking
Sulfur-containing inclusions help produce shorter, more manageable chips during machining.

Suitable for Repetitive Machined Components
Particularly useful for turned, drilled, threaded and other precision-machined components produced from bar stock.

Good Machined Surface Capability
Appropriate cutting conditions can produce clean machined surfaces and consistent features.

Useful General Corrosion Resistance
Provides basic stainless steel corrosion resistance for many mild atmospheric and industrial environments.

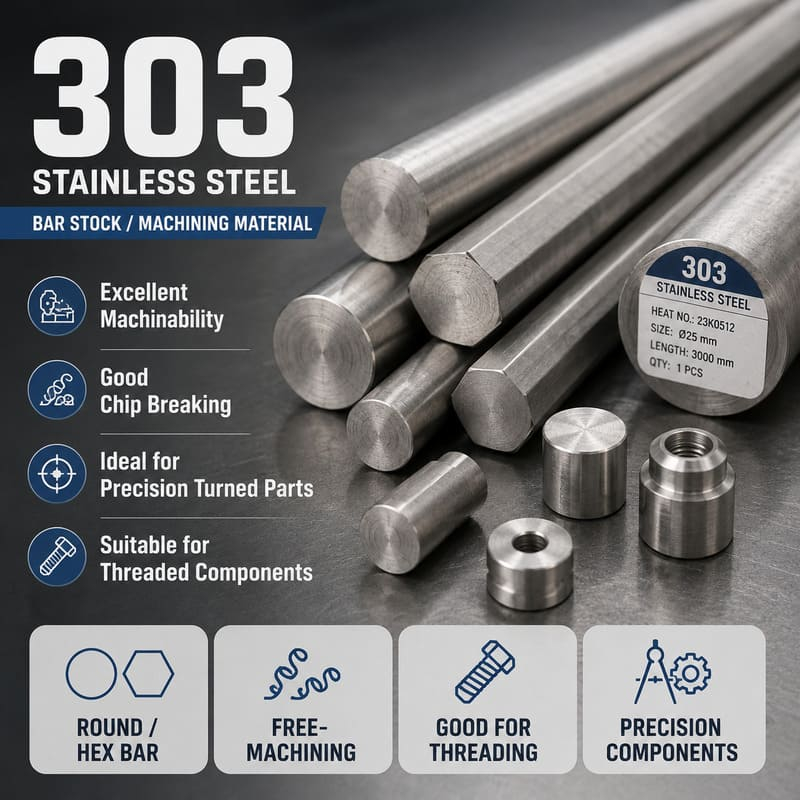

Common Bar-Stock Availability
Frequently supplied as round bar, hex bar, square bar, flat bar and billet.

303 Stainless Steel in One Sentence

303 is a free-machining austenitic stainless steel selected when machining productivity and chip control are more important than the higher corrosion resistance, weldability and formability available from 304.

Chemical Composition & Properties of 303 Stainless Steel

303 is chemically related to the 18Cr-8Ni family of austenitic stainless steels, but its deliberately elevated sulfur content distinguishes it from general-purpose grades such as 304.

Properties vary with material standard, product form and condition. Because 303 is commonly supplied as bar stock, mechanical properties can also vary substantially between annealed, cold-drawn and other bar conditions.

Chemical Composition of 303 Stainless Steel

Representative UNS S30300 composition limits are shown below.

Role of the Main Alloying Elements

Chromium
Provides the chromium-rich passive surface film responsible for basic stainless steel corrosion resistance.

Nickel
Helps stabilize the austenitic structure and contributes to ductility and toughness.

Sulfur
The defining addition in 303. Sulfur forms manganese-sulfide inclusions that improve chip breaking and machinability.

The trade-off is reduced corrosion resistance, weldability and forming performance compared with lower-sulfur austenitic grades.

Typical Mechanical Properties — Annealed 303 Bar

Engineering Note:
These values are representative rather than universal purchasing requirements.

303 is frequently supplied as cold-drawn bar, and cold-drawn material can have considerably higher yield strength and hardness than annealed material.

Always confirm mechanical requirements against the specified bar standard, diameter and material condition.

Typical Physical Properties

Physical properties are approximate and vary with temperature and material condition.

Property Selection Note

303 should not be selected because its mechanical strength is significantly higher than 304.

Its main engineering advantage is:

Sulfur-Modified Microstructure → Improved Machinability

The trade-off is:

Lower Corrosion Resistance + Poorer Welding + Reduced Formability

Corrosion Resistance & Environmental Performance of 303 Stainless Steel

303 provides useful general corrosion resistance in mild environments, but corrosion resistance is not its primary design advantage.

The manganese-sulfide inclusions that improve machinability also create sites that are less resistant to localized corrosion. As a result, 303 generally has lower pitting and crevice-corrosion resistance than 304.

General Atmospheric Corrosion Resistance

303 can perform satisfactorily in many:

• Indoor environments

• Dry atmospheric conditions

• Mild industrial environments

• Lightly exposed mechanical applications

It is commonly suitable for precision-machined hardware where exposure is limited and severe chloride contamination is not expected.

Corrosion Resistance Compared with 304

303 should not be treated as a corrosion-equivalent replacement for 304.

Compared with 304, 303 generally offers:

Better Machinability

but:

Lower Pitting Resistance

Lower Crevice-Corrosion Resistance

Lower Corrosion-Fatigue Performance

More Limited Performance in Chloride Environments

If corrosion resistance is more important than machining productivity, 304 is normally the better starting grade.

Chloride & Marine Environments

303 is not recommended as a primary material choice for demanding chloride or marine applications.

Chlorides can attack areas associated with sulfide inclusions and increase the risk of localized corrosion.

For applications involving:

Salt Spray / Coastal Exposure / Saltwater / Chloride Cleaning Solutions / Marine Equipment

consider 316 or 316L rather than 303.

Freshwater & Wet Environments

303 can be used in some mildly corrosive wet environments, but continuous aqueous exposure requires more caution than with 304.

Where the component is permanently wet, frequently cleaned or exposed to corrosive fluids, a standard low-sulfur austenitic grade is generally preferred.

Chemical Resistance

303 should not be positioned as a chemical-process stainless steel.

Its corrosion behavior depends on:

• Chemical type

• Concentration

• Temperature

• Chloride content

• pH

• Exposure duration

For chemical-processing applications where corrosion resistance is a primary design criterion, 316L or another corrosion-resistant grade is usually more appropriate.

Pitting & Crevice Corrosion

The sulfur-containing inclusions responsible for 303's machinability also reduce localized-corrosion resistance.

Pitting and crevice corrosion become more important in:

• Chloride-containing fluids

• Tight joints

• Deposits

• Threaded connections

• Stagnant moisture

• Poorly drained geometry

Component design and surface condition can improve performance, but they cannot completely compensate for selecting an unsuitable alloy.

303 Stainless Steel Environmental Suitability

When Is 303 Corrosion Resistance Usually Sufficient?

303 is most appropriate when:

• The environment is mild

• The component is primarily mechanical

• Machining productivity is important

• Continuous chloride exposure is absent

• Welding is not required

• Extensive forming is not required

Typical examples include precision shafts, threaded hardware, fittings and mechanical components used in controlled industrial environments.

Key Engineering Characteristics of 303 Stainless Steel

303 is best understood as an austenitic stainless steel optimized for machining rather than for corrosion-critical fabrication.

Excellent Machinability

Machinability is the defining characteristic of 303.

Sulfur-containing inclusions promote chip breaking and reduce the tendency to form long, continuous chips.

Compared with standard 304, this can support:

• Higher cutting productivity

• Improved chip control

• Reduced tool wear

• Easier turning

• Easier drilling

• Easier threading

• Consistent machined surfaces

303 is particularly well suited to bar-fed machining and repetitive precision components.

Improved Chip Control

Standard austenitic stainless steels tend to produce long, ductile chips.

The manganese-sulfide inclusions in 303 help interrupt chip formation, producing shorter and more manageable chips under appropriate cutting conditions.

This is especially useful for:

Turning / Drilling / Tapping / Threading / Automatic Machining

Good Precision-Machining Capability

303 is frequently used where components contain:

• External threads

• Internal threads

• Drilled holes

• Turned diameters

• Grooves

• Bores

• Small precision features

Its bar-stock availability also makes it suitable for CNC turning and automatic machining.

Moderate Work Hardening

303 remains an austenitic stainless steel and can work-harden during machining and cold deformation.

Its free-machining inclusions improve cutting behavior, but machining processes should still avoid prolonged rubbing or excessive dwell.

Lower Corrosion Resistance Than 304

The sulfur additions that improve machining performance reduce resistance to localized corrosion.

This is the main trade-off when selecting 303.

Poor Weldability

303 is generally not recommended when welding is an important part of the manufacturing route.

The elevated sulfur content that improves machinability can negatively affect weld quality and corrosion performance around the welded region.

For welded fabrication, 304, 304L or 316L is normally more appropriate.

Limited Formability

303 has lower ductility and cold-workability than standard grades such as 304.

Simple forming may be possible depending on product condition, but 303 should not be selected for applications dominated by:

Deep Drawing / Severe Bending / Complex Sheet Forming / Stamping

Limited Hot Workability

The free-machining sulfur inclusions also reduce hot-working performance.

Where extensive forging or hot forming is required, another stainless steel grade should generally be considered.

Key Limitations

Consider another grade when the application requires:

Better General Corrosion Resistance → 304

Better Weldability & Formability → 304 / 304L

Higher Chloride Resistance → 316 / 316L

Higher Strength → 17-4 PH

Higher Hardness & Wear Resistance → 420 / 440C

Higher Machinability + Heat-Treatable Mechanical Properties → 416

Manufacturing Compatibility of 303 Stainless Steel

303 is primarily a machining-grade stainless steel. Its strongest manufacturing advantages are turning, milling, drilling, tapping and threading rather than welding or extensive forming.

Machining Behavior

303 was developed specifically to improve the machining behavior of austenitic stainless steel.

It performs particularly well in:

• CNC turning

• Automatic turning

• Milling

• Drilling

• Tapping

• Threading

• Cut-off operations

Machine rigidity, tool geometry, coolant and cutting parameters still affect productivity and surface finish.

Even with a free-machining grade, stable tool engagement should be maintained.

Turning Behavior

303 is especially well suited to turned components produced from round or hexagonal bar.

Common turned features include:

Threads / Shoulders / Grooves / Bores / Chamfers / Precision Diameters

Its chip-breaking characteristics make it useful for repetitive bar-fed production.

Drilling & Tapping Behavior

303 performs well in drilling and tapping compared with conventional austenitic grades.

Chip evacuation remains important, particularly in:

• Deep holes

• Blind holes

• Small-diameter drilling

• Internal threading

Coolant and rigid tooling help maintain consistent hole quality.

Forming Behavior

303 is not intended as a primary forming grade.

Simple deformation may be possible depending on material condition, but applications requiring substantial bending, deep drawing or stamping should generally use a more formable grade such as 304.

Welding Behavior

Welding 303 is generally avoided when another stainless steel grade can be selected.

The sulfur content that improves machinability can contribute to weld-related problems and reduced corrosion resistance.

Where a component requires extensive welding, 304L or 316L is normally a more appropriate starting material.

Material Condition & Heat Treatment of 303 Stainless Steel

Annealed Condition

Annealed 303 provides relatively high ductility and lower strength compared with cold-drawn material.

Annealed material may be preferred where:

• Additional machining is extensive

• Lower hardness is useful

• Some limited forming is required

Cold-Drawn Bar

303 is frequently supplied as cold-drawn or precision-finished bar.

Cold drawing can provide:

• Higher yield strength

• Higher tensile strength

• Increased hardness

• Improved dimensional accuracy

• Better bar straightness

• Reduced ductility

Mechanical properties should therefore never be assumed from the grade name alone.

Solution Annealing

303 can be solution annealed to restore a softened austenitic structure after cold work.

The required temperature and cooling procedure should follow the applicable material or supplier specification.

Can 303 Stainless Steel Be Hardened by Heat Treatment?

No.

303 cannot be hardened by conventional quenching and tempering.

Higher strength and hardness can be achieved through cold working, but where heat-treatable mechanical properties are required, another grade should be considered.

Typical alternatives include:

416 → Free-Machining + Heat-Treatable Martensitic Stainless Steel

17-4 PH → High-Strength Precipitation-Hardening Stainless Steel

420 → Heat-Treatable High-Hardness Stainless Steel

Magnetic Behavior

303 is an austenitic stainless steel and is generally non-magnetic or only weakly magnetic in the annealed condition.

Cold working can increase magnetic response.

A slight magnetic attraction on a cold-drawn or machined 303 component should not, by itself, be used to reject the material grade.

Material Condition Summary

Annealed
Lower Strength / Higher Ductility / Good Machining Condition

Cold Drawn
Higher Strength / Higher Hardness / Better Dimensional Accuracy / Reduced Ductility

Solution Annealed
Softened Austenitic Structure / Restored Ductility

Conventional Hardening
Not Applicable

Surface Finish Compatibility of 303 Stainless Steel

303 can be ground, polished, passivated and marked, but the sulfur-containing inclusions that provide free-machining behavior can affect the final surface and corrosion response.

Finish requirements should therefore be evaluated together with the intended service environment.

Machined Finish

A clean machined finish is one of the natural strengths of 303.

Its machinability makes it suitable for components where the final functional surface is produced directly by turning, milling or grinding.

Compatibility: ✅ Excellent

Grinding

303 responds well to grinding for dimensional correction and controlled surface finish.

Dedicated stainless-steel abrasives are recommended to minimize contamination.

Compatibility: ✅ Excellent

Mechanical Polishing

303 can be mechanically polished, although sulfide inclusions may affect the uniformity of highly polished surfaces compared with cleaner low-sulfur grades.

Compatibility: ✅ Good

Passivation

303 can be passivated after appropriate cleaning.

Because free-machining stainless steels contain sulfur-rich inclusions, passivation procedures should be selected and controlled with the actual alloy in mind.

Passivation can remove free iron and support a clean passive surface but cannot give 303 the corrosion resistance of 304 or 316L.

Compatibility: ✅ Good

Electropolishing

Electropolishing is possible, but sulfide inclusions can influence the resulting surface condition.

Where extremely clean, sanitary or highly corrosion-resistant electropolished surfaces are required, 304L or 316L is generally a more suitable material choice.

Compatibility: ⚠ Evaluate

Bead Blasting

Bead blasting can produce a uniform matte appearance, provided suitable media and contamination controls are used.

Compatibility: ✅ Good

Laser Marking

303 can be laser marked for:

Part Numbers / Serial Numbers / Identification / Traceability / Logos

Compatibility: ✅ Excellent

Common Finish Options

Machined Finish ✅ / Grinding ✅ / Mechanical Polishing ✅ / Passivation ✅ / Bead Blasting ✅ / Laser Marking ✅ / Electropolishing ⚠

Finish Selection Note

303 is normally selected for machining performance rather than sanitary or highly corrosion-resistant surface requirements.

Where the application requires:

High Corrosion Resistance + Polished Surface → Consider 304 / 316L

Sanitary / Pharmaceutical Surface → Consider 316L

Maximum Machining Productivity → 303 remains the stronger choice

Typical Applications of 303 Stainless Steel

303 stainless steel is primarily used for components manufactured from bar stock where turning, drilling, threading or other repetitive machining operations account for a significant part of production.

It is best suited to mechanical components used in mild corrosive environments where welding and extensive forming are not required.

Precision Turned Components

Typical Applications:

Turned Bushings / Spacers / Sleeves / Collars / Precision Pins / Small Mechanical Components

303 is well suited to CNC turning and automatic bar machining because its sulfur-modified composition improves chip breaking compared with standard austenitic grades such as 304.

Shafts & Pins

Typical Applications:

Shafts / Pivot Pins / Locating Pins / Guide Pins / Small Drive Components

Round-bar availability and good machining behavior make 303 useful for components requiring several turned diameters, shoulders, grooves or threaded features.

Where substantially higher strength or wear resistance is required, another stainless steel grade may be more suitable.

Threaded Fasteners

Typical Applications:

Screws / Bolts / Nuts / Studs / Threaded Inserts / Threaded Bushings

303 is commonly considered where internal or external threads make up an important part of the machining process.

For fasteners exposed to marine or aggressive corrosive environments, corrosion requirements may justify selecting 316 or 316L instead.

Fittings & Fluid-System Hardware

Typical Applications:

Fittings / Connectors / Couplings / Adapters / Small Valve Components / Pneumatic Hardware

303 can be suitable for machined fittings used in mild environments.

For components exposed to aggressive fluids, chlorides or demanding chemical service, 316L is generally a better starting material.

Valve & Instrument Components

Typical Applications:

Valve Stems / Valve Hardware / Instrument Fittings / Adjustment Components / Precision Mechanical Hardware

303 is useful where components require multiple machined features and corrosion conditions remain moderate.

Gears & Mechanical Hardware

Typical Applications:

Small Gears / Adjustment Screws / Drive Components / Machine Hardware / Retaining Components

303 can be used where machining efficiency is more important than high hardness or heavy wear resistance.

For components requiring substantially greater hardness, 420, 440C or another heat-treatable stainless steel should be considered.

High-Volume Bar-Machined Components

Typical Applications:

Automatic-Turning Components / Repetitive CNC-Turned Parts / Threaded Hardware / Small Precision Components

The greatest benefit of 303 is often realized when machining time, chip control and tool life materially affect production efficiency.

When Should You Choose 303 Stainless Steel?

303 is a strong material choice when machining productivity is the primary requirement and the application does not require the corrosion resistance, welding capability or forming performance of a general-purpose austenitic stainless steel.

Choose 303 When You Need

• Excellent machinability

• Improved chip breaking

• Efficient CNC turning

• Reliable drilling and tapping performance

• Extensive internal or external threading

• Precision components produced from bar stock

• Repetitive machining operations

• Useful general corrosion resistance in mild environments

• A stainless machining grade without a requirement for conventional heat-treatment hardening

303 Is Especially Suitable When

Machining Represents a Large Part of Part Cost
Improved chip control and cutting behavior can make 303 attractive for parts requiring extensive turning, drilling or threading.

The Component Is Produced from Bar Stock
303 is commonly supplied as round, hexagonal, square and flat bar, making it well suited to bar-fed CNC machining.

Complex Machined Features Are Required
Threads, grooves, bores, shoulders and multiple turned diameters are typical features where 303 can provide manufacturing advantages.

The Operating Environment Is Mild
303 is most appropriate where moderate general corrosion resistance is sufficient and severe chloride or chemical exposure is absent.

No Significant Welding Is Required
303 is a poor choice for assemblies that depend heavily on welding.

Consider Another Grade When...

303 Stainless Steel vs Similar Grades

303 is most commonly compared with 304 and 416 because all three can be used for machined components, but their corrosion resistance, heat-treatment response and fabrication behavior are significantly different.

303 vs 304 Stainless Steel

303 is easier to machine because sulfur additions improve chip breaking and cutting behavior.

304 provides better corrosion resistance, weldability and formability and is therefore a more versatile general-purpose stainless steel.

Choose 303 when:
Machining productivity is the dominant requirement.

Choose 304 when:
Corrosion resistance, welding or forming is more important.

CTA:
Compare 303 vs 304 Stainless Steel

303 vs 416 Stainless Steel

Both 303 and 416 are free-machining stainless steels, but they belong to different stainless steel families.

303 is an austenitic stainless steel and cannot be hardened by conventional heat treatment.

416 is martensitic and can be heat treated to obtain substantially higher hardness and mechanical strength.

303 generally provides better corrosion resistance, while 416 is more suitable when machining performance must be combined with heat-treatable mechanical properties.

Choose 303 when:
Austenitic corrosion resistance and excellent machining are required.

Choose 416 when:
Machinability plus heat-treatable strength or hardness is required.

CTA:
Compare 303 vs 416 Stainless Steel

303 vs 316L Stainless Steel

303 is optimized for machining.

316L is optimized for corrosion resistance, particularly in chloride-containing environments, and provides much better welding performance.

The two grades therefore serve very different selection priorities.

Choose 303 when:
Machining efficiency is more important than maximum corrosion resistance.

Choose 316L when:
Chlorides, chemicals, welded fabrication or corrosion-sensitive service are important.

CTA:
Compare 303 vs 316L Stainless Steel

303 vs 17-4 PH Stainless Steel

303 provides excellent machining performance in the annealed or bar-stock condition but is not a high-strength stainless steel.

17-4 PH can achieve substantially higher mechanical strength through precipitation-hardening heat treatment.

Choose 303 when:
Machining efficiency and moderate mechanical properties are sufficient.

Choose 17-4 PH when:
High strength is a primary design requirement.

CTA:
Compare 303 vs 17-4 PH Stainless Steel

Standards, Specifications & Material Forms of 303 Stainless Steel

303 is most commonly supplied as bar and related long-product forms because its main application is machining.

The correct purchasing specification should identify the product form, dimensions, condition, mechanical requirements and required documentation.

Common 303 Stainless Steel Designations

Equivalent designations identify closely related materials across standards, but requirements should always be checked against the actual purchasing specification.

Common ASTM Specifications

ASTM A582 / A582M
Common specification for free-machining stainless steel bars.

This is particularly relevant to 303 because the grade is widely purchased as machining bar stock.

ASTM A276 / A276M
Covers stainless steel bars and shapes for general applications.

The applicable specification depends on the required product form and end-use requirements.

Common EN Specifications

EN 10088-3
Commonly applies to corrosion-resistant stainless steel bars, rods, wire, sections and related long products.

Because 303 is primarily used as a machining grade, long-product specifications are generally more relevant than flat-product specifications.

Common Material Forms

303 is commonly available as:

Round Bar / Hex Bar / Square Bar / Flat Bar / Rod / Billet / Precision Ground Bar / Cold-Drawn Bar

Sheet and plate are not normally the primary product forms used for 303 applications.

Common Bar Conditions

Annealed Bar
Lower strength and greater ductility.

Cold-Drawn Bar
Higher strength, hardness and dimensional consistency.

Precision Ground Bar
Used where diameter tolerance, straightness and surface condition are important.

Peeled / Turned Bar
Available for selected dimensions and machining requirements.

Selecting Round vs Hex Bar

Round Bar

Common for:

Shafts / Pins / Bushings / Turned Components / Cylindrical Hardware

Hex Bar

Common for:

Fittings / Nuts / Adapters / Threaded Hardware / Components Requiring Wrench Flats

Selecting a stock form close to the final component geometry can reduce machining time and material removal.

Surface Condition

303 bar may be supplied with surfaces such as:

Cold Drawn / Ground / Peeled / Turned / Polished

The required surface condition should be specified where:

• Bar diameter tolerance is important

• Automatic feeding is used

• Surface defects could affect finished components

• Minimal stock removal is required

Purchasing Specification Note

“303 stainless steel” alone may not provide enough information for purchasing precision machining stock.

Where material control is important, drawings and purchase requirements should identify:

• Grade

• Applicable material standard

• Bar shape

• Diameter or across-flats dimension

• Material condition

• Dimensional tolerance

• Surface condition

• Straightness requirements where applicable

• Certification requirements

• Heat / lot traceability requirements

303 Stainless Steel Selection Summary

Choose 303 For

CNC Turning / Automatic Machining / Drilling / Tapping / Threading / Precision Bar Components / High-Volume Machining

Choose 304 When

Better general corrosion resistance, welding or forming capability is required.

Choose 316L When

Chloride resistance, chemical resistance or welded corrosion-resistant service is more important than machining productivity.

Choose 416 When

Free-machining behavior must be combined with heat-treatable strength or hardness.

Choose 17-4 PH When

Substantially higher mechanical strength is required.

Choose 420 / 440C When

High hardness and wear resistance are primary requirements.

MATERIAL SUPPORT

Material Selection & Engineering Support

303 stainless steel should be selected primarily when machining efficiency is an important design and production requirement.

Before specifying 303, the application should also be checked for corrosion exposure, welding requirements, forming requirements, required strength and the material condition of the supplied bar stock.

NAITE TECH can review these requirements before production when a drawing or project specification requires confirmation of material suitability.

Material Grade Review

303 can be reviewed against requirements such as:

• CNC machining volume

• Turning and threading requirements

• Hole and tapped-feature density

• Corrosion environment

• Required mechanical strength

• Welding requirements

• Forming requirements

• Surface finish

• Material condition

• Applicable material standard

303 is most appropriate when machining performance is more important than maximum corrosion resistance or fabrication versatility.

Where the application requirements exceed the practical limits of 303, another stainless steel grade should be considered.

Typical alternatives include:

Better General Corrosion Resistance → 304

Better Welding & Formability → 304 / 304L

Higher Chloride Resistance → 316 / 316L

Machinability + Heat-Treatable Strength → 416

Higher Mechanical Strength → 17-4 PH

Higher Hardness & Wear Resistance → 420 / 440C

Machining Stock Review

Because 303 is commonly purchased as machining bar stock, stock form and material condition can affect both manufacturing efficiency and finished-part performance.

Important factors include:

• Round, hexagonal, square or flat bar

• Bar diameter or across-flats dimension

• Annealed or cold-drawn condition

• Ground, peeled or turned surface

• Straightness

• Dimensional tolerance

• Surface defects

• Material certification

Selecting stock close to the finished geometry can reduce material removal and machining time.

For example:

Round Bar → Shafts / Pins / Bushings / Turned Components

Hex Bar → Fittings / Nuts / Adapters / Threaded Hardware

Precision Ground Bar → Components requiring tighter starting diameter or improved surface consistency

Material Condition Review

303 may be supplied in different conditions, and the condition can materially affect strength, hardness, dimensional behavior and machining response.

Annealed Material

Typically provides:

• Lower strength

• Lower hardness

• Greater ductility

Cold-Drawn Material

Typically provides:

• Higher strength

• Higher hardness

• Better dimensional consistency

• Reduced ductility

Mechanical properties should therefore be reviewed together with material condition rather than assumed from the grade designation alone.

Corrosion Requirement Review

303 provides useful corrosion resistance for many mild mechanical applications, but its sulfur-modified composition reduces localized-corrosion resistance compared with 304.

For applications involving:

• Chloride exposure

• Coastal environments

• Saltwater

• Aggressive cleaning chemicals

• Continuous wet service

• Chemical-process fluids

another stainless steel grade may be more appropriate.

Where corrosion resistance is the primary design requirement, 304, 316 or 316L should normally be evaluated before 303.

Manufacturing Considerations

303 is particularly suitable for machining-intensive parts.

Material behavior can be reviewed for:

CNC Turning
303 is well suited to repetitive bar-fed turning and components containing multiple turned features.

Milling
Improved chip breaking can provide an advantage compared with standard austenitic grades.

Drilling & Tapping
303 is commonly selected for parts containing multiple drilled and threaded features.

Grinding
Suitable for dimensional correction and controlled finished surfaces.

Welding
Generally not preferred. If welding is important to the component design, 304L or 316L should usually be considered instead.

Forming
303 is not intended for severe bending, deep drawing or extensive sheet-forming operations.

Material Quality & Traceability for 303 Stainless Steel

Correct material identity and bar condition are important for maintaining consistent machining performance and finished-part properties.

Material Grade Verification

The specified material can be checked against the drawing and purchase requirements before production.

Typical identification may include:

303 / UNS S30300 / EN 1.4305

The specified product standard should also be confirmed when material certification is required.

Mill Test Reports

Mill Test Reports can be supplied for applicable materials and projects where material certification is required.

Depending on the material source and specification, an MTR may include:

• Material grade

• Heat number

• Chemical composition

• Mechanical properties

• Product specification

• Material condition

• Material dimensions

Certificate of Conformity

A Certificate of Conformity can be provided for applicable projects when required.

Certificate requirements should be identified during quotation so the required documentation can be incorporated into material sourcing and production planning.

Heat & Lot Traceability

Heat, lot or batch information can be maintained where project traceability requirements apply.

Traceability can be particularly useful for:

• Repeat production

• Controlled material specifications

• Customer-approved material sources

• Components requiring documented material identity

• Quality records linked to production batches

Incoming Material Inspection

Incoming 303 bar stock can be checked for:

• Material identification

• Bar shape

• Diameter or across-flats dimension

• Length

• Surface condition

• Straightness where required

• Visible defects

• Material documentation where applicable

For precision bar-machined parts, starting-stock consistency can directly affect machining stability and finished dimensions.

PMI & Additional Material Verification

Where additional alloy verification is required, Positive Material Identification or another agreed verification method may be considered.

The required method, acceptance criteria and documentation should be defined before production.

PMI should be treated as an additional verification method rather than a substitute for the specified material certificate.

Documentation Support

Depending on project requirements, supporting records may include:

Material Certificate / MTR / CoC / Heat or Lot Records / Incoming Inspection Records / Dimensional Inspection Reports / Additional Agreed Quality Documentation

Quality & Traceability Note

Material certification and traceability requirements vary by project.

If a component requires a specific ASTM or EN specification, bar condition, certificate type, heat-number traceability or additional verification, these requirements should be identified during quotation.

Technical References

The information on this page is intended for engineering reference and preliminary material selection.

Final design and purchasing requirements should be verified against the specification applicable to the actual material form and condition.

Common technical references for 303 stainless steel include:

ASTM International

ASTM A582 / A582M
Free-machining stainless steel bars.

ASTM A276 / A276M
Stainless steel bars and shapes for general applications.

European Standards

EN 10088-3
Stainless steel bars, rods, wire, sections and related long products.

Material Designations

AISI / ASTM Type: 303

UNS: S30300

EN Material Number: 1.4305

EN Designation: X8CrNiS18-9

JIS: SUS 303

Additional Technical References

Material, machining and corrosion information may also be reviewed against technical data published by:

• British Stainless Steel Association

• World Stainless

• Major stainless steel producers

• Applicable customer or industry specifications

Technical Note:
General website data should not replace the material specification stated on an engineering drawing, purchase order or controlled project document.
