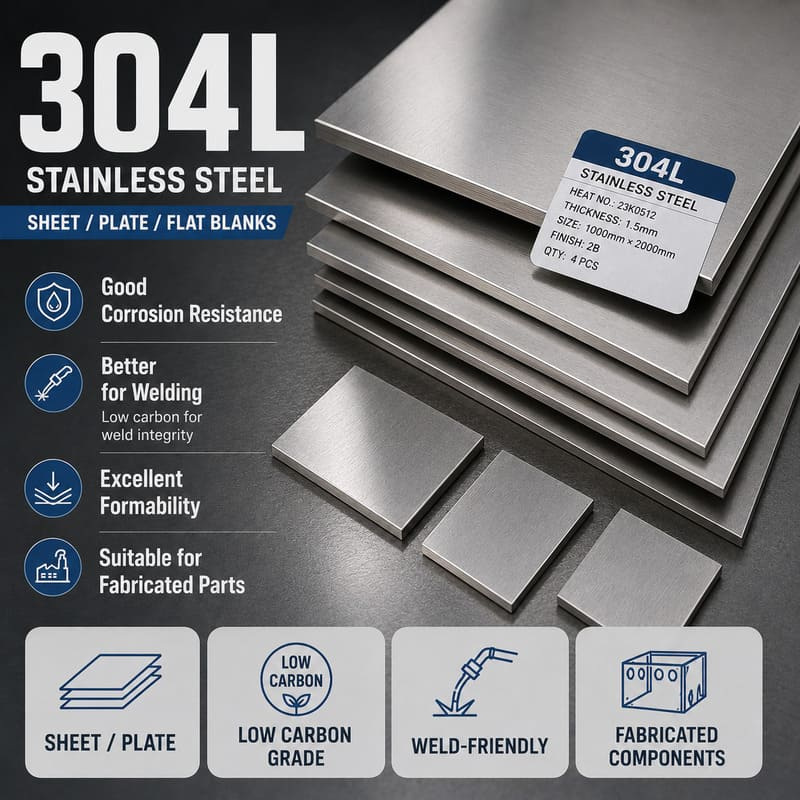

304L Stainless Steel: Properties, Weldability & Applications

What Is 304L Stainless Steel?

304L stainless steel is a low-carbon austenitic stainless steel developed for applications where welding is important and the risk of sensitization in heat-affected regions needs to be reduced.

It is commonly designated:

UNS S30403 / EN 1.4307 / X2CrNi18-9

304L is closely related to 304 stainless steel but limits carbon to:

≤ 0.03%

compared with the higher permitted carbon level in standard 304.

The lower carbon content reduces the tendency for chromium carbides to precipitate at grain boundaries during certain thermal exposures, particularly welding.

This helps preserve corrosion resistance in heat-affected regions when post-weld solution annealing is not practical.

Why Engineers Choose 304L Stainless Steel

304L is commonly selected when the application requires:

• Excellent weldability

• Reduced sensitization risk

• Good general corrosion resistance

• Excellent sheet formability

• Deep drawing capability

• Good fabrication flexibility

• Low-carbon chemistry

• General industrial stainless performance

Typical applications include:

Welded Tanks / Piping / Process Equipment / Sheet-Metal Assemblies / Food-Processing Components / Covers / Housings / Brackets

304L Stainless Steel in One Sentence

304L is the low-carbon version of 304 stainless steel, primarily selected for welded and fabricated components where good corrosion resistance and reduced sensitization risk are important.

Chemical Composition & Properties of 304L Stainless Steel

Chemical Composition

Representative composition limits for UNS S30403 are shown below.

Actual requirements should be confirmed against the applicable product specification.

Role of the Main Alloying Elements

Chromium
Provides the passive chromium-rich surface film responsible for stainless-steel corrosion resistance.

Nickel
Stabilizes the austenitic structure and supports ductility, toughness and formability.

Carbon
304L intentionally restricts carbon to a maximum of 0.03%.

The lower carbon level reduces chromium-carbide precipitation during welding and certain intermediate-temperature exposures.

Why Low Carbon Matters

During exposure to certain temperatures, carbon can combine with chromium to form chromium carbides at grain boundaries.

This can locally reduce chromium concentration near the grain boundary and increase susceptibility to intergranular corrosion.

Lower carbon content reduces this effect.

This is why 304L is commonly preferred for:

Welded Assemblies / Thick Fabrications / Components Without Post-Weld Solution Annealing

Mechanical Properties

304L is normally supplied in the annealed condition for general fabrication.

Representative minimum mechanical properties for common annealed flat products may include:

Exact requirements depend on:

Product Form / Thickness / Specification / Supply Condition

304L vs 304 Mechanical Strength

304L may have slightly lower specified minimum strength than standard 304 because of its lower carbon content.

This distinction is usually not important for general fabricated components, but it should be checked where mechanical strength is tightly specified.

Cold-Worked Properties

304L can be significantly strengthened by cold working.

Cold deformation can increase:

• Yield strength

• Tensile strength

• Hardness

while reducing ductility.

Unlike martensitic grades such as 410 or 420, this strengthening does not require quench hardening.

Typical Physical Properties

*Cold working can increase magnetic response.

Physical values are approximate and vary with temperature and material condition.

Magnetic Behavior

Annealed 304L is generally considered non-magnetic or only weakly magnetic.

However, cold working can transform part of the austenitic structure and increase magnetic response.

Processes such as:

Cold Forming / Deep Drawing / Heavy Bending / Cold Rolling

can therefore cause a finished 304L component to become partially magnetic.

Magnetic attraction alone should not be used as a definitive method for identifying 304L.

Corrosion Resistance & Environmental Performance

304L provides good general corrosion resistance in a wide range of mildly corrosive environments.

Typical environments include:

• Indoor atmospheric service

• Freshwater

• Food-processing environments

• General industrial exposure

• Selected mild chemical environments

• Architectural applications away from severe chloride exposure

General Atmospheric Corrosion

304L performs well in normal indoor and many outdoor atmospheric environments.

A clean, smooth surface generally provides better corrosion performance than a rough or iron-contaminated surface.

Freshwater

304L is suitable for many freshwater applications where chloride concentrations are controlled.

For warm water, stagnant conditions or increasing chloride levels, localized corrosion risk should be evaluated.

Chloride Resistance

304L is not a high-chloride stainless steel.

Chlorides can increase the risk of:

• Pitting

• Crevice corrosion

• Stress-corrosion cracking under suitable conditions

For more demanding chloride exposure, consider:

316 / 316L / 2205 / 2507

depending on severity and mechanical requirements.

Coastal Exposure

304L may be suitable for selected coastal applications with appropriate design and maintenance, but salt deposition increases localized-corrosion risk.

316L is generally a better starting material for more severe coastal exposure.

Seawater

304L is not recommended as a primary material for continuous direct seawater exposure.

For seawater-related service, more highly alloyed stainless steels should normally be evaluated.

Food-Processing Environments

304L is widely used for:

Food Equipment / Tanks / Covers / Frames / Piping Components / Fabricated Assemblies

where the process environment is compatible with the alloy.

For high-chloride products or aggressive cleaning chemicals, 316L may provide a greater corrosion margin.

Mild Chemical Service

304L provides resistance to many mild chemicals, but compatibility depends on:

Chemical Type / Concentration / Temperature / Aeration / Chloride Content / Exposure Time

Material selection should be based on the actual process environment rather than the stainless-steel family name alone.

Sensitization & Intergranular Corrosion

Reduced sensitization risk is one of the defining advantages of 304L.

What Is Sensitization?

Sensitization can occur when stainless steel spends sufficient time within a temperature range that promotes chromium-carbide precipitation at grain boundaries.

This can reduce corrosion resistance adjacent to those grain boundaries.

Why 304L Helps

Because 304L contains less carbon, less chromium is tied up in carbide formation.

This makes 304L less susceptible to sensitization than conventional 304 under comparable thermal exposure.

Important Limitation

Low carbon reduces sensitization risk but does not make 304L immune to every form of corrosion.

Chloride pitting, crevice corrosion and stress-corrosion cracking are separate corrosion mechanisms and still need to be evaluated.

Environmental Suitability

Key Engineering Characteristics

Excellent Weldability

Weldability is one of the primary reasons to choose 304L.

The alloy can be welded using common stainless-steel welding processes, including:

TIG / MIG / Laser Welding / Resistance Welding

depending on component geometry and production requirements.

Reduced Sensitization Risk

The low-carbon composition helps maintain corrosion resistance near weld heat-affected zones.

This is especially useful when the finished assembly cannot be solution annealed after welding.

Excellent Formability

304L provides high ductility and is suitable for:

• Bending

• Roll forming

• Stamping

• Deep drawing

• Stretch forming

• General sheet fabrication

Good General Corrosion Resistance

304L provides a strong balance of:

Corrosion Resistance / Fabrication / Availability / Cost

for many industrial applications.

Strong Work-Hardening Behavior

304L work hardens during cold deformation and machining.

This can increase strength but also affects:

Machining / Drilling / Forming Forces / Springback

Non-Hardenable by Conventional Heat Treatment

304L cannot be hardened by quenching and tempering.

If substantially higher strength is required, consider:

17-4 PH / 2205 Duplex / Another Strength-Focused Stainless Grade

Manufacturing Compatibility of 304L Stainless Steel

304L is one of the most fabrication-friendly stainless steels.

CNC Machining

Compatibility: ✅ Good

304L can be:

Turned / Milled / Drilled / Bored / Threaded

However, machining requires attention to work hardening.

Good practices include:

• Rigid machine setup

• Sharp tooling

• Positive cutting geometry

• Consistent feed

• Adequate depth of cut

• Effective coolant

Work Hardening During Machining

Allowing the cutting tool to rub rather than cut can harden the surface and make subsequent machining more difficult.

Stable cutting engagement is therefore important.

Drilling

Compatibility: ✅ Good

Drilling is widely used, but drills should maintain continuous cutting action to reduce work hardening at the hole surface.

Sheet Metal Processing

Compatibility: ✅ Excellent

304L is highly suitable for:

Laser Cutting / Punching / Bending / Rolling / Forming / Welding / Fabrication

Bending

Compatibility: ✅ Excellent

304L provides high ductility and can accommodate relatively tight bending operations depending on thickness and condition.

Springback should still be considered.

Deep Drawing

Compatibility: ✅ Excellent

304L is suitable for many deep-drawn geometries.

Typical applications include:

Covers / Containers / Housings / Formed Process Components

Stamping

Compatibility: ✅ Excellent

Suitable for both low- and high-volume stamped components.

Welding

Compatibility: ✅ Excellent

304L is particularly valuable for welding-intensive fabrication.

Good welding practice should still control:

• Heat input

• Distortion

• Surface oxidation

• Filler metal selection

• Post-weld cleaning

Forging

Compatibility: ✅

304L can be hot forged and subsequently solution annealed where required.

Grinding

Compatibility: ✅

Grinding can be used for:

Weld Cleanup / Surface Preparation / Edge Finishing / Dimensional Correction

Stainless-dedicated abrasives are preferred to reduce carbon-steel contamination.

Material Condition & Heat Treatment

304L is normally supplied in the annealed condition.

It does not require hardening heat treatment for normal use.

Solution Annealing

A typical solution-annealing range is approximately:

1010–1120°C

followed by sufficiently rapid cooling.

The exact cycle depends on:

Product Form / Section Thickness / Applicable Specification / Desired Condition

Purpose of Solution Annealing

Solution annealing can:

• Restore ductility after cold work

• Dissolve chromium carbides

• Restore a homogeneous austenitic structure

• Support corrosion performance

• Reduce the effects of cold deformation

Can 304L Be Hardened by Heat Treatment?

No.

Heating and quenching will not produce the martensitic hardening response seen in:

410 / 420 / 440C

304L is strengthened primarily through cold work.

Post-Weld Heat Treatment

304L is often selected specifically because many welded assemblies can be used without post-weld solution annealing.

However, whether post-weld thermal treatment is required depends on:

Design Code / Service Environment / Component Thickness / Fabrication Specification

The low-carbon grade should not be interpreted as eliminating all application-specific welding requirements.

304L vs 304 After Welding

The main advantage of 304L becomes most relevant when welding introduces sensitization concerns.

304

Carbon: Up to approximately 0.08%

Provides excellent general-purpose performance.

304L

Carbon: ≤ 0.03%

Reduces chromium-carbide precipitation and sensitization risk.

Selection Principle

For non-welded or lightly welded applications, 304 and 304L may provide very similar corrosion performance.

For extensive welding where no post-weld solution annealing is planned:

304L is often preferred.

Dual-Certified 304 / 304L Material

Commercial stainless steel is sometimes supplied as:

304 / 304L Dual Certified

This means the material chemistry and mechanical properties meet specified requirements for both grade designations.

Dual certification can simplify material sourcing for many projects.

However:

Dual certification should be verified from the actual Mill Test Report rather than assumed.

The drawing, code or purchasing specification should determine whether dual-certified material is acceptable.

Surface Finish Compatibility

304L supports a very wide range of surface finishes.

2B Finish

Compatibility: ✅ Excellent

Widely used for general sheet-metal and industrial components.

Bright Annealed / BA

Compatibility: ✅ Excellent

Provides a smooth, reflective surface commonly used for visible components.

No. 4 / Brushed Finish

Compatibility: ✅ Excellent

Common for:

Food Equipment / Architectural Parts / Appliance Components / Covers

Mechanical Polishing

Compatibility: ✅ Excellent

304L can be polished to a wide range of surface roughness and appearance levels.

Electropolishing

Compatibility: ✅ Excellent

304L can be electropolished to improve:

• Surface smoothness

• Cleanability

• Surface contamination removal

• Appearance

Where chloride resistance is critical, 316L may still be a more suitable base alloy.

Passivation

Compatibility: ✅ Excellent

Passivation after proper cleaning helps remove free iron contamination and supports the passive stainless-steel surface.

Pickling

Compatibility: ✅ Excellent

Pickling can remove:

Heat Tint / Weld Oxides / Scale / Surface Contamination

after thermal processing.

Bead Blasting

Compatibility: ✅ Good

Suitable for a uniform matte appearance.

Media should be controlled to avoid iron contamination.

Laser Marking

Compatibility: ✅ Excellent

Suitable for:

Part Numbers / Serial Numbers / QR Codes / Lot Identification / Traceability

Weld Surface Restoration

Post-weld surface condition is particularly important for stainless-steel corrosion performance.

Welding can produce heat tint and chromium-depleted oxide layers near the surface.

Depending on application requirements, post-weld treatment may include:

Mechanical Cleaning / Pickling / Passivation / Grinding / Polishing

The appropriate method should be selected according to:

Corrosion Environment / Surface Finish / Cleanliness Requirement / Appearance

Common Finish Options

2B ✅ / BA ✅ / No. 4 ✅ / Brushed ✅ / Mechanical Polishing ✅ / Electropolishing ✅ / Passivation ✅ / Pickling ✅ / Bead Blasting ✅ / Laser Marking ✅

Surface Finish Selection Note

For welded 304L components, material grade and surface treatment should be considered together.

A typical fabrication route may be:

Cut → Form → Weld → Remove Heat Tint → Clean / Pickle → Passivate → Final Inspection

where the required corrosion performance and appearance justify these operations.

Typical Applications of 304L Stainless Steel

304L stainless steel is commonly used for welded and fabricated components that require good general corrosion resistance, excellent formability and reduced sensitization risk.

It is particularly useful where fabrication involves significant welding and the completed assembly will not be solution annealed after welding.

Welded Tanks & Vessels

Typical Applications:

Process Tanks / Storage Tanks / Mixing Vessels / Fabricated Containers / Equipment Housings

304L is commonly selected where:

• Extensive welding is required

• General corrosion resistance is sufficient

• Post-weld solution annealing is impractical

• Good sheet formability is needed

For chloride-rich or more aggressive process environments, 316L may provide a better corrosion margin.

Piping & Process Components

Typical Applications:

Piping Sections / Welded Fittings / Process Connections / Fabricated Pipe Components / Supports

304L is useful where welded construction is important and the process environment does not require molybdenum-bearing stainless steel.

Food-Processing Components

Typical Applications:

Food Equipment / Covers / Frames / Guards / Tanks / Fabricated Sheet Components

304L provides a useful combination of:

Corrosion Resistance / Weldability / Formability / Surface Finish Compatibility

For higher chloride levels or aggressive cleaning chemistry, 316L should be evaluated.

Sheet-Metal Enclosures & Housings

Typical Applications:

Equipment Enclosures / Electrical Housings / Panels / Covers / Brackets / Cabinets

304L is well suited to:

Laser Cutting / Punching / Bending / Welding / Grinding / Surface Finishing

Welded Frames & Fabricated Assemblies

Typical Applications:

Frames / Structural Supports / Equipment Bases / Fabricated Brackets / Welded Assemblies

304L is particularly useful where fabrication introduces repeated weld heat-affected zones.

Formed Components

Typical Applications:

Deep-Drawn Parts / Formed Covers / Containers / Curved Panels / Rolled Components

304L retains excellent ductility and is suitable for demanding sheet-forming operations.

General Industrial Components

Typical Applications:

Brackets / Hardware / Covers / Guards / Process Components / Fabricated Machine Parts

304L is often a practical default where:

304-level corrosion resistance + extensive welding

are required together.

When Should You Choose 304L Stainless Steel?

304L is a strong material choice when welding is a major part of the manufacturing route and the general corrosion resistance of the 304 family is sufficient.

Choose 304L When You Need

• Excellent weldability

• Reduced sensitization risk

• Good general corrosion resistance

• Excellent sheet formability

• Deep drawing capability

• Extensive welded fabrication

• Good surface-finish compatibility

• Austenitic stainless performance

• A widely available low-carbon stainless grade

304L Is Especially Suitable When

The Component Has Many Welds

304L is particularly useful for:

Tanks / Frames / Piping / Enclosures / Fabricated Assemblies

where large numbers of welds or significant heat-affected zones are present.

Post-Weld Solution Annealing Is Not Practical

Large fabricated assemblies are often too large or too complex for post-weld solution annealing.

The low-carbon chemistry of 304L helps reduce sensitization risk in these applications.

The Environment Is Mild to Moderately Corrosive

304L works well where the application does not require the chloride resistance of 316L.

Complex Forming Is Required

304L provides excellent ductility for:

Bending / Deep Drawing / Roll Forming / Stamping

The Part Needs Both Welding and Decorative Finishing

304L supports:

Brushed / Polished / Passivated / Pickled / Electropolished

surface conditions.

When Is 304L Not the Best Choice?

304L should not be selected automatically simply because it has an “L” designation.

The low-carbon version is most valuable when the manufacturing route or thermal exposure creates a real sensitization concern.

Consider Another Grade When...

304L Stainless Steel vs Similar Grades

304L vs 304 Stainless Steel

304 and 304L have very similar base chemistry and general corrosion behavior.

The main difference is carbon content.

Choose 304 when:
General corrosion resistance and fabrication capability are required, but extensive welding or sensitization control is not a major concern.

Choose 304L when:
Extensive welding is expected and reduced sensitization risk is important.

CTA:
Compare 304 vs 304L Stainless Steel

304L vs 316L Stainless Steel

Both grades are low-carbon austenitic stainless steels with excellent welding and forming performance.

The main difference is that 316L contains molybdenum.

This improves resistance to chloride-induced pitting and crevice corrosion.

Choose 304L when:
General corrosion resistance is sufficient and cost control is important.

Choose 316L when:
Chloride exposure, aggressive cleaning or a more demanding corrosion environment is expected.

CTA:
Compare 304L vs 316L Stainless Steel

304L vs 321 Stainless Steel

304L controls sensitization primarily through low carbon.

321 controls sensitization through titanium stabilization.

321 is commonly considered where repeated or prolonged exposure to elevated temperatures makes stabilization beneficial.

Choose 304L when:
Weldability and general low-temperature fabrication are the main concerns.

Choose 321 when:
Elevated-temperature service or repeated thermal cycling makes a stabilized austenitic grade more appropriate.

304L vs 304H Stainless Steel

304L and 304H use different carbon strategies.

304L:
Low carbon for reduced sensitization risk.

304H:
Higher controlled carbon for improved elevated-temperature strength.

Choose 304L when:
Weldability and corrosion performance after fabrication dominate.

Choose 304H when:
Elevated-temperature mechanical strength is a primary requirement.

304L vs 303 Stainless Steel

303 is modified with sulfur to improve machinability.

304L provides:

• Better weldability

• Better formability

• Better general corrosion performance

303 provides:

• Better chip control

• Faster machining

• Better machining productivity

Choose 304L when:
Welding, forming and corrosion resistance matter.

Choose 303 when:
High-volume machining dominates the component design.

304L vs 17-4 PH Stainless Steel

304L is a fabrication-focused austenitic grade.

17-4 PH is a high-strength precipitation-hardening stainless steel.

Choose 304L when:
Corrosion resistance, welding and formability are important.

Choose 17-4 PH when:
High yield strength and heat-treated mechanical performance are required.

304 or 304L — Which Should You Choose?

This is one of the most common selection questions within the 304 stainless family.

Choose 304 If:

• Welding is limited

• General corrosion resistance is the main requirement

• The part is primarily machined or formed

• The applicable specification already calls for 304

• Sensitization is not a significant design concern

Choose 304L If:

• The component contains extensive welds

• Post-weld solution annealing is not practical

• Reduced sensitization risk is important

• The drawing or code specifically requires low carbon

• The component is a welded tank, pipe, frame or fabricated assembly

Selection Principle

Do not choose 304L simply because the “L” version sounds more corrosion resistant.

Its main advantage is:

Low Carbon → Reduced Sensitization Risk After Welding

not universally higher corrosion resistance.

When Should You Upgrade from 304L to 316L?

304L and 316L are both excellent welded fabrication grades.

The upgrade to 316L is generally justified when the environment becomes more demanding.

Consider 316L When You Have

• Higher chloride exposure

• Coastal exposure

• Salt-containing process fluids

• More aggressive cleaning chemicals

• Greater pitting or crevice-corrosion risk

• More demanding food or chemical process conditions

Keep 304L When

• The environment is mild

• Chloride levels are low

• General atmospheric or freshwater exposure dominates

• Additional molybdenum is unnecessary

• Cost efficiency matters

Welding Selection

Welding is the central selection advantage of 304L.

Particularly Suitable For

TIG Welding / MIG Welding / Laser Welding / Resistance Welding / Fabricated Sheet Assemblies

Welding Does Not Remove All Corrosion Considerations

Even with low-carbon 304L, welding can still create:

• Heat tint

• Oxide scale

• Surface contamination

• Distortion

• Crevice geometries

Post-weld cleaning and surface restoration may still be required.

Typical Welded Manufacturing Route

Cut → Form → Fit-Up → Weld → Remove Heat Tint → Clean / Pickle → Passivate → Inspect

Formability Selection

304L provides excellent forming capability.

Suitable For

• Bending

• Roll forming

• Deep drawing

• Stamping

• Stretch forming

• Spinning

• General sheet fabrication

Forming Considerations

Cold forming increases:

• Strength

• Hardness

• Springback

• Magnetic response

while reducing ductility.

For severe multi-stage forming, intermediate annealing may be considered where necessary.

Dual-Certified 304 / 304L Selection

304 and 304L are frequently encountered as dual-certified material.

What Does Dual Certified Mean?

Dual-certified material is produced so that:

• Chemistry meets 304L low-carbon requirements

• Mechanical properties satisfy the applicable 304 requirements

where permitted by the specification.

Why It Matters

Dual certification can reduce material inventory and simplify procurement for many general projects.

Important Purchasing Rule

Never assume material is dual certified because a supplier describes it generically as “304/304L.”

Verify the actual:

MTR / Material Standard / Chemical Composition / Mechanical Properties

Standards, Specifications & Material Forms of 304L Stainless Steel

304L is widely available in sheet, plate, strip, bar, tube, pipe and forged forms.

The correct material specification depends on the actual product form.

Common Material Designations

International equivalents should still be verified against the actual product specification.

Common ASTM Specifications

ASTM A240 / A240M

Commonly applies to:

Plate / Sheet / Strip

One of the most relevant specifications for fabricated 304L components.

ASTM A276 / A276M

Commonly applies to:

Bars / Shapes

Relevant for CNC-machined components produced from 304L bar stock.

ASTM A479 / A479M

Commonly applies to:

Bars / Shapes for Pressure-Related Applications

where the applicable grade is specified.

ASTM A312 / A312M

Commonly applies to:

Seamless / Welded / Heavily Cold-Worked Austenitic Stainless Steel Pipe

where TP304L is specified.

ASTM A269 / A269M

Commonly applies to:

Seamless / Welded Austenitic Stainless Steel Tubing

for general service where applicable.

ASTM A182 / A182M

May apply to:

Forged / Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings and Related Components

where the applicable 304L forging grade is specified.

Common European Standards

EN 10088-2

Relevant to:

Sheet / Plate / Strip

EN 10088-3

Relevant to:

Bars / Rods / Sections / Long Products

Additional pipe and tube standards depend on the specific product and application.

Common Material Forms

304L is commonly available as:

Sheet / Plate / Coil / Strip / Round Bar / Flat Bar / Tube / Pipe / Forged Stock / Wire

Sheet & Plate

Commonly used for:

Tanks / Covers / Housings / Panels / Equipment / Welded Fabrications

Tube & Pipe

Commonly used for:

Process Lines / Fluid Handling / Structural Tubing / Fabricated Systems

Round Bar

Commonly used for:

Machined Fittings / Shafts / Fasteners / General CNC Components

Forged Stock

Used for:

Fittings / Flanges / Pressure Components / Larger Mechanical Parts

where the applicable specification permits.

Common Supply Conditions

Depending on product form, 304L may be supplied as:

Solution Annealed / Hot Rolled / Cold Rolled / Cold Drawn / Pickled / Ground / Polished

Common Surface Finishes

Flat-product finishes may include:

2B / BA / No. 4 / Brushed / Polished / Pickled / Custom Finish

Purchasing Specification Note

“304L stainless steel” alone may not provide enough information for a controlled engineering purchase.

Where material performance matters, the drawing or purchase specification should identify:

• Grade

• UNS / EN designation

• Applicable ASTM / EN standard

• Product form

• Dimensions

• Material condition

• Surface finish

• Welding requirements

• Post-weld cleaning requirements

• Material certification

• Heat / lot traceability

• Dual certification requirement if applicable

A controlled flat-product callout may look like:

304L / UNS S30403 / ASTM A240 / 2B Finish / Thickness as Drawing

For piping or forged products, the applicable product specification should replace ASTM A240 accordingly.

304L Stainless Steel Selection Summary

Choose 304L For

Welded Tanks / Piping Components / Food Equipment / Sheet-Metal Assemblies / Enclosures / Frames / Brackets / General Welded Fabrications

Choose 304 When

General-purpose corrosion resistance is required and low-carbon sensitization control is not a major selection factor.

Choose 316L When

Welding is important and higher chloride resistance is also required.

Choose 321 When

A stabilized austenitic grade is needed for repeated or prolonged elevated-temperature exposure.

Choose 303 When

Machining productivity is more important than welding and formability.

Choose 17-4 PH When

High structural strength is a primary requirement.

Final Selection Principle

304L is most valuable when the manufacturing route includes significant welding and the service environment does not require a more highly alloyed stainless steel.

Its core selection logic is:

304-Level General Corrosion Resistance + Low Carbon + Welding + Reduced Sensitization Risk

Material Selection & Engineering Support

Selecting 304L stainless steel should consider the welding route, corrosion environment, product form, surface condition and certification requirements rather than relying only on the grade designation.

304L is particularly useful where welded fabrication is significant and reduced sensitization risk is important.

NAITE TECH can help review whether 304L is appropriate for the drawing, fabrication route and operating environment, or whether another stainless steel grade should be considered.

Material Grade Review

304L can be reviewed against application requirements such as:

• Welding intensity

• Sensitization concerns

• General corrosion resistance

• Chloride exposure

• Sheet-forming requirements

• Deep drawing

• CNC machining

• Surface finish

• Post-weld cleaning

• Product form

• Applicable ASTM / EN specification

• Dual-certification requirement

• Material certification

• Heat / lot traceability

Where another stainless steel grade provides a better fit, typical alternatives include:

General-Purpose Stainless → 304

Higher Chloride Resistance + Welding → 316L

Higher Machining Productivity → 303

Stabilized Elevated-Temperature Service → 321

Higher Structural Strength → 17-4 PH

High Strength + Chloride Resistance → 2205 Duplex

Welding Specification Review

Welding is one of the most important reasons to specify 304L.

The low-carbon composition helps reduce chromium-carbide precipitation and sensitization in heat-affected regions.

Important welding considerations may include:

• Welding process

• Joint design

• Material thickness

• Filler metal

• Heat input

• Weld sequence

• Distortion

• Heat tint

• Post-weld cleaning

• Corrosion environment

Typical Welding Processes

304L can be welded using processes such as:

TIG / MIG / Laser Welding / Resistance Welding

depending on geometry, thickness and project requirements.

Low Carbon Does Not Eliminate Welding Controls

304L provides reduced sensitization risk, but welding can still create:

• Heat tint

• Oxide scale

• Distortion

• Surface contamination

• Crevice geometry

• Residual stress

The complete fabrication route should therefore be reviewed together with the material grade.

Post-Weld Surface Review

Post-weld surface condition can affect stainless-steel corrosion performance.

Heat tint and welding oxides may reduce local surface corrosion resistance.

Depending on project requirements, post-weld treatment may include:

Mechanical Cleaning / Grinding / Pickling / Passivation / Polishing

Typical Fabrication Route

A common route for fabricated 304L components may be:

Cut

↓

Form

↓

Fit-Up

↓

Weld

↓

Remove Heat Tint

↓

Clean / Pickle

↓

Passivate

↓

Final Inspection

The exact sequence depends on:

Surface Requirement / Corrosion Environment / Weld Condition / Appearance Requirement

Sensitization Review

304L is selected partly because its low carbon content reduces sensitization risk.

Key Selection Question

The engineering review should consider:

Will the component experience sufficient welding or thermal exposure for sensitization control to matter?

If yes, 304L may be more appropriate than standard 304.

If no, both grades may provide very similar general corrosion performance.

Important Limitation

Reduced sensitization risk does not mean improved resistance to every corrosion mechanism.

304L can still be susceptible to:

Pitting / Crevice Corrosion / Chloride Stress-Corrosion Cracking

under suitable environments.

Corrosion Environment Review

304L provides good general corrosion resistance but is not intended for severe chloride exposure.

Important environmental factors include:

• Chloride concentration

• Temperature

• Moisture exposure

• Coastal salt

• Cleaning chemicals

• Process chemistry

• Surface deposits

• Crevice geometry

• Weld condition

Typical Selection Direction

General Atmospheric / Freshwater / Mild Process → 304L may be appropriate

Higher Chloride Exposure → Consider 316L

High Strength + Chloride Exposure → Consider 2205 Duplex

Severe Chloride / Seawater → Consider 2507 or another higher-alloy grade

304L vs 304 Review

304 and 304L are closely related.

The main selection difference is carbon content.

304

UNS S30400

General-purpose austenitic stainless steel.

304L

UNS S30403

Low-carbon version intended to reduce sensitization risk.

Selection Principle

Do not assume that 304L provides universally higher base-metal corrosion resistance.

The main engineering benefit is:

Low Carbon → Lower Sensitization Risk During Welding

304L vs 316L Review

Both grades are low-carbon austenitic stainless steels.

304L provides excellent general fabrication performance.

316L adds molybdenum and provides better resistance to chloride-induced pitting and crevice corrosion.

Choose 304L When

• General corrosion resistance is sufficient

• Welding is important

• Chloride exposure is limited

• Cost control matters

Consider 316L When

• Chlorides are significant

• Coastal exposure is important

• Aggressive cleaning chemistry is used

• Greater localized-corrosion resistance is required

Dual Certification Review

304L is often encountered as:

304 / 304L Dual Certified

but dual certification should never be assumed.

What Should Be Checked?

The actual Mill Test Report should confirm:

• Material grade

• UNS designation

• Chemical composition

• Mechanical properties

• Applicable material specification

• Dual-certification status where required

Purchasing Note

If dual certification is required by the project, it should be identified explicitly in the purchasing specification.

Specification Review

For controlled projects, material and fabrication requirements can be reviewed together with:

• 304L / UNS S30403

• EN 1.4307 where applicable

• Applicable ASTM / EN standard

• Product form

• Dimensions

• Material condition

• Surface finish

• Welding requirement

• Post-weld cleaning requirement

• Corrosion environment

• Dual-certification requirement

• Material certification

• Heat / lot traceability

The engineering drawing and purchasing specification should take precedence over general website reference data.

Material Quality & Traceability for 304L Stainless Steel

For controlled welded and fabricated components, material identity and documentation may be required throughout production.

Material Grade Verification

The specified grade can be checked against project requirements before production.

Typical identification may include:

304L / UNS S30403 / EN 1.4307

Where dual-certified 304 / 304L material is required, that status should be confirmed from the actual material documentation.

Mill Test Reports

Mill Test Reports can be supplied for applicable materials and projects where certification is required.

Depending on the product and source, an MTR may include:

• Material grade

• Heat number

• Chemical composition

• Mechanical properties

• Product specification

• Product form

• Material condition

• Dimensions

Important Low-Carbon Check

For 304L, the MTR can be used to confirm that carbon content complies with the applicable low-carbon requirement.

Dual-Certification Verification

Where 304 / 304L dual certification is required, documentation should be reviewed for compliance with both specified grade requirements.

The material should not be described as dual certified unless supported by the actual certification.

Heat & Lot Traceability

Heat, lot or batch information can be maintained where traceability requirements apply.

This may be relevant for:

• Welded process equipment

• Tanks

• Piping components

• Food-processing equipment

• Repeat production

• Controlled material specifications

• Customer-approved material sources

Incoming Material Inspection

Incoming 304L material can be checked for:

• Material identification

• Product form

• Dimensions

• Surface condition

• Material condition

• Surface finish

• Visible defects

• Certification

• Heat number

For appearance-sensitive flat products, protective film and finish direction may also require verification.

PMI & Additional Material Verification

Where additional alloy verification is required, Positive Material Identification or another agreed verification method may be considered.

The method, acceptance criteria and documentation should be agreed before production.

Important:
PMI can help verify alloy chemistry but does not confirm:

• Low-carbon certification by itself

• Mechanical properties

• Surface condition

• Sensitization resistance

• Complete material conformity

The MTR and applicable material specification remain important.

Weld Inspection & Surface Review

For welded components, inspection may include:

• Weld location

• Weld appearance

• Surface oxidation

• Heat tint

• Distortion

• Weld cleanup

• Surface restoration

• Dimensional condition

Additional weld inspection should follow the drawing, applicable code or agreed inspection plan.

Final Dimensional Inspection

Final inspection may include:

• Overall dimensions

• Hole position

• Bend dimensions

• Flatness

• Welded assembly dimensions

• Formed geometry

• Interface features

• Surface condition

Where welding causes distortion, final dimensional requirements should be checked after fabrication is complete.

Documentation Support

Depending on project requirements, supporting documentation may include:

Material Certificate / MTR / CoC / Heat or Lot Records / Incoming Inspection Records / Weld Inspection Records / Dimensional Inspection Reports / Surface Inspection Records / Additional Agreed Quality Documentation

Quality & Traceability Note

For 304L, material identity and welding-related requirements should be controlled separately where both are critical.

The material certificate confirms the supplied alloy and low-carbon chemistry.

The fabrication and inspection records confirm how the finished component was produced and verified.

If a project requires:

Dual Certification / Specific ASTM or EN Standard / Heat Traceability / Post-Weld Cleaning / Surface Finish

these requirements should be identified during quotation.

Technical References

The technical information on this page is intended for engineering reference and preliminary material selection.

Final material, welding and corrosion requirements should be verified against the specification applicable to the actual product form and application.

ASTM International

ASTM A240 / A240M
Stainless steel plate, sheet and strip.

ASTM A276 / A276M
Stainless steel bars and shapes.

ASTM A312 / A312M
Austenitic stainless steel pipe where TP304L is specified.

ASTM A269 / A269M
Austenitic stainless steel tubing for applicable general-service applications.

ASTM A182 / A182M
Forged and rolled stainless steel flanges, fittings and related products where the applicable 304L grade is specified.

European Standards

EN 10088-2
Relevant to sheet, plate and strip.

EN 10088-3
Relevant to bars, rods, sections and long products.

Material Designations

AISI / ASTM Type: 304L

UNS: S30403

EN Material Number: 1.4307

EN Designation: X2CrNi18-9

JIS: SUS 304L

Additional Technical References

Material, welding and corrosion information may also be reviewed against technical data published by:

• ASTM International

• British Stainless Steel Association

• World Stainless

• Major stainless steel producers

• Applicable welding codes

• Customer or industry standards

Technical Note

General material data should not replace application-specific engineering assessment where corrosion, pressure, fatigue, welding qualification, sanitary performance or safety requirements are critical.
