410 Stainless Steel: Properties, Heat Treatment & Applications

What Is 410 Stainless Steel?

410 stainless steel is a martensitic stainless steel designed to provide a practical combination of mechanical strength, hardness and moderate corrosion resistance.

It is commonly designated:

UNS S41000 / EN 1.4006 / X12Cr13

Compared with austenitic stainless steels such as 304 and 316L, 410 contains less alloying nickel and develops a martensitic microstructure after appropriate heat treatment.

This allows 410 to be strengthened through:

Austenitizing → Quenching → Tempering

The final balance of strength, hardness and toughness depends strongly on the selected heat-treatment condition.

Why Engineers Choose 410 Stainless Steel

410 is commonly selected when the application requires:

• Heat-treatable mechanical strength

• Moderate hardness

• Good general mechanical performance

• Useful wear resistance

• Precision machining capability

• Magnetic behavior

• Moderate stainless-steel corrosion resistance

• Better toughness than higher-carbon martensitic grades in many conditions

It is particularly suitable for shafts, valve components, pump parts, fasteners and general mechanical hardware.

410 Stainless Steel in One Sentence

410 is a general-purpose heat-treatable martensitic stainless steel used when strength, toughness and moderate corrosion resistance are more important than maximum hardness or chloride resistance.

Chemical Composition & Properties of 410 Stainless Steel

Chemical Composition

Representative composition limits for UNS S41000 are shown below.

Actual composition requirements should be confirmed against the applicable product specification.

Role of the Main Alloying Elements

Chromium
Provides basic stainless-steel corrosion resistance and contributes to hardenability.

Carbon
Allows formation of martensite during hardening and contributes to mechanical strength and hardness.

410 contains less carbon than higher-hardness martensitic grades such as 420 and 440C.

This is one reason 410 generally provides a more moderate balance of:

Strength + Hardness + Toughness

rather than maximum hardness.

Mechanical Properties — Annealed Condition

Representative annealed mechanical properties may fall approximately within:

These values are representative only.

Actual requirements vary with:

Product Form / Section Size / Material Condition / Applicable Standard

Hardened & Tempered Properties

After hardening and tempering, 410 can achieve substantially higher:

• Tensile strength

• Yield strength

• Hardness

The final values depend on:

Austenitizing Temperature / Quench Method / Tempering Temperature / Section Size

Typical hardened 410 components may reach approximately:

30–45 HRC

depending on heat treatment and material condition.

410 should therefore not be assigned one universal hardness value.

Typical Physical Properties

Physical properties are approximate and vary with temperature and material condition.

Thermal Expansion

410 has a lower coefficient of thermal expansion than austenitic grades such as 304 or 316L.

This can be useful for mechanical components exposed to dimensional changes with temperature.

However, dimensional change caused by martensitic heat treatment must be considered separately.

Corrosion Resistance & Environmental Performance

410 provides moderate corrosion resistance for a heat-treatable martensitic stainless steel.

Its corrosion performance is generally suitable for:

• Dry atmospheric environments

• Mild industrial environments

• Selected freshwater exposure

• Clean mechanical equipment

• Low-aggressiveness process conditions

It does not provide the same corrosion resistance as 304, 316 or 316L.

General Atmospheric Corrosion

410 performs well in many clean indoor and atmospheric environments.

A smooth, clean surface generally provides better corrosion performance than a rough or contaminated surface.

Freshwater Exposure

410 can be used in selected freshwater applications where chloride levels are relatively low.

Suitability depends on:

• Chloride concentration

• Temperature

• Exposure duration

• Surface finish

• Crevice geometry

• Flow conditions

For continuous wet service or higher chloride levels, 304 or 316L may provide a better corrosion margin.

Chloride Resistance

410 is not primarily selected for chloride resistance.

Exposure to:

Salt Spray / Coastal Atmospheres / Seawater / Chloride Cleaning Solutions

can increase the risk of:

• Pitting

• Crevice corrosion

• Surface staining

Where chloride exposure is important, consider:

316L / 2205 / 2507

depending on the required corrosion and strength level.

Marine Applications

410 can be used in selected mechanical applications near marine environments, but it should not be described as a general-purpose marine stainless steel.

Continuous seawater exposure is normally better addressed with more highly alloyed stainless steels.

Chemical Resistance

410 can resist selected mild chemicals but should not be positioned as a chemical-processing stainless steel.

For more aggressive chemical service, grades such as:

316L / 904L

or another higher-alloy corrosion-resistant material may be more appropriate.

Effect of Heat Treatment on Corrosion Resistance

Heat treatment can influence corrosion performance because chromium and carbon can form carbides during thermal processing.

Incorrect heat treatment may reduce the amount of chromium available in the surrounding matrix.

Proper hardening, tempering and surface finishing are therefore important for maintaining useful corrosion resistance.

Environmental Suitability

Key Engineering Characteristics

Heat-Treatable Mechanical Strength

The ability to develop higher mechanical strength through conventional heat treatment is one of the principal advantages of 410.

Compared with annealed 304 or 316L, hardened and tempered 410 can provide substantially higher:

• Yield strength

• Tensile strength

• Hardness

Strength + Toughness Balance

410 should generally be viewed as a mechanical engineering martensitic grade rather than an extreme-hardness grade.

Compared with 420:

410 → More General Strength / Toughness Balance

420 → Higher Hardness / Wear Resistance

This distinction is important for shafts, valves and other mechanically loaded components.

Useful Wear Resistance

Heat-treated 410 provides useful resistance to:

• Sliding contact

• Surface deformation

• Moderate abrasive wear

• Repeated mechanical contact

Where wear resistance dominates the design requirement, 420 or 440C should be evaluated.

Magnetic Material

410 is magnetic in both annealed and heat-treated conditions.

This is normal behavior for martensitic stainless steel.

Moderate Corrosion Resistance

410 provides more corrosion resistance than many ordinary carbon and alloy steels but substantially less than highly corrosion-resistant austenitic or duplex stainless steels.

Limited Formability

Formability is best in the annealed condition.

After hardening, ductility decreases significantly.

Controlled Weldability

410 can be welded, but welding is more demanding than with austenitic grades.

The martensitic heat-affected zone can become hard and crack-sensitive.

Preheating and post-weld heat treatment may therefore be required.

Manufacturing Compatibility of 410 Stainless Steel

410 is well suited to CNC machining and mechanical component production when machining and heat treatment are planned together.

CNC Machining

Compatibility: ✅ Good

410 can be:

Turned / Milled / Drilled / Tapped / Threaded / Bored

The annealed condition is generally preferred when significant material removal is required.

Machining Behavior

410 is generally more straightforward to machine in the annealed condition than after hardening.

Important machining factors include:

• Machine rigidity

• Sharp tooling

• Stable cutting engagement

• Adequate coolant

• Chip evacuation

• Heat-treatment allowance

Recommended Manufacturing Sequence

For many precision mechanical components:

Annealed Material

↓

Rough Machining

↓

Semi-Finish Machining

↓

Hardening

↓

Tempering

↓

Finish Machining / Grinding

↓

Surface Finishing

This allows most machining to occur before final hardness is developed.

Turning

Compatibility: ✅ Good

410 round bar is commonly used for:

Shafts / Pins / Bushings / Valve Stems / Pump Components / Mechanical Hardware

Drilling & Tapping

Compatibility: ✅ Good Before Hardening

Drilling, tapping and threading are normally easier before final heat treatment.

Hardened material increases:

Tool Wear / Cutting Force / Heat Generation

Grinding

Compatibility: ✅ Excellent

Precision grinding is particularly useful after heat treatment.

Common ground features include:

• Shaft diameters

• Bearing surfaces

• Valve stems

• Pins

• Precision cylindrical surfaces

Forging

Compatibility: ✅

410 can be hot forged using controlled temperature and cooling procedures.

Forged components commonly require annealing or subsequent hardening and tempering before final use.

Sheet Metal Processing

Compatibility: ⚠ Application Dependent

410 sheet and plate can be laser cut and fabricated.

However, the grade is not intended for extensive sheet-metal fabrication in the same way as 304 or 316L.

Bending & Forming

Compatibility: ⚠ Limited

Simple bending and forming can be performed in the annealed condition.

Complex forming or deep drawing is generally better suited to austenitic stainless steels.

Welding

Compatibility: ⚠ Procedure Controlled

410 can be welded, but precautions are commonly required because of martensitic hardening in the weld and heat-affected zone.

Depending on thickness and application, controls may include:

• Preheating

• Low-hydrogen procedure

• Controlled interpass temperature

• Slow cooling

• Post-weld heat treatment

For fabrication-intensive structures, 304L or 316L is usually easier to process.

Material Condition & Heat Treatment

Heat treatment directly controls the mechanical performance of 410 stainless steel.

Annealing

Annealing is used to reduce hardness and improve machinability.

A typical annealing range may be approximately:

815–900°C

followed by controlled slow cooling.

Exact treatment depends on section size and applicable specification.

Hardening / Austenitizing

410 is commonly hardened by heating into approximately:

925–1010°C

followed by suitable quenching.

During austenitizing, sufficient carbon and chromium enter solution to enable martensite formation during cooling.

Quenching

Depending on:

• Component geometry

• Section size

• Distortion sensitivity

• Heat-treatment specification

quenching may use:

Oil / Air / Controlled Gas

The objective is to develop the martensitic structure required for increased strength and hardness.

Tempering

Tempering is required after hardening to establish the final balance between:

Strength / Hardness / Toughness / Residual Stress

Lower tempering temperatures generally retain more hardness.

Higher tempering temperatures generally reduce hardness while improving toughness.

High-Strength Condition

For applications requiring relatively high strength and hardness, a lower tempering range may be selected.

Typical applications can include:

Pins / Shafts / Wear Components / Mechanical Hardware

Toughness-Oriented Condition

Higher tempering temperatures can be used where:

• Greater toughness

• Reduced residual stress

• Lower hardness

are preferred.

This can be useful for mechanically loaded parts subject to impact or cyclic loads.

Tempering Range Caution

Certain intermediate tempering ranges can result in an undesirable reduction in impact toughness or corrosion performance.

Heat-treatment temperatures should therefore be selected from the applicable material or heat-treatment specification rather than chosen only from a generic hardness chart.

Heat-Treatment Distortion

Quenching involves a phase transformation and can cause:

• Dimensional change

• Warpage

• Residual stress

For tight-tolerance components, production planning should include:

Heat-Treatment Allowance + Grinding Allowance + Final Inspection

Can 410 Be Heat Hardened?

Yes.

This is one of the main differences between 410 and austenitic grades such as:

304 / 304L / 316 / 316L

which cannot be conventionally hardened by quenching and tempering.

410 vs 420 Heat-Treatment Behavior

Both grades are martensitic and use broadly similar:

Austenitize → Quench → Temper

heat-treatment routes.

The main selection difference is the property target.

410

Primary target:

Mechanical Strength + Toughness + Moderate Hardness

420

Primary target:

Higher Hardness + Wear Resistance

420's higher carbon content generally allows greater achievable hardness.

410 vs 17-4 PH Heat Treatment

Although both grades can be strengthened by heat treatment, their strengthening mechanisms are different.

410 Stainless Steel

Austenitize → Quench → Temper

Martensitic hardening.

17-4 PH Stainless Steel

Solution Treat → Age

Precipitation hardening.

17-4 PH is usually selected for higher structural strength and more controlled dimensional response during final aging.

410 is a simpler general-purpose martensitic engineering grade.

Surface Finish Compatibility

410 supports a wide range of mechanical and chemical finishing operations.

Surface condition can influence both corrosion resistance and mechanical performance.

Machined Finish

Compatibility: ✅ Excellent

A machined finish is common for:

Shafts / Pins / Fittings / Valve Parts / Pump Components

Precision Grinding

Compatibility: ✅ Excellent

Grinding is particularly useful after hardening when tight dimensions or controlled functional surfaces are required.

Mechanical Polishing

Compatibility: ✅ Excellent

410 can be polished to improve:

• Surface smoothness

• Appearance

• Cleanability

• Corrosion performance

Passivation

Compatibility: ✅ Good

410 can be passivated after proper cleaning.

Passivation removes free iron and surface contamination and supports the naturally passive chromium-rich surface.

It does not make 410 equivalent to 304 or 316L in aggressive corrosion environments.

Pickling

Compatibility: ✅ / Evaluate

Pickling can remove heat-treatment scale and welding oxides.

Acid chemistry and process time should be properly controlled.

Bead Blasting

Compatibility: ✅ Good

Suitable for producing a uniform matte surface.

Dedicated stainless media should be used where contamination control matters.

Laser Marking

Compatibility: ✅ Excellent

Suitable for:

Part Number / Serial Number / Material Identification / Lot Traceability / Logo

Electropolishing

Compatibility: ⚠ Evaluate

Electropolishing is possible but is not normally the primary finishing route for 410 mechanical components.

For highly sanitary or corrosion-critical electropolished applications, 316L is generally a better starting material.

Common Finish Options

Machined Finish ✅ / Precision Grinding ✅ / Mechanical Polishing ✅ / Passivation ✅ / Pickling ✅ / Bead Blasting ✅ / Laser Marking ✅ / Electropolishing ⚠

Surface Finish Selection Note

For heat-treated precision components, the surface-finishing sequence should be coordinated with hardening and tempering.

A practical route may be:

Machine → Harden → Temper → Finish Grind → Polish → Clean / Passivate

This allows final dimensions and functional surfaces to be controlled after heat-treatment distortion has occurred.

Typical Applications of 410 Stainless Steel

410 stainless steel is commonly used for mechanical components that require heat-treatable strength, moderate hardness and useful corrosion resistance.

It is particularly suitable for parts that can be machined in the annealed condition and subsequently hardened and tempered to achieve the required mechanical properties.

Shafts & Pins

Typical Applications:

Drive Shafts / Pump Shafts / Valve Shafts / Pivot Pins / Guide Pins / Precision Mechanical Shafts

410 is commonly selected for shafts where:

• Higher strength than annealed 304 is required

• Moderate wear resistance is useful

• Magnetic behavior is acceptable

• Severe chloride exposure is not expected

For tight shaft tolerances, finish grinding after heat treatment may be appropriate.

Valve Components

Typical Applications:

Valve Stems / Valve Hardware / Seats / Mechanical Valve Components / Actuator Parts

410 provides a useful balance of:

Strength / Hardness / Moderate Corrosion Resistance / Machinability

This makes it suitable for mechanically loaded valve components in relatively mild corrosion environments.

For aggressive process fluids or chloride-rich service, 316L or a duplex grade may be more appropriate.

Pump Components

Typical Applications:

Pump Shafts / Sleeves / Mechanical Hardware / Retaining Components / Internal Pump Parts

Heat-treated 410 can provide higher mechanical strength than standard austenitic stainless steels.

Actual material selection should consider both mechanical loading and fluid chemistry.

Fasteners & Mechanical Hardware

Typical Applications:

Bolts / Screws / Studs / Pins / Retainers / Mechanical Fasteners / Adjustment Hardware

410 can be used where fasteners require heat-treatable mechanical properties but do not need the corrosion resistance of 316 or 316L.

Bushings & Sleeves

Typical Applications:

Bushings / Sleeves / Guide Components / Spacers / Mechanical Supports

410 can provide useful wear performance while retaining better corrosion resistance than many conventional carbon steels.

Where substantially higher wear resistance is required, 420 or 440C should be evaluated.

Precision Mechanical Components

Typical Applications:

Couplings / Retainers / Fittings / Actuator Components / Instrument Hardware / Machine Components

410 is especially useful for parts requiring a production route such as:

CNC Machining → Heat Treatment → Finish Grinding

Turbine & Energy-Related Components

410 and related martensitic stainless steels are used in selected turbine and energy-related mechanical applications where strength, corrosion resistance and heat-treatment response are important.

Application-specific requirements should follow the applicable material and industry specification rather than relying on general grade data alone.

General Industrial Components

Typical Applications:

Machine Hardware / Structural Mechanical Parts / High-Strength Fittings / Equipment Components / Wear-Contact Hardware

410 is often a practical choice where a general heat-treatable stainless steel is needed without the higher alloy cost of 316L or 17-4 PH.

When Should You Choose 410 Stainless Steel?

410 is a strong material choice when the component requires more mechanical strength and hardness than austenitic stainless steel can provide, but does not require the higher hardness of 420 or the very high strength of 17-4 PH.

Choose 410 When You Need

• Heat-treatable mechanical strength

• Moderate hardness

• Good general toughness

• Useful wear resistance

• CNC machining before hardening

• Precision grinding after heat treatment

• Moderate corrosion resistance

• Magnetic stainless steel

• General-purpose martensitic stainless performance

410 Is Especially Suitable When

The Component Requires Strength More Than Maximum Corrosion Resistance

410 is appropriate for mechanically loaded parts operating in relatively mild corrosion environments.

You Need a General Heat-Treatable Stainless Steel

Compared with 420, 410 is less focused on maximum hardness and more focused on a broader mechanical property balance.

The Part Will Be Machined Before Final Heat Treatment

Annealed 410 is suitable for:

Turning / Milling / Drilling / Threading / Boring

before hardening and tempering.

Final Grinding Is Part of the Production Route

410 works well for shafts and precision cylindrical parts that require dimensional correction after heat treatment.

Selecting the Right 410 Heat-Treatment Condition

410 does not have one fixed set of mechanical properties.

The final condition should be selected according to the required:

Strength / Hardness / Toughness / Wear Resistance / Distortion Control

Annealed Condition

Selection Intent:
Machining / Limited Forming Before Final Heat Treatment

Choose annealed material when substantial machining is required.

Higher-Strength Condition

Selection Intent:
Mechanical Strength + Moderate Hardness

Lower tempering temperatures generally retain more strength and hardness.

Suitable for:

Shafts / Pins / Fasteners / Mechanical Hardware

Toughness-Oriented Condition

Selection Intent:
Improved Toughness + Reduced Hardness

Higher tempering temperatures can reduce hardness while improving toughness.

Suitable for components exposed to:

Impact / Cyclic Loading / Mechanical Shock / Larger Section Sizes

Heat-Treatment Selection Note

Do not automatically specify the highest achievable hardness.

The correct condition should balance:

Strength + Toughness + Wear + Corrosion + Dimensional Control

Consider Another Grade When...

410 Stainless Steel vs Similar Grades

410 vs 420 Stainless Steel

Both grades are heat-treatable martensitic stainless steels.

420 generally contains more carbon and can achieve higher hardness and wear resistance.

410 is more commonly selected for a broader balance of:

Strength / Toughness / Machinability / Moderate Hardness

Choose 410 when:
General mechanical strength and toughness are more important.

Choose 420 when:
Higher hardness and wear resistance are the primary requirements.

CTA:
Compare 410 vs 420 Stainless Steel

410 vs 416 Stainless Steel

410 and 416 are both martensitic stainless steels that can be hardened by heat treatment.

416 contains sulfur additions that significantly improve machinability.

The trade-off is generally lower corrosion resistance and reduced welding capability.

Choose 410 when:
General corrosion resistance and mechanical balance are more important.

Choose 416 when:
Machining productivity is a major requirement.

CTA:
Compare 410 vs 416 Stainless Steel

410 vs 17-4 PH Stainless Steel

Both grades can achieve significantly higher strength than annealed austenitic stainless steels.

410 develops strength through:

Austenitizing → Quenching → Tempering

17-4 PH develops strength through:

Solution Treatment → Aging

17-4 PH can generally achieve substantially higher yield strength while maintaining good toughness and useful corrosion resistance.

Choose 410 when:
A cost-effective heat-treatable martensitic engineering grade is sufficient.

Choose 17-4 PH when:
Very high strength and more controlled final mechanical properties are required.

CTA:
Compare 410 vs 17-4 PH Stainless Steel

410 vs 304 Stainless Steel

410 can be hardened to substantially higher strength and hardness.

304 provides better general corrosion resistance, formability and weldability.

Choose 410 when:
Heat-treated mechanical strength is important.

Choose 304 when:
Corrosion resistance and fabrication flexibility are more important.

410 vs 316L Stainless Steel

410 provides heat-treatable strength and hardness.

316L provides much better chloride corrosion resistance and welding performance.

Choose 410 when:
The component is primarily a mechanical part used in a mild environment.

Choose 316L when:
The component is exposed to chloride-containing, chemical or welded corrosion-sensitive service.

410 vs 440C Stainless Steel

410 and 440C are both martensitic stainless steels, but 440C contains substantially more carbon.

440C can achieve much higher hardness and is commonly selected for:

Bearings / Precision Wear Parts / Very High Hardness Applications

410 provides better toughness and a less extreme hardness level.

Choose 410 when:
General mechanical strength and toughness are sufficient.

Choose 440C when:
Maximum hardness and wear resistance dominate the design.

Standards, Specifications & Material Forms of 410 Stainless Steel

410 is available in a wide range of product forms, including bar, plate, sheet and forged stock.

The applicable material standard should match the actual product form.

Common Material Designations

Equivalent designations should still be checked against the applicable product specification before controlled purchasing.

Common ASTM Specifications

ASTM A276 / A276M

Commonly applies to:

Bars / Shapes

This is relevant for many CNC-machined 410 components produced from bar stock.

ASTM A479 / A479M

Commonly applies to:

Stainless steel bars and shapes used for boiler and pressure-vessel applications.

ASTM A240 / A240M

Commonly applies to:

Plate / Sheet / Strip

where Type 410 is included by the applicable flat-product specification.

ASTM A182 / A182M

Depending on product and application, martensitic stainless forgings may be specified under applicable pressure-system forging requirements.

The exact grade and class should be confirmed from the controlled project specification.

Common European Standards

EN 10088-2

Relevant to:

Sheet / Plate / Strip

EN 10088-3

Relevant to:

Bars / Rods / Sections / Long Products

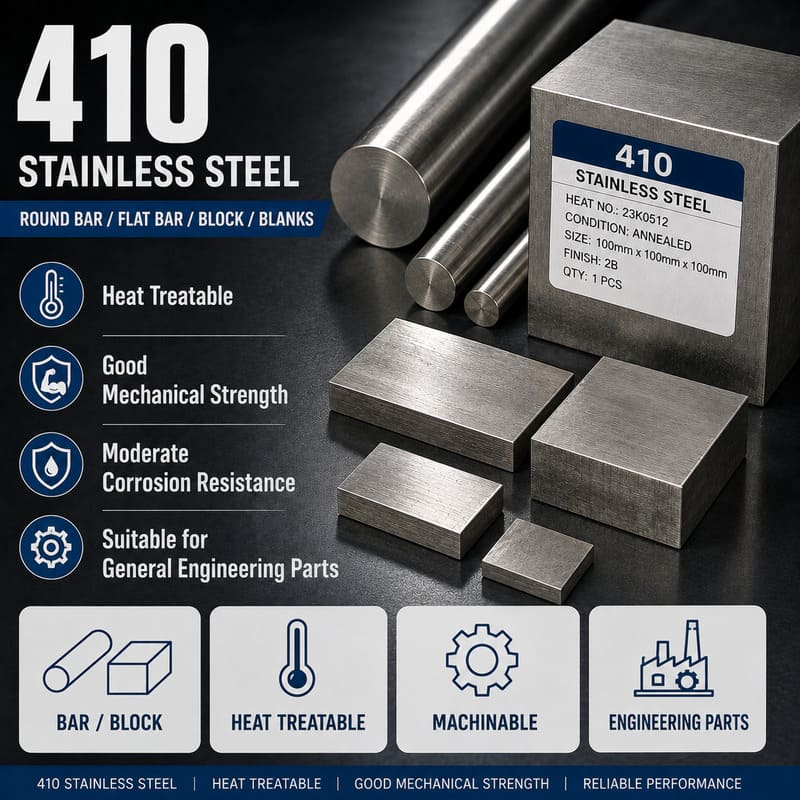

Common Material Forms

410 is commonly available as:

Round Bar / Flat Bar / Square Bar / Plate / Sheet / Strip / Forged Stock / Billet / Precision Ground Bar

Round Bar

Commonly used for:

Shafts / Pins / Valve Stems / Bushings / Fasteners / CNC Components

Flat Bar & Plate

Commonly used for:

Milled Mechanical Parts / Structural Components / Valve Hardware / Equipment Components

Sheet & Strip

Used for selected martensitic stainless applications.

410 should not be treated as a primary general-purpose sheet-metal grade.

Forged Stock

Commonly used for:

Larger Shafts / Valve Components / Pump Components / High-Load Mechanical Parts

Common Material Conditions

410 may be supplied as:

Annealed / Soft Annealed / Hardened / Hardened & Tempered / Cold Finished / Ground

For machining-intensive parts, annealed material is generally the most practical starting condition.

Surface Conditions

Depending on product form, common conditions can include:

Hot Rolled / Cold Drawn / Peeled / Turned / Ground / Polished

Precision ground bar is useful for components requiring controlled starting diameter or surface condition.

Purchasing Specification Note

“410 stainless steel” alone may not provide enough information for a controlled engineering purchase.

Where mechanical properties are important, drawings or purchasing documents should identify:

• Grade

• UNS / EN designation

• Applicable material standard

• Product form

• Dimensions

• Starting material condition

• Required final hardness

• Heat-treatment requirement

• Tempering requirement

• Mechanical-property requirements

• Surface condition

• Grinding allowance

• Material certification

• Heat / lot traceability

• Heat-treatment certification

A more complete specification may look like:

410 / UNS S41000 / ASTM A276 / Annealed / Heat Treat to XX–XX HRC

where the final hardness range is defined according to the actual component requirement.

410 Stainless Steel Selection Summary

Choose 410 For

Shafts / Pins / Valve Components / Pump Components / Fasteners / Bushings / General Mechanical Components / Heat-Treated CNC Parts

Choose 420 When

Higher hardness and wear resistance are required.

Choose 416 When

Machining productivity is more important.

Choose 17-4 PH When

Substantially higher structural strength is required.

Choose 304 When

General corrosion resistance, forming and welding are more important.

Choose 316L When

Chloride corrosion resistance and welded service dominate the selection.

Choose 440C When

Very high hardness and wear resistance are the primary requirements.

Material Selection & Engineering Support

Selecting 410 stainless steel should consider the required mechanical strength, hardness, toughness, corrosion environment and final heat-treatment condition rather than the grade designation alone.

For precision mechanical components, the machining sequence and heat-treatment route should also be defined before production because quenching and tempering can affect final dimensions and mechanical properties.

NAITE TECH can review the specified material together with the drawing, hardness requirement and manufacturing route before production.

Material Grade Review

410 can be reviewed against requirements such as:

• Required mechanical strength

• Required hardness

• Toughness

• Wear resistance

• Corrosion environment

• CNC machining requirements

• Heat-treatment requirements

• Welding requirements

• Grinding requirements

• Dimensional tolerance

• Product form

• Surface finish

• Applicable ASTM / EN specification

• Certification and traceability requirements

Where another stainless steel grade provides a better fit, typical alternatives include:

Higher Hardness & Wear Resistance → 420

Very High Hardness → 440C

Higher Machining Productivity → 416

Much Higher Structural Strength → 17-4 PH

Better General Corrosion Resistance → 304

Higher Chloride Resistance → 316 / 316L

Heat-Treatment & Hardness Review

410 develops its useful mechanical properties through:

Austenitizing → Quenching → Tempering

The final condition should be selected according to the required balance of:

Strength / Hardness / Toughness / Wear Resistance / Distortion

Important specification items include:

• Starting material condition

• Austenitizing requirement

• Quench method

• Tempering requirement

• Final hardness range

• Mechanical-property requirement

• Heat-treatment certification

• Grinding allowance

For controlled components, the drawing should state the required final hardness rather than simply calling out:

410 Stainless Steel

A more complete requirement may be:

410 / UNS S41000 / ASTM A276 / Annealed / Heat Treat to XX–XX HRC

Manufacturing Sequence Review

For precision 410 components, most machining is normally completed before final hardening.

A typical manufacturing route may be:

Annealed Material

↓

Rough Machining

↓

Semi-Finish Machining

↓

Hardening

↓

Tempering

↓

Finish Grinding

↓

Polishing / Passivation if Required

The actual sequence depends on:

• Component geometry

• Final hardness

• Dimensional tolerance

• Distortion sensitivity

• Thread requirements

• Grinding allowance

• Surface finish

Machining Review

410 is generally most practical to machine in the annealed condition.

Manufacturing considerations include:

Turning & Milling
Suitable for shafts, valve components, fittings and general mechanical parts.

Drilling & Tapping
Preferably completed before final hardening where practical.

Heat-Treatment Allowance
Tight-tolerance surfaces may require additional stock before hardening.

Finish Grinding
Useful for shaft diameters, valve stems, pins and other precision surfaces after heat treatment.

Hardened Machining
Machining difficulty increases as final hardness rises.

Corrosion Environment Review

410 provides moderate corrosion resistance but should not be selected primarily for severe chloride or chemical environments.

Important application factors include:

• Chloride concentration

• Moisture exposure

• Operating temperature

• Surface condition

• Crevice geometry

• Cleaning chemicals

• Deposits

• Heat-treatment condition

Where corrosion resistance is more important than heat-treatable mechanical properties, another grade should be considered.

Typical alternatives include:

Better General Corrosion Resistance → 304

Higher Chloride Resistance → 316L

High Strength + Better Chloride Resistance → 2205 Duplex

Severe Chloride / Seawater Service → 2507 Super Duplex

Specification Review

For controlled projects, material and production requirements can be reviewed together with:

• 410 / UNS S41000

• EN 1.4006 where applicable

• Applicable ASTM / EN specification

• Product form

• Material dimensions

• Starting condition

• Final hardness requirement

• Heat-treatment requirement

• Mechanical properties

• Surface condition

• Grinding allowance

• Certification requirements

• Heat / lot traceability

The engineering drawing and purchase specification should take precedence over general website reference data.

Material Quality & Traceability for 410 Stainless Steel

For heat-treated 410 components, both the supplied material and final heat-treatment condition may require verification.

Material Grade Verification

The specified material can be checked against drawing and purchase requirements before production.

Typical identification may include:

410 / UNS S41000 / EN 1.4006

The applicable product standard should also be confirmed where certification is required.

Starting Material Condition

410 may be supplied in conditions such as:

• Annealed

• Soft annealed

• Cold finished

• Ground

• Hardened and tempered

• Other specified conditions

For machining-intensive components, annealed material is generally the most practical starting condition.

Mill Test Reports

Mill Test Reports can be supplied for applicable materials and projects where certification is required.

Depending on the material source and specification, an MTR may include:

• Material grade

• Heat number

• Chemical composition

• Mechanical properties

• Product specification

• Material condition

• Product dimensions

Heat-Treatment Certification

Where final mechanical properties depend on hardening and tempering, heat-treatment documentation may be required.

Depending on the agreed inspection plan, records may include:

• Austenitizing temperature

• Holding time

• Quench method

• Tempering temperature

• Heat-treatment date

• Furnace or batch identification

• Final hardness results

Required documentation should be confirmed before production.

Hardness Verification

Hardness testing can be used to confirm the final heat-treated condition.

The drawing or inspection plan may specify:

• Hardness scale

• Required hardness range

• Test location

• Number of readings

• Acceptance criteria

Hardness verification should be treated separately from alloy identification.

Heat & Lot Traceability

Heat, lot or batch information can be maintained where traceability requirements apply.

This may be particularly relevant for:

• Heat-treated shafts

• Valve and pump components

• Mechanical fasteners

• Precision machined parts

• Repeat production

• Controlled material specifications

Incoming Material Inspection

Incoming 410 material can be checked for:

• Material identification

• Product form

• Dimensions

• Surface condition

• Visible defects

• Material documentation

• Starting condition where specified

Starting material condition should be confirmed before the machining and heat-treatment sequence is finalized.

PMI & Additional Material Verification

Where additional alloy verification is required, Positive Material Identification or another agreed verification method may be considered.

The inspection method, acceptance criteria and documentation should be defined before production.

Important:
PMI can help verify alloy chemistry but does not verify final hardness, tempering condition or complete mechanical performance.

Final Dimensional Inspection

Quench hardening can introduce dimensional change and distortion.

For tight-tolerance 410 components, final inspection may include:

• Diameter

• Straightness

• Flatness

• Roundness

• Concentricity

• Position

• Thread features

• Ground dimensions

• Functional surfaces

Where required, finish grinding can be performed after heat treatment before final dimensional acceptance.

Documentation Support

Depending on project requirements, supporting documentation may include:

Material Certificate / MTR / CoC / Heat-Treatment Certificate / Hardness Report / Heat or Lot Records / Incoming Inspection Records / Dimensional Inspection Reports / Additional Agreed Quality Documentation

Quality & Traceability Note

Material certification and heat-treatment verification should be treated as separate controls where both are required.

The material certificate identifies the supplied alloy.

The heat-treatment and hardness records verify the process used to develop the required final mechanical condition.

If a project requires a specific hardness range, heat-treatment certificate, ASTM / EN specification or heat-number traceability, these requirements should be identified during quotation.

Technical References

The technical information on this page is intended for engineering reference and preliminary material selection.

Final material and heat-treatment requirements should be verified against the specification applicable to the actual product form and application.

ASTM International

ASTM A276 / A276M
Stainless steel bars and shapes.

Relevant for many 410 bar-stock components used for CNC machining.

ASTM A479 / A479M
Stainless steel bars and shapes for boiler and pressure-vessel applications where the applicable grade is specified.

ASTM A240 / A240M
Stainless steel plate, sheet and strip where Type 410 flat product is covered by the applicable specification.

European Standards

EN 10088-2
Applicable to stainless steel sheet, plate and strip.

EN 10088-3
Applicable to stainless steel bars, rods, sections and related long products.

Material Designations

AISI / ASTM Type: 410

UNS: S41000

EN Material Number: 1.4006

EN Designation: X12Cr13

JIS: SUS 410

Additional Technical References

Material and heat-treatment information may also be reviewed against technical data published by:

• ASTM International

• British Stainless Steel Association

• World Stainless

• Major stainless steel producers

• Applicable heat-treatment specifications

• Customer or industry standards

Technical Note

General material data should not replace application-specific engineering assessment where strength, fatigue, wear, fracture, corrosion, pressure or safety requirements are critical.
