Why CNC Design Matters

The quality, cost, and manufacturability of a CNC machined part are often determined long before production begins.
Design decisions such as wall thickness, feature geometry, hole placement, tolerances, and material selection directly influence machining time, production cost, dimensional accuracy, and overall manufacturing efficiency.

A well-designed part is easier to machine, requires fewer operations, generates less material waste, and can often be produced faster and more consistently. In contrast, overly complex geometries, unnecessary tight tolerances, and non-standard features can significantly increase manufacturing costs and lead times.

By applying proven Design for Manufacturability (DFM) principles early in the development process, engineers can improve part performance, reduce production risks, and achieve more reliable manufacturing outcomes.

Whether producing a single prototype or scaling to volume production, understanding CNC machining design fundamentals helps ensure your parts are optimized for both functionality and manufacturability.
Request Engineering Review
1

Reduce Manufacturing Costs

Smart design decisions help minimize machining time, reduce tooling complexity, and eliminate unnecessary manufacturing expenses. Optimized geometries and practical tolerances often result in significantly lower production costs.​​​​​​​
2

Improve Manufacturability

Designing with manufacturing capabilities in mind helps avoid production challenges, simplifies machining operations, and improves overall efficiency from prototyping to full-scale production.​​​​​​​
3

Enhance Part Quality & Consistency

Well-designed features, appropriate tolerances, and production-friendly geometries contribute to better dimensional accuracy, improved surface quality, and more consistent manufacturing results.​​​​​​​

Key CNC Machining Design Principles

Successful CNC machined parts are designed not only for functionality but also for efficient manufacturing. Understanding the following design principles can help reduce production costs, improve quality, and achieve more reliable machining outcomes.
  • Wall Thickness
  • Internal Corner Radii​​​​​​​
  • Hole Design
  • Threads & Fasteners
  • Tolerances​​​​​​​
  • Surface Finish
  • cnc machining wall thickness
    tubiao1

    Wall Thickness

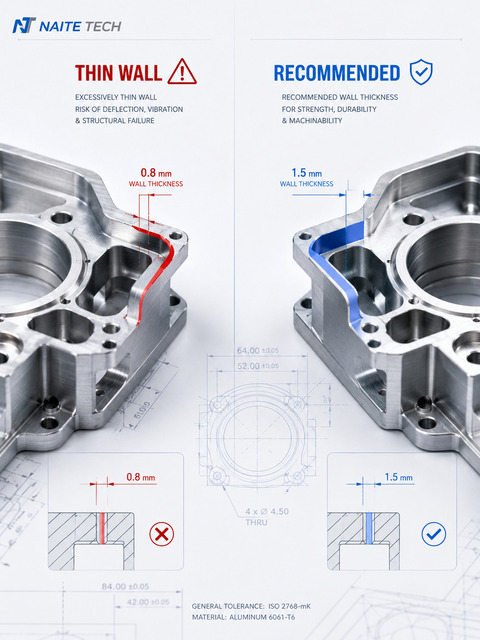

    Wall thickness directly affects part rigidity, machining stability, and dimensional accuracy. Extremely thin walls can lead to vibration, tool deflection, and deformation during machining, while excessively thick sections may increase material usage and machining time. Designing with appropriate wall thickness helps improve manufacturability and overall production efficiency.
    VIEW MORE
  • cnc machining internal corner radii​​​​​​​
    tubiao1

    Internal Corner Radii

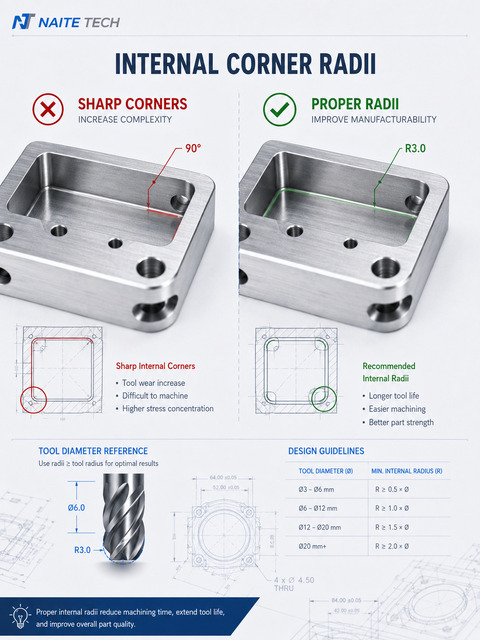

    CNC cutting tools are round, which means perfectly sharp internal corners cannot be machined directly. Including suitable corner radii allows better tool access, reduces machining complexity, and improves cutting performance. Proper radii can also help minimize tool wear and create stronger, more reliable part geometries.
    VIEW MORE
  • cnc machining hole design
    tubiao1

    Hole Design​​​​​​​

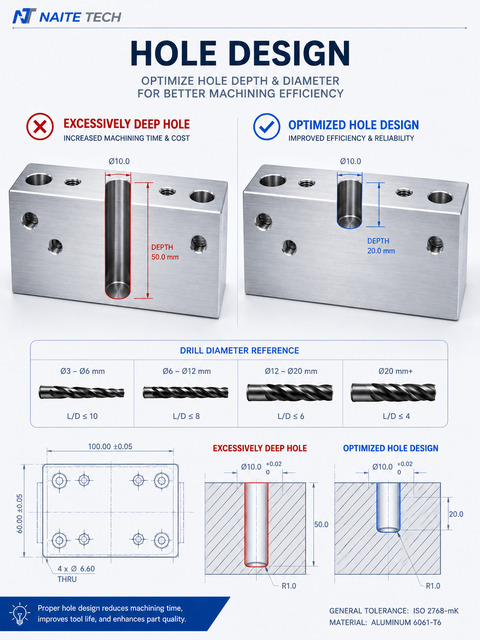

    Hole dimensions, depth, and location all influence machining efficiency and tooling requirements. Standard drill sizes and reasonable depth-to-diameter ratios generally reduce machining costs and improve production consistency. Proper hole design can also simplify assembly and improve overall component functionality.​​​​​​​
    VIEW MORE
  • cnc machining threads & fasteners
    tubiao1

    Threads & Fasteners​​​​​​​

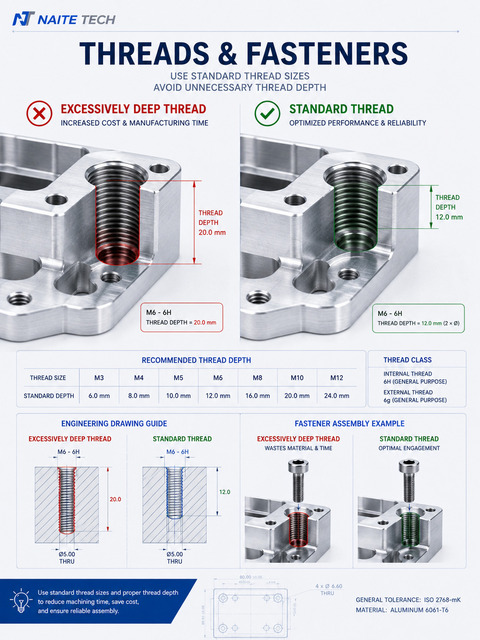

    Threaded features are commonly used for assembly and fastening applications. Selecting standard thread sizes and avoiding unnecessarily deep threads can improve machining efficiency while maintaining reliable mechanical performance. Designing threaded features with manufacturing capabilities in mind helps reduce production challenges and inspection requirements.​​​​​​​
    VIEW MORE
  • cnc machining tolerances
    tubiao1

    Tolerances​​​​​​​

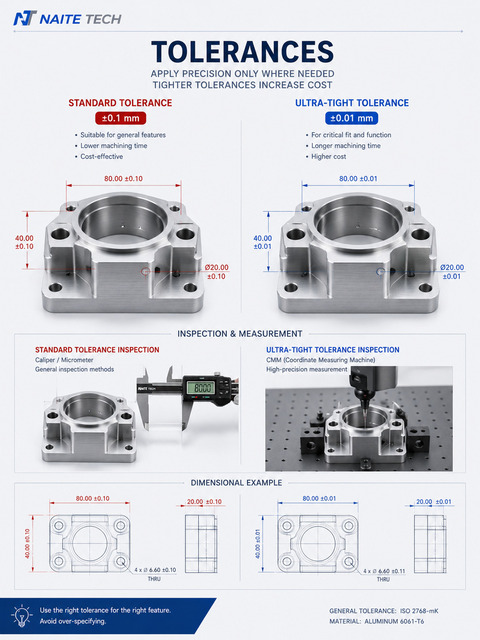

    Tolerance requirements have a significant impact on manufacturing cost and production complexity. While tight tolerances may be necessary for critical features, applying precision where it is not required can increase machining time and inspection effort. Optimized tolerance strategies help balance performance, quality, and cost.​​​​​​​
    VIEW MORE
  • cnc machining surface finish
    tubiao1

    Surface Finish​​​​​​​

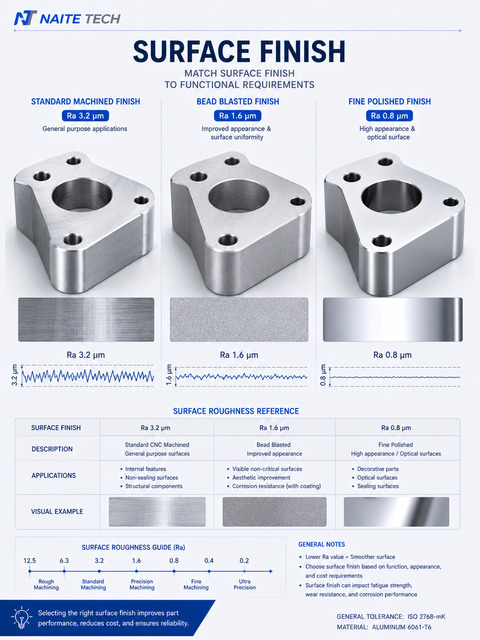

    Surface finish affects appearance, functionality, wear resistance, and assembly performance. Different roughness requirements often require different machining strategies or secondary finishing processes. Selecting the appropriate surface finish based on actual application requirements helps achieve the desired performance while controlling production costs.
    VIEW MORE

Recommended CNC Design Guidelines

While every project has unique requirements, following proven CNC machining design recommendations can help improve manufacturability, reduce production costs, and achieve more consistent machining results.
The guidelines below provide general design recommendations commonly used for CNC machined parts. Actual requirements may vary depending on material selection, part geometry, machining process, and application needs.
  Design Feature Recommended Guideline


  Minimum Wall Thickness ≥ 0.8 mm for metals, ≥ 1.5 mm for plastics


  Internal Corner Radius ≥ 0.5 mm preferred


  Hole Depth ≤ 4 × hole diameter


  Thread Length ≤ 3 × thread diameter


  Pocket Depth ≤ 4 × pocket width


  Standard Tolerance ±0.1 mm


  Precision Tolerance ±0.025 mm where required


  Surface Finish Ra 3.2 μm standard machining finish


  Engraved Text Depth 0.5 mm minimum


  Chamfers & Edge Breaks Recommended for easier machining and assembly


These recommendations are intended to support efficient machining and practical Design for Manufacturability (DFM). Applying appropriate design standards early in development can help reduce lead times, improve quality, and minimize unnecessary manufacturing costs.
Design Guidelines Are Not Universal​​​​​​​
Design recommendations should always be evaluated alongside material properties, functional requirements, assembly considerations, and production quantities.

A feature that is easy to machine in aluminum may present different challenges when produced in titanium, stainless steel, or engineering plastics. Similarly, prototype requirements may differ significantly from production manufacturing requirements.

Understanding these variables helps engineers make better design decisions and achieve more efficient manufacturing outcomes.

Common CNC Design Mistakes to Avoid

Even experienced engineers can encounter design challenges that increase machining complexity, raise production costs, or create unnecessary manufacturing risks.
Understanding the most common CNC machining design mistakes can help improve manufacturability, reduce lead times, and achieve more consistent production results.
  • 1.Using Unnecessarily Tight Tolerances
    Tight tolerances require additional machining operations, inspection processes, and quality control measures. Applying high precision only to critical features helps balance performance requirements with manufacturing efficiency.
  • 2.Designing Extremely Thin Walls
    Thin wall sections may deform during machining and can lead to vibration, dimensional instability, or reduced part strength. Appropriate wall thickness improves machining stability and overall part quality.
  • 3.Specifying Sharp Internal Corners
    Because CNC cutting tools are round, perfectly sharp internal corners cannot be machined directly. Adding suitable corner radii improves tool access and reduces machining complexity.
  • 4.Creating Deep and Narrow Pockets
    Deep pockets often require longer cutting tools, slower machining speeds, and multiple machining operations. Designing pockets with practical depth-to-width ratios helps improve efficiency and reduce manufacturing costs.
  • 5.Ignoring Material Characteristics
    Different materials respond differently to machining operations. Factors such as hardness, thermal expansion, chip formation, and rigidity should be considered during the design stage to avoid production challenges.
  • 6.Overcomplicating Cosmetic Features
    Excessive engraving, decorative details, or non-functional features may increase machining time without adding meaningful value to product performance. Simplified designs often result in more efficient manufacturing.
  • 1.Using Unnecessarily Tight Tolerances
    Tight tolerances require additional machining operations, inspection processes, and quality control measures. Applying high precision only to critical features helps balance performance requirements with manufacturing efficiency.
  • 2.Designing Extremely Thin Walls
    Thin wall sections may deform during machining and can lead to vibration, dimensional instability, or reduced part strength. Appropriate wall thickness improves machining stability and overall part quality.
  • 3.Specifying Sharp Internal Corners
    Because CNC cutting tools are round, perfectly sharp internal corners cannot be machined directly. Adding suitable corner radii improves tool access and reduces machining complexity.
  • 4.Creating Deep and Narrow Pockets
    Deep pockets often require longer cutting tools, slower machining speeds, and multiple machining operations. Designing pockets with practical depth-to-width ratios helps improve efficiency and reduce manufacturing costs.
  • 5.Ignoring Material Characteristics
    Different materials respond differently to machining operations. Factors such as hardness, thermal expansion, chip formation, and rigidity should be considered during the design stage to avoid production challenges.
  • 6.Overcomplicating Cosmetic Features
    Excessive engraving, decorative details, or non-functional features may increase machining time without adding meaningful value to product performance. Simplified designs often result in more efficient manufacturing.

Related Engineering Resources

CNC Threads & Fasteners Design Guide.jpg
Design Guide

CNC Threads & Fasteners Design Guide: Thread Design Rules, Fastener Selection & Manufacturing Best Practices

Threads and fasteners are critical functional features in CNC machined components. They are widely used to assemble parts, secure structural connections, and enable modular product design across a wide range of industrial applications.However, improper thread design can significantly increase machin

16/06/2026
Design Guide
CNC Tolerances Design Guide How to Specify Machining Tolerances Without Increasing Cost.jpg
Design Guide

CNC Tolerances Design Guide: How to Specify Machining Tolerances Without Increasing Cost

This CNC tolerances design guide explains how to specify machining tolerances clearly, avoid over-tolerancing, and reduce unnecessary manufacturing cost. Learn how standard CNC tolerances, tight tolerance features, hole fits, milling geometry, wall thickness, internal corner radius, GD&T, material selection, and 5-axis machining affect part accuracy and production cost. NAITE TECH shares supplier-side engineering insights to help designers apply tight tolerances only where they are functionally required.

22/06/2026
Design Guide
CNC Surface Finish Design Guide How to Specify Surface Roughness and Finishing Requirements.jpg
Design Guide

CNC Surface Finish Design Guide: How to Specify Surface Roughness and Finishing Requirements

Surface finish is an important design requirement for CNC machined parts. It affects not only how a part looks, but also how it performs in assembly, sealing, sliding, wear resistance, coating adhesion, corrosion resistance, and long-term reliability. A surface that looks acceptable may not be suita

23/06/2026
Design Guide
CNC Hole Design Guide with hole depth limits, tolerances, and DFM recommendations for CNC machined parts.jpg
Design Guide

CNC Hole Design Guide：Best Practices, Hole Depth Limits, Tolerances, and DFM Recommendations for CNC Machined Parts

Designing holes for CNC machined parts involves much more than simply defining a diameter in a CAD model. Hole size, depth, location, tolerance requirements, and threading specifications can all influence machining efficiency, production cost, and final part quality.Whether creating simple through h

16/06/2026
Design Guide
CNC Internal Corner Radius Design Guide for Better Manufacturability and Lower Production Costs.jpg
Design Guide

CNC Internal Corner Radius Design Guide for Better Manufacturability and Lower Production Costs

In CNC machining, internal corner radius is one of the most frequently overlooked design features. While sharp internal corners may appear ideal in CAD models, they are often difficult, expensive, or even impossible to produce efficiently using standard CNC cutting tools.Understanding how internal c

12/06/2026
Design Guide
CNC Machining Wall Thickness Guidelines & Design Considerations.jpg
Design Guide

CNC Machining Wall Thickness Guidelines & Design Considerations

Designing appropriate wall thickness is a critical factor in CNC machining. It directly affects part rigidity, machining stability, dimensional accuracy, and overall production cost.In general, recommended CNC wall thickness depends on material type and part geometry. For most metal parts such as al

10/06/2026
Design Guide
Aerospace CNC Machining Materials Guide.jpg
Design Guide

Aerospace CNC Machining Materials Guide

Aerospace CNC machining relies on a wide range of advanced engineering materials designed to meet strict performance, safety, and weight efficiency requirements. Material selection is one of the most critical decisions in aerospace manufacturing, directly affecting part strength, machinability, ther

27/04/2026
Design Guide
Aerospace CNC Machining Cost Guide.jpg
Design Guide

Aerospace CNC Machining Cost Guide (2026) | Pricing, Materials & Factors Explained

IntroductionAerospace CNC machining costs vary significantly depending on part complexity, material selection, tolerance requirements, and production volume. Unlike standard CNC machining, aerospace manufacturing involves stricter quality standards, specialized materials, and higher precision requir

26/04/2026
Design Guide

Frequently Asked Questions About CNC Machining Design​​​​​​​

  • What is CNC machining design?
    加 Created with Sketch.
    形状 Created with Sketch.
    CNC machining design refers to the process of creating parts that can be efficiently manufactured using CNC machining while meeting functional, dimensional, and performance requirements.
  • Why is Design for Manufacturability important?
    加 Created with Sketch.
    形状 Created with Sketch.
    DFM helps engineers optimize designs for manufacturing efficiency, reducing machining complexity, production costs, lead times, and potential quality issues.
  • What wall thickness is recommended for CNC machined parts?
    加 Created with Sketch.
    形状 Created with Sketch.
    Recommended wall thickness depends on material type and part geometry. In general, metal parts should maintain wall thicknesses of at least 0.8 mm, while plastic parts typically require thicker walls for stability.
  • Do tighter tolerances increase machining costs?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. Tighter tolerances often require additional machining operations, specialized tooling, and more extensive inspection procedures, which can increase manufacturing costs.
  • Can CNC machines create perfectly sharp internal corners?
    加 Created with Sketch.
    形状 Created with Sketch.
    No. Because CNC cutting tools are round, internal corners require a radius. Designers should account for tool geometry when creating internal features.
  • What factors affect CNC machining costs?
    加 Created with Sketch.
    形状 Created with Sketch.
    Material selection, part size, geometry complexity, tolerance requirements, surface finish specifications, setup requirements, and production volume all influence machining costs.
  • What materials are commonly used for CNC machining?
    加 Created with Sketch.
    形状 Created with Sketch.
    Common CNC machining materials include aluminum, stainless steel, titanium, brass, copper, ABS, POM (Delrin), nylon, PEEK, and other engineering plastics.
  • How can I optimize a design for CNC machining?
    加 Created with Sketch.
    形状 Created with Sketch.
    Simplifying geometry, using standard features, avoiding unnecessarily tight tolerances, maintaining appropriate wall thicknesses, and selecting suitable materials can significantly improve manufacturability.
drilling-machine

Need Feedback On Your Part Design?

Design decisions made early in the development process can have a significant impact on manufacturing cost, lead time, part quality, and production efficiency.

Whether you're developing a prototype, refining an existing design, or preparing for production, our engineering team can help evaluate manufacturability, identify potential manufacturing challenges, and recommend practical solutions.

How We Can Help
✓ Design for Manufacturability (DFM) Review
✓ Material Selection Recommendations
✓ Tolerance & Feature Evaluation
✓ Surface Finish Recommendations
✓ Prototype & Production Planning
✓ CNC Machining Cost Optimization

Get expert engineering feedback before production begins and ensure your design is optimized for successful manufacturing.
