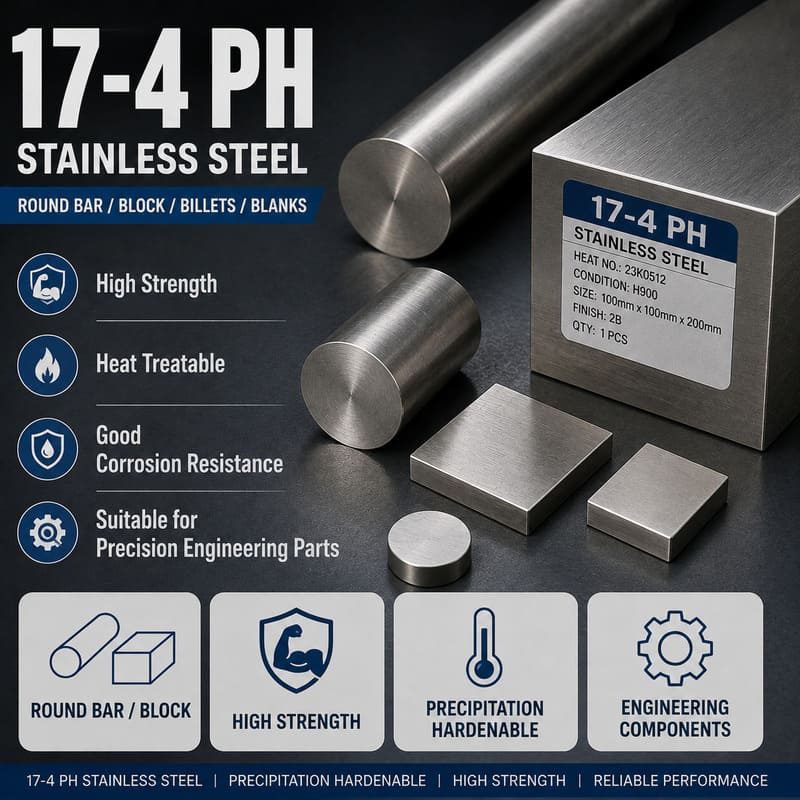

17-4 PH Stainless Steel: Properties, Heat Treatment & Applications

What Is 17-4 PH Stainless Steel?

17-4 PH is a precipitation-hardening stainless steel designed to provide substantially higher mechanical strength than conventional austenitic grades while retaining useful corrosion resistance.

The grade is commonly designated:

UNS S17400 / Type 630 / EN 1.4542 / X5CrNiCuNb16-4

Its name refers approximately to its chromium and nickel content:

17% Chromium + 4% Nickel

Copper, together with niobium and tantalum additions, enables the alloy to develop high strength through precipitation-hardening heat treatment.

Unlike 304 or 316L, 17-4 PH is not selected only by grade designation. Its final mechanical properties depend strongly on the specified heat-treatment condition.

Common conditions include:

Condition A / H900 / H925 / H1025 / H1075 / H1100 / H1150

How 17-4 PH Develops High Strength

17-4 PH is normally solution treated first and then aged at a controlled temperature.

During aging, fine copper-rich precipitates form within the martensitic matrix and increase strength and hardness.

Changing the aging temperature changes the balance between:

• Tensile strength

• Yield strength

• Hardness

• Ductility

• Toughness

• Stress-corrosion-cracking resistance

• Dimensional behavior

Lower aging temperatures generally produce higher strength and hardness.

Higher aging temperatures generally reduce strength while improving ductility and toughness.

Why Engineers Choose 17-4 PH

17-4 PH is commonly selected when a component requires:

• High yield strength

• High tensile strength

• Good general corrosion resistance

• Heat-treatable mechanical properties

• Good dimensional control after aging

• Precision machining capability

• Better corrosion resistance than many conventional martensitic stainless steels

It is particularly useful for components that would otherwise require a stronger alloy than 304 or 316L.

Chemical Composition & Properties of 17-4 PH Stainless Steel

Chemical Composition

Representative UNS S17400 composition limits are shown below.

Actual chemistry should be verified against the applicable product specification and material certificate.

Role of the Main Alloying Elements

Chromium
Provides stainless-steel corrosion resistance by supporting formation of the passive chromium-rich surface film.

Nickel
Contributes to toughness, corrosion resistance and control of the alloy microstructure.

Copper
The principal precipitation-hardening addition. Fine copper-rich precipitates develop during aging and significantly increase strength.

Niobium + Tantalum
Support precipitation-hardening response and microstructural control.

Low Carbon Content
Helps maintain useful toughness and corrosion performance while supporting the precipitation-hardening alloy system.

Mechanical Properties by Heat-Treatment Condition

Mechanical properties of 17-4 PH should always be stated together with the heat-treatment condition.

Representative minimum values commonly associated with ASTM A564 bar products are shown below. Exact requirements can vary with product form, dimensions and applicable specification.

Condition A

Condition A is the solution-treated starting condition used before precipitation hardening.

Representative properties may be approximately:

Condition A is particularly useful for:

Machining / Forming / Fabrication Before Final Aging

It should not automatically be treated as the preferred final service condition. Final aging requirements should be determined by the drawing, specification and service environment.

Typical Physical Properties

Lower Thermal Expansion Than Austenitic Stainless Steel

17-4 PH has a lower coefficient of thermal expansion than grades such as 304 and 316L.

This can be useful for precision mechanical components where dimensional changes caused by temperature must be controlled.

Actual dimensional stability still depends on:

Geometry / Heat Treatment / Residual Stress / Machining Sequence / Operating Temperature

Heat-Treatment Condition Comparison

The aging condition is one of the most important 17-4 PH selection variables.

H900

H900 is aged at approximately:

482°C / 900°F

It produces the highest commonly specified combination of strength and hardness.

Typical selection intent:

• Maximum mechanical strength

• High yield strength

• High hardness

• Compact high-load components

Trade-offs include:

• Lower ductility

• Lower toughness than overaged conditions

• Greater sensitivity to stress-corrosion cracking in some environments

Best For:
Maximum Strength

H1025

H1025 is aged at approximately:

552°C / 1025°F

It retains high strength while providing better ductility and toughness than H900.

Typical selection intent:

• High-strength shafts

• Mechanical components

• Valve parts

• Precision components

• General high-strength engineering applications

Best For:
High Strength + Improved Toughness

H1075

H1075 is aged at approximately:

580°C / 1075°F

It provides a further shift toward toughness while retaining considerably higher strength than conventional austenitic stainless steels.

Typical selection intent:

• Structural mechanical components

• Components exposed to impact or cyclic loading

• Applications requiring a balanced property profile

Best For:
Balanced Strength + Toughness

H1150

H1150 is aged at approximately:

621°C / 1150°F

It provides lower strength and hardness than H900 but higher ductility and toughness.

Overaged conditions such as H1150 may also provide better resistance to stress-corrosion cracking than peak-strength conditions.

Typical selection intent:

• Toughness-sensitive components

• Larger mechanical components

• Applications where maximum hardness is unnecessary

• Environments where stress-corrosion-cracking resistance deserves greater consideration

Best For:
Higher Toughness + Lower Residual Stress Sensitivity

Corrosion Resistance & Environmental Performance

17-4 PH provides good corrosion resistance for a high-strength precipitation-hardening stainless steel.

Its general corrosion performance can be suitable for many:

• Industrial environments

• Atmospheric environments

• Freshwater applications

• Machinery

• Pumps

• Valves

• Process equipment

• Moderately corrosive environments

However, corrosion resistance should not be considered identical to 316L.

General Atmospheric Corrosion

17-4 PH generally performs well in normal atmospheric and industrial environments where stainless-steel corrosion resistance is required together with high strength.

Typical applications include:

Shafts / Mechanical Hardware / Actuator Components / Industrial Equipment / Valve Components

Freshwater Exposure

17-4 PH can perform well in many freshwater applications.

Final suitability depends on:

• Chloride concentration

• Temperature

• Oxygen level

• Flow conditions

• Crevices

• Surface finish

• Heat-treatment condition

Chloride Environments

17-4 PH is not primarily a chloride-resistant stainless steel.

In chloride-containing environments it can be susceptible to:

• Pitting

• Crevice corrosion

• Stress-corrosion cracking

For components where chloride resistance is more important than very high mechanical strength, 316L may be a better starting point.

For higher strength combined with stronger chloride resistance, duplex grades such as 2205 may be more appropriate.

Marine Applications

17-4 PH is used in selected marine-related mechanical applications because of its combination of strength and corrosion resistance.

However, it should not be described as universally suitable for continuous seawater exposure.

Important factors include:

Salt Concentration / Temperature / Crevices / Stress Level / Heat-Treatment Condition / Surface Condition

For severe seawater service, 2205, 2507 or another more chloride-resistant alloy may be preferable.

Chemical Environments

17-4 PH has useful resistance to many mild industrial environments but is not normally selected as a specialist chemical-resistant alloy.

Chemical compatibility should be evaluated according to:

• Chemical type

• Concentration

• Temperature

• Chloride content

• pH

• Applied stress

• Exposure duration

For aggressive chemical-processing environments, 316L, 904L or another higher-alloy stainless steel may provide a better corrosion margin.

Stress-Corrosion Cracking

Heat-treatment condition affects stress-corrosion-cracking behavior.

Peak-strength conditions such as H900 generally require more caution in SCC-sensitive environments.

Higher-temperature aged or overaged conditions can provide improved resistance while sacrificing some mechanical strength.

This is one reason 17-4 PH should not be selected using strength values alone.

Environmental Suitability

Key Engineering Characteristics

High Yield Strength

One of the strongest reasons to select 17-4 PH is its high yield strength.

Depending on aging condition, yield strength can be several times greater than that of annealed 304 or 316L.

This allows designers to use 17-4 PH for:

• Highly loaded shafts

• High-strength fasteners

• Actuator components

• Valve components

• Structural mechanical parts

• Precision load-bearing components

Adjustable Strength & Toughness

17-4 PH does not provide only one mechanical-property level.

The aging condition allows engineers to select a property balance closer to the needs of the application.

Broadly:

H900 → Maximum Strength

H1025 → High Strength + Better Toughness

H1075 → Balanced Mechanical Properties

H1150 → Higher Toughness + Lower Strength

Good Dimensional Stability During Aging

Precipitation hardening occurs at much lower temperatures than conventional austenitizing and quench-hardening treatments used for many martensitic steels.

As a result, dimensional change during aging can be relatively controlled.

This is valuable for precision machined parts where the manufacturing route may be:

Rough Machine → Heat Treat → Finish Machine / Grind

Magnetic Material

17-4 PH has a predominantly martensitic structure after solution treatment and cooling and is magnetic.

This differs fundamentally from annealed austenitic grades such as 304 and 316L.

Good General Corrosion Resistance

17-4 PH provides a strong combination of corrosion resistance and mechanical strength.

However, it should not be selected as a direct substitute for molybdenum-alloyed grades such as 316L in demanding chloride environments.

Useful Wear Performance

High-strength aged conditions can provide useful hardness and wear resistance.

However, 17-4 PH is not primarily a high-wear tool or bearing stainless steel.

Where maximum hardness and wear resistance dominate the application, consider:

420 / 440C

Manufacturing Compatibility

17-4 PH works particularly well for precision machining and high-strength mechanical components.

Manufacturing sequence should be planned together with the final heat-treatment condition.

CNC Machining

Compatibility: ✅ Good

17-4 PH can be:

Turned / Milled / Drilled / Tapped / Threaded / Bored / Ground

Condition A is commonly preferred where extensive machining must be completed before final aging.

Higher-strength aged conditions remain machinable but generally increase:

• Cutting forces

• Tool wear

• Heat generation

• Difficulty of drilling and tapping

Recommended Manufacturing Sequence

For many high-precision components, a practical route is:

Material in Condition A

↓

Rough / Semi-Finish Machining

↓

Precipitation-Hardening Heat Treatment

↓

Finish Machining / Grinding if Required

This allows most material removal to occur before the alloy reaches its final high hardness.

Machining Behavior

17-4 PH is generally easier to control during machining than some highly work-hardening austenitic stainless steels, but it should still be treated as a high-strength stainless alloy.

Important machining factors include:

• Rigid setup

• Sharp tooling

• Stable cutting engagement

• Appropriate cutting speed

• Adequate coolant

• Controlled tool wear

• Allowance for final heat treatment

Drilling & Threading

Compatibility: ✅ Good

17-4 PH can be drilled and threaded successfully.

For deep holes, small threads or machining in hardened conditions, attention should be paid to:

Chip Evacuation / Tool Rigidity / Coolant / Tool Wear

Grinding

Compatibility: ✅ Excellent

Precision grinding is especially useful after aging where:

• Tight dimensional tolerance is required

• Bearing surfaces are present

• Shaft diameters require final correction

• High-quality functional surfaces are required

Forging

Compatibility: ✅

17-4 PH can be forged using suitable hot-working procedures.

Forging is normally followed by appropriate solution treatment before final aging.

Final heat treatment should follow the applicable forging specification and required mechanical properties.

Sheet Metal & Forming

Compatibility: ✅ — Application Dependent*

17-4 PH plate, sheet and strip are available.

Forming should generally be completed in the solution-treated condition before final precipitation hardening.

Compared with 304 or 316L, 17-4 PH has:

• Lower formability

• Higher forming loads

• Less suitability for severe deep drawing

For fabrication dominated by complex sheet forming, an austenitic grade may be more appropriate.

Welding

Compatibility: ✅ — Procedure Controlled*

17-4 PH can be welded using common fusion-welding processes.

However, final properties depend on:

• Starting condition

• Welding process

• Filler selection

• Heat input

• Weld geometry

• Post-weld heat treatment

• Required strength and toughness

For strength-critical welded structures, the complete welding and aging sequence should be established before production.

Metal 3D Printing

Compatibility: ✅

17-4 PH is a commercially established alloy for metal additive manufacturing, including powder-bed fusion processes.

Additive-manufactured material can subsequently undergo heat treatment to develop high strength.

However, printed 17-4 PH should not automatically be assumed to have the same microstructure or mechanical properties as wrought ASTM A564 material.

Final properties depend on:

Powder Chemistry / Printing Parameters / Build Orientation / Density / Solution Treatment / Aging Condition / Post Processing

For critical components, the additive process and heat-treatment route should be qualified together.

Material Condition & Heat Treatment

Heat treatment is central to the performance of 17-4 PH.

Solution Treatment — Condition A

A typical solution-treatment route involves heating to approximately:

1040°C / 1900°F

followed by suitable cooling to develop the martensitic structure required before precipitation hardening.

Exact temperature, hold time and cooling procedure must follow the applicable product specification.

Condition A provides the starting condition for subsequent aging.

Aging Designation

The “H” designation indicates precipitation hardening.

The number generally corresponds to the aging temperature in degrees Fahrenheit.

For example:

H900 → approximately 900°F / 482°C

H1025 → approximately 1025°F / 552°C

H1075 → approximately 1075°F / 580°C

H1150 → approximately 1150°F / 621°C

Typical Aging Conditions

Cooling requirements and exact treatment procedures should follow the applicable ASTM, AMS, EN or customer specification.

Selecting the Heat-Treatment Condition

Choose the condition according to the actual design requirement rather than simply selecting the highest strength available.

Need Maximum Strength → H900

Need High Strength with Better Toughness → H1025

Need Balanced Strength and Toughness → H1075

Need Greater Toughness or Better SCC Resistance → H1150

Heat-Treatment Specification Note

The final condition should be stated directly on the engineering drawing or purchase specification.

For example:

17-4 PH Stainless Steel / UNS S17400 / ASTM A564 / H1025

is much more complete than:

17-4 PH Stainless Steel

alone.

Surface Finish Compatibility

17-4 PH can receive a wide range of mechanical and chemical surface treatments.

The finish should be selected according to:

Corrosion Requirement / Dimensional Tolerance / Wear Surface / Appearance / Cleanliness / Heat-Treatment Condition

Machined Finish

Compatibility: ✅ Excellent

Precision-machined finishes are common for:

Shafts / Valve Components / Fittings / Mechanical Components / Actuator Parts

Grinding

Compatibility: ✅ Excellent

Grinding is especially valuable after aging when tight dimensional control or precision bearing surfaces are required.

Mechanical Polishing

Compatibility: ✅ Excellent

17-4 PH can be mechanically polished for improved:

• Surface smoothness

• Appearance

• Cleanability

• Functional contact surfaces

Passivation

Compatibility: ✅ Excellent

Passivation can be used after proper cleaning to remove free iron and support the natural passive stainless-steel surface.

The process should follow a specification appropriate for the material and application.

Pickling

Compatibility: ✅ / Evaluate

Pickling can remove heat tint and oxide scale after thermal processing, but acid chemistry, exposure time and final surface requirements should be properly controlled.

Electropolishing

Compatibility: ✅ Good

17-4 PH can be electropolished where smoother or cleaner surfaces are required.

For highly sanitary or corrosion-critical electropolished applications, the grade itself should still be evaluated against alternatives such as 316L.

Bead Blasting

Compatibility: ✅ Good

Bead blasting can provide a uniform matte appearance.

Media used for stainless steel should be controlled to minimize iron contamination.

Laser Marking

Compatibility: ✅ Excellent

Suitable for:

Part Numbers / Serial Numbers / Heat or Lot Identification / Traceability / Logos

Common Finish Options

Machined Finish ✅ / Precision Grinding ✅ / Mechanical Polishing ✅ / Passivation ✅ / Pickling ✅ / Electropolishing ✅ / Bead Blasting ✅ / Laser Marking ✅

Surface Finish Selection Note

For high-strength precision components, the final finishing sequence should be coordinated with heat treatment.

A typical production route may be:

Machine → Age Harden → Finish Grind / Polish → Clean / Passivate

This helps maintain final dimensions while providing the required surface condition.

Typical Applications of 17-4 PH Stainless Steel

17-4 PH is commonly selected for precision components that require substantially higher strength than standard austenitic stainless steels while still maintaining useful corrosion resistance.

Its ability to achieve different strength and toughness levels through aging makes it suitable for a wide range of mechanical and structural applications.

High-Strength Shafts

Typical Applications:

Drive Shafts / Pump Shafts / Valve Shafts / Actuator Shafts / Precision Transmission Components

17-4 PH is frequently used for shafts where high yield strength, dimensional stability and corrosion resistance are required.

The final aging condition should be selected according to the required balance of:

Strength / Toughness / Fatigue Resistance / Corrosion Environment

Valve & Pump Components

Typical Applications:

Valve Stems / Valve Bodies / Pump Shafts / Pump Components / Actuator Components / High-Pressure Mechanical Hardware

17-4 PH is particularly useful where components experience significant mechanical loading but still require stainless-steel corrosion resistance.

For aggressive chloride or chemical service, the corrosion environment should be evaluated separately.

High-Strength Fasteners

Typical Applications:

Bolts / Studs / Pins / High-Strength Screws / Retaining Hardware / Structural Fasteners

17-4 PH can provide considerably higher strength than annealed 304 or 316L.

The heat-treatment condition should be specified together with the material grade when strength is a controlled design requirement.

Precision Mechanical Components

Typical Applications:

Couplings / Bushings / Sleeves / Precision Housings / Retainers / Mechanical Links / Instrument Components

17-4 PH is well suited to parts that require:

• CNC machining

• Tight dimensional control

• High strength

• Final heat treatment

• Grinding or precision finishing

Structural & Load-Bearing Components

Typical Applications:

Structural Fittings / Mechanical Supports / High-Load Brackets / Actuator Hardware / Industrial Structural Components

The alloy is useful where a designer wants stainless corrosion resistance combined with significantly higher yield strength than conventional austenitic grades.

Gears & Drive Components

Typical Applications:

Gears / Splines / Couplings / Drive Hardware / Transmission Components

17-4 PH can provide useful hardness and strength for mechanical drive components.

Where maximum wear resistance or very high surface hardness is required, 420 or 440C may be a better starting material.

Aerospace & Precision Engineering Components

Typical Applications:

Structural Fittings / Actuation Components / Fasteners / Shafts / Precision Hardware

17-4 PH is widely used in high-strength engineering applications because its final mechanical properties can be controlled through precipitation hardening.

Application-specific aerospace requirements should follow the applicable AMS or customer specification.

Metal Additive-Manufactured Components

17-4 PH is also used for metal additive manufacturing where high-strength stainless components with complex geometry are required.

Typical applications can include:

Complex Mechanical Components / Lightweight Internal Structures / Prototype High-Strength Parts / Low-Volume Precision Components

Printed material should be evaluated according to the actual additive process, build condition and post-build heat-treatment route rather than assumed to be equivalent to wrought material.

When Should You Choose 17-4 PH Stainless Steel?

17-4 PH is a strong material choice when mechanical strength is a major design requirement but stainless-steel corrosion resistance is still needed.

Choose 17-4 PH When You Need

• High tensile strength

• High yield strength

• Precipitation-hardening capability

• Adjustable strength and toughness

• Good general corrosion resistance

• Precision machining capability

• Good dimensional control after aging

• Heat-treatable stainless steel

• High-strength shafts or mechanical components

• Better corrosion resistance than many conventional martensitic stainless steels

17-4 PH Is Especially Suitable When

304 or 316L Does Not Provide Enough Strength
17-4 PH can achieve much higher yield and tensile strength than annealed austenitic stainless steels.

The Final Mechanical Properties Need to Be Controlled by Heat Treatment
Aging conditions such as H900, H1025, H1075 and H1150 allow the material to be tailored for different strength and toughness requirements.

The Component Requires Precision Machining Before Final Hardening
Condition A can be machined before final precipitation hardening.

Dimensional Control Matters After Heat Treatment
Aging occurs at relatively moderate temperatures compared with conventional quench-hardening routes, which can help reduce distortion risk.

The Part Must Combine Strength with Corrosion Resistance
This is one of the main reasons 17-4 PH is selected over ordinary carbon or alloy steels.

Selecting the Right 17-4 PH Heat-Treatment Condition

The heat-treatment condition should be selected according to the actual application rather than automatically choosing the highest strength available.

Condition A

Selection Intent:
Machining / Forming / Fabrication Before Final Aging

Condition A is the solution-treated starting condition.

It is commonly selected when significant machining or forming must be completed before the final precipitation-hardening treatment.

H900

Selection Intent:
Maximum Strength + Maximum Hardness

Choose H900 when:

• Very high yield strength is required

• Maximum hardness is important

• Toughness requirements are moderate

• The corrosion environment is not strongly SCC-sensitive

H900 should not automatically be considered the “best” condition simply because it provides the highest strength.

H1025

Selection Intent:
High Strength + Improved Toughness

H1025 is often a useful engineering compromise where very high strength is required but greater ductility and toughness are also desirable.

Typical uses include:

Shafts / Valve Components / Mechanical Hardware / High-Strength Precision Parts

H1075

Selection Intent:
Balanced Strength + Toughness

H1075 provides lower strength than H900 but improved toughness.

It can be a good choice for components exposed to:

Mechanical Shock / Cyclic Loading / Structural Loads

H1150

Selection Intent:
Higher Toughness + Lower Strength

H1150 is commonly considered where:

• Toughness is more important than peak hardness

• Lower residual stress sensitivity is desirable

• Stress-corrosion-cracking resistance deserves greater consideration

Heat-Treatment Selection Summary

Consider Another Grade When...

17-4 PH vs Similar Stainless Steel Grades

17-4 PH vs 304 Stainless Steel

17-4 PH provides substantially higher strength and can be precipitation hardened.

304 provides better formability, simpler fabrication and lower material cost for many general-purpose applications.

Choose 17-4 PH when:
High mechanical strength and heat-treatment control are required.

Choose 304 when:
General corrosion resistance, sheet-metal fabrication and cost are more important.

CTA:
Compare 17-4 PH vs 304 Stainless Steel

17-4 PH vs 316L Stainless Steel

17-4 PH is generally selected for strength.

316L is generally selected for stronger chloride corrosion resistance, welding performance and corrosion-sensitive process service.

Choose 17-4 PH when:
Mechanical strength is the main requirement.

Choose 316L when:
Chlorides, chemical exposure, welded fabrication or sanitary service are more important.

CTA:
Compare 17-4 PH vs 316L Stainless Steel

17-4 PH vs 2205 Duplex Stainless Steel

Both grades can provide substantially higher strength than 304 or 316L.

17-4 PH offers controllable mechanical properties through precipitation hardening.

2205 duplex generally provides stronger resistance to chloride pitting and stress-corrosion cracking.

Choose 17-4 PH when:
Heat-treatable high strength and precision mechanical performance are priorities.

Choose 2205 when:
High strength must be combined with stronger chloride resistance.

CTA:
Compare 17-4 PH vs 2205 Duplex Stainless Steel

17-4 PH vs 15-5 PH Stainless Steel

Both are precipitation-hardening stainless steels used for high-strength components.

15-5 PH was developed with improved microstructural uniformity and is often considered where toughness and transverse mechanical properties are important.

17-4 PH generally has broader commercial availability and is one of the most widely specified PH stainless grades.

Choose 17-4 PH when:
Broad availability and proven high-strength performance are important.

Choose 15-5 PH when:
The specification or application requires the property balance associated with 15-5 PH.

CTA:
Compare 17-4 PH vs 15-5 PH Stainless Steel

17-4 PH vs 420 Stainless Steel

17-4 PH provides high strength with better general corrosion resistance and good toughness.

420 can achieve higher hardness and is more directly suited to wear-resistant or cutting-related applications.

Choose 17-4 PH when:
High structural strength is required.

Choose 420 when:
Hardness and wear resistance are the primary requirements.

CTA:
Compare 17-4 PH vs 420 Stainless Steel

17-4 PH vs 416 Stainless Steel

17-4 PH offers much higher strength and better general corrosion performance.

416 is a free-machining martensitic stainless steel designed for easier machining and can also be hardened by heat treatment.

Choose 17-4 PH when:
High strength and corrosion resistance are more important.

Choose 416 when:
Machining productivity is more important than maximum strength.

Standards, Specifications & Material Forms of 17-4 PH

17-4 PH is available in a wider range of product forms than many specialized stainless grades.

The applicable material specification should always match the actual product form.

Common Material Designations

ASTM A564 / A564M

Hot-Rolled and Cold-Finished Age-Hardening Stainless Steel Bars and Shapes

This is one of the most important specifications for 17-4 PH bar stock.

It includes product forms such as:

Round Bar / Square Bar / Hex Bar / Bar Shapes

ASTM notes that Type 630 can be supplied in solution-treated or age-hardened conditions and is suitable for machining in the solution-treated condition followed by age hardening.

ASTM A693

Precipitation-Hardening Stainless and Heat-Resisting Steel Plate, Sheet and Strip

This specification is commonly relevant when 17-4 PH is purchased as:

Plate / Sheet / Strip

17-4 PH / UNS S17400 is commonly supplied under ASTM A693 for flat products.

ASTM A705 / A705M

Age-Hardening Stainless Steel Forgings

This specification is relevant for precipitation-hardening stainless steel forgings where the required mechanical properties are developed through solution treatment and aging.

Common AMS Specifications

Depending on product form and industry requirements, 17-4 PH may also be specified under aerospace material standards such as:

AMS 5643 — commonly associated with bars, forgings and related products

AMS 5604 — commonly associated with sheet, strip and plate

The exact revision and product requirements should be specified on controlled aerospace or customer documentation.

Common Material Forms

17-4 PH is commonly available as:

Round Bar / Square Bar / Hex Bar / Flat Bar / Plate / Sheet / Strip / Forged Stock / Billet / Ring / Tube in selected specifications

For precision CNC machining, common starting forms include:

Round Bar
Shafts / Pins / Bushings / Couplings / Turned Components

Square or Hex Bar
Mechanical Fittings / Fasteners / Machined Hardware

Plate
Milled Components / Structural Parts / Housings / High-Strength Flat Components

Forged Stock
High-Load Components / Larger Shafts / Structural Mechanical Parts

Material Condition at Purchase

17-4 PH can be purchased in different conditions depending on the specification and manufacturing route.

Common requirements may include:

Condition A / H900 / H925 / H1025 / H1075 / H1100 / H1150

For machining-intensive components, purchasing Condition A and performing final aging after machining may provide manufacturing advantages.

For projects that require guaranteed final mechanical properties, the drawing should identify the required aged condition explicitly.

Purchasing Specification Note

Writing only:

17-4 PH Stainless Steel

may not be enough for a controlled engineering purchase.

A more complete specification can include:

• Grade

• UNS designation

• ASTM / AMS / EN standard

• Material form

• Dimensions

• Material condition

• Required aging condition

• Mechanical-property requirements

• Surface condition

• Heat-treatment certification

• Material certificate

• Heat / lot traceability

For example:

17-4 PH / UNS S17400 / ASTM A564 / H1025

provides much clearer engineering information than the grade name alone.

17-4 PH Stainless Steel Selection Summary

Choose 17-4 PH For

High-Strength Shafts / Valve Components / Pump Components / High-Strength Fasteners / Precision Mechanical Components / Heat-Treated CNC Parts / Load-Bearing Stainless Components

Choose H900 When

Maximum strength and hardness are required.

Choose H1025 When

High strength with improved toughness is required.

Choose H1075 When

A more balanced strength and toughness profile is required.

Choose H1150 When

Higher toughness is more important than peak strength.

Choose 304 When

General fabrication, formability and lower material cost are more important.

Choose 316L When

Chloride corrosion resistance and welding performance are more important.

Choose 2205 When

High strength must be combined with stronger chloride resistance.

Choose 420 / 440C When

Maximum hardness and wear resistance are the primary requirements.

Choose 15-5 PH When

A related precipitation-hardening grade is required for a different toughness or specification profile.

Material Selection & Engineering Support

Selecting 17-4 PH stainless steel requires more than confirming the alloy grade. The required heat-treatment condition, mechanical properties, manufacturing sequence and service environment should also be defined before production.

For high-strength precision components, NAITE TECH can review the material specification together with the drawing, heat-treatment requirements and manufacturing route.

Material Grade Review

17-4 PH can be reviewed against application requirements such as:

• Required yield strength

• Required tensile strength

• Required hardness

• Toughness requirements

• Heat-treatment condition

• Corrosion environment

• Chloride exposure

• CNC machining requirements

• Welding requirements

• Dimensional tolerance

• Grinding requirements

• Applicable ASTM / AMS / EN specification

The most important selection question is often not only:

“Should I use 17-4 PH?”

but also:

“Which 17-4 PH condition should I specify?”

Typical condition selection may include:

Maximum Strength → H900

High Strength + Improved Toughness → H1025

Balanced Strength + Toughness → H1075

Higher Toughness → H1150

Machining Before Final Aging → Condition A

Heat-Treatment Condition Review

The heat-treatment condition directly affects the final mechanical properties of 17-4 PH.

Before production, the drawing or purchase specification should identify the required final condition whenever strength, hardness or toughness is controlled.

Important items include:

• Starting material condition

• Solution-treatment requirement

• Aging condition

• Required hardness

• Required tensile properties

• Post-machining heat treatment

• Final grinding allowance

• Required heat-treatment certification

A specification such as:

17-4 PH / UNS S17400 / ASTM A564 / H1025

provides substantially clearer production information than:

17-4 PH Stainless Steel

alone.

Manufacturing Sequence Review

For precision 17-4 PH components, the order of machining and heat treatment can affect dimensional accuracy, cost and final properties.

A common production route is:

Condition A Material

↓

Rough Machining

↓

Semi-Finish Machining

↓

Precipitation-Hardening Heat Treatment

↓

Finish Machining / Grinding

↓

Surface Finishing / Passivation

The actual sequence depends on:

• Component geometry

• Final heat-treatment condition

• Tolerance

• Surface finish

• Distortion sensitivity

• Thread requirements

• Grinding allowance

Machining Review

17-4 PH is well suited to precision CNC machining, but cutting behavior depends on material condition.

Important manufacturing considerations include:

Condition A
Generally preferred when significant material removal is required before aging.

Aged Conditions
Higher strength and hardness can increase cutting forces and tool wear.

Drilling & Tapping
Tool rigidity, chip evacuation and cutting condition become increasingly important in high-strength conditions.

Finish Grinding
Useful after aging when tight shaft diameters, bearing surfaces or precision dimensions must be maintained.

Corrosion Environment Review

17-4 PH provides good general corrosion resistance, but it should not automatically be selected for severe chloride or chemical environments.

Important factors include:

• Chloride concentration

• Operating temperature

• Applied stress

• Crevice geometry

• Wet or dry exposure

• Surface condition

• Heat-treatment condition

• Cleaning chemicals

Where corrosion resistance is more important than precipitation-hardened strength, another grade may be more appropriate.

Typical alternatives include:

Higher Chloride Resistance → 316L

High Strength + Higher Chloride Resistance → 2205 Duplex

Severe Seawater / Chloride Service → 2507 Super Duplex

Aggressive Chemical Service → 904L or Higher-Alloy Stainless Steel

Specification Review

For controlled projects, material requirements can be reviewed together with:

• Grade

• UNS designation

• ASTM / AMS / EN specification

• Product form

• Material dimensions

• Starting condition

• Final aging condition

• Mechanical-property requirements

• Hardness requirement

• Surface condition

• Certification requirements

• Heat / lot traceability requirements

The engineering drawing and purchase specification should take precedence over general website reference data.

Material Quality & Traceability for 17-4 PH Stainless Steel

Material identity alone may not be sufficient for 17-4 PH.

For high-strength applications, the material grade, heat-treatment condition and associated documentation may all need to be controlled.

Material Grade Verification

The specified material can be reviewed against the drawing and purchase requirements before production.

Typical grade identification may include:

17-4 PH / Type 630 / UNS S17400 / EN 1.4542

Where required, the applicable material standard and heat-treatment condition should also be confirmed.

Material Condition Verification

For 17-4 PH projects, verification should distinguish between:

• Condition A

• H900

• H925

• H1025

• H1075

• H1100

• H1150

• Other specified conditions

The condition stated on the drawing should match the final required mechanical properties.

Mill Test Reports

Mill Test Reports can be supplied for applicable materials and projects where material certification is required.

Depending on the material source and specification, an MTR may include:

• Material grade

• Heat number

• Chemical composition

• Mechanical properties

• Product specification

• Material condition

• Product dimensions

Heat-Treatment Certification

Where final mechanical properties depend on precipitation hardening, heat-treatment documentation may be required.

Depending on the project, records may include:

• Heat-treatment condition

• Aging temperature

• Holding time

• Treatment date

• Furnace or batch identification

• Hardness results

• Mechanical-property verification where specified

Required documentation should be agreed before production.

Hardness Verification

Hardness testing can be used where the final aged condition or mechanical performance requires verification.

The required scale, test location and acceptance range should be defined by the applicable drawing, specification or inspection plan.

Hardness results should not be used as a substitute for required tensile testing where the governing material specification requires full mechanical-property certification.

Certificate of Conformity

A Certificate of Conformity can be provided for applicable projects where required.

Certification requirements should be defined during quotation and purchasing.

Heat & Lot Traceability

Heat, lot or batch traceability can be maintained where required.

Traceability is particularly relevant for:

• High-strength mechanical components

• Aerospace-related components

• Valve and pump components

• Controlled heat-treatment projects

• Repeat production

• Customer-approved material sources

• Safety-critical applications

Incoming Material Inspection

Incoming 17-4 PH material can be checked for:

• Material identification

• Product form

• Dimensions

• Surface condition

• Visible damage

• Material documentation

• Starting material condition where specified

For precision machining projects, the starting condition should be confirmed before the manufacturing sequence is finalized.

PMI & Additional Material Verification

Where additional alloy verification is required, Positive Material Identification or another agreed material-verification method may be considered.

The required method, acceptance criteria and documentation should be defined before production.

PMI confirms alloy chemistry but does not by itself verify the precipitation-hardening condition or final mechanical properties.

Documentation Support

Depending on project requirements, documentation may include:

Material Certificate / MTR / CoC / Heat-Treatment Certificate / Hardness Report / Heat or Lot Records / Incoming Inspection Records / Dimensional Inspection Reports / Additional Agreed Quality Documentation

Quality & Traceability Note

For 17-4 PH components, material certification and heat-treatment certification should be treated as separate controls when both are required.

The material certificate confirms the supplied alloy and associated material data.

The heat-treatment record confirms the processing used to develop the final precipitation-hardened condition.

If a project requires a specific ASTM or AMS specification, H-condition, hardness range, heat-treatment certificate or heat-number traceability, these requirements should be stated during quotation.

Technical References

The technical information on this page is intended for engineering reference and preliminary material selection.

Final material, heat-treatment and mechanical-property requirements should be verified against the specification applicable to the actual product form and application.

ASTM International

ASTM A564 / A564M
Age-hardening stainless steel bars and shapes.

Commonly relevant for 17-4 PH bar stock used for CNC machining and high-strength mechanical components.

ASTM A693
Precipitation-hardening stainless steel plate, sheet and strip.

Relevant when 17-4 PH is supplied as flat product.

ASTM A705 / A705M
Age-hardening stainless steel forgings.

Aerospace Material Specifications

Depending on the product form and customer requirements, 17-4 PH may also be specified under applicable AMS standards.

Common examples include:

AMS 5643
Commonly associated with 17-4 PH bar, forging and related product forms.

AMS 5604
Commonly associated with sheet, strip and plate.

The applicable revision and exact product requirements should be identified on controlled project documentation.

Material Designations

Common Grade: 17-4 PH

ASTM / AISI Type: 630

UNS: S17400

EN Material Number: 1.4542

EN Designation: X5CrNiCuNb16-4

Additional Technical References

Material and heat-treatment information may also be reviewed against technical data published by:

• ASTM International

• SAE International

• British Stainless Steel Association

• World Stainless

• Major stainless steel producers

• Applicable customer or industry specifications

Technical Note

General material data should not replace application-specific engineering assessment where strength, fatigue, fracture toughness, corrosion, pressure, temperature or regulatory requirements are critical.
