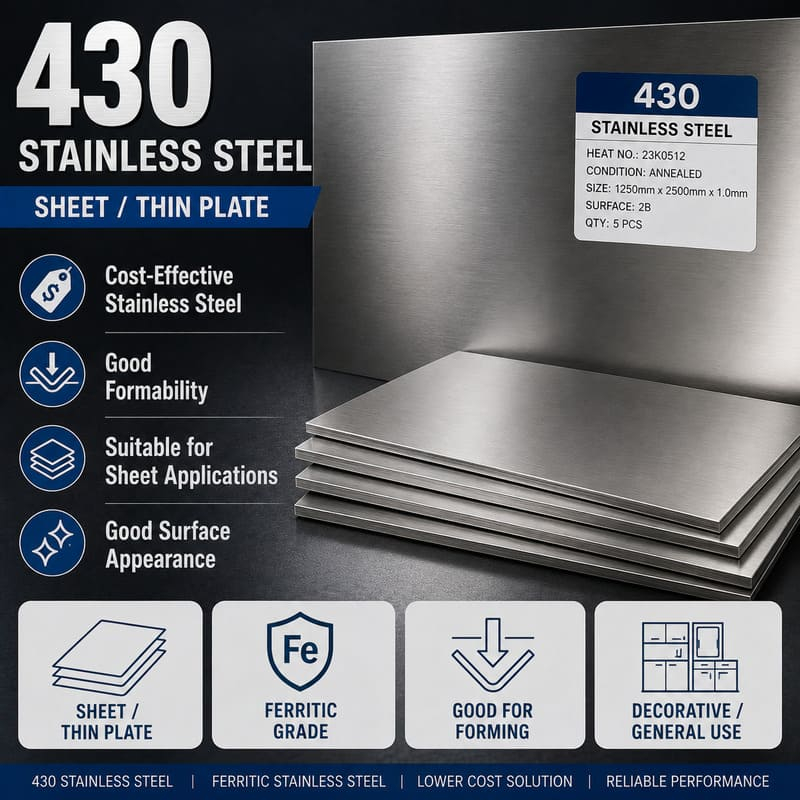

What Is 430 Stainless Steel?

430 stainless steel is a ferritic chromium stainless steel commonly used for sheet-metal components, appliance parts, architectural trim and general fabricated parts.

It is commonly designated:

UNS S43000 / EN 1.4016 / X6Cr17

Unlike austenitic stainless steels such as 304 and 316L, 430 does not depend on significant nickel additions for its basic corrosion resistance.

Its structure is ferritic, which means 430 is:

• Magnetic

• Not conventionally heat hardenable

• Lower in thermal expansion than austenitic stainless steels

• Well suited to many sheet-forming applications

• Generally more cost-conscious than nickel-bearing austenitic grades

Why Engineers Choose 430 Stainless Steel

430 is commonly selected when the application requires:

• Moderate corrosion resistance

• Good sheet formability

• Magnetic behavior

• Decorative surface finish

• Lower relative alloy cost

• Lower thermal expansion than 304 or 316L

• General fabrication capability

• Indoor or mildly corrosive service

It is particularly useful for:

Appliance Panels / Covers / Housings / Decorative Trim / Brackets / Formed Sheet Components

430 Stainless Steel in One Sentence

430 is a magnetic ferritic stainless steel used for cost-conscious sheet and fabricated components where moderate corrosion resistance and good formability are sufficient.

Chemical Composition & Properties of 430 Stainless Steel

Chemical Composition

Representative composition limits for UNS S43000 are shown below.

Actual composition requirements should be confirmed against the applicable product specification.

Role of Chromium

Chromium provides the passive oxide film responsible for the stainless-steel corrosion resistance of 430.

With approximately 16–18% chromium, 430 provides useful resistance to atmospheric and mildly corrosive environments.

However, it does not contain the molybdenum addition used in 316 or 316L, so resistance to chloride-induced pitting is more limited.

Nickel Content

430 is commonly considered a low-nickel or essentially nickel-free standard ferritic stainless steel.

This contributes to:

• Lower alloy cost

• Different forming behavior

• Magnetic properties

• Different corrosion performance compared with 304

Nickel content should still be confirmed from the actual material specification if a project has a strict chemistry requirement.

Mechanical Properties

430 is not normally selected for very high mechanical strength.

Its useful properties are based more on:

Formability / Corrosion Resistance / Sheet Performance / Cost Efficiency

Representative annealed sheet properties may fall approximately within:

These values are representative only and depend on:

Thickness / Product Form / Cold Work / Applicable Standard / Supply Condition

Effect of Cold Working

430 cannot be hardened through quenching and tempering.

However, cold working can increase:

• Yield strength

• Tensile strength

• Hardness

while reducing ductility.

For formed sheet parts, the degree of cold work can therefore affect both final strength and forming behavior.

Typical Physical Properties

Physical properties are approximate and vary with temperature and material condition.

Lower Thermal Expansion

430 generally expands less with temperature than austenitic stainless steels such as 304 and 316L.

This can be useful for:

Panels / Covers / Appliance Components / Thermal-Cycle Applications

where lower thermal movement is beneficial.

Higher Thermal Conductivity Than Austenitic Grades

430 generally conducts heat more efficiently than 304 or 316L.

This can influence:

• Heating behavior

• Cooling behavior

• Welding response

• Thermal distortion

• Appliance applications

Corrosion Resistance & Environmental Performance

430 provides good corrosion resistance in mild environments.

It performs best where exposure is limited to:

• Indoor atmospheres

• Dry environments

• Mild moisture

• Low-chloride conditions

• Selected food-contact environments

• Decorative or architectural service

Its corrosion resistance is generally lower than 304, 316 and 316L.

Atmospheric Corrosion

430 performs well in clean indoor and mildly corrosive atmospheric environments.

Common applications include:

Appliances / Indoor Panels / Decorative Trim / Equipment Covers

Freshwater Exposure

430 can be suitable for selected freshwater exposure when chloride levels are low.

Continuous wet service should be evaluated carefully because surface deposits and crevices can increase corrosion risk.

Chloride Resistance

430 is not a chloride-resistant grade.

Chlorides can increase the risk of:

• Pitting

• Crevice corrosion

• Surface staining

For higher-chloride environments, 304 may provide an improvement, while 316L or duplex stainless steel may be more appropriate for more demanding service.

Coastal Environments

430 can experience increased corrosion risk in coastal atmospheres due to airborne salt.

For exterior coastal applications, 304 or 316L is generally a better starting point depending on exposure severity.

Seawater

430 is not recommended as a primary material for direct or continuous seawater exposure.

For seawater-related service, consider:

316L / 2205 / 2507

depending on severity and mechanical requirements.

Mild Food-Contact Applications

430 is widely used in selected kitchen and appliance components.

However, suitability depends on:

• Cleaning chemicals

• Chloride exposure

• Surface finish

• Temperature

• Food chemistry

For demanding sanitary or corrosive food-processing service, 304 or 316L is generally more appropriate.

Environmental Suitability

Key Engineering Characteristics

Ferritic Stainless Structure

430 is ferritic rather than austenitic or martensitic.

This gives it a different combination of:

• Magnetic behavior

• Thermal expansion

• Thermal conductivity

• Forming characteristics

• Welding response

Magnetic Behavior

430 is magnetic in the annealed condition.

This is a normal property of the ferritic stainless-steel structure.

Good Sheet Formability

430 is widely used for:

• Bending

• Stamping

• Roll forming

• Drawing

• General sheet fabrication

Its forming behavior is different from 304 and should be evaluated for demanding deep-drawn geometries.

Ridging / Roping Consideration

Ferritic stainless sheets can develop visible ridging or roping after significant forming.

This may be important for:

Decorative Panels / Appliance Surfaces / Deep-Drawn Components

Material quality, rolling direction and forming sequence can influence the final surface appearance.

No Conventional Heat Hardening

430 cannot be hardened by:

Austenitizing → Quenching → Tempering

in the way 410 or 420 can.

Annealing can restore ductility after cold work, but it does not convert 430 into a high-hardness grade.

Moderate Mechanical Strength

430 provides adequate strength for many fabricated sheet applications but should not be selected primarily for high-strength structural components.

Moderate Corrosion Resistance

430 offers useful corrosion resistance in mild service but less corrosion margin than 304 or 316L.

Cost Efficiency

Because 430 does not rely on substantial nickel additions, it is often more cost-effective than 304 or 316L.

This makes it attractive where the environment does not justify the higher corrosion resistance of more highly alloyed grades.

Manufacturing Compatibility of 430 Stainless Steel

430 is particularly well suited to sheet-metal processing.

Sheet Metal Processing

Compatibility: ✅ Excellent

430 is commonly processed by:

Laser Cutting / Shearing / Punching / Bending / Stamping / Forming

It is one of the most important manufacturing routes for this grade.

Laser Cutting

Compatibility: ✅ Excellent

430 sheet and plate can be laser cut for:

Panels / Covers / Brackets / Housings / Decorative Components

Cut edges should be cleaned where surface quality or corrosion resistance matters.

Bending

Compatibility: ✅ Good

430 can be bent successfully in the annealed condition.

Bend radius and rolling direction should be considered for tighter bends.

Stamping

Compatibility: ✅ Good

430 is widely used for stamped appliance and sheet-metal parts.

Tooling, lubrication and material orientation influence forming consistency.

Deep Drawing

Compatibility: ⚠ Application Dependent

430 can be deep drawn, but its performance is generally less forgiving than highly formable austenitic grades.

For demanding draw depth or complex geometry, material condition and tooling design should be reviewed carefully.

CNC Machining

Compatibility: ✅ Good

430 can be turned, milled and drilled using conventional methods.

It is not a free-machining grade, so cutting conditions should be optimized for:

• Tool life

• Chip control

• Surface finish

Drilling

Compatibility: ✅ Good

Suitable for holes, countersinks and threaded features in sheet and machined components.

Welding

Compatibility: ⚠ Moderate / Limited

430 can be welded, but heat input should be controlled.

Excessive thermal exposure can lead to:

• Grain growth

• Reduced ductility

• Heat-affected-zone embrittlement

Thin-gauge welding is generally more manageable than heavy-section welding.

For welding-intensive fabrication, 304L or 316L usually offers better weldability.

Brazing

Compatibility: ⚠ Evaluate

Brazing is possible with suitable filler metal and process control.

Service environment and joint corrosion behavior should be considered.

Forging

Compatibility: ⚠ Possible

430 can be hot worked, but forging is not its primary commercial manufacturing route.

Sheet and strip fabrication are far more common.

Grinding

Compatibility: ✅

Grinding can be used for:

Edge Finishing / Weld Cleanup / Surface Preparation / Dimensional Correction

Material Condition & Heat Treatment

430 is not conventionally heat hardenable.

Heat treatment is used mainly for:

Annealing / Stress Reduction / Restoring Ductility

rather than hardening.

Annealing

A typical annealing range may be approximately:

760–815°C

followed by suitable cooling.

Exact conditions depend on:

Product Form / Thickness / Degree of Cold Work / Applicable Specification

Purpose of Annealing

Annealing can help:

• Restore ductility

• Reduce cold-work effects

• Improve subsequent forming

• Reduce residual stress

Can 430 Be Hardened by Heat Treatment?

No.

430 does not respond to conventional quench hardening like:

410 / 420 / 440C

If significantly higher hardness is required, a martensitic stainless steel should be considered.

Cold-Work Strengthening

430 can increase in strength through cold deformation.

However, this also reduces ductility.

For heavily formed parts, forming sequence and intermediate annealing may need to be considered.

Grain Growth Consideration

Ferritic stainless steels can experience grain growth when exposed to excessive high temperatures.

This is one reason welding and heat treatment should be controlled carefully.

430 vs 304 Material Behavior

430 and 304 are both widely used for sheet and fabricated components but behave differently.

430 Stainless Steel

• Ferritic

• Magnetic

• Lower nickel content

• Lower relative alloy cost

• Lower thermal expansion

• Moderate corrosion resistance

• Moderate weldability

304 Stainless Steel

• Austenitic

• Generally non-magnetic when annealed

• Higher nickel content

• Better general corrosion resistance

• Better weldability

• Better complex forming capability

This makes 430 attractive for cost-sensitive formed components used in mild environments, while 304 is generally preferred where corrosion resistance or fabrication flexibility is more important.

Surface Finish Compatibility

430 is widely available with decorative and functional surface finishes.

Mill Finish

Compatibility: ✅ Excellent

Common for industrial and concealed components.

Brushed Finish

Compatibility: ✅ Excellent

Frequently used for:

Appliance Panels / Decorative Trim / Equipment Covers / Interior Components

Polished Finish

Compatibility: ✅ Excellent

430 can be mechanically polished for decorative or functional surfaces.

BA / Bright Annealed Finish

Compatibility: ✅ Excellent

Bright annealed 430 sheet is widely used where a smooth, reflective surface is required.

No. 4 Brushed Finish

Compatibility: ✅ Excellent

A common decorative finish for appliance and architectural applications.

Bead Blasting

Compatibility: ✅ Good

Can provide a uniform matte appearance.

Stainless-compatible media should be used to reduce surface contamination risk.

Passivation

Compatibility: ✅

430 can be cleaned and passivated where required.

Passivation helps maintain a clean passive surface but does not increase the alloy's chloride resistance to the level of 304 or 316L.

Pickling

Compatibility: ✅ / Evaluate

Pickling can remove oxide scale after thermal processing.

Process chemistry should be selected appropriately for ferritic stainless steel.

Laser Marking

Compatibility: ✅ Excellent

Suitable for:

Part Numbers / Serial Numbers / Logos / Traceability Marking

Electropolishing

Compatibility: ⚠ Evaluate

Electropolishing can be applied, but 430 is not normally selected for highly corrosion-critical electropolished applications.

316L is generally more appropriate where sanitary corrosion performance dominates.

Common Finish Options

Mill Finish ✅ / Brushed Finish ✅ / Polished Finish ✅ / Bright Annealed ✅ / No. 4 Finish ✅ / Bead Blasting ✅ / Passivation ✅ / Pickling ✅ / Laser Marking ✅ / Electropolishing ⚠

Surface Finish Selection Note

For decorative 430 components, surface finish should be specified together with:

Sheet Direction / Grain Direction / Forming Direction / Protective Film / Final Appearance Requirement

This is especially important for visible appliance panels, architectural trim and formed decorative components.

Typical Applications of 430 Stainless Steel

430 stainless steel is commonly used for sheet-metal and decorative components operating in indoor, atmospheric or otherwise mildly corrosive environments.

It is especially attractive where good appearance, formability, magnetic behavior and relatively low alloy cost are more important than maximum corrosion resistance or welding performance.

Appliance Components

Typical Applications:

Appliance Panels / Refrigerator Components / Dishwasher Components / Oven Trim / Range Components / Interior Appliance Parts

430 is widely used in appliance manufacturing because it combines:

Corrosion Resistance / Decorative Finish / Sheet Formability / Magnetic Behavior / Cost Efficiency

For components exposed continuously to aggressive cleaning chemicals or chlorides, 304 or 316L may provide a better corrosion margin.

Covers, Panels & Housings

Typical Applications:

Equipment Covers / Control Panels / Machine Housings / Interior Enclosures / Protective Panels

430 is well suited to components manufactured through:

Laser Cutting → Punching → Bending → Forming → Surface Finishing

It is particularly practical where the component does not require extensive welding or severe corrosion resistance.

Decorative Trim

Typical Applications:

Appliance Trim / Interior Architectural Trim / Automotive Decorative Trim / Decorative Panels / Surface Covers

430 is available with finishes such as:

Brushed / Polished / Bright Annealed / No. 4

which makes it useful for visible decorative surfaces.

Kitchen & Food-Related Components

Typical Applications:

Kitchen Equipment Components / Appliance Liners / Covers / Panels / Selected Utensil Components

430 can be appropriate where exposure is relatively mild and chloride levels are controlled.

For process equipment, tanks, piping or demanding sanitary environments, 304 or 316L is generally a better starting material.

Brackets & Formed Sheet Parts

Typical Applications:

Brackets / Supports / Clips / Retainers / Formed Hardware / Stamped Components

430 can be efficiently:

Stamped / Bent / Punched / Laser Cut / Roll Formed

for medium- and high-volume sheet-metal production.

Automotive Trim & Interior Components

430 and related ferritic stainless steels are used for selected automotive components where:

• Decorative appearance

• Moderate corrosion resistance

• Thermal behavior

• Magnetic properties

• Cost control

are important.

The exact grade should still be matched to the environmental and temperature requirements of the component.

Architectural Interior Components

Typical Applications:

Decorative Panels / Interior Trim / Elevator Interior Components / Covers / Architectural Features

430 is most appropriate where exposure is controlled and salt deposition is limited.

For exterior coastal architecture, 304 or 316L usually provides a better corrosion-resistance margin.

When Should You Choose 430 Stainless Steel?

430 is a strong material choice when the application requires a stainless appearance and moderate corrosion resistance without the higher alloy content of 304 or 316L.

Choose 430 When You Need

• Good sheet formability

• Moderate corrosion resistance

• Magnetic stainless steel

• Lower relative alloy cost

• Decorative surface finish

• Laser cutting and bending

• Stamping or roll forming

• Indoor or mild environmental exposure

• Lower thermal expansion than austenitic stainless steel

430 Is Especially Suitable When

The Part Is Primarily a Sheet-Metal Component

430 is particularly well suited to:

Panels / Covers / Housings / Brackets / Trim / Formed Components

The Environment Is Mild

430 can be an efficient material choice where the component is not exposed to:

Seawater / High Chlorides / Aggressive Chemicals / Severe Outdoor Salt Exposure

Magnetic Behavior Is Acceptable or Desired

430 is ferritic and magnetic in the annealed condition.

This can be useful in products where magnetic response is part of the design or assembly concept.

Material Cost Matters

Because standard 430 does not rely on substantial nickel additions, its relative raw-material cost is often lower than 304 or 316L.

The Component Requires a Decorative Stainless Finish

430 is commonly available with brushed, polished and bright surface finishes suitable for visible components.

When Is 430 Not the Best Choice?

430 should not be selected only because it is less expensive than 304.

The environment and manufacturing process still need to support the material choice.

Consider Another Grade When...

430 Stainless Steel vs Similar Grades

430 vs 304 Stainless Steel

This is the most important comparison for many 430 applications.

Both grades are widely used for sheet-metal parts, appliances, covers and decorative components, but their metallurgy and corrosion performance differ substantially.

*Cold-worked 304 can become partially magnetic.

Choose 430 when:
Cost efficiency, magnetic behavior and straightforward sheet forming are important in a mild environment.

Choose 304 when:
Higher corrosion resistance, better welding or demanding forming performance is required.

CTA:
Compare 304 vs 430 Stainless Steel

430 vs 316L Stainless Steel

316L contains nickel and molybdenum and provides substantially better resistance to chloride-induced pitting and crevice corrosion.

430 is much more strongly associated with cost-conscious indoor and appliance applications.

Choose 430 when:
The environment is mild and material cost is an important factor.

Choose 316L when:
Chlorides, aggressive cleaning chemicals or corrosion-sensitive welded service are important.

430 vs 410 Stainless Steel

430 and 410 are both magnetic stainless steels, but they belong to different metallurgical families.

430 is ferritic and cannot be conventionally hardened.

410 is martensitic and can be hardened and tempered.

Choose 430 when:
Sheet forming, decorative appearance and cost efficiency are important.

Choose 410 when:
Heat-treatable mechanical strength and hardness are required.

430 vs 420 Stainless Steel

430 is designed primarily around:

Sheet Formability + Moderate Corrosion Resistance + Cost Efficiency

420 is designed primarily around:

Heat-Treatable Hardness + Wear Resistance

Choose 430 when:
The component is a formed sheet, panel, cover or decorative part.

Choose 420 when:
The component requires substantial hardness and wear resistance.

430 vs 17-4 PH Stainless Steel

These grades serve very different engineering purposes.

430 is a relatively economical ferritic stainless for fabricated sheet components.

17-4 PH is a precipitation-hardening grade designed for high mechanical strength.

Choose 430 when:
Moderate strength and corrosion performance are sufficient.

Choose 17-4 PH when:
High yield strength and controlled heat-treated mechanical properties are required.

430 or 304 — Which Should You Choose?

For many procurement decisions, the selection can be simplified to the following questions.

Choose 430 If:

• The component is mainly indoors

• Chloride exposure is low

• Extensive welding is unnecessary

• Sheet forming is relatively straightforward

• Magnetic behavior is acceptable

• Lower material cost is valuable

Choose 304 If:

• The component may experience more frequent moisture

• Better general corrosion resistance is required

• Welding is important

• Complex deep drawing is required

• Exterior exposure is expected

• A greater corrosion safety margin is preferred

Selection Principle

Do not select 304 automatically when 430 can meet the actual environmental requirement.

Likewise, do not downgrade to 430 only for cost if corrosion exposure or fabrication demands make 304 the more reliable choice.

Magnetic Requirements

Magnetic behavior can be an important selection factor.

430 Stainless Steel

Magnetic: Yes

430 is ferritic and remains strongly magnetic in normal annealed condition.

304 Stainless Steel

Magnetic: Generally Low in Annealed Condition

Cold working can increase magnetic response.

Selection Note

If magnetic response is a functional requirement, the magnetic properties should be defined separately rather than relying only on the stainless-steel grade name.

Formability Selection

430 is well suited to many sheet-forming operations, but geometry matters.

Good Applications

• Simple bends

• Shallow draws

• Stamped brackets

• Roll-formed sections

• Panels

• Covers

• Housings

More Demanding Applications

Complex deep draws and highly stretched visible surfaces may require greater attention to:

• Rolling direction

• Bend orientation

• Tooling

• Lubrication

• Blank-holder pressure

• Surface ridging

• Sheet condition

Where extreme formability is required, 304 may provide greater process flexibility.

Welding Selection

430 can be welded, especially in thinner sections, but it is not the preferred grade for welding-intensive fabrication.

Excessive heat input may increase:

• Grain growth

• HAZ brittleness

• Loss of ductility

Choose 430 When

Welding is limited and the assembly is primarily:

Formed / Stamped / Mechanically Fastened

Consider 304L or 316L When

The structure requires:

Extensive Welding / Multiple Weld Joints / High Fabrication Ductility / Corrosion-Sensitive Weld Zones

Standards, Specifications & Material Forms of 430 Stainless Steel

430 is supplied primarily as sheet, strip and coil, although other product forms are also available.

Common Material Designations

International designations should still be checked against the applicable product specification before controlled purchasing.

Common ASTM Specifications

ASTM A240 / A240M

Commonly applies to:

Plate / Sheet / Strip

This is one of the most relevant specifications for 430 because the grade is widely used in flat-product applications.

ASTM A276 / A276M

May apply to:

Bars / Shapes

where Type 430 is supplied in applicable long-product forms.

The exact product specification should match the purchased material form.

Common European Standards

EN 10088-2

Relevant to:

Sheet / Plate / Strip

This is particularly important for 1.4016 flat products.

EN 10088-3

Relevant to:

Bars / Rods / Sections

where applicable.

Common Material Forms

430 is commonly available as:

Coil / Sheet / Strip / Plate / Flat Bar / Round Bar

Flat products are the most characteristic commercial forms for this grade.

Coil

Commonly used for:

Stamping / Roll Forming / High-Volume Sheet Production / Appliance Components

Sheet

Commonly used for:

Panels / Covers / Housings / Brackets / Appliance Parts / Decorative Components

Strip

Commonly used for:

Clips / Retainers / Trim / Small Stamped Components / Formed Sections

Plate

Used for thicker fabricated components where the corrosion and mechanical requirements remain within the capability of 430.

Bar

Available for selected machined applications, although machining is not the primary reason to select 430.

Common Supply Conditions

Depending on product form, 430 may be supplied as:

Annealed / Cold Rolled / Hot Rolled / Bright Annealed / Polished / Brushed

Surface Finish Designations

Typical sheet finishes can include:

2B / BA / No. 4 / Brushed / Polished / Custom Decorative Finish

Finish terminology should be confirmed against the applicable supplier or product standard.

Decorative Sheet Specification

For visible components, the purchasing specification may need to identify:

• Material grade

• Thickness

• Surface finish

• Grain direction

• Protective film

• Appearance acceptance criteria

• Flatness requirement

• Surface defect limits

This is especially important for appliance and decorative panels.

Purchasing Specification Note

“430 stainless steel” may not provide enough information for a controlled sheet-metal purchase.

Where appearance and forming performance are important, the specification should identify:

• 430 / UNS S43000

• Applicable ASTM / EN standard

• Product form

• Thickness

• Temper / supply condition

• Surface finish

• Grain direction where relevant

• Flatness requirement

• Protective film if required

• Material certification

• Heat / lot traceability

A typical controlled callout might be structured as:

430 / UNS S43000 / ASTM A240 / 2B Finish / Thickness as Drawing

with additional surface or forming requirements defined by the project.

430 Stainless Steel Selection Summary

Choose 430 For

Appliance Components / Panels / Covers / Housings / Decorative Trim / Brackets / Stamped Parts / Formed Sheet Components / Cost-Conscious Stainless Applications

Choose 304 When

Better general corrosion resistance, welding performance or complex formability is required.

Choose 316L When

Chloride corrosion resistance is a major requirement.

Choose 410 When

Heat-treatable mechanical strength is required.

Choose 420 When

Higher hardness and wear resistance are required.

Choose 17-4 PH When

High structural strength is required.

Final Selection Principle

430 is most effective when its actual strengths match the application:

Mild Environment + Sheet Forming + Magnetic Behavior + Cost Efficiency

If the application instead requires:

Higher Corrosion Resistance / Extensive Welding / Severe Chloride Exposure / High Mechanical Strength

another stainless steel grade should be considered.

Material Selection & Engineering Support

Selecting 430 stainless steel should consider the actual corrosion environment, sheet-forming requirements, welding requirements, surface appearance and material cost rather than focusing only on the stainless-steel grade name.

430 is most effective when moderate corrosion resistance, magnetic behavior, good sheet formability and cost efficiency are all aligned with the application.

NAITE TECH can review the specified material together with the drawing, sheet condition, surface finish and manufacturing route before production.

Material Grade Review

430 can be reviewed against requirements such as:

• General corrosion resistance

• Chloride exposure

• Indoor or outdoor environment

• Magnetic behavior

• Sheet-forming requirements

• Bending requirements

• Stamping requirements

• Deep-drawing severity

• Welding requirements

• Surface finish

• Decorative appearance

• Grain direction

• Material thickness

• Product form

• Applicable ASTM / EN specification

• Certification and traceability requirements

Where another stainless steel grade provides a better fit, typical alternatives include:

Better General Corrosion Resistance → 304

Better Welding Performance → 304 / 304L

Higher Chloride Resistance → 316 / 316L

Heat-Treatable Mechanical Strength → 410

Higher Hardness & Wear Resistance → 420

High Structural Strength → 17-4 PH

Sheet & Surface Specification Review

For 430, surface and sheet requirements can be as important as chemical composition.

Important purchasing details may include:

• Material grade

• UNS / EN designation

• Applicable standard

• Thickness

• Width

• Sheet or coil condition

• Surface finish

• Grain direction

• Protective film

• Flatness

• Surface defect limits

• Appearance acceptance criteria

For visible appliance or decorative components, these requirements should be defined before production.

Decorative Surface Review

430 is commonly used where appearance matters.

Typical finish options include:

2B / BA / No. 4 / Brushed / Polished / Custom Decorative Finish

Important visual considerations can include:

• Grain consistency

• Surface direction

• Scratch control

• Protective film

• Forming marks

• Ridging / roping

• Edge appearance

Where a visible part is formed after polishing, forming direction and finish direction should be reviewed together.

Forming Review

430 is suitable for many sheet-forming operations, but its forming behavior differs from 304.

Important considerations include:

• Bend radius

• Rolling direction

• Tooling

• Lubrication

• Blank geometry

• Draw depth

• Material condition

• Surface ridging

• Springback

For demanding deep-drawn or highly stretched visible components, 304 may provide greater forming flexibility.

Welding Review

430 can be welded, but it is not generally the preferred grade for welding-intensive structures.

Important factors include:

• Material thickness

• Heat input

• Joint design

• Weld sequence

• Grain growth

• Heat-affected-zone ductility

• Final corrosion environment

Where extensive welding or higher post-weld ductility is required, 304L or 316L should be considered.

Corrosion Environment Review

430 provides useful corrosion resistance in mild environments.

Its suitability should be reviewed against:

• Chloride concentration

• Salt exposure

• Moisture

• Operating temperature

• Cleaning chemicals

• Surface deposits

• Outdoor exposure

• Surface finish

• Crevice geometry

Typical Selection Direction

Indoor / Mild Environment → 430 may be appropriate

General Exterior / Higher Moisture → Consider 304

Chloride-Rich / More Aggressive Environment → Consider 316L

High Strength + Chloride Resistance → Consider 2205

Cost Review

430 can offer lower relative alloy cost than 304 or 316L because it does not rely on substantial nickel additions.

However, total finished-part cost should still include:

• Forming complexity

• Tooling

• Welding

• Surface finishing

• Protective film

• Scrap rate

• Appearance requirements

• Production volume

A lower-cost raw material does not always produce the lowest-cost finished component.

Specification Review

For controlled projects, material and manufacturing requirements can be reviewed together with:

• 430 / UNS S43000

• EN 1.4016 where applicable

• Applicable ASTM / EN specification

• Product form

• Thickness

• Supply condition

• Surface finish

• Grain direction

• Forming requirement

• Welding requirement

• Corrosion environment

• Material certification

• Heat / lot traceability

The engineering drawing and purchase specification should take precedence over general website reference data.

Material Quality & Traceability for 430 Stainless Steel

For visible or formed 430 components, material identity, sheet condition and surface quality may all require control.

Material Grade Verification

The specified material can be checked against the drawing and purchasing requirements before production.

Typical identification may include:

430 / UNS S43000 / EN 1.4016

Where a specific international designation is required, the applicable product specification should also be confirmed.

Mill Test Reports

Mill Test Reports can be supplied for applicable materials and projects where certification is required.

Depending on the material source and specification, an MTR may include:

• Material grade

• Heat number

• Chemical composition

• Mechanical properties

• Product specification

• Product form

• Material condition

• Dimensions

Heat & Lot Traceability

Heat, lot or batch information can be maintained where traceability requirements apply.

This may be useful for:

• Repeat production

• Appliance components

• Decorative panels

• Controlled material specifications

• Customer-approved material sources

• Surface-critical parts

Incoming Material Inspection

Incoming 430 sheet, strip or other stock can be checked for:

• Material identification

• Thickness

• Width

• Surface finish

• Protective film

• Flatness

• Surface scratches

• Visible defects

• Grain direction where specified

• Material documentation

For decorative parts, surface inspection before fabrication is particularly important.

Surface Finish Verification

Where appearance requirements apply, inspection may consider:

• Finish designation

• Grain direction

• Surface consistency

• Scratch limits

• Dents

• Roll marks

• Staining

• Protective-film condition

• Visible ridging after forming

Acceptance criteria should be agreed before production where appearance is critical.

Forming Quality Review

For stamped or formed 430 components, inspection may include:

• Bend geometry

• Formed angle

• Draw depth

• Surface cracking

• Ridging / roping

• Springback

• Flatness

• Dimensional consistency

Material condition and forming direction should be reviewed where surface appearance is important.

PMI & Additional Material Verification

Where additional alloy verification is required, Positive Material Identification or another agreed verification method may be considered.

The inspection method and acceptance criteria should be agreed before production.

Important:
PMI can help verify alloy chemistry but does not confirm surface finish, forming condition, mechanical properties or corrosion performance.

Final Dimensional Inspection

Final inspection for fabricated 430 parts may include:

• Thickness

• Length and width

• Hole position

• Bend angle

• Flatness

• Formed dimensions

• Assembly features

• Edge condition

• Surface appearance

Documentation Support

Depending on project requirements, supporting documentation may include:

Material Certificate / MTR / CoC / Heat or Lot Records / Incoming Inspection Records / Surface Inspection Records / Dimensional Inspection Reports / Additional Agreed Quality Documentation

Quality & Traceability Note

For decorative or sheet-formed 430 components, quality control should include more than material chemistry.

Surface finish, material direction, flatness and visible appearance may be just as important as grade verification.

These requirements should be identified during quotation where the component has appearance-sensitive or customer-facing surfaces.

Technical References

The technical information on this page is intended for engineering reference and preliminary material selection.

Final material, forming and surface requirements should be verified against the applicable product specification and project requirements.

ASTM International

ASTM A240 / A240M
Stainless steel plate, sheet and strip.

This is one of the most relevant specifications for 430 because flat products are a primary commercial form.

ASTM A276 / A276M
Stainless steel bars and shapes where Type 430 is supplied in applicable long-product forms.

European Standards

EN 10088-2
Applicable to stainless steel sheet, plate and strip.

EN 10088-3
Applicable to bars, rods, sections and related long products where relevant.

Material Designations

AISI / ASTM Type: 430

UNS: S43000

EN Material Number: 1.4016

EN Designation: X6Cr17

JIS: SUS 430

Additional Technical References

Material, corrosion and forming information may also be reviewed against technical data published by:

• ASTM International

• British Stainless Steel Association

• World Stainless

• Major stainless steel producers

• Applicable forming and fabrication specifications

• Customer or industry standards

Technical Note

General website data should not replace application-specific engineering assessment where corrosion, forming limits, welded performance, appearance or safety requirements are critical.
