2507 Super Duplex Stainless Steel Overview

2507 super duplex stainless steel is a high-alloy duplex stainless steel designed for demanding environments where high mechanical strength and excellent corrosion resistance are required together.

Designated UNS S32750 and EN 1.4410, 2507 combines austenitic and ferritic phases with high chromium, molybdenum and nitrogen contents. This combination provides strong resistance to chloride-induced pitting, crevice corrosion and stress corrosion cracking.

Compared with conventional austenitic grades such as 316L stainless steel, 2507 offers substantially higher strength and stronger resistance to localized corrosion in many chloride-bearing environments.

About 2507 Super Duplex Stainless Steel

2507 is commonly known as Super Duplex 2507 or UNS S32750. Its alloy composition typically contains approximately 25% chromium, 7% nickel, 4% molybdenum and 0.3% nitrogen, with the precise limits defined by the applicable material specification.

The duplex microstructure combines characteristics of ferritic and austenitic stainless steels, giving the material a useful balance of strength, toughness and corrosion resistance.

2507 is commonly considered for components exposed to:

• Chloride-bearing process fluids

• Seawater and marine environments

• Offshore oil and gas operating conditions

• Chemical processing environments

• High mechanical loads combined with corrosion exposure

However, suitability must be assessed against the actual operating temperature, chloride concentration, pressure, stress state and material specification.

Why Choose 2507 Super Duplex Stainless Steel?

2507 is commonly selected when a component requires:

• Very high mechanical strength

• Excellent resistance to chloride pitting and crevice corrosion

• Strong resistance to chloride stress corrosion cracking

• Good general corrosion resistance in suitable environments

• Resistance to erosion corrosion and corrosion fatigue

• A material suitable for demanding marine and chemical applications

Its main engineering advantage is:

Very High Strength + Excellent Chloride Corrosion Resistance

This combination can help engineers meet demanding mechanical and corrosion requirements without automatically moving to a more expensive nickel-based alloy.

The final material choice should still consider the specific corrosive medium, design code, fabrication method and inspection requirements.

Key Engineering Characteristics

Very High Mechanical Strength

2507 generally provides substantially higher strength than conventional austenitic stainless steels such as 304 and 316L in their annealed conditions.

This can be useful for pressure-containing equipment, structural components and precision mechanical parts subject to high loads.

The actual design values must follow the applicable product form and governing specification.

Excellent Chloride Corrosion Resistance

Its high chromium, molybdenum and nitrogen contents contribute to excellent resistance to pitting and crevice corrosion in many chloride-bearing environments.

2507 is particularly relevant to selected seawater-handling, desalination, offshore and chemical-processing applications.

It is not immune to corrosion under every seawater or chemical-service condition; crevices, deposits, temperature and fluid chemistry remain important.

Strong Stress Corrosion Cracking Resistance

The duplex microstructure gives 2507 strong resistance to chloride stress corrosion cracking compared with conventional austenitic grades in many relevant environments.

This is an important reason to consider 2507 for demanding offshore and process applications.

Actual performance depends on temperature, stress, chloride concentration and other environmental factors.

Duplex Microstructure

The balance between ferrite and austenite is important to the material's strength, toughness and corrosion performance.

Welding and heat treatment therefore require appropriate control to maintain the required microstructure and avoid detrimental phase formation.

Machining and Fabrication Considerations

2507 can be CNC machined, but its high strength and duplex structure make machining more demanding than machining many common austenitic grades.

Tool selection, machine rigidity, cutting parameters, coolant and workholding should be planned around the material condition and component geometry.

For fabrication, welding procedures and heat input require duplex-specific consideration.

Elevated-Temperature Limitations

2507 is not a general-purpose high-temperature stainless steel. Prolonged exposure to unsuitable elevated temperatures can impair toughness and corrosion performance through undesirable microstructural changes.

Where sustained high-temperature service is required, the operating conditions and applicable material limits should be reviewed before selection.

Typical 2507 Super Duplex Stainless Steel Components

2507 is commonly used in demanding industrial and corrosion-critical applications, including:

Marine & Offshore Components

Seawater-handling components, offshore equipment, structural fittings and selected mechanical parts exposed to chloride-bearing environments.

Chemical & Process Equipment

Pressure equipment, process piping, heat-exchanger components and fittings where strength and corrosion resistance are important.

Pump & Valve Components

Selected pump components, valve bodies or internals, shafts and other mechanical parts, depending on the required product form and service conditions.

Precision Machined Components

CNC-machined parts requiring high mechanical strength and corrosion resistance, including selected fittings, shafts and custom mechanical components.

For manufacturing-focused information, see 2507 Super Duplex Stainless Steel Parts Manufacturing.

2507 vs 2205 — Quick Selection

2205 duplex stainless steel and 2507 share a duplex microstructure, but they are intended for different levels of corrosion and mechanical demand.

2507 Super Duplex Stainless Steel

• Higher alloy content

• Very high mechanical strength

• Excellent resistance to chloride pitting and crevice corrosion

• Strong resistance to chloride stress corrosion cracking

• Higher material cost in many supply situations

2205 Duplex Stainless Steel

• High mechanical strength

• Good resistance to many chloride-bearing environments

• Broad industrial applications

• Often a more economical balance of strength and corrosion resistance

Choose 2507 when the service environment or design requirements justify its higher corrosion-resistance capability.

Choose 2205 when its strength and corrosion performance adequately meet the application requirements.

For a detailed comparison, see 2507 vs 2205 Super Duplex Stainless Steel.

2507 Super Duplex Stainless Steel in One Sentence

2507 is a high-strength super duplex stainless steel selected for demanding applications requiring excellent chloride corrosion resistance, strong resistance to stress corrosion cracking and reliable mechanical performance under corrosive service conditions.

2507 Super Duplex Stainless Steel Properties

2507 super duplex stainless steel combines very high mechanical strength with excellent resistance to chloride-induced pitting, crevice corrosion and stress corrosion cracking. Its balanced duplex microstructure and high chromium, molybdenum and nitrogen contents make it suitable for demanding marine, offshore, chemical processing and industrial applications.

Chemical Composition

2507 stainless steel is designated UNS S32750 and EN 1.4410. Its high alloy content provides the strength and corrosion resistance required for demanding chloride-bearing environments.

These are representative composition limits; the applicable product specification governs final acceptance.

Key Alloying Elements

• Chromium: Supports passivation and resistance to general and localized corrosion.

• Molybdenum: Improves resistance to chloride-induced pitting and crevice corrosion.

• Nitrogen: Contributes to mechanical strength and localized corrosion resistance while supporting the duplex phase balance.

• Nickel: Helps maintain the required balance between ferrite and austenite.

The combined effect of these alloying elements gives 2507 its characteristic combination of high strength and excellent chloride corrosion resistance.

Mechanical Properties

2507 develops high mechanical strength in the solution-annealed and appropriately cooled condition. The following values are representative minimum requirements for plate, sheet and strip under ASTM A240/A240M.

Requirements may differ for bars, pipes, tubes, forgings and other product forms. Actual values should be confirmed against the applicable specification and Mill Test Report.

Compared with conventional austenitic grades such as 304 stainless steel and 316L stainless steel, 2507 offers substantially higher strength in common solution-annealed product conditions.

It also generally provides higher minimum yield strength than 2205 duplex stainless steel under comparable product specifications.

This strength advantage can support demanding structural and pressure-containing applications. Allowable design stresses must nevertheless be established using the applicable engineering code rather than strength comparisons alone.

Physical Properties

The physical properties of 2507 are important when evaluating thermal expansion, stiffness, heat transfer and dimensional behavior.

These values are approximate and may vary with temperature, material condition and test method.

Thermal Expansion

2507 generally has a lower coefficient of thermal expansion than conventional austenitic stainless steels. This can be beneficial for certain assemblies exposed to temperature changes.

Actual dimensional stability also depends on component geometry, temperature gradients, residual stress and manufacturing tolerances.

Magnetic Properties

2507 is magnetic because its duplex microstructure contains a substantial ferritic phase. It is not an appropriate default choice where strict non-magnetic performance is required.

Corrosion Resistance

Excellent chloride corrosion resistance is one of the main reasons to select 2507 super duplex stainless steel.

Its high chromium, molybdenum and nitrogen contents provide strong resistance to general corrosion, pitting, crevice corrosion and chloride stress corrosion cracking in many demanding service environments.

These descriptions are general selection guidance, not universal service guarantees.

Pitting and Crevice Corrosion

2507 is particularly useful where chloride exposure creates a risk of localized corrosion. It generally offers better resistance to pitting and crevice corrosion than conventional 316L stainless steel and many standard duplex grades.

However, operating temperature, deposits, stagnant conditions, surface contamination and crevice geometry can still affect performance.

Stress Corrosion Cracking

2507 provides strong resistance to chloride-induced stress corrosion cracking compared with conventional austenitic stainless steels in many relevant environments.

Actual suitability depends on chloride concentration, temperature, applied and residual stress, and the presence of other corrosive species.

Chemical Resistance

2507 may perform well in selected chemical processing environments, but it is not universally resistant to all acids, alkalis or chemical mixtures.

Material selection should account for the specific chemical composition, concentration, temperature, flow conditions and exposure duration.

For alternative corrosion-resistance requirements, compare 316L stainless steel and 2205 duplex stainless steel.

Pitting Resistance and PREN

The Pitting Resistance Equivalent Number (PREN) is commonly used to compare the potential resistance of stainless steel grades to chloride-induced pitting.

A commonly used formula for duplex stainless steels is:

PREN = %Cr + 3.3 × %Mo + 16 × %N

2507 is generally associated with a PREN of approximately 40 or higher, depending on its actual chemical composition.

PREN is a comparative screening indicator rather than a direct prediction of service life. Actual corrosion resistance also depends on phase balance, surface condition, fabrication quality and operating environment.

Duplex Microstructure

2507 contains both ferrite and austenite. Maintaining an appropriate balance between these phases is essential to its mechanical strength, toughness and corrosion performance.

A properly processed duplex microstructure supports:

• High mechanical strength

• Good toughness

• Resistance to localized corrosion

• Strong resistance to chloride stress corrosion cracking

Uncontrolled welding or unsuitable heat treatment can alter the phase balance or promote detrimental intermetallic phases. These changes may reduce toughness and corrosion resistance even when the nominal chemical composition meets the grade specification.

For this reason, duplex-specific manufacturing and quality controls are particularly important for 2507 components.

Heat Treatment

2507 is not conventionally hardened by quenching and tempering like martensitic stainless steels. Heat treatment is primarily used to establish or restore the appropriate duplex microstructure and corrosion performance.

Solution Annealing

A representative solution-annealing range for common 2507 product forms is approximately 1050–1125°C (1920–2060°F), followed by rapid cooling in accordance with the applicable specification and manufacturing procedure.

The purpose is to establish the required phase balance and dissolve undesirable precipitates.

Heat-Treatment Precautions

Prolonged exposure to unsuitable temperature ranges can promote embrittling phases and impair toughness and corrosion resistance.

For reliable manufacturing results:

• Follow the applicable product specification and qualified heat-treatment procedure.

• Control welding heat input and interpass temperature.

• Avoid unspecified post-weld heat treatment.

• Verify the required material condition and microstructure where the application demands it.

See 2507 Super Duplex Stainless Steel Parts Manufacturing for manufacturing and process-control considerations.

Hardness and Wear Behavior

2507 combines high mechanical strength with good resistance to erosion corrosion and corrosion fatigue in suitable environments. However, it is not a dedicated bearing steel or a maximum-hardness wear-resistant grade.

Its primary selection advantage is:

High Strength + Corrosion Resistance + Structural Reliability

Where maximum hardness and wear resistance dominate, 420 stainless steel or 440C Stainless Steel may be more appropriate, depending on the operating environment.

Where high mechanical loading and chloride corrosion are both critical, 2507 is often the more relevant material candidate.

Elevated-Temperature Limitations

2507 should not be treated as a general-purpose high-temperature stainless steel.

Prolonged exposure to unsuitable temperatures can cause detrimental microstructural changes that reduce toughness and corrosion resistance. Its suitability must therefore be assessed against operating temperature, exposure duration, mechanical loading and the applicable design code.

Where sustained high-temperature strength is the primary requirement, a different alloy or material grade may provide a more appropriate balance of properties.

Standards and Material Designations

Common designations for 2507 include:

These designations are commonly associated with 2507. Procurement should follow the exact grade and product specification required by the project.

Common Product Standards

The applicable standard depends on the product form, manufacturing route and service requirements. Always confirm the specified grade, current standard edition and required certification before purchasing.

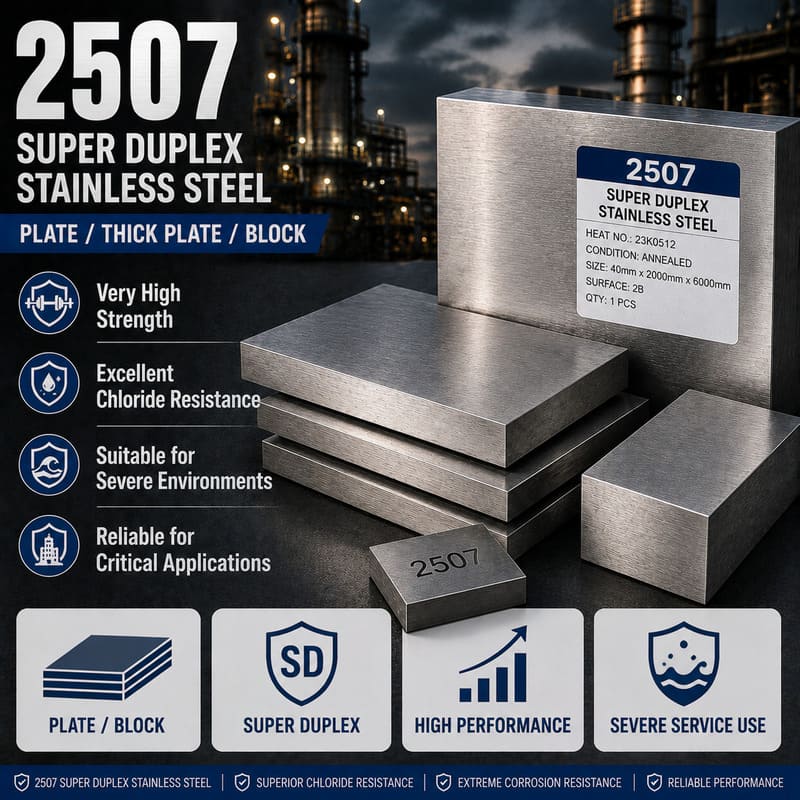

Common Material Forms

2507 is available in various product forms depending on supplier, dimensions and applicable specifications.

Common forms include:

Round Bar / Flat Bar / Plate / Sheet / Pipe / Tube / Forged Stock / Hollow Bar

Round bar, flat bar and forged stock may be suitable starting materials for CNC-machined components. Plate, sheet, pipe and tube are more relevant to selected fabricated structures and fluid-handling applications.

Availability should be confirmed against the required dimensions, material condition, certification and delivery requirements.

2507 Super Duplex Stainless Steel Properties Summary

2507 super duplex stainless steel is best understood as:

Very High Strength + Excellent Chloride Corrosion Resistance + Strong Resistance to Stress Corrosion Cracking

Its main advantages include:

• Higher strength than conventional austenitic stainless steels

• Excellent resistance to chloride-induced pitting and crevice corrosion

• Strong resistance to chloride stress corrosion cracking

• Good resistance to erosion corrosion and corrosion fatigue in suitable environments

• Suitability for demanding marine, offshore and chemical processing applications

Its main considerations include:

• More demanding CNC machining than many common stainless grades

• The need for duplex-specific welding and heat-treatment controls

• Sensitivity to detrimental microstructural changes during unsuitable thermal exposure

• Higher material cost than many general-purpose stainless steels

For related material options:

• 2205 Duplex Stainless Steel — High strength and corrosion resistance for a broad range of industrial applications.

• 316L Stainless Steel — General-purpose austenitic stainless steel with good corrosion resistance and fabrication flexibility.

• 2507 vs 2205 Super Duplex Stainless Steel — Future comparison page for selecting between duplex grades.

Choose 2507 when high mechanical strength and excellent resistance to chloride-related corrosion are both essential, and when the manufacturing process can maintain the required duplex microstructure.

2507 Super Duplex Stainless Steel Manufacturing

2507 super duplex stainless steel can be CNC machined, welded, formed and finished for demanding industrial components requiring high mechanical strength and excellent chloride corrosion resistance. Its high strength and duplex microstructure require careful control of machining parameters, welding procedures and heat treatment to preserve dimensional accuracy and corrosion performance.

Manufacturing Compatibility

2507 is particularly suitable for CNC-machined components, corrosion-resistant mechanical parts, selected fabricated assemblies and precision components used in demanding chloride-bearing environments.

CNC Machining

2507 can be machined using conventional CNC turning, milling, drilling and boring processes. However, its high strength and duplex microstructure can result in higher cutting forces and tool wear than many common austenitic stainless steels.

Successful machining depends on selecting appropriate cutting tools, maintaining a rigid setup and avoiding excessive heat generation or tool rubbing.

Key machining considerations include:

• Rigid workholding and stable machine setups

• Sharp, wear-resistant cutting tools

• Appropriate cutting speeds and feed rates

• Consistent cutting engagement

• Effective coolant application and chip evacuation

• Controlled tool wear and dimensional inspection

Machining parameters should be established according to the material condition, stock dimensions, part geometry and required surface finish.

For high-precision components, the machining sequence should also account for residual stress, material removal and the possibility of dimensional changes during subsequent processing.

CNC Turning

CNC turning is suitable for producing cylindrical 2507 components such as shafts, sleeves, bushings, fittings and selected valve or pump parts.

Typical operations include:

OD Turning / ID Turning / Facing / Grooving / Boring / Threading

The material's high strength makes workholding rigidity and cutting-tool stability especially important.

For components requiring tight tolerances, machining allowances should be planned around the final inspection requirements and any subsequent grinding or finishing operations.

CNC Milling

CNC milling is suitable for producing complex profiles, pockets, slots, mounting features and precision interfaces in 2507 components.

Typical applications include:

Valve Components / Mechanical Fittings / Mounting Blocks / Pump Parts / Custom Corrosion-Resistant Components

Stable cutting conditions and appropriate tooling help manage cutting forces and tool wear.

For parts with thin walls or asymmetrical geometry, the machining sequence should be planned to reduce distortion and maintain dimensional accuracy.

Drilling, Boring & Threading

2507 can be drilled, bored, tapped and reamed using suitable tooling and machining parameters.

These operations require particular attention to tool engagement, chip evacuation and heat management.

For deep holes and precision bores, appropriate coolant delivery and a stable machining setup can help maintain hole quality and tool life.

Thread specifications, engagement length and dimensional tolerances should be confirmed against the component drawing.

Grinding & Precision Finishing

Grinding can be used to achieve tighter dimensional tolerances and improved surface finish on selected 2507 components.

Typical applications include:

Precision Shaft Diameters / Sealing Surfaces / Close-Tolerance Fits / Functional Contact Surfaces

Grinding parameters should be selected to avoid excessive local heating and surface damage.

Where corrosion resistance is critical, the final surface condition and any required cleaning or passivation process should be specified alongside the dimensional requirements.

Sheet Metal Processing & Forming

2507 is available in applicable sheet and plate forms for selected fabricated components.

Its high strength and lower formability compared with many austenitic stainless steels mean that bending and forming operations require careful evaluation.

Important considerations include:

Material Thickness / Bend Radius / Forming Load / Springback / Tooling Capacity / Final Geometry

For complex forming operations, forming trials or engineering review may be necessary before production.

Where extensive deep drawing or complex sheet forming is the primary requirement and super duplex corrosion resistance is unnecessary, 304L stainless steel may provide a more practical alternative.

Laser Cutting

Laser cutting can be used for suitable 2507 sheet and plate applications.

Typical components include:

Brackets / Mounting Plates / Fabrication Blanks / Equipment Panels / Custom Mechanical Parts

Cutting parameters should be selected according to thickness, geometry and the required edge condition.

Heat-affected edges, oxide and surface contamination should be evaluated where corrosion resistance or subsequent welding is important. Additional edge finishing or surface treatment may be required.

Welding & Fabrication

2507 can be welded, but welding procedures must be developed specifically for duplex stainless steel.

Welding affects the local microstructure and can change the balance between ferrite and austenite. Excessive heat input, unsuitable interpass conditions or inappropriate filler selection may reduce toughness and corrosion performance.

Important welding considerations include:

• Qualified welding procedures and suitable filler metals

• Controlled heat input and interpass temperature

• Appropriate joint preparation and shielding

• Management of weld contamination and oxidation

• Control of ferrite-austenite phase balance

• Inspection and testing according to project requirements

The appropriate procedure depends on joint design, thickness, welding process and the required service properties.

For corrosion-critical components, welding procedures should be qualified against the applicable project specification rather than selected solely on the basis of the nominal grade.

Heat Treatment & Microstructure Control

2507 is not hardened through conventional quenching and tempering. Heat treatment is primarily used to establish or restore the required duplex microstructure and corrosion performance.

Solution annealing followed by rapid cooling may be specified for applicable product forms and manufacturing routes.

A representative solution-annealing range is approximately 1050–1125°C (1920–2060°F), but the actual cycle must follow the applicable material specification and qualified procedure.

Uncontrolled exposure to unsuitable temperatures can promote detrimental phases and reduce toughness or corrosion resistance.

Post-weld heat treatment should not be applied automatically. Its necessity and procedure must be determined by the applicable engineering specification and manufacturing requirements.

Forging

2507 can be supplied in suitable forged product forms for selected high-strength, corrosion-resistant components.

Potential applications include:

Flanges / Rings / Fittings / Valve Components / Pressure-Related Parts / Custom Mechanical Components

Forging temperature, deformation and subsequent heat treatment must be controlled to maintain the required duplex microstructure and mechanical properties.

The applicable product standard and material certification should be confirmed before production.

Casting

2507 in its standard UNS S32750 designation is commonly specified as a wrought super duplex stainless steel rather than a general-purpose cast alloy.

If a component requires casting, a suitable cast super duplex stainless steel grade must be specified separately. Cast grades have their own designations, product standards and acceptance requirements and should not automatically be treated as interchangeable with wrought UNS S32750.

Casting suitability should be evaluated according to component geometry, pressure requirements, corrosion environment, mechanical properties and inspection criteria.

Where high dimensional precision and controlled material traceability are priorities, CNC machining from certified wrought stock may be an alternative, depending on component size and geometry.

Metal 3D Printing

Metal additive manufacturing may be considered for selected complex components, but 2507 is not a universal, off-the-shelf 3D-printing solution.

Additive manufacturing can create challenges in controlling the duplex phase balance, porosity, residual stress and corrosion performance.

Before selecting this route, confirm:

• Availability of a qualified material and process

• Required mechanical and corrosion properties

• Applicable post-processing and heat treatment

• Dimensional accuracy and surface-finish requirements

• Inspection, testing and material traceability

For corrosion-critical or safety-critical components, the additive manufacturing route should be validated against the relevant application requirements.

Surface Finishing & Treatment

2507 components can receive suitable mechanical and chemical surface-finishing processes to meet dimensional, cleanliness and service requirements.

Common options include:

Machined Finish / Grinding / Polishing / Deburring / Bead Blasting / Pickling / Passivation / Laser Marking

Grinding and Polishing

Used to improve dimensional accuracy, surface roughness or functional surface quality.

Pickling

May be used to remove oxide and heat tint following welding or thermal processing, using a procedure suitable for the material and application.

Passivation

May be specified as part of a controlled cleaning and surface-treatment process. It does not replace the need to remove heavy oxide, weld heat tint or embedded contamination when these are present.

Bead Blasting

Can provide a uniform surface appearance when appropriate media and contamination controls are used.

The finishing process should be selected according to the operating environment, surface roughness requirements and corrosion-performance expectations.

Surface Cleanliness & Contamination Control

Surface contamination can compromise the appearance and corrosion performance of stainless steel components.

During machining, grinding, fabrication and storage, 2507 parts should be protected against unsuitable carbon-steel contamination and embedded foreign particles.

Where required, use controlled handling, appropriate tooling and suitable cleaning procedures.

For welded or corrosion-critical components, the final inspection should consider:

Surface Condition / Weld Oxide / Embedded Contamination / Dimensional Accuracy / Required Corrosion-Related Acceptance Criteria

Manufacturing Quality & Traceability

For demanding 2507 components, material identity, manufacturing condition and inspection records are important to final product reliability.

Typical documentation may include:

Material Grade Verification / Mill Test Report / Heat Number / Dimensional Inspection / Heat-Treatment Records / Welding Documentation / Required Test Reports

Inspection and testing requirements should be agreed before production, particularly for offshore, marine, pressure-related and chemical-processing applications.

Material Grade Verification

Material certification should confirm the specified grade:

2507 / UNS S32750 / EN 1.4410

The Mill Test Report should be reviewed for:

• Heat number and material identification

• Chemical composition

• Product form and governing specification

• Mechanical properties

• Material condition and heat-treatment status, where applicable

Equivalent designations should be verified against the required product standard rather than assumed to be interchangeable based on the grade name alone.

PMI & Material Identification

Positive Material Identification (PMI) may be used where additional alloy verification is required.

PMI can help verify selected alloying elements, but the method and acceptance criteria must be appropriate to the material and project. It does not independently confirm all chemical elements, mechanical properties or the full heat-treatment history.

Where nitrogen content or detailed chemistry is critical, the required verification method should be agreed with the project specification and inspection plan.

Manufacturing Summary

2507 super duplex stainless steel is best suited to manufacturing routes centered on:

CNC Machining / Controlled Welding / Qualified Heat Treatment / Precision Finishing / Verified Material Traceability

Its main manufacturing advantages are:

High Mechanical Strength / Excellent Chloride Corrosion Resistance / Suitability for Demanding Industrial Components

Its main manufacturing considerations are:

Higher Machining Forces / Duplex-Specific Welding Controls / Forming Limitations / Microstructure-Sensitive Thermal Processing

For related manufacturing and material-selection information:

• 2205 Duplex Stainless Steel — A widely used duplex grade for high-strength industrial components.

• 316L Stainless Steel — An austenitic option for applications prioritizing fabrication flexibility and corrosion resistance.

• 2507 Super Duplex Stainless Steel Parts Manufacturing — Future dedicated manufacturing page.

• 2507 vs 2205 Super Duplex Stainless Steel — Future material comparison page.

2507 Super Duplex Stainless Steel Applications & Selection

2507 super duplex stainless steel is commonly selected for demanding applications that require very high mechanical strength and excellent resistance to chloride-induced corrosion. Its combination of strength, pitting resistance and stress corrosion cracking resistance makes it suitable for selected marine, offshore, chemical processing and industrial components.

Material selection should consider the operating environment, design loads, temperature, fabrication requirements and applicable engineering standards.

Typical Applications of 2507 Super Duplex Stainless Steel

2507 is used in components where high mechanical strength and corrosion resistance must be achieved together.

Marine & Offshore Equipment

2507 is suitable for selected marine and offshore components exposed to chloride-bearing environments, including seawater-handling equipment, structural fittings, valve components and corrosion-resistant mechanical parts.

Its strong resistance to pitting, crevice corrosion and chloride stress corrosion cracking makes it a candidate for demanding offshore service. Actual suitability depends on temperature, seawater conditions, crevice design, fabrication quality and the applicable design requirements.

Chemical Processing Equipment

2507 may be selected for process equipment, piping components, fittings and mechanical parts exposed to corrosive process fluids.

Its suitability depends on the specific chemical medium, concentration, temperature and operating conditions. Compatibility should be verified before specifying the material for a particular chemical service.

Desalination & Seawater Systems

Selected desalination and seawater-handling components can benefit from 2507's high strength and resistance to chloride-induced localized corrosion.

Typical applications may include selected piping components, valve parts, pump components and equipment fittings.

The appropriate grade depends on the actual seawater conditions, design requirements and fabrication route. Not every seawater application requires 2507; 2205 duplex stainless steel may be sufficient in less demanding conditions.

Pump & Valve Components

2507 can be used for selected pump and valve components where mechanical loading and corrosion resistance are both important.

Potential components include valve bodies, selected internals, shafts, fittings and other precision-machined parts, depending on product form and design requirements.

For components requiring CNC machining, material condition, cutting parameters, dimensional tolerances and final surface requirements should be established before production.

High-Strength Precision Components

2507 is a candidate for precision mechanical parts that require high strength and resistance to chloride-bearing environments.

Examples include shafts, sleeves, fittings, mounting components and custom-machined parts for demanding industrial service.

For manufacturing-focused information, see 2507 Super Duplex Stainless Steel Parts Manufacturing.

When Should You Choose 2507 Super Duplex Stainless Steel?

Choose 2507 when the application requires a combination of:

• Very high mechanical strength

• Excellent resistance to chloride-induced pitting and crevice corrosion

• Strong resistance to chloride stress corrosion cracking

• Good corrosion performance in the specified service environment

• Reliable mechanical performance under demanding operating conditions

2507 is particularly relevant when conventional austenitic stainless steel does not provide the required combination of strength and localized corrosion resistance.

However, a higher-alloy grade is not automatically the best choice for every application. The final selection should be based on verified operating conditions and the applicable design specification.

Choose 2507 When Chloride Corrosion Resistance Is Critical

2507 is designed for demanding chloride-bearing environments where localized corrosion and stress corrosion cracking are major design concerns.

Its high chromium, molybdenum and nitrogen contents support strong resistance to pitting and crevice corrosion.

Compared with 316L stainless steel, 2507 generally provides stronger resistance to chloride-induced localized corrosion and substantially higher mechanical strength.

However, seawater service is not automatically safe under every condition. High temperatures, stagnant fluids, deposits, crevices and unsuitable fabrication practices can still cause corrosion problems.

Choose 2507 When High Strength Is Also Required

2507 offers substantially higher strength than conventional austenitic grades such as 304 and 316L in common solution-annealed product conditions.

This can be advantageous for components subject to high mechanical loads, pressure-related design requirements or demanding structural conditions.

Its strength advantage must still be evaluated against the relevant design code, product form, thickness and allowable design stresses.

2507 vs 2205 Super Duplex Stainless Steel

2507 and 2205 duplex stainless steel share a duplex microstructure, but they differ in alloy content, strength and corrosion-resistance capability.

2507 Super Duplex Stainless Steel

• Higher alloy content

• Very high mechanical strength

• Excellent resistance to chloride-induced pitting and crevice corrosion

• Strong resistance to chloride stress corrosion cracking

• Often higher material cost

2205 Duplex Stainless Steel

• High mechanical strength

• Good resistance to many chloride-bearing environments

• Broad industrial applicability

• Often a more economical balance of strength and corrosion resistance

Choose 2507 when the service environment or engineering specification justifies its higher corrosion-resistance capability.

Choose 2205 when its mechanical properties and corrosion resistance adequately meet the application requirements.

For a detailed comparison, see 2507 vs 2205 Super Duplex Stainless Steel.

2507 vs 316L Stainless Steel

2507 and 316L stainless steel serve different engineering priorities.

2507 Super Duplex Stainless Steel

• Very high mechanical strength

• Excellent resistance to chloride pitting and crevice corrosion

• Strong resistance to chloride stress corrosion cracking

• More demanding machining and duplex-specific fabrication controls

316L Stainless Steel

• Good general corrosion resistance

• Good weldability and fabrication flexibility

• Widely used for chemical, food-processing and general industrial equipment

• Lower strength than 2507 in common solution-annealed product conditions

Choose 2507 when high strength and demanding chloride corrosion resistance are essential.

Choose 316L when its corrosion performance meets the service requirements and fabrication flexibility, availability or cost is more important.

For a detailed comparison, see 2507 vs 316L Stainless Steel.

When Is 2507 Not the Best Choice?

2507 is not automatically the best option whenever corrosion resistance or high strength is required.

Another material may be more appropriate when the component prioritizes general fabrication, extensive forming, specialized high-temperature performance, maximum wear resistance or lower material cost.

General-Purpose Stainless Steel

304 stainless steel may be more economical for general applications that do not require the higher strength or chloride corrosion resistance of a super duplex grade.

General Welded Fabrication

304L stainless steel may be more practical for general welded components when the corrosion environment does not justify a super duplex alloy.

Balanced Strength and Corrosion Resistance

2205 duplex stainless steel may provide a suitable balance of strength, corrosion resistance and material cost for many industrial applications.

Higher Hardness and Wear Resistance

420 stainless steel may be more appropriate when heat-treated hardness and wear resistance dominate, provided its corrosion performance is sufficient for the service environment.

Specialized High-Temperature Service

Where prolonged elevated-temperature exposure, creep resistance or specific thermal design requirements dominate, a dedicated high-temperature alloy should be evaluated rather than selecting 2507 solely for its corrosion resistance.

Material Selection Guide

This guide provides an initial selection direction. Final material choice must be verified against the actual operating environment, mechanical design, manufacturing route and applicable specification.

2507 Super Duplex Stainless Steel Selection Summary

2507 is best suited to applications requiring:

Very High Mechanical Strength + Excellent Chloride Corrosion Resistance + Strong Resistance to Stress Corrosion Cracking

Its principal advantages are high strength and strong resistance to localized corrosion in demanding chloride-bearing environments.

Its main considerations are higher material cost than many general-purpose stainless steels, more demanding machining, and the need for qualified welding and controlled thermal processing.

For related material options:

• 2205 Duplex Stainless Steel — A balanced duplex option for many industrial applications.

• 316L Stainless Steel — A versatile austenitic option for general corrosion resistance and fabrication flexibility.

• 2507 vs 2205 Super Duplex Stainless Steel — Future comparison page.

• 2507 Super Duplex Stainless Steel Parts Manufacturing — Future manufacturing-focused page.

Choose 2507 when the application requires both very high mechanical strength and excellent resistance to chloride-related corrosion, and when the manufacturing process can maintain the required duplex microstructure.
