321 Stainless Steel Overview

About 321 Stainless Steel

321 stainless steel is a titanium-stabilized austenitic stainless steel designated UNS S32100 and EN 1.4541.

Its chemistry is based on the chromium-nickel system used in 304 stainless steel, with titanium added to stabilize carbon and reduce the formation of chromium carbides during exposure to sensitizing temperature ranges.

This makes 321 particularly useful for components that experience:

Welding + Elevated Temperature + Repeated Thermal Exposure

while still requiring the corrosion resistance and fabrication characteristics associated with austenitic stainless steel.

Unlike 304L stainless steel, which controls sensitization mainly through reduced carbon content, 321 uses titanium stabilization.

For a detailed comparison, see 321 vs 304L Stainless Steel.

Why Choose 321 Stainless Steel?

321 is commonly selected when a component requires:

• Good general corrosion resistance

• Resistance to sensitization

• Elevated-temperature exposure

• Good weldability

• Good forming capability

• Austenitic toughness

• Stable performance after welding

• Non-magnetic behavior in the annealed condition

Its main engineering advantage is:

Titanium Stabilization + Elevated-Temperature Service

321 is especially useful when a welded component will later operate within temperature ranges where conventional 304 may become more susceptible to intergranular corrosion after sensitization.

Key Engineering Characteristics

Titanium Stabilization

Titanium combines preferentially with carbon, helping reduce chromium-carbide precipitation at grain boundaries.

This helps preserve corrosion resistance after welding or thermal exposure within sensitizing temperature ranges.

The key distinction is:

304 → Standard Austenitic Grade

304L → Low-Carbon Sensitization Control

321 → Titanium-Stabilized Sensitization Control

For a direct comparison, see 304L vs 321 Stainless Steel.

Elevated-Temperature Capability

321 is commonly selected for components exposed to sustained or repeated elevated temperatures.

Its stabilized chemistry makes it more suitable than standard 304 stainless steel for certain welded components exposed to intermediate and elevated temperatures.

Typical uses include:

Exhaust Components / Heat Shields / Expansion Joints / Furnace Components / High-Temperature Ducting

However, 321 should not automatically be treated as a creep-resistant alloy for every high-temperature application. Temperature, load and exposure duration still require engineering review.

Good Weldability

321 generally provides good weldability using conventional stainless-steel welding processes.

Its titanium stabilization is particularly useful where the welded component will subsequently experience elevated-temperature service.

For components that do not require elevated-temperature exposure, 304L stainless steel may provide a simpler material choice.

Good General Corrosion Resistance

321 provides good corrosion resistance in many atmospheric, freshwater and general industrial environments.

Its basic corrosion performance is broadly similar to 304 stainless steel.

321 is not primarily selected for severe chloride exposure.

For chloride-rich environments, 316L stainless steel or 2205 duplex stainless steel may provide a better direction.

Good Formability

321 retains the good forming characteristics associated with austenitic stainless steels.

It can be used for:

Sheet Forming / Bending / Rolling / Fabrication / Welded Assemblies

although titanium stabilization can slightly affect forming and surface behavior compared with standard 304.

Non-Hardenable by Heat Treatment

321 cannot be conventionally hardened by quenching and tempering.

Mechanical strength can be increased through cold work, but heat treatment is used primarily for:

Solution Annealing / Stress Relief Where Applicable / Restoring Corrosion Performance

rather than hardening.

Typical 321 Stainless Steel Components

321 is commonly used for components exposed to welding and elevated-temperature service, including:

Exhaust Components / Heat Shields / Expansion Joints / Furnace Parts / High-Temperature Ducting / Welded Process Components / Manifolds / Thermal Equipment

It may also be selected for precision components that require austenitic corrosion resistance together with better stability during repeated thermal exposure.

For manufacturing-focused information, see 321 Stainless Steel Parts Manufacturing.

321 vs 304 — Quick Selection

321 and 304 stainless steel share similar austenitic chromium-nickel chemistry, but they are optimized for different service conditions.

321 Stainless Steel

Titanium Stabilized
Better Sensitization Resistance
Better Suited to Elevated-Temperature Exposure
Welded Thermal-Service Components

304 Stainless Steel

General-Purpose Austenitic Grade
Excellent Fabrication
Broad Availability
Lower-Cost General Applications

The main selection principle is:

Choose 321 when thermal exposure and sensitization resistance justify the stabilized grade.

For general room-temperature fabrication where these requirements are absent, 304 or 304L may be more economical.

For a detailed comparison, see 321 vs 304 Stainless Steel.

321 vs 304L — Quick Selection

304L stainless steel and 321 both address sensitization concerns, but they do so differently.

304L

Low Carbon
Excellent Weldability
General Welded Fabrication

321

Titanium Stabilized
Better Fit for Repeated Thermal Exposure
Elevated-Temperature Welded Components

If the component is primarily welded and operates near ambient temperature, 304L is often sufficient.

If welding is combined with significant elevated-temperature exposure, 321 may provide a more appropriate material direction.

For a detailed comparison, see 304L vs 321 Stainless Steel.

321 Stainless Steel in One Sentence

321 is a titanium-stabilized austenitic stainless steel selected for welded and elevated-temperature components where resistance to sensitization is more important than maximum chloride corrosion resistance.

321 Stainless Steel Properties

321 stainless steel is a titanium-stabilized austenitic stainless steel developed to maintain good corrosion resistance after welding or elevated-temperature exposure. Its key property difference from standard 304 is stabilization against chromium-carbide precipitation.

Chemical Composition

Representative chemical composition for UNS S32100:

The titanium addition is the defining feature of 321.

Titanium preferentially combines with carbon, reducing the amount of carbon available to form chromium carbides at grain boundaries during welding or thermal exposure.

Exact chemistry should be verified against the applicable material specification and Mill Test Report.

Mechanical Properties

Representative room-temperature properties for solution-annealed 321 stainless steel flat products:

Values vary with product form, thickness, cold work and governing specification.

Like 304 stainless steel, 321 is not conventionally hardened by heat treatment.

Higher strength can be developed through cold working.

Typical Physical Properties

Cold working or some welding conditions can produce a small magnetic response.

Titanium Stabilization & Sensitization Resistance

The main engineering purpose of titanium in 321 is to improve resistance to sensitization.

In conventional austenitic stainless steel, exposure to certain intermediate temperatures can promote chromium-carbide precipitation at grain boundaries.

This may locally reduce chromium availability and increase susceptibility to intergranular corrosion.

321 reduces this risk by using titanium to stabilize carbon.

The basic material-selection difference is:

304 → General-Purpose Austenitic Stainless

304L Stainless Steel → Low-Carbon Sensitization Control

321 → Titanium-Stabilized Sensitization Control

For a detailed comparison, see 304L vs 321 Stainless Steel.

Corrosion Resistance

321 provides good general corrosion resistance in many atmospheric, freshwater and industrial environments.

Its basic corrosion performance is broadly comparable with 304 stainless steel.

The titanium addition primarily improves resistance to sensitization-related intergranular corrosion; it does not transform 321 into a high-chloride corrosion-resistant alloy.

For stronger chloride resistance, consider 316L stainless steel.

For higher strength combined with improved chloride performance, consider 2205 duplex stainless steel.

Elevated-Temperature Performance

Elevated-temperature service is one of the main reasons 321 is selected instead of 304 or 304L.

Its stabilized chemistry makes it useful for welded components exposed to repeated or sustained thermal cycles.

Typical applications include:

Exhaust Systems / Expansion Joints / Heat Shields / Furnace Components / Thermal Ducting / High-Temperature Welded Assemblies

However, “High Temperature” should not be interpreted as unlimited temperature capability.

Actual suitability depends on:

Operating Temperature / Exposure Time / Applied Stress / Oxidation / Creep Requirement / Applicable Design Code

Where creep or long-term elevated-temperature strength becomes the primary design requirement, 321H Stainless Steel or another dedicated high-temperature grade may need to be evaluated.

321 vs 321H

321 and 321H share the same stabilized stainless family, but they are used differently.

321 Stainless Steel

General stabilized grade
Good welding performance
Thermal-cycle resistance
General elevated-temperature applications

321H Stainless Steel

Controlled higher carbon
Greater emphasis on elevated-temperature strength
Used where creep and long-term high-temperature mechanical properties are important

321H should not automatically be substituted for 321 without reviewing the applicable design and material specification.

For a detailed comparison, see 321 vs 321H Stainless Steel.

Heat Treatment

321 cannot be hardened by conventional heat treatment.

Heat treatment is primarily used to control microstructure and corrosion performance.

Solution Annealing

A representative solution-annealing range is approximately:

950–1120°C

followed by sufficiently rapid cooling.

The exact temperature depends on product form, section size and governing specification.

Solution annealing can:

• Restore ductility after cold work

• Dissolve undesirable precipitates

• Restore a uniform austenitic structure

• Support corrosion performance

Stabilizing Heat Treatment

For some specialized elevated-temperature applications, a stabilization heat treatment may be specified.

A representative stabilization treatment may use temperatures around:

870–900°C

depending on the governing specification and engineering requirement.

The purpose is to promote stable titanium-carbide formation before service exposure.

This treatment is not automatically required for every 321 component.

Hardness & Strengthening Behavior

321 is an austenitic stainless steel and cannot be hardened by quenching and tempering like 410 stainless steel or 420 stainless steel.

Its strength can instead be increased through:

Cold Rolling / Cold Drawing / Other Cold Working

Cold work increases:

Yield Strength / Tensile Strength / Hardness

while reducing ductility.

For components requiring much higher heat-treated strength, 17-4 PH stainless steel or 15-5 PH Stainless Steel may provide a more appropriate material direction.

Magnetic Properties

321 is generally non-magnetic in the solution-annealed condition.

However, cold working can produce some strain-induced martensite, which may increase magnetic response.

For this reason, “austenitic” should not automatically be interpreted as “completely non-magnetic under every condition.”

Standards & Material Forms

Common grade designations include:

EN 1.4541 is commonly associated with 321, but exact equivalence should always be checked against the applicable product specification.

Common Specifications

ASTM A240 / A240M
Commonly used for stainless steel plate, sheet and strip.

ASTM A276 / A276M
Relevant to stainless steel bars and shapes where the grade is covered.

ASTM A479 / A479M
Relevant to stainless steel bars and shapes for pressure-related applications.

ASTM A312 / A312M
May apply to seamless and welded austenitic stainless steel pipe where the applicable grade is specified.

EN 10088-2
Relevant to stainless steel flat products.

EN 10088-3
Relevant to stainless steel long products.

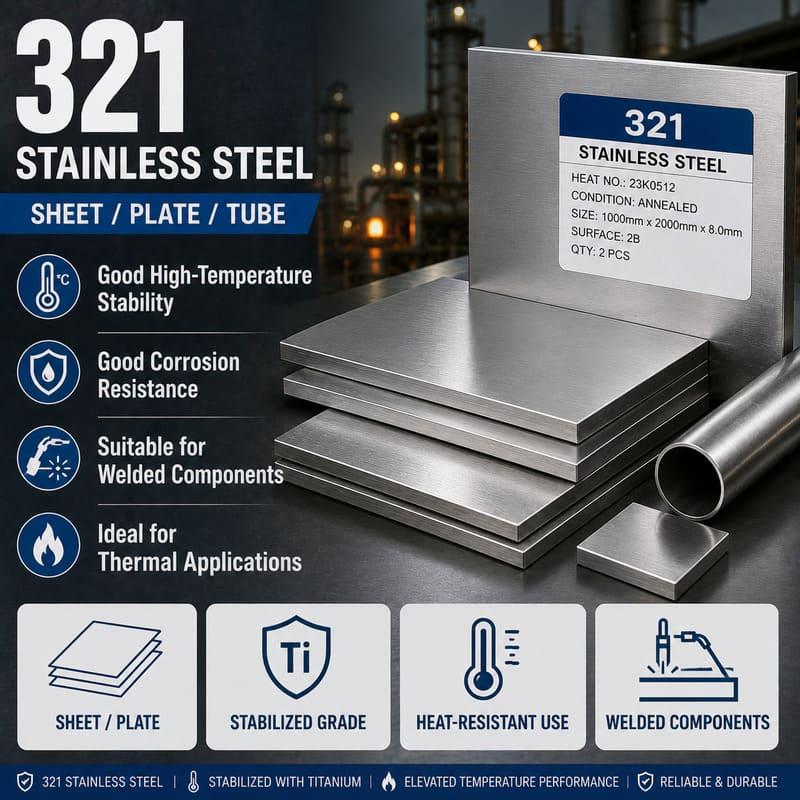

Common Material Forms

321 is commonly available as:

Sheet / Plate / Coil / Round Bar / Flat Bar / Pipe / Tube / Forged Stock

Sheet, plate and tubular forms are particularly relevant for welded and elevated-temperature assemblies.

For manufacturing-focused information, see 321 Stainless Steel Parts Manufacturing.

Properties Summary

321 stainless steel is best understood as:

Austenitic Corrosion Resistance + Titanium Stabilization + Elevated-Temperature Capability

Its main advantage over standard 304 stainless steel is not dramatically higher room-temperature corrosion resistance.

The real advantage is improved resistance to sensitization when welding and thermal exposure are part of the application.

For nearby material choices:

304 Stainless Steel → General-purpose austenitic stainless steel

304L Stainless Steel → Low-carbon welded fabrication

316L Stainless Steel → Better chloride corrosion resistance

321H Stainless Steel → Greater emphasis on long-term elevated-temperature strength

17-4 PH Stainless Steel → Much higher heat-treated mechanical strength

321 Stainless Steel Manufacturing

321 stainless steel offers good fabrication characteristics for welded, formed and elevated-temperature components. Its manufacturing behavior is broadly similar to other austenitic stainless steels, while titanium stabilization makes it especially useful where welding is followed by thermal exposure.

Manufacturing Compatibility

* Suitability depends on product form, geometry, process control and final service requirements.

321 is particularly well suited to:

Sheet Fabrication / Welding / Forming / Thermal-Service Assemblies

rather than hardness-focused or free-machining applications.

CNC Machining

321 can be machined successfully using conventional CNC turning, milling and drilling processes.

Like 304 stainless steel and 316L stainless steel, 321 tends to work harden during cutting and can produce tough, continuous chips.

Important machining practices include:

• Rigid machine setup

• Sharp cutting tools

• Positive cutting geometry

• Consistent feed

• Avoiding tool rubbing

• Effective coolant

• Good chip control

321 should be considered a moderate-machinability austenitic stainless steel, not a free-machining grade.

Where machining productivity is the primary requirement, 303 stainless steel or 416 stainless steel may be more suitable.

Sheet Metal Processing & Forming

321 retains the good forming characteristics associated with austenitic stainless steel.

Typical processes include:

Bending / Rolling / Sheet Forming / Stamping / Fabrication

Its ductility makes it suitable for fabricated components such as:

Heat Shields / Ducting / Exhaust Components / Expansion Components / Welded Thermal Assemblies

Forming loads and springback should still be considered, particularly for thicker sections or work-hardened material.

Deep Drawing

321 can be deep drawn in suitable annealed sheet conditions.

However, it is not usually selected specifically for maximum deep-drawing performance.

For very demanding forming operations where elevated-temperature stabilization is unnecessary, 304 stainless steel or 304L stainless steel may provide a simpler material choice.

Welding

Welding is one of the most important manufacturing strengths of 321.

It can be welded using conventional stainless-steel processes, including:

TIG / MIG / Resistance Welding / Other Qualified Fusion Welding Processes

Titanium stabilization helps reduce sensitization risk when the welded component is subsequently exposed to elevated temperatures.

Important welding considerations include:

• Heat input

• Joint design

• Filler selection

• Shielding

• Interpass control

• Surface oxide removal

• Final service temperature

For general welded fabrication without significant elevated-temperature exposure, 304L stainless steel may be more economical.

Welding Filler Selection

Filler metal should be selected according to:

Base Material / Service Temperature / Joint Design / Mechanical Requirements / Welding Procedure

321-specific or stabilized filler metals may be used where appropriate.

In some applications, alternative austenitic filler metals may also be specified depending on the qualified welding procedure.

Filler selection should therefore follow the applicable WPS rather than being based only on the base-material grade name.

Heat Treatment After Welding

321 does not require heat treatment after every welding operation.

Its titanium stabilization is specifically intended to reduce sensitization concerns associated with welding and thermal exposure.

However, depending on the application, heat treatment may be specified for:

Solution Annealing / Stress Management / Stabilization Treatment

The requirement should follow the engineering specification rather than being applied automatically.

Laser Cutting

321 sheet and plate can be laser cut successfully.

Typical applications include:

Heat Shields / Brackets / Thermal Panels / Duct Components / Welded Fabrication Blanks

After laser cutting, heat-affected edges, discoloration and oxide should be reviewed where corrosion performance or subsequent welding is important.

Forging

321 can be hot worked and forged into structural or mechanical components.

Forging may be used for:

Flanges / Rings / Fittings / Shafts / High-Temperature Mechanical Components

Forged material should receive the appropriate heat treatment to restore the required austenitic structure and material properties.

Grinding & Finishing

321 can be ground and mechanically finished using conventional stainless-steel finishing methods.

Typical finishing operations include:

Grinding / Polishing / Deburring / Surface Conditioning

Care should be taken to avoid:

• Excessive local heating

• Carbon-steel contamination

• Embedded iron

• Heavy grinding damage

Where elevated-temperature oxidation resistance is important, final surface condition can affect service performance.

Surface Finish Compatibility

Common surface-finish options for 321 include:

Machined Finish / Brushed Finish / Grinding / Polishing / Pickling / Passivation / Bead Blasting / Laser Marking

Pickling

Useful for removing weld heat tint and oxide from fabricated components.

Passivation

May be used after machining or fabrication to remove free iron contamination and support a clean passive stainless surface.

Polishing

Can reduce surface roughness and improve cleanability or appearance.

Surface requirements should be selected according to the actual service environment.

Weld Heat Tint & Oxide Removal

Where corrosion resistance is important, weld heat tint and heavy oxide should generally be removed.

Typical restoration methods may include:

Pickling / Mechanical Cleaning / Controlled Grinding / Passivation

This is especially relevant for welded assemblies that will operate in moisture, industrial atmosphere or corrosive service.

Carbon-Steel Contamination Control

321 should be protected from unnecessary carbon-steel contamination during:

Cutting / Grinding / Forming / Handling / Storage

Embedded iron can create localized rust staining even when the underlying stainless steel remains sound.

Dedicated or properly cleaned stainless-steel tooling may be appropriate where surface cleanliness is important.

Manufacturing Quality & Traceability

For controlled 321 stainless steel components, documentation may include:

Material Grade Verification / Mill Test Report / Heat Number / Dimensional Inspection / Welding Records / Surface Inspection

Where elevated-temperature service is critical, the material condition and applicable specification should also be confirmed.

Material Grade Verification

Material certification should confirm the specified grade:

321 / UNS S32100

The Mill Test Report should be reviewed for:

• Heat number

• Chemical composition

• Titanium content

• Material standard

• Product form

• Mechanical properties

• Material condition

Where EN material is specified, the applicable designation should also be confirmed.

PMI Where Required

Positive Material Identification may be considered where additional alloy verification is required.

PMI may help verify major alloying elements, but it should not be treated as a complete substitute for the MTR.

In particular, PMI alone may not fully confirm:

Titanium Stabilization / Carbon Content / Heat-Treatment Condition / Mechanical Properties

Verification requirements should be agreed before production.

Manufacturing Summary

321 is best suited to manufacturing routes centered on:

Forming + Welding + Elevated-Temperature Service

Its strongest manufacturing characteristics are:

Good Weldability / Good Formability / Austenitic Fabrication Behavior / Sensitization Resistance

Its main limitations are:

Moderate Machinability / No Heat-Treatment Hardening / Limited Chloride Resistance

For nearby manufacturing choices:

304L Stainless Steel → General welded fabrication without significant thermal exposure

316L Stainless Steel → Better chloride-corrosion resistance

304 Stainless Steel → General-purpose forming and fabrication

2205 Duplex Stainless Steel → High strength and stronger chloride resistance

321 Stainless Steel Parts Manufacturing → Future manufacturing-focused page

321 Stainless Steel Applications & Selection

321 stainless steel is primarily selected for welded or fabricated components exposed to elevated temperatures, repeated thermal cycling or sensitization risk. Its titanium stabilization makes it especially useful where standard 304 or 304L may not provide the preferred long-term thermal-service balance.

Typical Applications

321 is commonly used for:

Exhaust Components / Heat Shields / Expansion Joints / Furnace Parts / Thermal Ducting / Manifolds / Welded Process Components / High-Temperature Fabricated Parts

Exhaust & Thermal Components

321 is well suited to components exposed to repeated heating and cooling cycles.

Typical examples include:

Exhaust Pipes / Exhaust Manifolds / Heat Shields / Thermal Covers / Hot-Gas Ducting

The stabilized chemistry helps maintain corrosion resistance after thermal exposure.

For general-purpose components without significant elevated-temperature exposure, 304 stainless steel may provide a simpler option.

Expansion Joints & Flexible Thermal Components

321 may be selected for expansion joints, bellows and other fabricated parts exposed to repeated thermal cycling.

Its combination of:

Austenitic Ductility / Weldability / Stabilization

makes it useful where both fabrication and thermal exposure are important.

Furnace & Heating Equipment

Typical uses may include:

Furnace Components / Burner Assemblies / Thermal Supports / High-Temperature Fabricated Hardware

Actual suitability depends on operating temperature, mechanical load and exposure duration.

Where long-term creep strength becomes the dominant requirement, 321H Stainless Steel should also be evaluated.

Welded Process Components

321 may be used in welded process equipment where the assembly will subsequently experience elevated temperatures.

For general welded equipment operating near ambient temperature, 304L stainless steel or 316L stainless steel may be more appropriate.

For manufacturing-focused information, see 321 Stainless Steel Parts Manufacturing.

When Should You Choose 321 Stainless Steel?

Choose 321 when the application requires:

• Good general corrosion resistance

• Good weldability

• Good forming capability

• Resistance to sensitization

• Repeated thermal cycling

• Elevated-temperature exposure

• Austenitic toughness

• Stable performance after welding

321 is especially useful when:

Welding + Elevated Temperature

occur in the same component.

Choose 321 When Sensitization Resistance Matters

321 is stabilized with titanium to reduce chromium-carbide precipitation during exposure to sensitizing temperature ranges.

This makes it particularly useful when a welded component will later experience significant thermal exposure.

The material-selection logic is:

304 → General-Purpose Stainless

304L Stainless Steel → Low-Carbon Welded Fabrication

321 → Stabilized Welded Thermal Service

Choose 321 When Repeated Thermal Cycling Is Expected

321 can be a strong candidate for components that repeatedly move between ambient and elevated temperatures.

Examples include:

Exhaust Systems / Furnace Components / Expansion Joints / Thermal Ducting / Heat Shields

This is one of the clearest cases where 321 can offer an advantage over standard 304 stainless steel.

When Is 321 Not the Best Choice?

321 is not automatically the best stainless grade whenever elevated temperature or welding is involved.

Another grade may provide a better balance when chloride resistance, cost, room-temperature fabrication or very high mechanical strength dominates the application.

Consider Another Grade When...

321 vs 304 Stainless Steel

321 and 304 stainless steel have similar basic austenitic chromium-nickel chemistry.

The key difference is titanium stabilization.

321 Stainless Steel

Titanium Stabilized
Better Sensitization Resistance
Better Fit for Thermal Cycling
Welded Elevated-Temperature Service

304 Stainless Steel

General-Purpose Grade
Excellent Fabrication
Broad Availability
Lower-Cost General Applications

Choose 321 when welding is followed by significant thermal exposure.

Choose 304 when the application is primarily room-temperature or general-purpose.

For a detailed comparison, see 321 vs 304 Stainless Steel.

321 vs 304L Stainless Steel

This is one of the most important comparisons for 321.

Both grades address sensitization concerns, but by different mechanisms.

304L stainless steel uses reduced carbon content.

321 uses titanium stabilization.

304L

Low Carbon
Excellent Weldability
General Welded Fabrication
Simple Material Choice

321

Titanium Stabilized
Better Fit for Repeated Thermal Exposure
Thermal-Service Welded Components

Choose 304L when the component is welded but does not require significant elevated-temperature service.

Choose 321 when post-weld thermal exposure or repeated heating cycles are important.

For a detailed comparison, see 304L vs 321 Stainless Steel.

321 vs 316L Stainless Steel

321 and 316L stainless steel are selected for different reasons.

321

Thermal Stability
Sensitization Resistance
Elevated-Temperature Welded Service

316L

Better Chloride Resistance
Excellent Weldability
Chemical and Process Environments

Choose 321 when thermal exposure is the main design concern.

Choose 316L when chloride or chemical corrosion is more important.

For a detailed comparison, see 321 vs 316L Stainless Steel.

321 vs 321H Stainless Steel

321H is the higher-carbon variant of the stabilized 321 family.

321

General Stabilized Grade
Good Weldability
Thermal Cycling
General Elevated-Temperature Components

321H

Higher Carbon
Greater Elevated-Temperature Strength
More Relevant to Creep-Controlled Service

Choose standard 321 when sensitization resistance and fabrication are the main concerns.

Consider 321H when long-term high-temperature strength or creep resistance becomes more important.

For a detailed comparison, see 321 vs 321H Stainless Steel.

321 vs 17-4 PH Stainless Steel

321 and 17-4 PH stainless steel have very different material-selection purposes.

321

Austenitic
Good Formability
Good Weldability
Thermal-Service Focus

17-4 PH

Precipitation Hardening
Much Higher Strength
Lower Formability
High-Strength Mechanical Components

Choose 321 when fabrication, welding and thermal cycling dominate.

Choose 17-4 PH when high mechanical strength is the primary requirement.

For a detailed comparison, see 321 vs 17-4 PH Stainless Steel.

Selection Summary

321 is a strong candidate for:

Exhaust Components / Heat Shields / Expansion Joints / Furnace Parts / Thermal Ducting / Welded High-Temperature Assemblies

Its core selection advantage is:

Titanium Stabilization + Sensitization Resistance + Elevated-Temperature Capability

Consider nearby grades when:

304 Stainless Steel → General-purpose stainless steel

304L Stainless Steel → General welded fabrication

316L Stainless Steel → Better chloride corrosion resistance

2205 Duplex Stainless Steel → High strength and chloride resistance

321H Stainless Steel → Long-term high-temperature strength

17-4 PH Stainless Steel → Much higher mechanical strength

Final Selection Principle

Choose 321 when a welded or fabricated stainless component must retain good corrosion performance during repeated or sustained elevated-temperature exposure.

If the application is mainly room-temperature fabrication, chloride service or high-strength mechanical loading, another stainless grade will usually provide a more appropriate balance.
