Repeat Order for Matte T300 3K Twill Carbon Fiber Car Emblems

A repeat order is never just another production job. It usually means the first project worked well enough for the customer to return with a new design, a revised specification, or a broader product range.

That is exactly what happened in this custom carbon fiber automotive project.

After we completed the customer’s first carbon fiber car emblem, the US customer returned with several new emblem designs. The material remained T300 carbon fiber, but the visual and finishing requirements changed. Instead of a glossy 3K twill face with painted chamfered edges, the repeat order required a matte 3K twill appearance and clear coating on both sides.

At first, this may sound like a minor finish change. Use a matte sheet, cut the profiles, spray both sides, and the job is done—right?

Not quite.

The new requirements affected material layout, CNC toolpath planning, edge preparation, surface cleaning, coating, curing, and final inspection. The customer also supplied several different geometries, including a long narrow component, a wide wing-style emblem, and a more complex design with curved sections and multiple internal cutouts.

This case study explains how we approached the repeat order, what changed from the original project, and how we combined precision CNC machining with controlled two-sided clear coating to manufacture the new matte carbon fiber car emblems.

Repeat Order Background

From the First Project to a New Order

The customer’s original project involved a custom T300 carbon fiber car emblem designed for adhesive installation on a vehicle. That product featured a glossy 3K twill face, CNC-cut contours, painted chamfered edges, and an unpainted rear bonding surface.

After the first project was completed, the customer returned with additional designs and a new finishing specification.

This was not simply a request to reproduce the same part. The repeat order expanded the project from one primary emblem shape to several different automotive components. Each design introduced its own machining and finishing considerations.

One part had a long, narrow profile with a wider central section. Another used a broad, angular wing-style shape. The most complex emblem combined curved outlines, pointed ends, internal openings, and narrow connections between different sections.

Why does that matter?

Because geometry directly affects how a carbon fiber part behaves during machining. A large, solid emblem usually remains stable while the cutting tool follows its outer profile. A narrow component may vibrate more easily. A design with several internal openings must remain supported while those openings are machined.

Think of the difference between cutting a simple paper circle and cutting a delicate stencil. The material may be different, but the basic challenge is similar: as more material is removed, the remaining structure becomes less stable.

The repeat order therefore required a fresh production review instead of simply copying the process from the first emblem.

Updated Customer Requirements

The customer specified the following requirements for the new order:

• T300 carbon fiber material

• Matte 3K twill appearance

• Multiple custom automotive emblem profiles

• Precision CNC profile cutting

• Internal cutouts on selected designs

• Clean external and internal edges

• Clear coating on both sides

• Consistent appearance across all finished parts

The customer still wanted the recognizable woven texture of genuine carbon fiber. However, the new parts needed a darker and less reflective appearance than the original glossy emblem.

This visual difference is important for automotive decorative components. Glossy carbon fiber produces strong reflections and makes the weave appear deeper under direct light. Matte carbon fiber creates a quieter, more technical look.

It is similar to the difference between polished metal and satin-finished metal. Both can look premium, but they create very different visual impressions.

The two-sided clear-coat requirement also changed the finishing process. The coating now needed to cover both faces, the external edges, and the edges around the internal cutouts. At the same time, the process had to avoid runs, excessive buildup, dust particles, and visible support marks.

Comparison with the Original Carbon Fiber Emblem Order

From Glossy to Matte 3K Twill

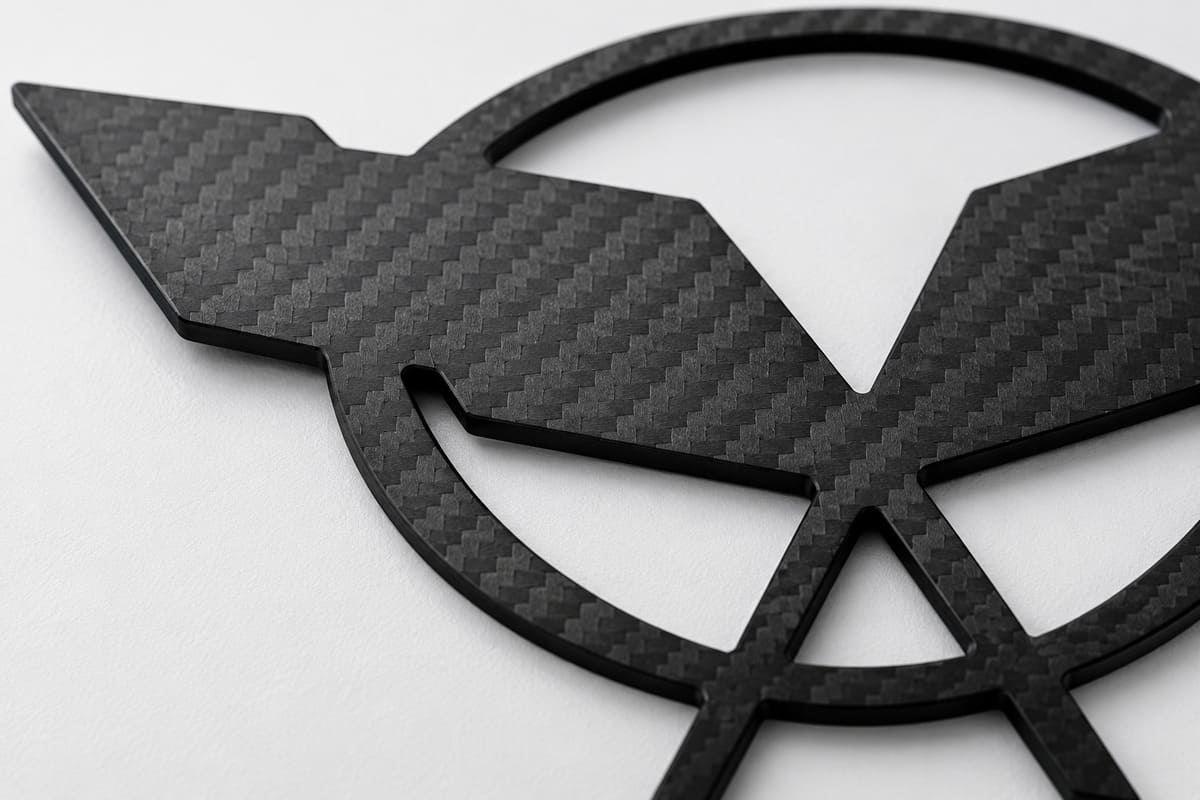

The most obvious change was the transition from glossy to matte 3K twill carbon fiber.

Both orders used T300 carbon fiber with a visible woven pattern, but the surface appearance was different. The glossy material used in the first project reflected more light and made the diagonal weave appear highly pronounced.

The matte material in the repeat order reduced reflection and created a more understated appearance. This finish can work particularly well with dark automotive trim, painted panels, and subtle exterior styling.

However, a matte surface does not eliminate the need to control the weave direction.

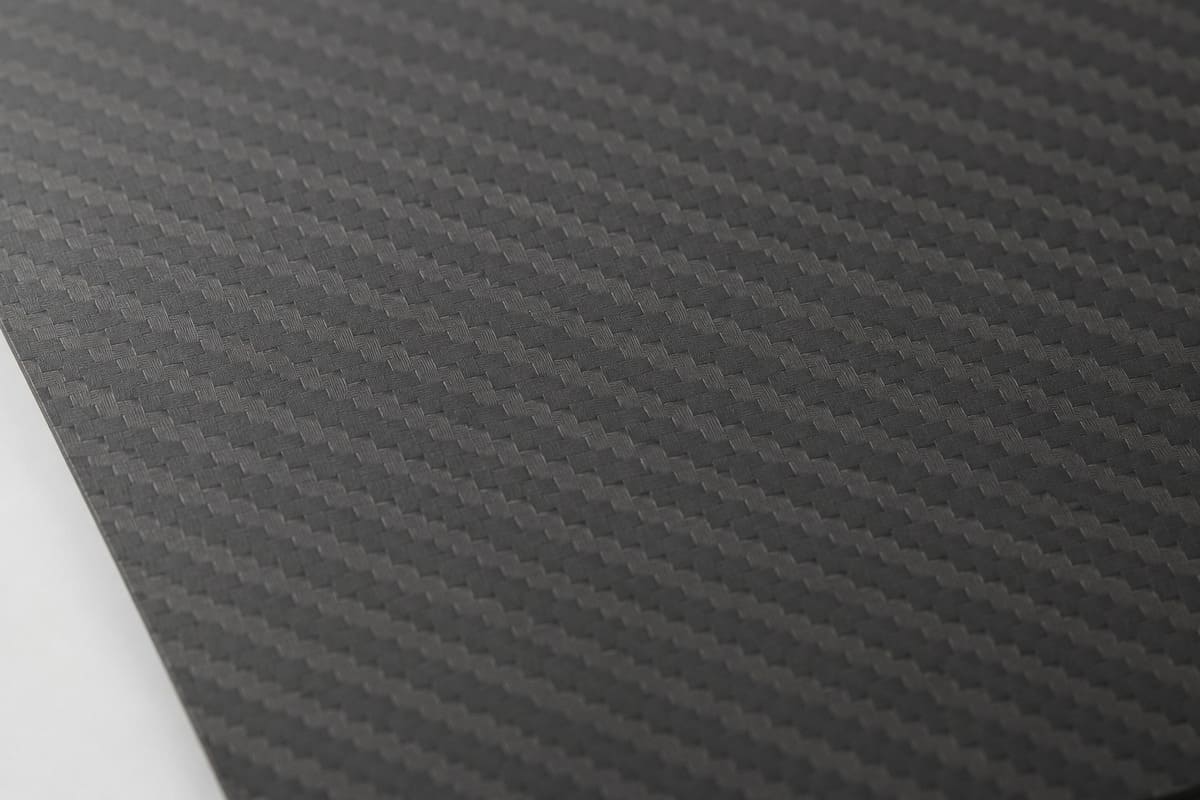

The 3K twill pattern remains visible across the finished part. If the design is placed carelessly on the sheet, the diagonal fibers may appear visually unbalanced from one side of the emblem to the other.

Before machining, we therefore reviewed:

• The direction of the 3K twill weave

• The installed orientation of each emblem

• The visual relationship between the left and right sides

• The condition of the sheet surface

• The position of cosmetic defects

• The available area for stable workholding

Material efficiency was considered, but appearance remained the priority. Saving a small area of carbon fiber sheet would not justify producing a visible automotive part with an unsuitable weave orientation.

From Local Edge Painting to Two-Sided Clear Coating

The finishing process changed even more significantly than the material appearance.

In the original project, paint was applied only to the chamfered edge surfaces. The visible carbon fiber face remained glossy, and the rear face was left unpainted for adhesive installation.

For the repeat order, the customer requested clear coating on both sides.

The new coating process needed to cover:

• The front carbon fiber face

• The rear carbon fiber face

• The external machined edges

• The internal cutout edges

• Narrow corners and transitions

• Curved and pointed profile sections

Why is coating both sides more demanding?

Because the part must be supported during spraying and curing. Once one surface has been coated, the part cannot simply be placed face-down without considering the condition of the coating.

A poorly selected contact point can leave a pressure mark or surface impression. Turning the part too early can damage the first coated face. Applying too much coating around an internal opening can lead to buildup or sagging.

It is a little like painting both sides of a detailed scale model. You need to hold it somewhere, but every contact point creates a possible defect.

The finishing process therefore depended on more than spray application. It required planned handling, suitable support, controlled curing, and careful turning between the two coating operations.

Product Specification Comparison

Although the base material remained T300 carbon fiber, the new geometry and surface treatment created a significantly different production process.

New Emblem Designs and Machining Requirements

Multiple Profile Geometries

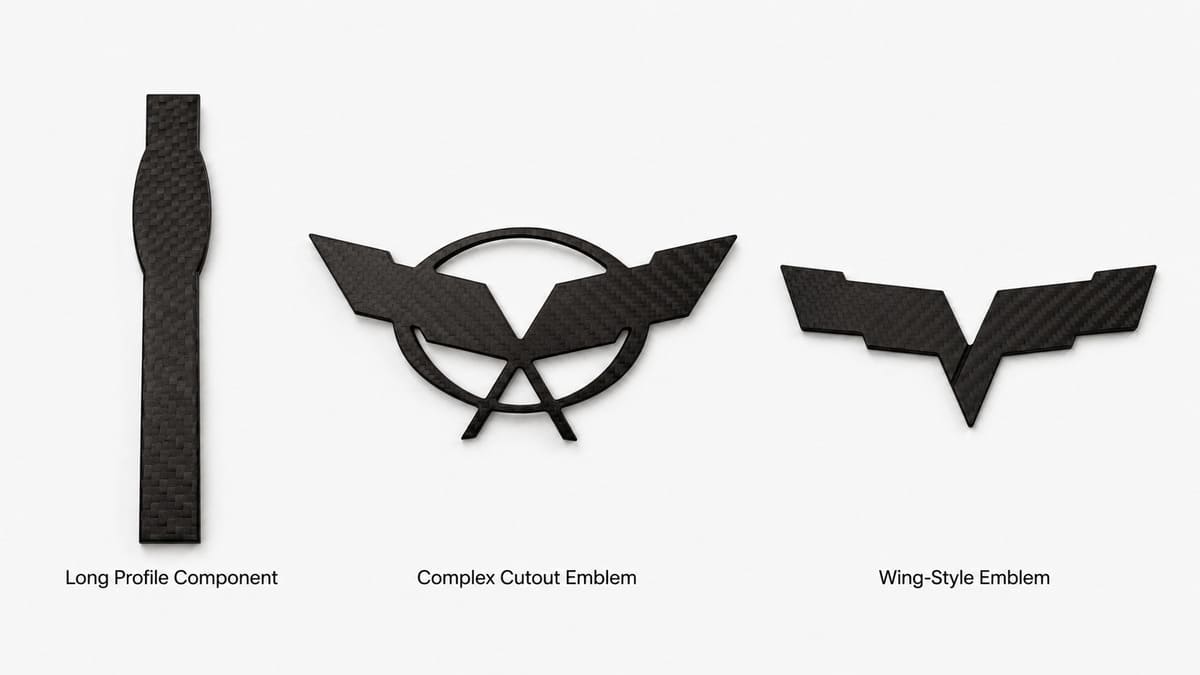

The repeat order included several different carbon fiber automotive parts rather than one repeated shape.

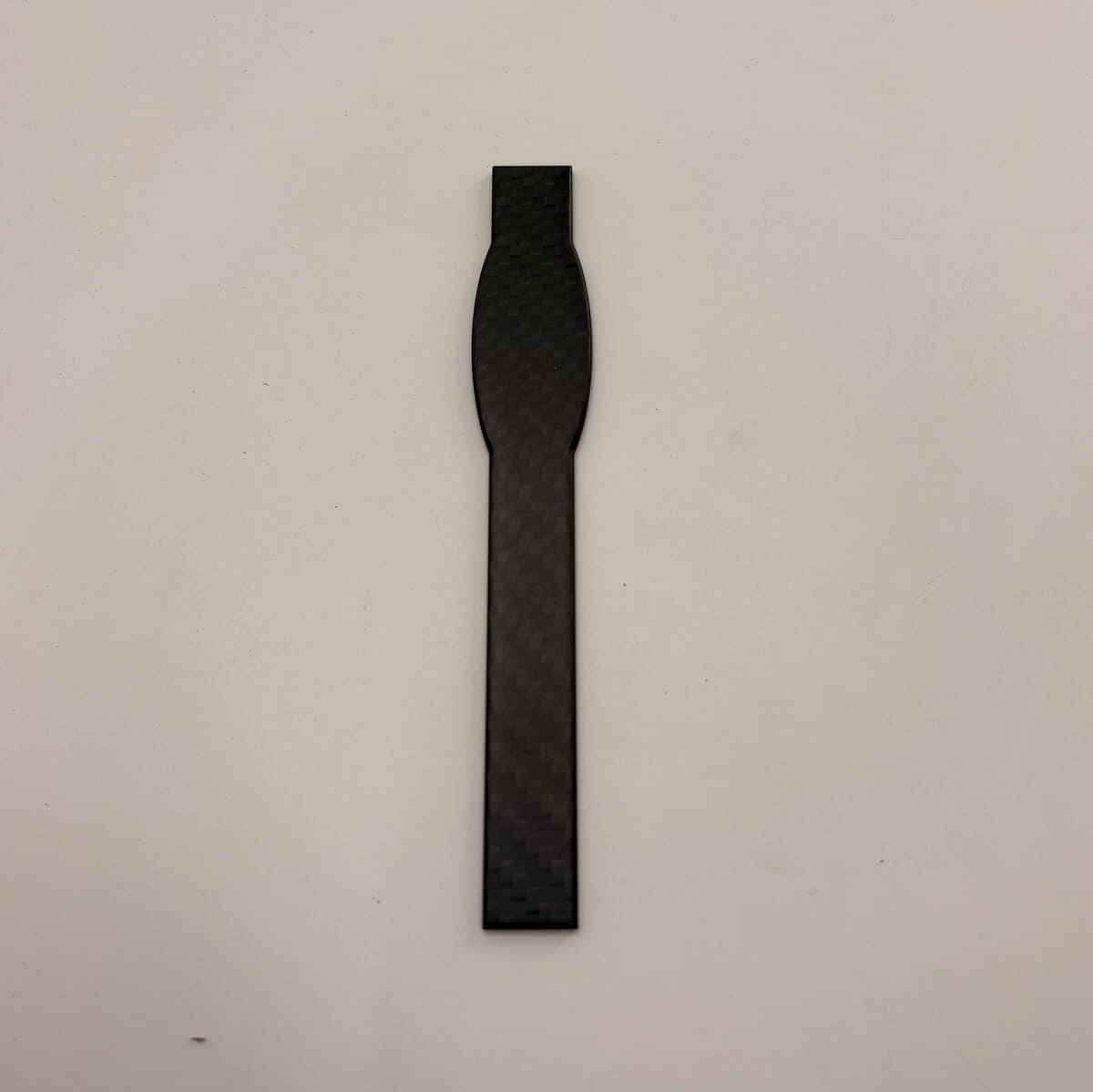

The first design was long and narrow, with a wider rounded section near one end. Its extended profile required stable support to prevent movement during cutting.

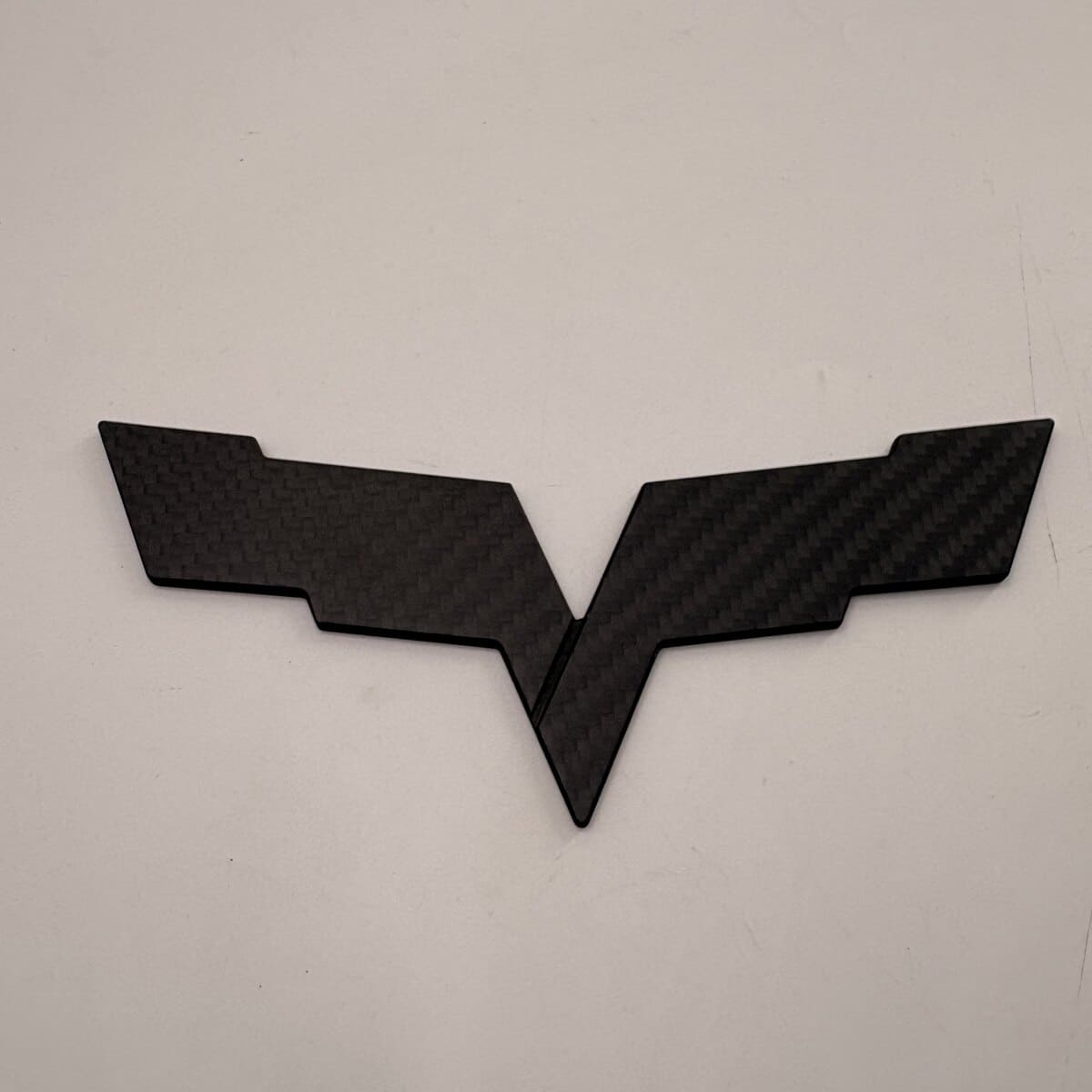

The second design used a broad, wing-like shape with angular outer tips and a pointed central area. Although the part contained fewer internal features, the sharp ends and changing contour directions still required controlled machining.

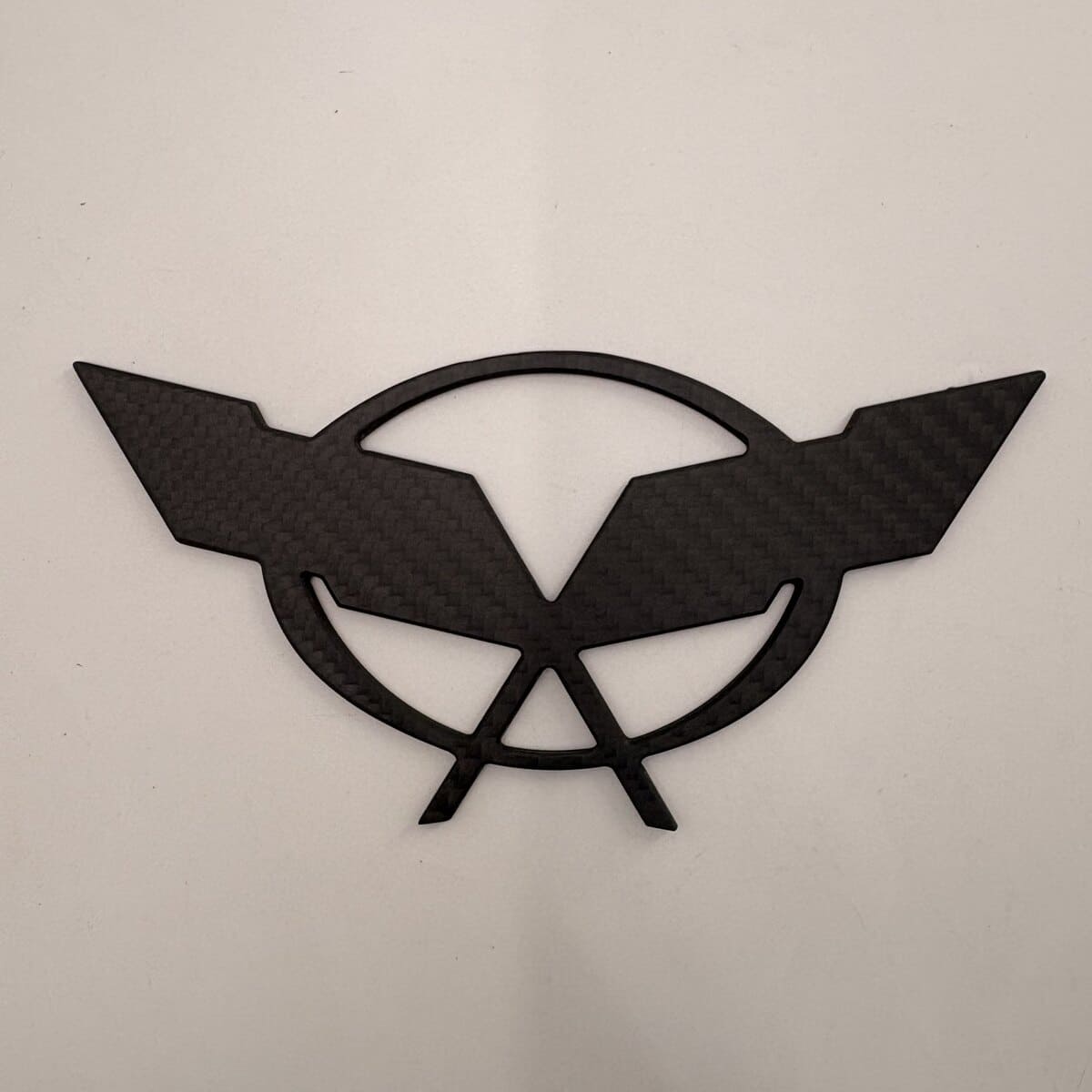

The third emblem was more complex. It combined wide outer sections, curved lines, narrow bridges, sharp points, and several internal cutouts.

Each part therefore needed an individual machining strategy.

We could not use one identical toolpath sequence for every design. The order in which material was removed had to match the geometry of each part.

For example, the internal openings of the complex emblem needed to be machined before the external contour. If the outer profile had been completed first, the part could have lost support and moved during the internal cutting operation.

The long narrow part presented a different risk. Removing too much surrounding material too early could allow the component to vibrate or shift.

Good CNC machining is not only about telling the tool where to move. It is also about controlling when each section is cut and how much material remains to support the part.

Internal Cutouts and Narrow Connections

Internal cutouts became one of the main challenges in this repeat order.

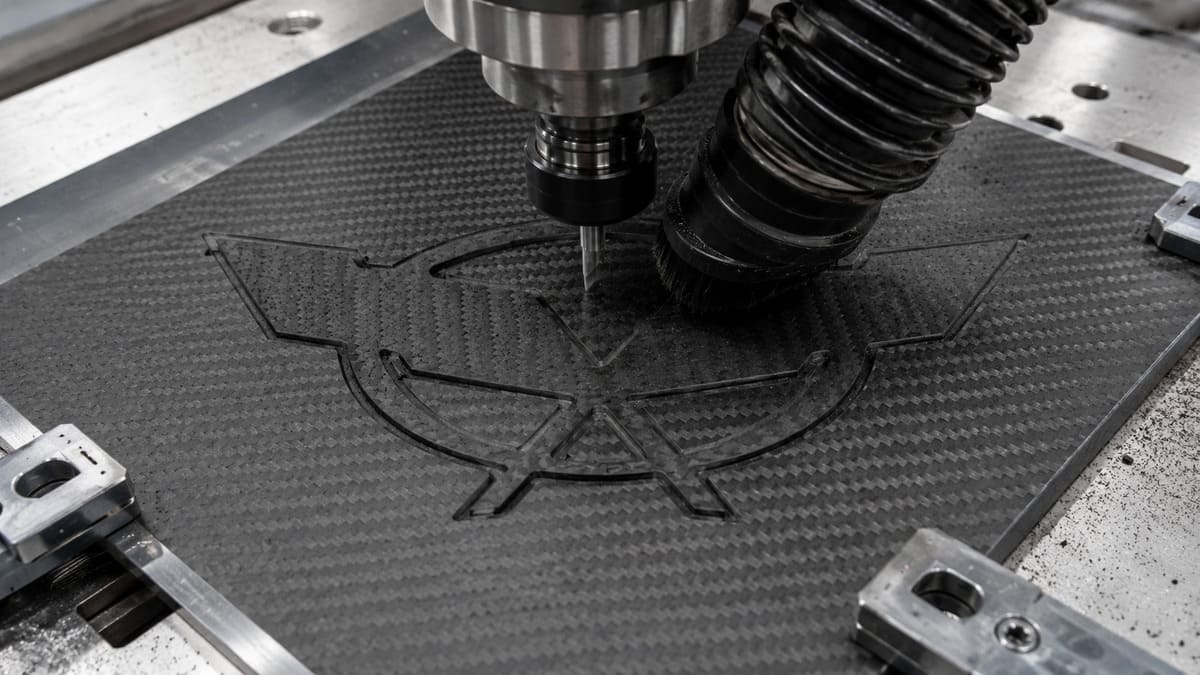

Each internal opening required its own toolpath, entry location, cutting direction, and machining sequence. The narrow carbon fiber sections between the openings also had to remain intact.

If the cutting force became too high, these narrow sections could vibrate, chip, or break. Local movement could also affect the accuracy of nearby edges.

The selected cutting tool had to suit the smallest internal features. A CNC tool cannot create an infinitely sharp internal corner, so the design review needed to consider the radius created by the tool diameter.

Before machining, the drawing was checked for:

• Very small internal corners

• Narrow gaps between cutouts

• Thin connecting sections

• Sharp external tips

• Overlapping or incomplete paths

• Areas with limited tool access

The machining sequence was then arranged to keep the part supported for as long as possible.

Internal openings were completed while the surrounding carbon fiber sheet still held the component securely. The machine completed the outer profile only after the internal features were finished.

This sequence reduced movement and helped protect the narrow connecting sections.

Protecting the Matte 3K Twill Surface

A matte carbon fiber surface may not reflect light as strongly as a glossy one, but it still requires careful protection.

Dust, fingerprints, oils, scratches, and cleaning residue can all affect the final clear-coated appearance. Some contamination may not be obvious before coating but can become visible after the clear coat has cured.

The matte material was therefore handled carefully throughout production.

Before setup, the worktable and contact surfaces were cleaned. The carbon fiber sheet was not dragged across hard surfaces, and machining dust was removed rather than allowed to accumulate.

The visible faces also needed protection during part removal and edge preparation. Sharp tools, loose chips, or abrasive carbon fiber particles could leave permanent marks.

Clear coating does not automatically hide surface defects. In some cases, it makes them more visible, just as varnish can emphasize a scratch in wood.

For that reason, surface quality had to be controlled before the parts entered the coating stage.

CNC Machining and Edge Preparation

Drawing Review and Toolpath Planning

Production began with a detailed review of each design file.

The drawings were checked for open contours, overlapping lines, narrow features, small internal openings, and areas that could be difficult to reproduce with the selected tool.

We also confirmed:

• Overall dimensions

• Part orientation

• Weave direction

• External profile geometry

• Internal cutout geometry

• Sharp-tip locations

• Narrow connecting areas

• Suitable cutting order

The toolpath for the complex emblem was divided into internal and external operations. The internal openings were machined first, while the surrounding sheet continued to support the part.

The long narrow component required a toolpath that maintained support along its length. The wide wing-style emblem needed controlled movement around its sharp outer ends and central point.

Toolpath planning also considered where the cutting tool would enter and leave the material. A poor entry location could leave a visible mark on an important edge.

Abrupt direction changes were minimized around delicate features. The cutting sequence was designed to distribute machining forces more evenly and prevent local instability.

Precision CNC Profile Cutting

After the material orientation and workholding were confirmed, the carbon fiber sheets were machined on a CNC engraving and cutting machine.

Suitable cutting tools and process parameters were selected according to the sheet thickness and profile complexity. The objective was to produce clean, stable edges rather than simply remove material as quickly as possible.

Carbon fiber is a composite material. It contains reinforcing fibers held together by a cured resin matrix. During machining, the cutting tool must pass through both materials at the same time.

Poorly controlled machining can produce:

• Fiber pull-out

• Edge fraying

• Burrs

• Chipping

• Rough cut surfaces

• Local delamination

These defects are particularly noticeable on automotive appearance parts because the machined edge forms part of the visible design.

The cutting process therefore used controlled tool movement around sharp tips, narrow bridges, and internal corners.

Dust extraction remained active throughout machining. Carbon fiber cutting produces fine abrasive dust that can collect on the surface, reduce visibility around the cutting path, and scratch the part during handling.

Once the profiles were complete, each part was separated carefully from the surrounding sheet. Sharp tips and narrow connections were not used as lifting or handling points.

Edge Cleaning Before Coating

CNC cutting created the required profiles, but the parts still needed preparation before clear coating.

All external and internal edges were inspected for:

• Loose fibers

• Minor burrs

• Local chipping

• Carbon fiber dust

• Surface residue

• Irregular machining marks

Small imperfections were addressed carefully without rounding sharp corners or changing the intended geometry.

The parts were then cleaned to remove dust from both faces, the external profile, and all internal openings.

The complex emblem required particular attention because dust could remain trapped in its narrow internal corners and curved cutouts.

Even a small loose fiber can affect the coating result. Once covered by clear coat, it may become fixed in place and remain visible on the finished product.

Good coating begins long before spraying. Surface preparation is the foundation of the finish, just as a clean surface is essential before applying protective film to glass.

Two-Sided Clear-Coat Finishing

Surface Preparation

Before coating, the front face, rear face, external edges, and internal cutouts were cleaned thoroughly.

The preparation process focused on removing:

• Carbon fiber dust

• Fingerprints

• Oils

• Loose fibers

• Cleaning residue

• Fine particles around corners

Both sides required equal attention because both would remain part of the finished surface.

Handling also needed to be controlled after cleaning. Touching the prepared surface with bare or contaminated contact points could reintroduce fingerprints or oils.

The different part shapes required different handling strategies. A large solid emblem offers several safe areas for support. A narrow component or an emblem with several cutouts offers far fewer.

Support positions were therefore selected according to each individual geometry.

Clear Coating on Both Sides

Clear coat was applied to both sides of each carbon fiber component according to the customer’s updated specification.

The coating covered:

• The matte front face

• The rear face

• External machined edges

• Internal cutout edges

• Curved transitions

• Pointed profile sections

The goal was to create a consistent finished appearance while keeping the natural 3K twill pattern visible.

A controlled coating sequence was required. One side was coated and allowed to reach the appropriate condition before the component was turned and the second face was processed.

Turning the part too early could mark the first coating. Waiting or curing incorrectly could also affect production consistency.

Coating thickness needed to remain controlled. Insufficient coverage could leave dry or uneven areas. Excessive coating could produce runs, heavy edges, or buildup around internal openings.

The spray process therefore balanced coverage and film thickness rather than simply applying more material.

Maintaining a Consistent Matte Appearance

Although the coating was transparent, it still influenced how the carbon fiber reflected light.

A clear coating system can produce a glossy, satin, or matte appearance depending on its formulation and application. For this project, the coating process needed to maintain the low-reflection visual character specified by the customer.

Consistency was especially important because the order contained several different part shapes.

A broad flat surface receives coating differently from a narrow strip. Curved and recessed sections can create overlapping spray patterns. Internal edges may receive less direct coverage than exposed faces.

To achieve a coordinated appearance, the finishing process controlled:

• Spray distance

• Spray angle

• Coating overlap

• Film thickness

• Part orientation

• Drying conditions

• Curing time

• Handling between sides

The goal was not only for each component to look good individually. All parts also needed to look as though they belonged to the same order.

Coating Internal Cutouts and Complex Edges

The emblem with multiple internal cutouts presented the greatest coating challenge.

Internal openings can create shadowed areas that receive less coating from a single spray direction. However, applying too much material from several angles can produce excessive buildup at the corners.

The coating needed to reach the inner edges without flooding the narrow sections.

The part was therefore positioned and coated from suitable angles to improve coverage around:

• Internal curves

• Narrow openings

• Sharp corners

• Thin connecting bridges

• Lower edges where coating could collect

After the first face was completed, the emblem was turned carefully to process the second side.

Supporting a complex carbon fiber emblem during this stage is similar to holding a delicate frame. The support must be stable, but it cannot press against an important finished surface or place too much load on a narrow section.

The final result depended on the complete process: preparation, spraying, turning, support, drying, and curing.

Quality Inspection

CNC Profile Inspection

Before final approval, each machined component was inspected for dimensional and visual quality.

The inspection included:

• Overall external profile

• Internal opening geometry

• Sharp-tip completeness

• Narrow bridge condition

• Edge continuity

• Visible chipping

• Fiber fraying

• Local delamination

• Surface scratches

The complex emblem received additional attention around its internal cutouts. The narrow connecting sections needed to remain complete, and the internal contours needed to follow the approved design.

The long narrow component was checked for consistent width and overall straightness.

The wider emblems were reviewed for left-to-right visual balance, complete pointed ends, and clean central transitions.

Because these parts were designed for visible automotive applications, appearance was evaluated together with profile accuracy.

Two-Sided Coating Inspection

The clear-coated finish was inspected on both sides of every part.

The final inspection focused on:

• Uniform front-face coverage

• Uniform rear-face coverage

• Consistent matte appearance

• Visibility of the 3K twill pattern

• Internal-edge coverage

• Runs or sags

• Dry areas

• Dust particles

• Excess buildup

• Support or contact marks

• Differences between parts

Each component was viewed from multiple angles under suitable lighting.

Why not inspect it only from the front?

Because surface variation may remain hidden at one viewing angle. A part can look uniform when viewed directly but show uneven gloss or coating overlap when tilted toward a light source.

The complete set was also compared together to confirm that the different shapes had a coordinated appearance.

Finished Parts and Repeat-Order Results

Final Appearance

The completed parts retained the visible diagonal pattern of genuine 3K twill carbon fiber while achieving the darker, low-reflection appearance required by the customer.

Each product maintained its intended geometry.

The long component remained clean and well defined. The wing-style emblem preserved its sharp ends and angular central shape. The complex emblem retained its curved lines, internal openings, and narrow connecting sections.

The clear coating covered both faces and the machined edges, creating a more complete finish across each part.

The coating did not hide the carbon fiber pattern. Instead, it supported the selected appearance while allowing the woven structure to remain visible.

The final order included several different products, but the material and surface finish gave them a consistent visual identity.

Customer Requirements Achieved

The repeat order achieved the main customer requirements:

• T300 carbon fiber material

• Matte 3K twill appearance

• Multiple custom automotive profiles

• CNC-machined external contours

• Clean internal cutouts

• Complete sharp tips

• Stable narrow connecting features

• Prepared internal and external edges

• Clear coating on both sides

• Consistent appearance across the order

The production process was adapted to the updated design and finishing requirements instead of simply repeating the original method.

That is an important part of custom manufacturing. Previous experience provides a useful starting point, but every new drawing still needs its own technical review.

Supporting Future Repeat Production

The repeat order expanded the original emblem project into a wider range of carbon fiber automotive components.

The confirmed machining and coating process can support similar future parts with:

• Different dimensions

• New external profiles

• Additional internal cutouts

• Matte or specified surface finishes

• Single-sided or two-sided coating

• Prototype quantities

• Small-batch and repeat production

Repeat manufacturing does not mean that every order is identical. It means establishing a reliable process that can be adjusted when the geometry or finish changes.

For this customer, the second order created a practical production reference for more complex emblem shapes and two-sided clear-coat finishing.
