Swiss Machining vs CNC Turning Guide
Last updated
Reading time
Approx. 14 min
Published by
NAITE TECH
Processes compared
2 Turning Routes
Compare Swiss machining and conventional CNC turning by workpiece support, part geometry, accuracy, complete manufacturing cost, and order quantity. Use practical part examples and a drawing review checklist to assess which route fits your requirements.
Comparison scope: Swiss machining is a form of CNC turning. In this guide, “CNC turning” refers to conventional fixed-headstock turning. Recommendations depend on the drawing, material, machine configuration, and order requirements.
Swiss machining and conventional CNC turning can both produce precise turned parts, but they support and move the workpiece differently. For a slender pin, a short bushing, or a shaft with cross-holes, those differences can affect deflection, setup requirements, cycle time, and finished-part cost. This guide explains what to compare, when each route deserves consideration, and which drawing details help a manufacturer recommend a suitable process.
Swiss machining is itself a form of CNC turning. Throughout this guide, conventional CNC turning means fixed-headstock turning, while Swiss machining refers to Swiss-type sliding-headstock machining, primarily in guide-bushing mode.
Swiss machining is worth evaluating when slender features need support close to the cut, or when a suitable machine can combine several operations on a bar-fed part. Conventional CNC turning is often a practical starting point for short, rigid components, larger diameters, and parts made from cut blanks or other stock forms.
The choice becomes less obvious when both routes can meet the drawing. Then the useful comparison is the full manufacturing sequence: workholding, machining, transfers, finishing, and inspection.
Your part or production condition | Route to evaluate first | What still needs checking |
|---|---|---|
A slender section is vulnerable to deflection during cutting | Swiss machining | Local support, machining sequence, stock requirements, and machine capacity |
A short, rigid part has straightforward turned features | Conventional CNC turning | Workholding, bore access, and any second operation |
The part uses a larger diameter or a non-bar-stock blank | Conventional CNC turning | Chucking, clearance, and the available machine envelope |
A small part has cross-holes, flats, threads, or back-side features | Compare both routes | Live tooling, spindle transfer, tool access, and operations completed on each machine |
Both routes can meet the same requirements | Compare complete quotations | Setup, material, batch quantity, secondary work, inspection, and delivery |
Use this table to narrow the discussion. A supplier should still review the actual drawing before recommending a route.

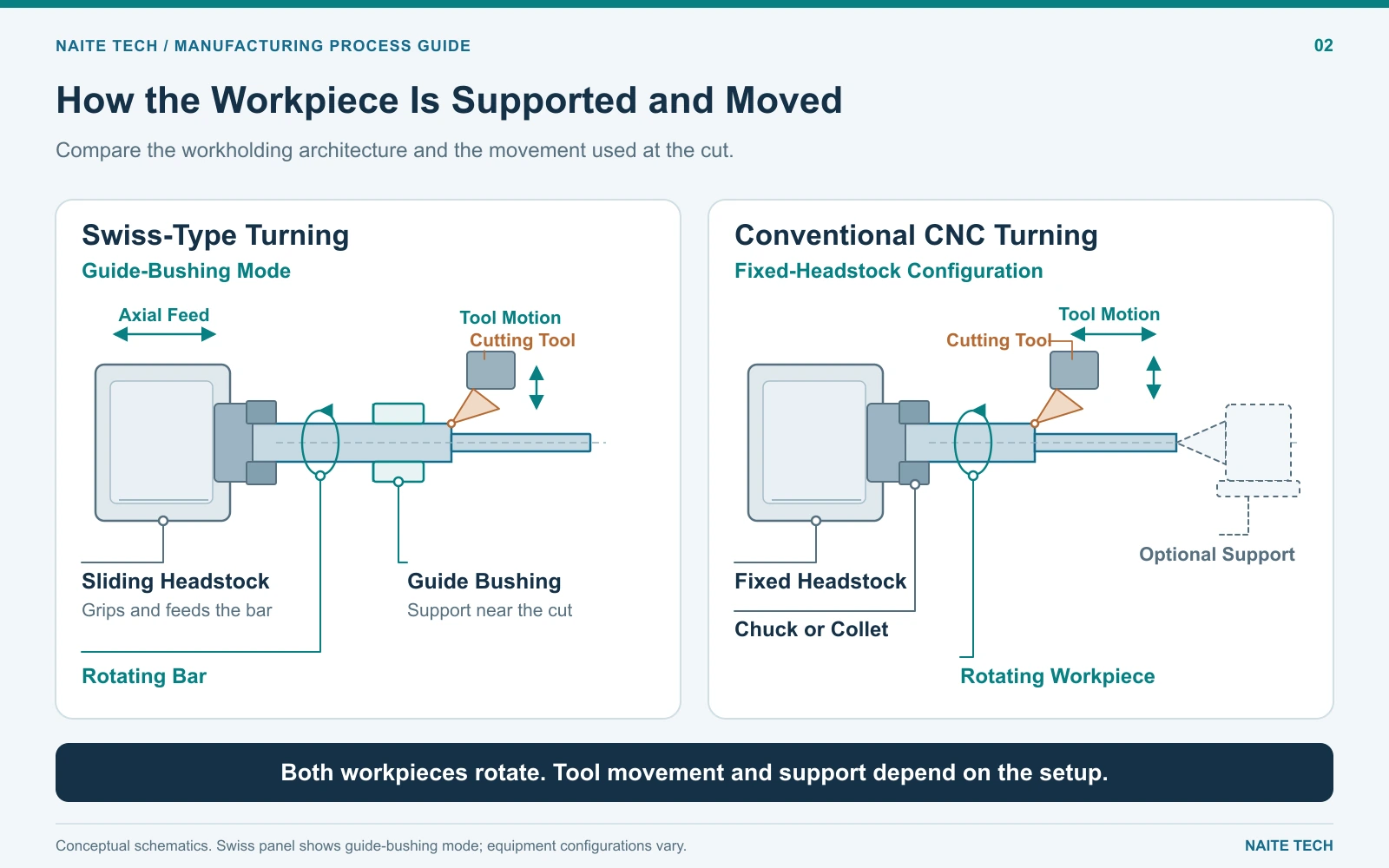

In guide-bushing mode, a Swiss-type lathe grips and rotates the bar in the main spindle. The sliding headstock feeds the bar axially through a guide bushing, and the cutting tools operate near that support. The tools also move as required by the operation.
Keeping support close to the cut helps control deflection on suitable slender features. The amount of support available during each operation is what makes the arrangement useful.
Some Swiss-type machines can also run without a guide bushing. Tsugami’s B0125-V, for example, supports a guide-bushing configuration and an optional chucker mode. The two modes have different operating limits, so a recommendation should identify the intended configuration. Tsugami’s official machine description documents this distinction.
When reviewing Swiss CNC machining services, look for how the proposed setup supports your particular features and completes the required operations.
On a conventional turning center, a chuck or collet holds the workpiece in a fixed-headstock spindle. The workpiece rotates, and the tools move to produce diameters, faces, bores, grooves, and threads. A tailstock or steady rest may provide additional support where the part and operation allow it.
Conventional turning also covers more than basic two-axis lathes. Depending on configuration, a turning center may have live tooling, a Y-axis, a second spindle, and automated loading. Mazak’s QUICK TURN range includes milling, Y-axis, second-spindle, tailstock, and steady-rest configurations. The available options need to be checked for the proposed machine.
This matters when comparing CNC turning services. A part that requires a separate milling operation on one machine may be completed with fewer transfers on another.

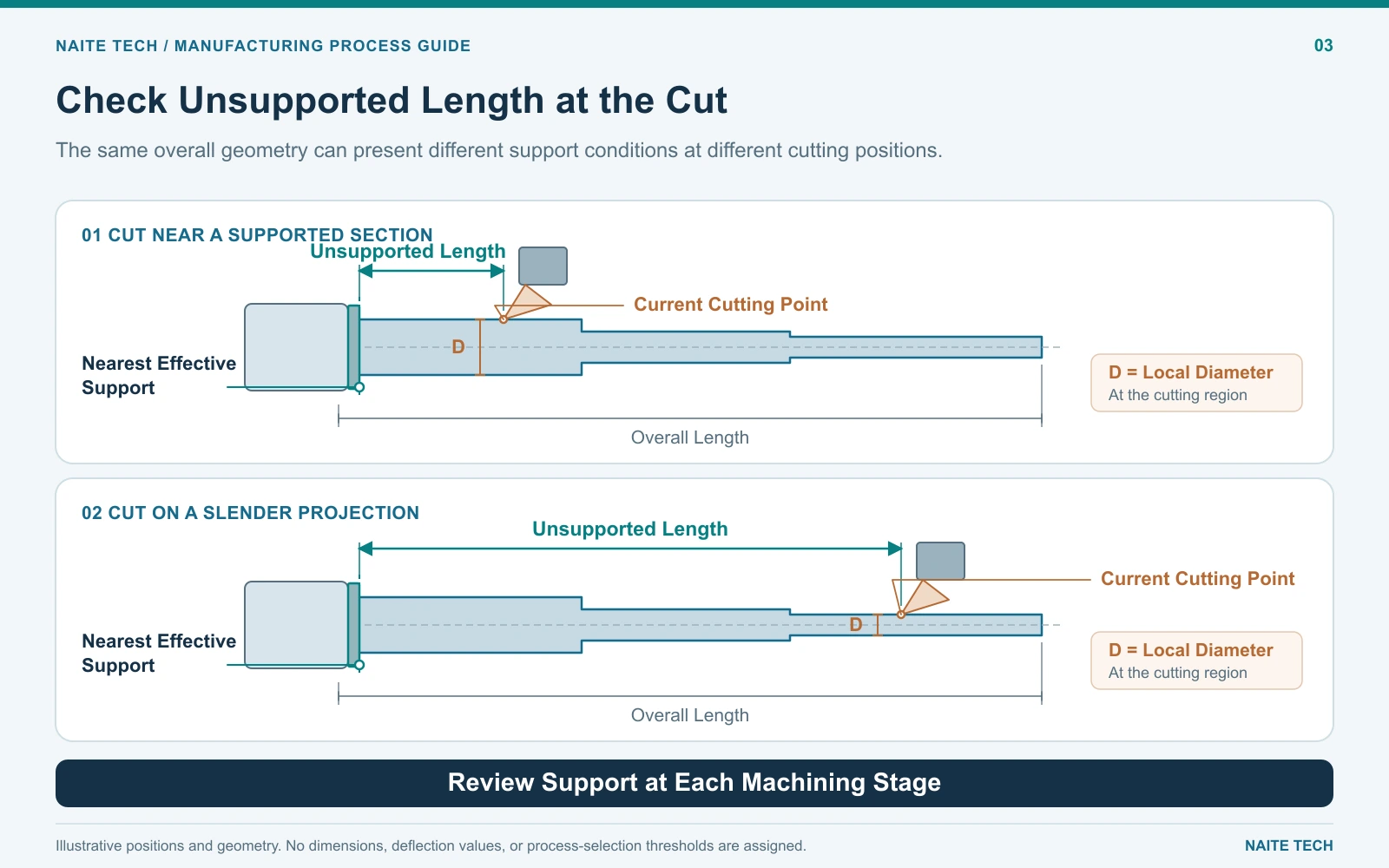

Overall length-to-diameter ratio is a useful screening measure, but it does not describe the whole machining problem. A stepped shaft may have a substantial main body and a much thinner section that becomes flexible only after material has been removed.
The relevant questions are where the cut occurs, how much material is unsupported at that moment, and what support remains after earlier operations. Cutting direction and tool forces also matter. A part can be long overall while the active cut remains close to a support; a shorter part can still have a troublesome thin projection.
Swiss guide-bushing support can be valuable in this situation. Conventional turning may also be feasible with suitable workholding, auxiliary support, or a different operation sequence. There is no single length-to-diameter ratio that makes one route mandatory for every part.
Engineering Consideration: Identify the smallest functional diameters and ask how each will be supported during machining. Review the intermediate shapes as well as the finished model; the most flexible stage may occur before the part is complete.
Check the largest diameter, shoulders, and required starting stock against the proposed machine and feeding system. A large flange on an otherwise slender component can require substantially more material removal when the part is produced from solid bar.
Cut blanks, forgings, or castings may make a conventional chucking route worth evaluating. For bar-fed work, confirm the allowable bar size, feeding path, gripping length, and usable material before cutoff. Machine capacity is model-specific; a single diameter limit should not be applied to the entire Swiss machining category.
Material specifications need the same care. State the exact material grade and condition, then confirm bar straightness, diameter consistency, and surface condition against the planned workholding system.
Do not assume every Swiss job requires centerless-ground bar. Citizen’s Adaptive Guide Bush is one example of a system designed to accommodate diameter variation and permit non-ground stock. That capability applies to the specified system; stock requirements still need confirmation for the actual setup.
Cross-holes and milled flats do not automatically make a part a Swiss machining job. Compare how each proposed machine reaches the features and whether it can finish the opposite end without moving the part to another machine.
For a threaded component with a cross-hole and wrench flats, ask which operations use live tooling, which require spindle indexing, and how the cutoff face is finished. A sub-spindle may help complete back-side features, but transfer accuracy and access still require planning.
Internal features deserve a separate check. Support near an external turning cut does not resolve every issue associated with a deep bore, a long boring tool, or chip removal. Include those operations in the route review rather than judging the part only by its outside shape.
If substantial milling is involved, the broader CNC milling vs CNC turning comparison can help clarify whether a turning center is the right starting point.
Swiss machining can help control deflection on suitable slender features, but it is not automatically more accurate for every dimension. A rigid component on a well-planned conventional turning setup may meet the same requirements.

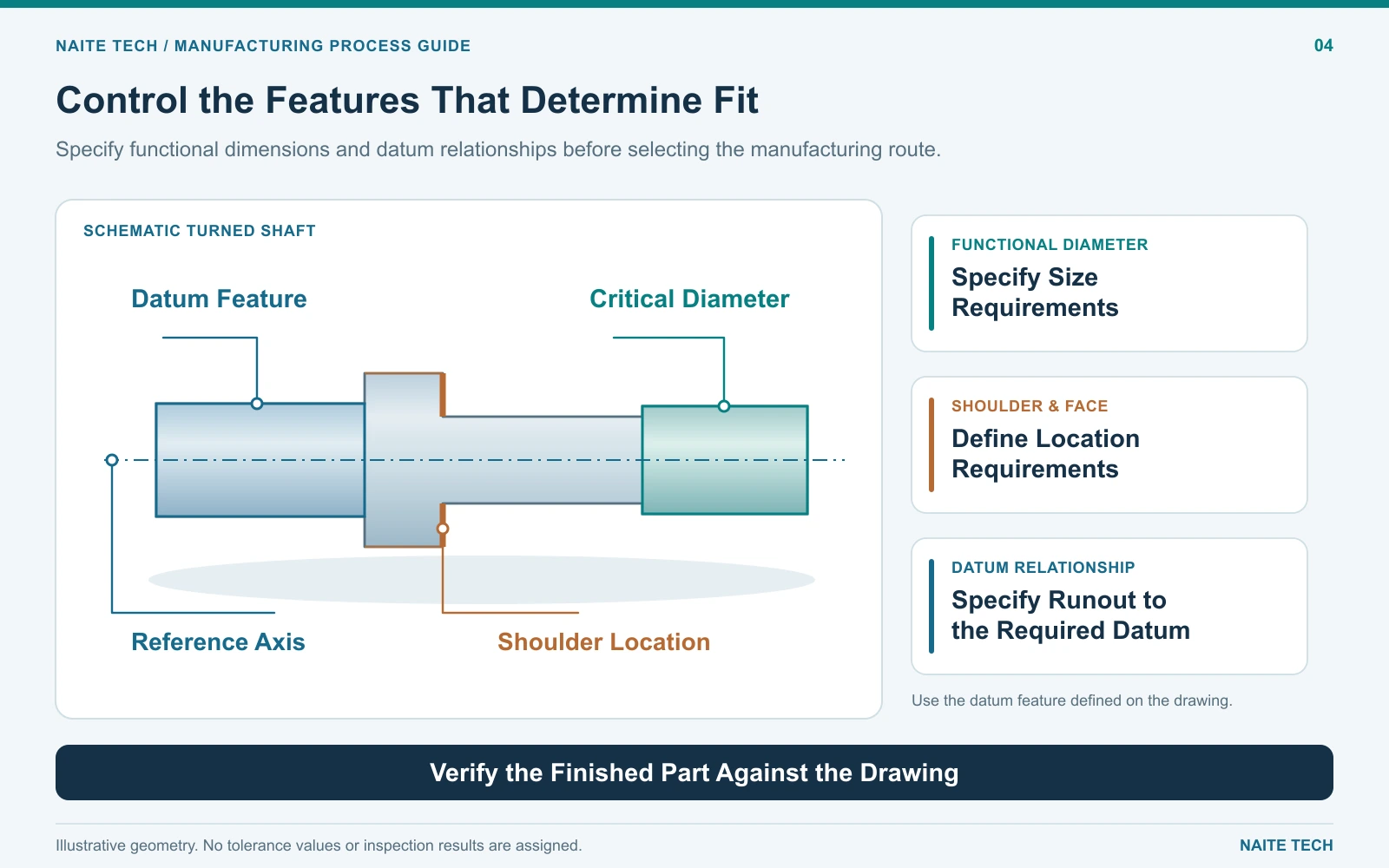

Start with the features that determine whether the part works. A shaft may need a controlled bearing diameter, a shoulder located from a seating face, and limited runout relative to a datum axis. Holding the outside diameter alone does not establish that all three requirements have been met.
Next, review how those relationships survive the operation sequence. Features machined before and after a spindle transfer or re-clamping operation may require particular attention. Fewer transfers can reduce one source of variation, but they do not establish capability by themselves.
Apply demanding requirements where function needs them, and use appropriate general tolerances elsewhere. For more detail, see the guide to specifying CNC machining tolerances.
Engineering Consideration: Identify which features must be controlled relative to the same datum. Ask how those features will be machined and inspected, including any transfer between spindles or setups.
Surface quality depends on the material, tool condition, cutting conditions, support, and chip control. A process name alone cannot establish the finish on a sealing face or sliding diameter.
Identify the surfaces that matter and specify their requirements individually. Where relevant, include restrictions on contact marks, edge breaks, and burrs. An acceptable external surface does not prove that a small intersecting hole is free of internal burrs.
Also account for work after turning. Heat treatment, grinding, polishing, coating, or other required operations may affect the condition in which dimensions are accepted. If a feature needs a secondary process, include it in both the manufacturing plan and the quotation.
Agree on dimensional inspection requirements before production, including which features are measured, how datum references are established, and what reporting is required. Inspection should address the finished condition specified on the drawing.

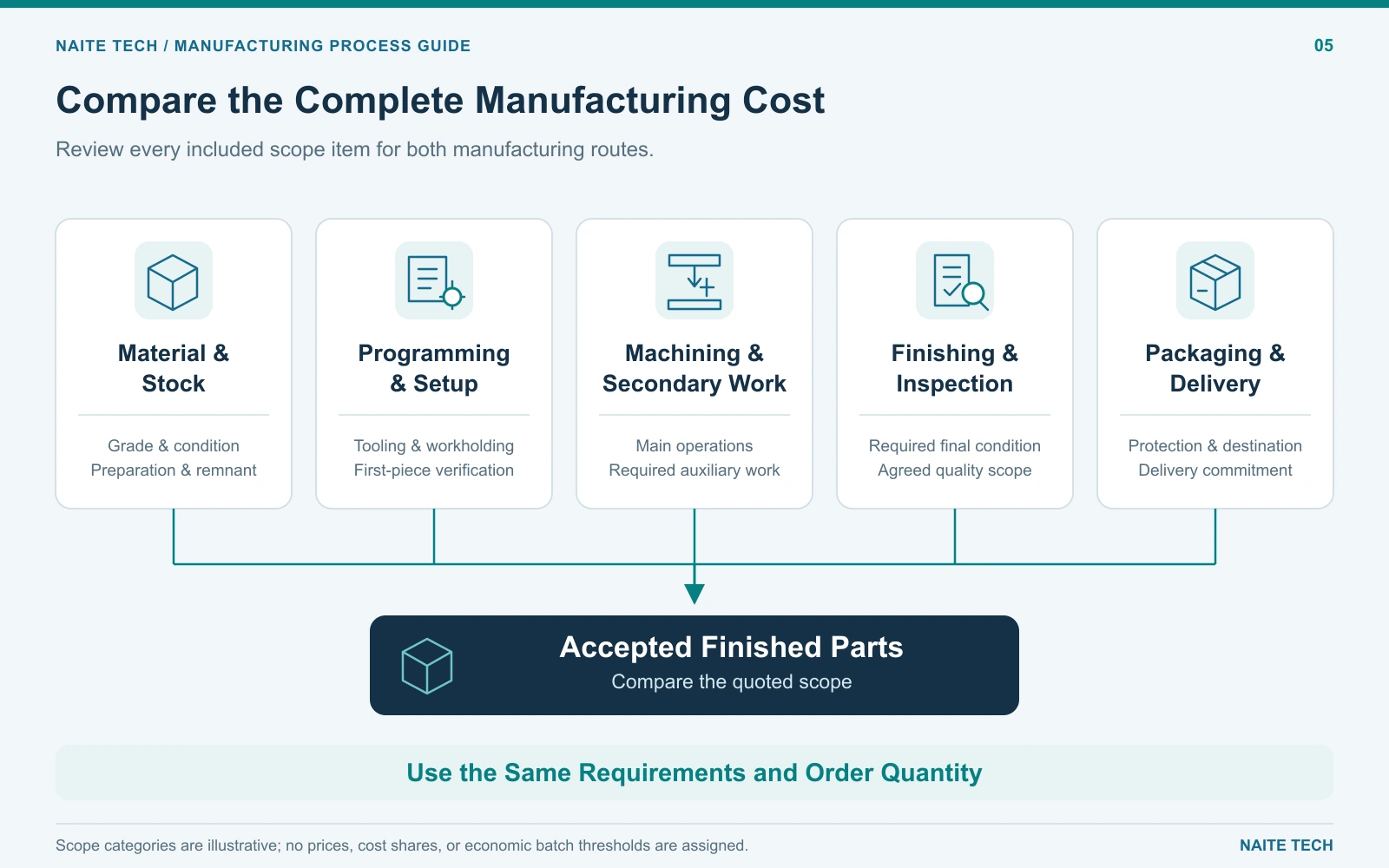

The cheaper route is the one that delivers acceptable finished parts at the lower total cost for your order. Machine hourly rate or cutting time alone cannot answer that question.
Programming, tool preparation, workholding, setup, and first-piece verification all influence the initial cost. Swiss machining can require substantial preparation, especially when several tools and spindles must be coordinated. A conventional route can also involve significant work if it needs custom jaws, fixtures, or multiple operations.
Avoid assuming one route always has the higher setup cost. Ask what preparation is required for the actual part and how that work is reflected in the quotation.
As quantity rises, repeated processing time becomes more influential. A route with more initial preparation may become attractive if it removes enough work from each part. Whether that happens depends on the proposed process.
A short machine cycle can hide work elsewhere. Separate drilling, deburring, cleaning, grinding, or inspection may account for a meaningful part of the delivered cost.
Use a common comparison scope:
Cost item | What to confirm |
|---|---|
Material and preparation | Same grade and condition, suitable stock, and any preparation charges |
Material use | Starting diameter, cutoff allowance, and bar remnant or other unused stock |
Machining | Operations included, transfers, and any separately scheduled machining |
Finishing | Deburring, cleaning, treatment, and finishing requirements |
Quality | First-piece verification, production checks, and required reports |
Delivery | Accepted quantity, packaging, destination, and delivery commitment |
Process risk belongs in the discussion too. If a thin section is difficult to control or a burr is difficult to inspect, ask how the supplier plans to manage it. Do not assume a lower quoted price includes the same controls.
Engineering Consideration: Compare quotations against the same drawing revision, material condition, batch quantity, finishing requirements, and inspection scope. Resolve exclusions before comparing the per-part price.
For a prototype, design changes and immediate availability may matter more than the lowest possible production cycle. Conventional turning may offer a straightforward route for a rigid part, while Swiss machining may still be justified if the prototype contains slender features that are difficult to support otherwise.
For a stable production batch, examine repeated operations, material use, tool management, and inspection effort. Both Swiss and conventional turning centers can support automated production when appropriately equipped.
For repeat orders, ask which programs, tools, and fixtures can be reused. Reuse may reduce preparation, but it does not eliminate machine setup, verification, or the need to check a changed drawing revision.
Lead time also includes material procurement, production scheduling, outside processing, and inspection. A faster cutting cycle does not necessarily produce an earlier shipment. Request a delivery commitment for the complete route rather than inferring it from machine speed.

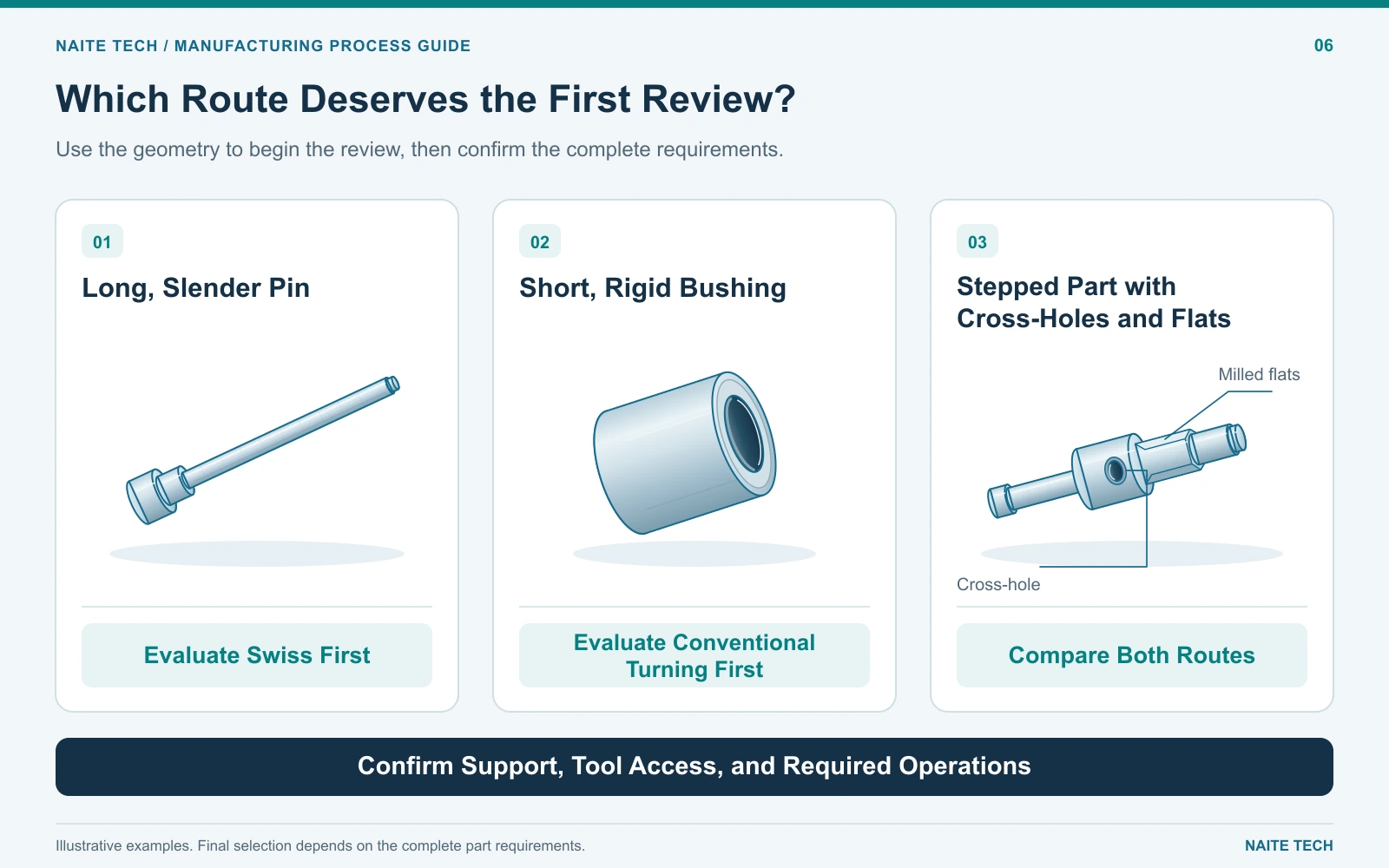

The following are illustrative selection scenarios, not customer case studies or quoted production results.
Consider a pin with a thin working section, a shoulder, and a controlled functional diameter. The main concern is how the thin section behaves while it is being cut.
Swiss machining deserves an early review because support near the cutting zone may make the slender section easier to control. Confirm the stock requirements, operation sequence, cutoff, and handling of the finished pin.
The recommendation could change if a conventional route provides effective support, if a required finishing operation determines the final dimensions, or if the proposed Swiss equipment cannot accommodate the geometry. The drawing and route need to be assessed together.
A short bushing with an outside diameter, a through bore, a face, and chamfers is a good starting point for conventional turning. Its rigidity may allow straightforward workholding without requiring guide-bushing support.
Conventional CNC turning is the sensible first route to evaluate. Check bore requirements, wall thickness after machining, and whether both faces can be completed efficiently.
Swiss machining may still be competitive for an appropriate small bar-fed component, particularly where the supplier already has a suitable production setup. If the bushing has thin walls, demanding relationships between features, or special edge requirements, review those details before treating it as a simple part.
A small stepped component with a thin stem, a cross-hole, wrench flats, and a back-side feature can suit more than one route. Its short overall length does not reveal the difficulty of every operation.
Compare both proposed manufacturing sequences. A Swiss route may support the thin stem and integrate the additional features. A suitably configured conventional turning center may also complete the part with live tooling and a second spindle.
The decision can change with tool access, material removal, transfer requirements, burr control, or order quantity. Ask each supplier to identify any operations performed away from the main machine. That makes the comparison more useful than a claim that either process produces “complex parts.”
Yes. Swiss machining is a form of CNC turning associated with sliding-headstock machines. The common comparison is between Swiss-type machining and conventional fixed-headstock turning. Guide-bushing operation is an important configuration to understand, although some Swiss-type machines also support non-guide-bushing modes.
It can be. A small batch may justify Swiss machining when the geometry benefits from its support or operation sequence. For a simple, rigid prototype, conventional turning may require less preparation. Assess the actual route, expected design changes, and available equipment rather than rejecting Swiss machining solely because the quantity is low.
There is no universal break-even quantity. The result depends on setup, stock requirements, processing time, secondary operations, inspection, and repeat demand. Request prices for your expected quantities under the same technical requirements. This shows whether a cost crossover exists for your part and the proposed routes.
A drawing review is more useful when the manufacturing requirements are clear. Provide:
A 2D drawing and available 3D model, with the current revision identified.
Material grade and condition, including any required certification.
Critical dimensions and datum references, together with functional surface and edge requirements.
Batch quantity and likely repeat demand, distinguishing firm orders from forecasts.
Required secondary operations and inspection, including reporting or sampling requirements.
Target delivery date and packaging needs, especially for delicate features or protected surfaces.
If a dimension is tight because of a particular fit or function, explain that relationship. It gives the manufacturer a better basis for reviewing workholding, process sequence, and inspection. The CNC design for manufacturability guide provides further drawing and geometry considerations.
Not sure which route fits your drawing? Share your drawing, material specification, critical features, and expected order quantities with NAITE TECH for a manufacturability review. The discussion can then focus on how the part will be made and accepted, with a clear scope for the quotation.
Tsugami — B0125-V Swiss-Type CNC Automatic Lathe. Reference for guide-bushing operation and the optional non-guide-bushing chucker configuration.
Mazak — QUICK TURN CNC Turning Centers. Reference for milling, Y-axis, second-spindle, tailstock, and steady-rest options within a conventional turning-center range.
Citizen Machinery — Adaptive Guide Bush. Reference for a specific adaptive guide-bushing system designed to accommodate bar-diameter variation and permit non-ground stock.
