How Order Quantity Affects CNC Machining Cost per Part

CNC machining cost per part can change dramatically with order quantity. In a real 6061-T6 aluminum bracket example, the unit price dropped from about $38.70 for one prototype to $8.00 at 100 pieces and $6.10 at 500 pieces.

The reason is not simply that manufacturers offer a “bulk discount.” CNC machining includes one-time costs such as CAM programming, machine setup, workholding preparation, process verification, and first-part inspection. As more identical parts are produced, these costs are spread across the batch.

But the savings are not linear. Once fixed setup costs become a small part of the total, raw material, machine cycle time, tooling, finishing, inspection, and handling create a practical cost floor.

For a broader breakdown of the factors behind a CNC quote, see our CNC machining cost calculator and pricing guide.

This article explains how CNC machining cost changes by quantity, using real pricing data from 1 to 500 parts, and shows when higher production volumes justify changes in fixturing and manufacturing strategy.

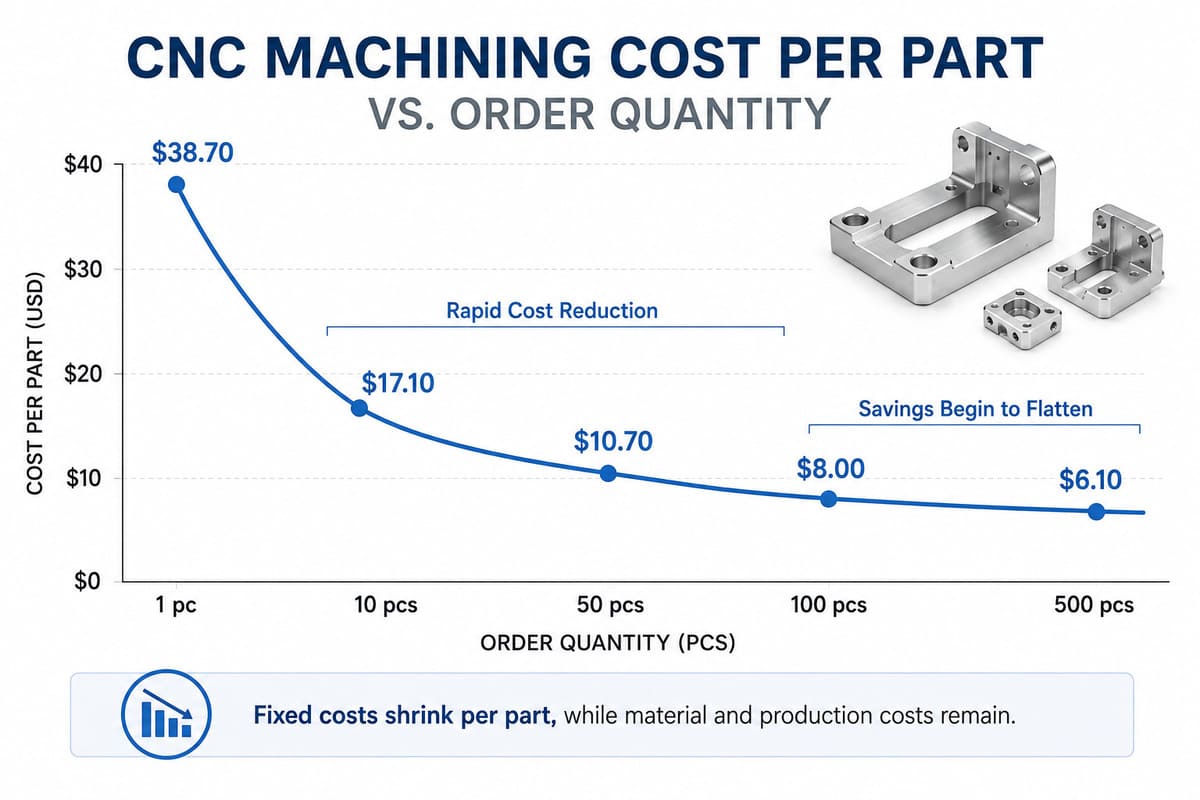

Real CNC Pricing Example: Cost per Part from 1 to 500 Pieces

To show how order quantity affects CNC machining unit cost in practice, consider the following aluminum mounting bracket.

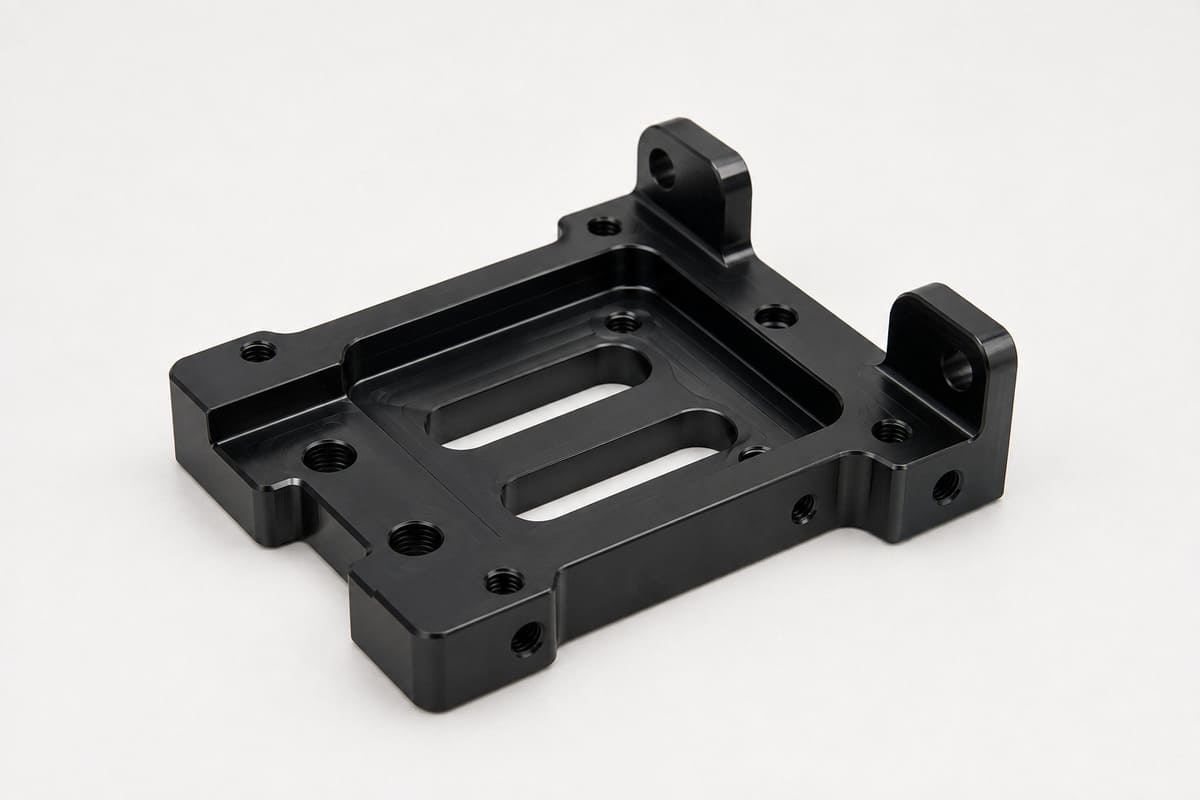

Example Part Specifications

6061-T6 is commonly selected for CNC-machined brackets, housings, and structural components because it combines good machinability, mechanical strength, dimensional stability, and a wide range of finishing options. You can learn more about our aluminum CNC machining capabilities and material options.

Under the production conditions above, the approximate unit pricing changes as follows:

The biggest change occurs at the lower quantities.

Increasing the order from 1 to 100 parts reduces the unit price by about 79% in this example.

But increasing the quantity another five times, from 100 to 500 parts, reduces the price from $8.00 to $6.10 per part—only about another 24%.

This illustrates an important principle of CNC volume pricing:

The largest unit-cost savings often occur between prototype and low-volume production. Once fixed preparation costs have been largely absorbed, further price reductions become progressively smaller.

Pricing note: These figures are based on one specific part and production scenario and are intended to illustrate how quantity affects unit price. They are not standard prices for all aluminum parts. Actual CNC machining costs vary with geometry, material, tolerances, machining time, inspection requirements, surface finishing, tooling, and production conditions.

Why Does CNC Machining Cost per Part Decrease with Quantity?

A simplified CNC machining cost model can be written as:

Cost per part = fixed production preparation costs ÷ quantity + variable cost per part

The fixed portion becomes smaller as more parts are produced.

If CAM programming, machine setup, tool preparation, first-part inspection, and process verification are required for a production run, those activities may take roughly the same amount of preparation whether the batch contains one part or 100 identical parts.

For a one-piece prototype, the entire preparation cost is carried by one component.

For 10 parts, it is distributed across 10 pieces.

For 100 parts, it is distributed across 100 pieces.

That is why the difference between prototype CNC machining cost and low-volume production cost can be substantial.

However, real CNC pricing is more complex than simply dividing a setup fee by quantity.

At higher production volumes, the manufacturing process itself may also be improved.

Quantity can therefore lower cost in two different ways:

1. Fixed costs are distributed across more parts.

2. Higher volumes can justify more efficient production methods.

The second factor becomes increasingly important as a project moves from prototype work into repeat production.

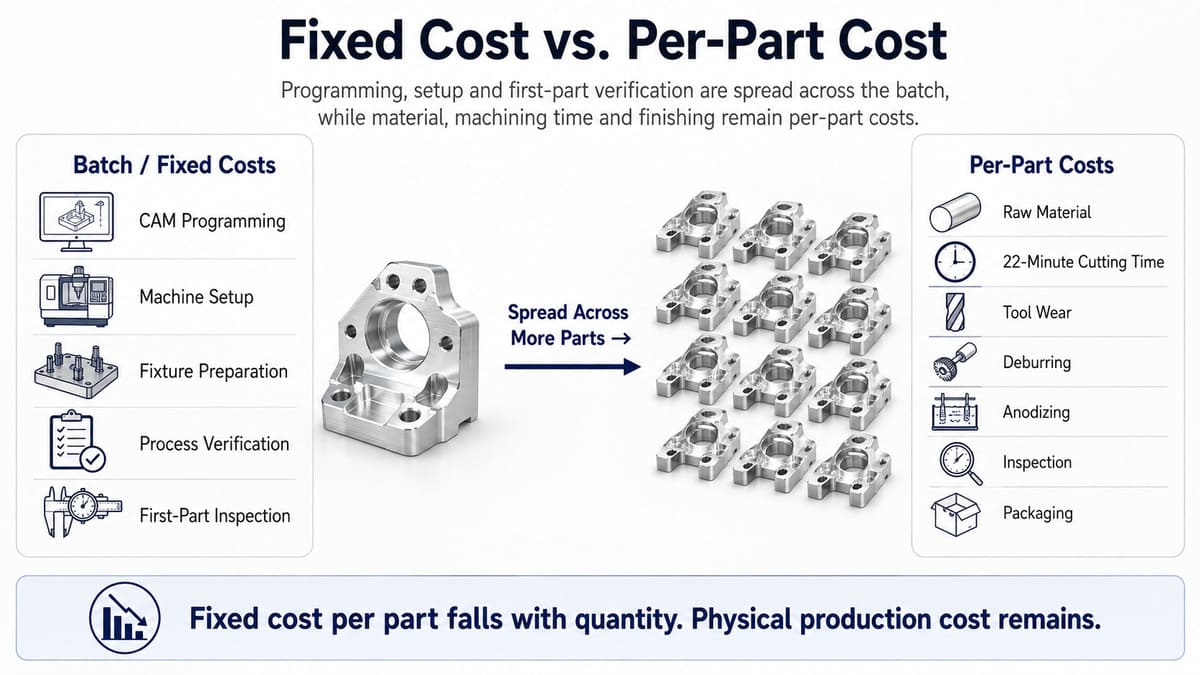

Which CNC Machining Costs Are Spread Across the Batch?

Several important CNC machining costs are incurred before stable production begins.

CAM Programming and Process Planning

A CNC program does not need to be recreated for every individual component in the same production batch.

Before machining begins, the CAM programmer may need to determine:

• machining sequence

• cutting tools

• toolpaths

• feeds and speeds

• work offsets

• workholding strategy

• roughing and finishing operations

• machining risks

Whether the order contains one part or 100 identical parts, much of this engineering work is performed once.

That is why programming represents a much larger percentage of the unit price in prototype quantities.

Machine Setup and Tool Preparation

The machine also requires preparation before production.

Typical activities may include:

• installing cutting tools

• setting tool offsets

• preparing vises, clamps, or fixtures

• establishing work coordinates

• loading and checking the CNC program

• running initial verification

• adjusting cutting conditions if required

The aluminum bracket in our example requires two setups, because both the front and back must be machined.

Those setups are necessary even when the customer orders only one prototype.

This is also why a customer normally cannot expect the same unit price for one prototype as for a 100-piece production batch.

A single prototype is not simply “one part taken from a 100-piece order.” It must still carry the production preparation required to make the first acceptable part.

First-Part Inspection and Process Verification

The first component normally receives more attention than later production pieces.

Dimensions must be checked, the machining process verified, and any necessary offsets or cutting conditions corrected before continuing the batch.

Once the process is stable, later parts can follow an established inspection plan.

In this example, production quantities use routine dimensional sampling rather than a complete CMM report for every component.

If a project requires:

• 100% dimensional inspection

• full CMM reports

• special traceability

• additional quality documentation

• critical-feature inspection on every part

then inspection becomes a larger per-part cost and the quantity-cost curve may behave differently.

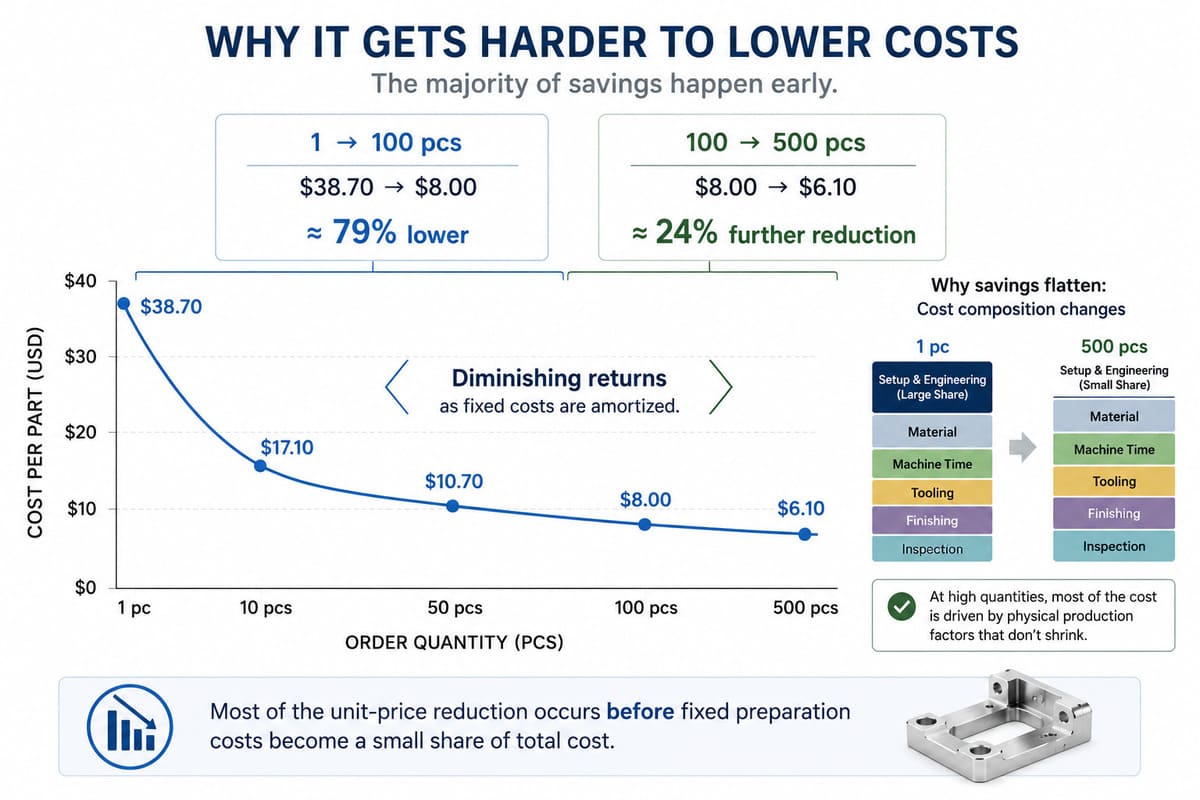

Why the Biggest Price Drop Happens at Lower Quantities

Fixed-cost dilution has the strongest effect when quantities are small.

Imagine that a certain amount of programming, setup, workholding preparation, and process verification must be recovered from the production order.

Dividing that preparation cost between 1 and 10 pieces creates a major difference.

Dividing the same preparation cost between 100 and 500 pieces creates a much smaller difference.

This is why a typical CNC machining cost-by-quantity curve falls quickly at first and gradually becomes flatter.

In our aluminum bracket example:

• 1 pc: $38.70

• 10 pcs: $17.10

• 50 pcs: $10.70

• 100 pcs: $8.00

• 500 pcs: $6.10

At low quantities, removing fixed cost from each unit has a major effect.

At higher quantities, most of the remaining price is increasingly determined by the physical resources required to manufacture every individual component.

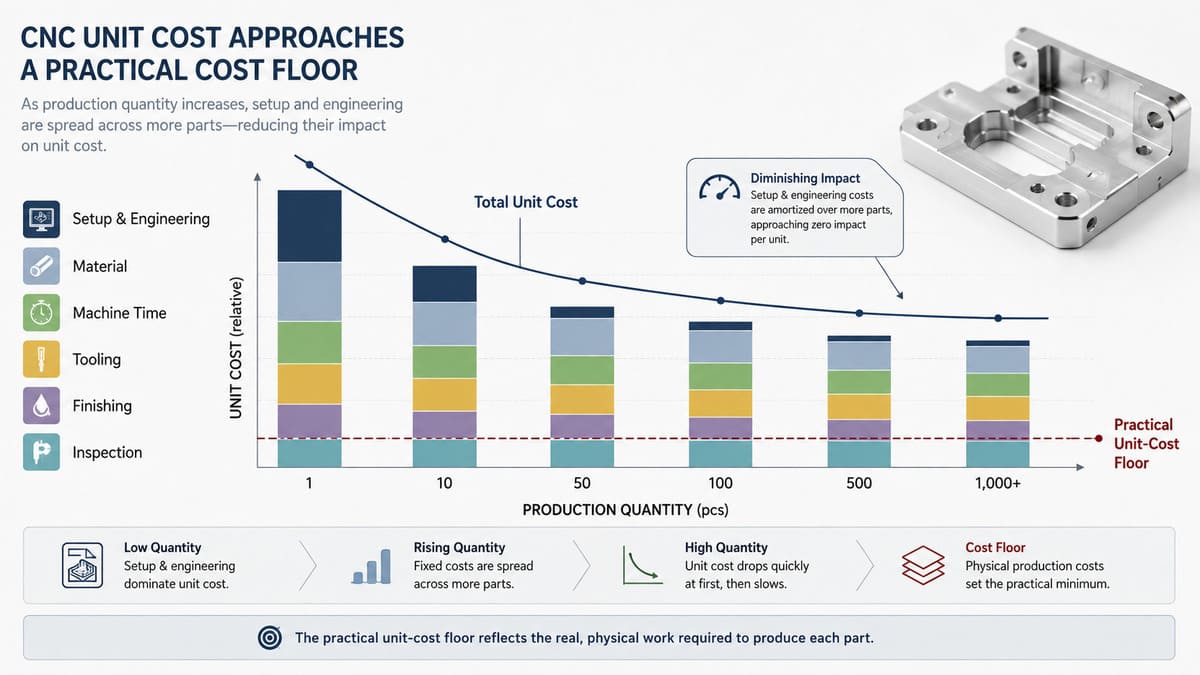

Which Costs Do Not Decrease Much with Higher Quantity?

Once fixed production costs have been diluted, several costs still occur for every part produced.

These costs establish a practical floor below which CNC machining prices cannot continue falling simply because the order becomes larger.

Raw Material

Every part still requires physical material.

The mounting bracket in this example is machined from standard 6061-T6 aluminum plate. A 500-piece order still requires material for 500 components.

Higher purchasing quantities may improve raw-material pricing or material utilization, but the material cost never disappears.

For expensive materials such as:

• titanium

• PEEK

• Inconel

• other nickel-based alloys

material may represent a very large percentage of total unit cost.

If raw material represents 60–80% of a part's cost, increasing order quantity may have relatively limited impact on the final unit price.

Machine Cycle Time

The example bracket requires approximately 22 minutes of cutting time per part.

A 500-piece order does not eliminate those 22 minutes.

The manufacturer may improve cutting parameters, loading efficiency, toolpaths, or production scheduling, but each additional component still consumes machine capacity.

As fixed costs become small on a per-part basis, actual machining time becomes one of the strongest factors defining the minimum practical CNC unit cost.

Tool Wear

Cutting tools wear as material is removed.

Larger production runs may justify better tool selection, optimized cutting parameters, or bulk tool purchasing, but every component still contributes to tool wear.

Tool consumption therefore remains part of the per-part cost.

Deburring and Surface Finishing

Each mounting bracket in this example requires:

• manual deburring

• sharp-edge removal

• black Type II anodizing

An anodizing supplier may offer better batch pricing at higher volumes, but every component still requires processing and handling.

The same principle applies to secondary processes such as:

• bead blasting

• polishing

• plating

• heat treatment

• passivation

• painting

These costs may improve somewhat with larger quantities, but they do not behave like one-time CAM programming or machine setup costs.

Inspection

Inspection also requires time throughout production.

Sampling is generally more efficient than full inspection, but critical dimensions still need to be checked according to the agreed quality plan.

Inspection strategy can have a significant effect on CNC machining unit cost, especially when tighter tolerances, CMM measurement, or additional documentation are required. See our CNC inspection and quality control process for more information about dimensional verification and production quality control.

Packaging and Handling

Finished parts still need to be:

• cleaned

• protected

• labeled

• packed

• prepared for shipment

These may be relatively small costs compared with machining and material, but they remain part of the per-part cost floor.

Why Increasing Quantity Sometimes Does Not Reduce Price Very Much

Customers sometimes assume that doubling or tripling an order should always produce a large unit-price reduction.

In practice, the result depends on which costs dominate the part.

1. Fixed Preparation Cost Is Already Low

Simple components may require very little programming or setup.

If fixed preparation was never a major percentage of the original price, there is less cost available to spread across a larger batch.

Increasing an order from 200 to 800 pieces may therefore produce only a modest reduction.

2. Material Cost Dominates the Part

For expensive materials, raw stock may represent the majority of the final unit cost.

A larger quantity cannot eliminate the physical material required for every component.

Volume discounts on material can help, but usually not enough to create the same percentage savings seen when moving from prototype quantities to a small batch.

3. Tight Tolerances Require Slow Machining and Extensive Inspection

High-precision components may require:

• slower or more conservative machining

• additional finishing passes

• more frequent dimensional checks

• temperature-controlled measurement

• CMM inspection

• higher scrap-risk allowances

These activities occur throughout production and cannot simply be amortized across the batch.

Tolerance requirements can significantly affect machining time, tool strategy, inspection effort, and process risk. For a more detailed explanation, see our CNC machining tolerance guide.

4. The Design Changes Frequently

Dedicated process optimization works best when the design is stable.

If the customer is still revising the drawing, it may not make sense to invest heavily in:

• dedicated fixtures

• custom soft jaws

• special tooling

• optimized production processes

A design revision can make that investment unusable.

This is one reason prototype and early-production pricing may remain higher until the design is frozen.

5. Secondary Operations Become the Bottleneck

Processes such as:

• anodizing

• plating

• heat treatment

• grinding

• painting

may eventually reach a point where the outside supplier cannot offer additional meaningful discounts.

Production capacity can also become a constraint.

Increasing the CNC order quantity does not automatically reduce the cost of every downstream process.

6. CNC May No Longer Be the Most Economical Process

CNC machining is highly flexible and is well suited for:

• prototypes

• low-volume production

• precision components

• frequently revised designs

• complex geometries

However, at very high production quantities, the question may eventually change from:

“How can we make CNC machining cheaper?”

to:

“Is CNC machining still the best manufacturing process?”

Depending on part geometry, material, tolerances, tooling investment, and annual demand, alternatives such as:

• die casting

• extrusion

• stamping

• injection molding

may become worth evaluating.

There is no universal quantity at which this transition occurs.

The correct manufacturing process depends on the economics of the specific part.

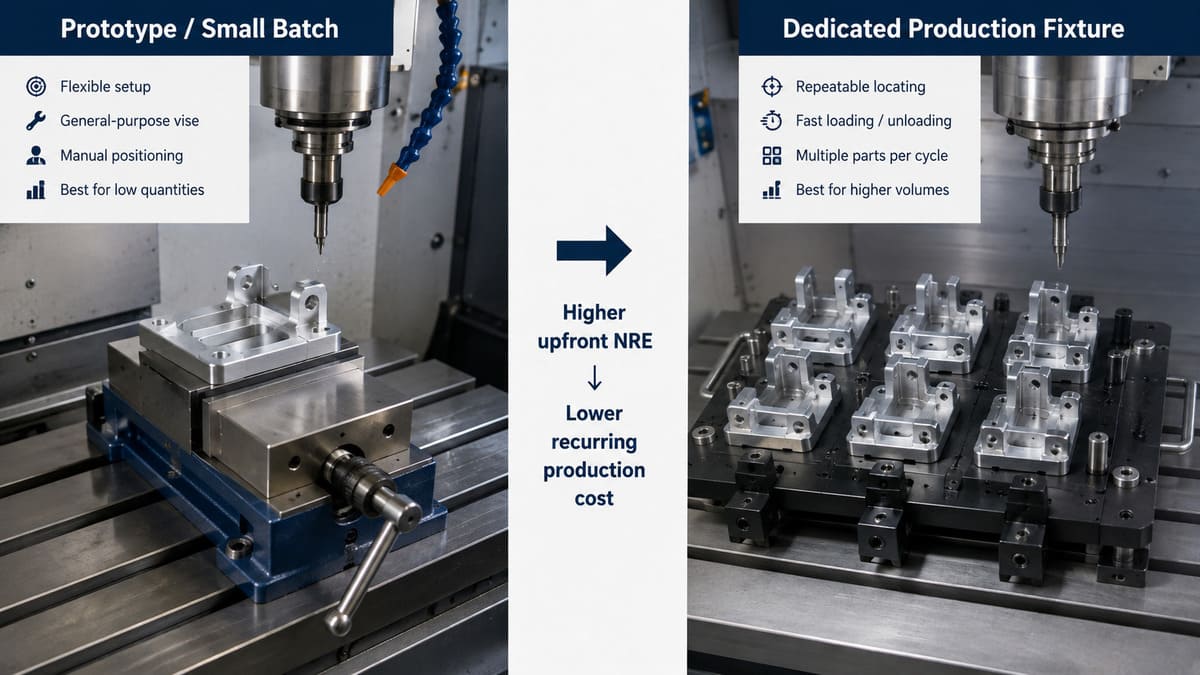

When Does a Dedicated Fixture Become Worth the Investment?

Higher production volumes can reduce cost not only by spreading existing setup expenses, but also by justifying a different production strategy.

Prototype and small-batch work commonly uses:

• standard vises

• general-purpose clamps

• modular workholding

• simple soft jaws

• temporary fixtures

These methods keep upfront cost low and give the manufacturer flexibility when designs are still changing.

At higher quantities, however, a dedicated fixture may make economic sense.

It can potentially:

• reduce loading time

• shorten alignment time

• improve positioning repeatability

• reduce operator involvement

• reduce deformation during clamping

• hold several components at once

• reduce the number of setups

• improve batch consistency

When We Begin Evaluating Dedicated Workholding

In our production experience, approximately 50–200 pieces can be a useful range for beginning to evaluate dedicated fixturing, but this should not be treated as a fixed industry threshold.

For a component with:

• difficult positioning

• slow manual loading

• multiple flips

• long alignment time

• high risk of clamping variation

a dedicated fixture may make sense at around 50 pieces.

For a simpler component, the break-even point may not appear until 300–500 pieces or more.

The decision should be based on fixture payback, not quantity alone.

A manufacturer needs to compare the one-time fixture investment with the production savings it can create across the expected quantity.

Design Stability Matters

A dedicated fixture also becomes easier to justify when the customer has confirmed that the design is frozen.

If the drawing may change next week, investing in custom workholding creates risk.

A dimensional change, hole-position change, or geometry revision can make a dedicated fixture partially or completely unusable.

For long-term repeat production, the economics are different because the fixture may be reused over multiple orders.

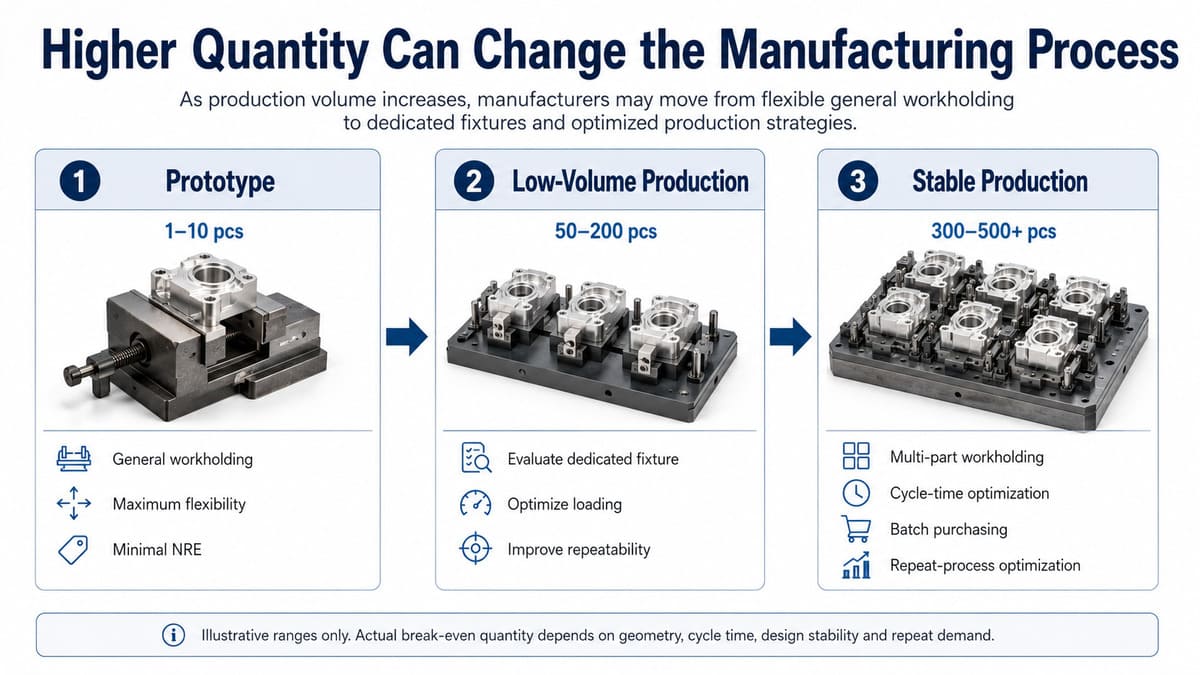

Higher Quantity Can Change the Manufacturing Process

One common misconception about CNC volume pricing is that the manufacturer simply takes a setup fee and divides it by more pieces.

That is only part of the story.

Once a project moves from prototype quantities into stable production, higher volumes may justify:

• dedicated fixtures

• multi-part workholding

• improved tool sequencing

• fewer tool changes

• optimized feeds and speeds

• shorter toolpaths

• more efficient loading and unloading

• optimized material preparation

• bulk material purchasing

• better secondary-process pricing

This means that production volume can change the manufacturing strategy itself, not just the way existing costs are divided.

Can Repeat CNC Orders Cost Less Than the First Order?

Customers often ask whether programming and setup costs need to be paid again when the same component is reordered.

The answer depends on the production situation.

If the following remain unchanged:

• CAD model

• drawing

• material

• tolerance requirements

• surface finish

• inspection requirements

• manufacturing process

then some previous engineering work may be reused.

For example:

• the CAM program may already exist

• toolpaths have already been proven

• the manufacturer already understands the machining risks

• inspection methods may already be established

• soft jaws or dedicated fixtures may still be available

This can reduce engineering effort on the next production order.

However, not every setup-related cost disappears.

The machine still has to be prepared for production.

Tools still need to be installed and checked.

Material still needs to be purchased.

The parts still require:

• cutting time

• tool life

• inspection

• deburring

• finishing

• handling

If the previous fixture has been removed, modified, damaged, or is no longer suitable, additional preparation may also be required.

Repeat orders become easier to optimize when the design is stable and future demand is predictable.

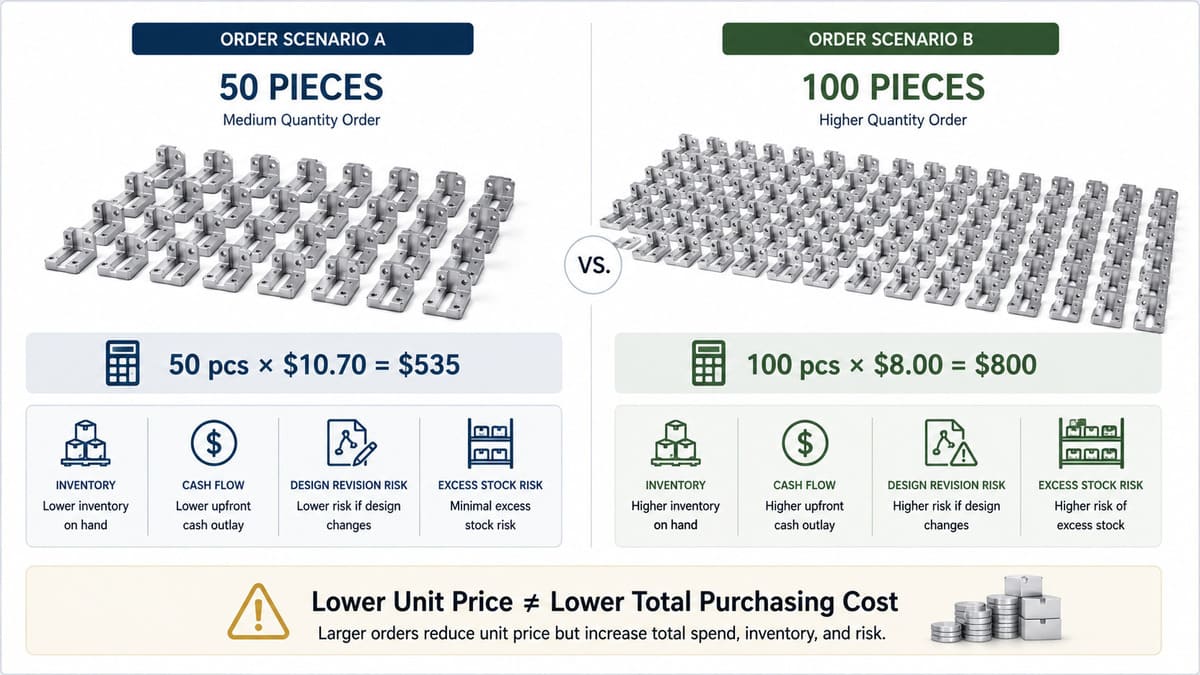

Should You Order More Parts Just to Get a Lower Unit Price?

A lower unit price does not automatically mean a better purchasing decision.

Using the example in this article:

• 50 parts at $10.70 each = approximately $535

• 100 parts at $8.00 each = approximately $800

The 100-piece order offers a much lower price per component, but the customer is still spending more money overall.

Before increasing quantity only to obtain a lower unit price, buyers should consider:

• actual demand

• inventory cost

• available cash

• storage space

• design-change risk

• obsolete inventory

• future product revisions

• expected repeat orders

For a product that is still being validated, ordering 100 pieces may be a poor decision even if the unit price is significantly lower than the 10-piece price.

If the design changes after testing, the unused inventory may become worthless.

Once the design is stable and future demand is predictable, larger batches become much easier to justify.

This is why the lowest unit price is not always the lowest total purchasing cost.

How to Get More Useful CNC Volume Pricing

Instead of requesting a quote for only one quantity, buyers can ask manufacturers to provide several quantity levels.

For example:

• 10 pcs

• 50 pcs

• 100 pcs

• 500 pcs

A quantity-break quotation makes it much easier to see where the CNC machining cost curve begins to flatten.

A buyer may discover that increasing an order from 10 to 50 pieces produces a major saving, while increasing from 500 to 1,000 pieces creates only a small additional reduction.

For more detail on how digital quoting systems evaluate geometry, material, tolerances, finishing, and production quantity, see our CNC machining instant quote guide.

For an accurate CNC quotation, provide as much of the following information as possible:

• STEP or other 3D CAD file

• 2D drawing when tolerances or special requirements are important

• material specification

• surface finish

• target quantity

• several possible order quantities, if useful

• inspection requirements

• required certifications or documentation

• expected future annual or repeat-order volume

Future production expectations can be particularly useful.

If a manufacturer knows that an initial 20-piece trial order may later become a recurring 500-piece order, the long-term fixture and process strategy may be different from a one-time 20-piece project.

You can also review our custom CNC machining services for available machining processes, materials, tolerances, and production capabilities.

Frequently Asked Questions About CNC Machining Cost and Quantity

Does CNC machining get cheaper with higher quantities?

Usually, yes. Programming, setup, workholding preparation, and first-part verification can be distributed across more pieces as quantity increases.

However, the savings become smaller once material, machining time, tooling, finishing, and inspection dominate the unit cost.

Why is one CNC-machined part much more expensive than 100 parts?

A one-piece prototype must absorb the engineering and production preparation required to create the first acceptable component.

A 100-piece batch distributes those same preparation costs across many parts.

That is why prototype CNC machining cost per part can be several times higher than production pricing.

Can I get the 100-piece price for one prototype?

Normally, no.

The manufacturer still needs to program, prepare, set up, verify, and inspect the first component even though only one part is being produced.

The lower 100-piece unit price is possible because many components share those preparation costs.

How much does CNC machining cost per part at different quantities?

There is no universal quantity-based price because cost depends on the specific component.

For the 6061-T6 aluminum mounting bracket in this article, the approximate unit price changed from:

• $38.70 at 1 piece

• $17.10 at 10 pieces

• $10.70 at 50 pieces

• $8.00 at 100 pieces

• $6.10 at 500 pieces

A different material, geometry, tolerance, cycle time, or finish could produce a completely different pricing curve.

At what quantity does CNC machining become more cost-effective?

There is no fixed breakpoint.

For many parts, a large percentage of unit-cost reduction occurs as production moves from prototype quantities into tens or hundreds of components.

The exact point depends on setup complexity, machining time, material cost, fixture strategy, inspection requirements, and whether the design is stable.

If I order 100 parts now and 300 parts later, will the repeat order be cheaper?

It may be.

A repeat order can benefit from existing CAM programs, proven machining strategies, previous process knowledge, and reusable fixtures.

However, material, machine setup, cutting time, tooling, finishing, and inspection still remain.

The final price depends on the conditions of the new order.

Do I have to pay programming and setup costs again on a repeat order?

Some engineering work may be reused when the design and manufacturing requirements remain unchanged.

However, each production batch still requires some level of machine preparation and production setup.

Whether a separate setup or programming charge appears on the quotation depends on how the manufacturer structures pricing.

When does CNC machining stop getting cheaper at higher volumes?

There is no exact quantity where prices stop falling.

Instead, the reduction gradually becomes smaller as fixed costs approach a negligible amount per part.

At that point, material, machining time, tooling, finishing, inspection, and handling establish a practical pricing floor.

For very high production quantities, it may also become worthwhile to compare CNC machining with another manufacturing process.

Final Takeaway

Order quantity can have a major effect on CNC machining cost per part, especially when moving from prototype quantities into low-volume production.

The reason is not simply that a manufacturer chooses to offer a larger discount.

At low quantities, costs such as:

• CAM programming

• machine setup

• workholding preparation

• process verification

• first-part inspection

represent a significant percentage of the unit price.

As production volume increases, those costs are spread across more components.

Higher quantities may also justify dedicated fixtures, optimized toolpaths, better loading strategies, improved material planning, and more efficient secondary processing.

But the savings eventually begin to flatten.

Every additional part still requires material, machining time, tool life, finishing, inspection, and handling.

That is why the most useful question is not simply:

“How much cheaper is 500 pieces than 100 pieces?”

A better question is:

“Which costs can still be reduced at the next quantity level, and which costs have already reached their practical minimum?”

Understanding that difference helps buyers choose an order quantity that balances unit price, total purchasing cost, inventory risk, production efficiency, and future demand.
