What Is SLA 3D Printing? Process, Materials, Benefits & Limitations

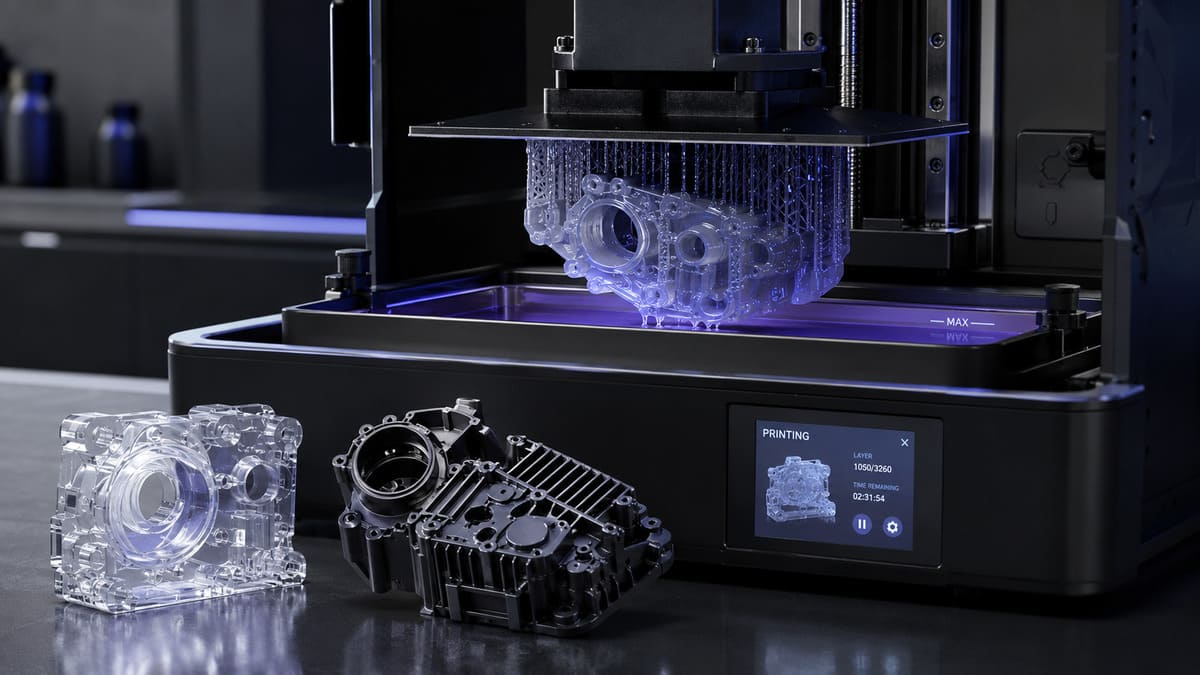

SLA, short for stereolithography, is a resin-based 3D printing process that uses ultraviolet light to cure liquid photopolymer resin into solid parts one layer at a time. It is widely used when a project requires fine details, smooth surfaces, complex geometry, or a high-quality cosmetic appearance.

Unlike FDM, which deposits melted thermoplastic filament, SLA forms parts inside a vat of liquid resin. A controlled light source selectively cures each layer before the build platform moves and the next layer is created. After printing, the parts must be washed, support structures removed, and the resin post-cured to achieve its intended mechanical properties.

SLA is especially suitable for appearance models, detailed housings, transparent prototypes, medical models, master patterns, and small components with intricate features. However, it is not the best option for every application. Some resins can be brittle, support marks may require additional finishing, and prolonged exposure to heat, sunlight, or outdoor conditions can affect material performance.

For production-ready resin prototypes, an industrial SLA printing service can help evaluate material selection, build orientation, tolerance requirements, and finishing options before manufacturing begins.

Key Takeaways

• SLA is a resin-based 3D printing process. It uses ultraviolet light to selectively cure liquid photopolymer resin, creating a solid part one thin layer at a time.

• Its main strengths are detail and surface quality. SLA can reproduce small features, complex curves, fine textures, and smooth cosmetic surfaces that may require less finishing than many other 3D printing processes.

• Different resins provide different performance levels. Standard, tough, durable, clear, flexible, high-temperature, and castable resins are available for visual models, functional prototypes, transparent parts, soft components, and specialized applications.

• Printed parts require post-processing. SLA components normally need to be washed, removed from their supports, post-cured, and sometimes sanded, polished, painted, or coated.

• SLA is not suitable for every project. Support marks, material brittleness, environmental aging, part size, and production quantity should all be considered before choosing the process.

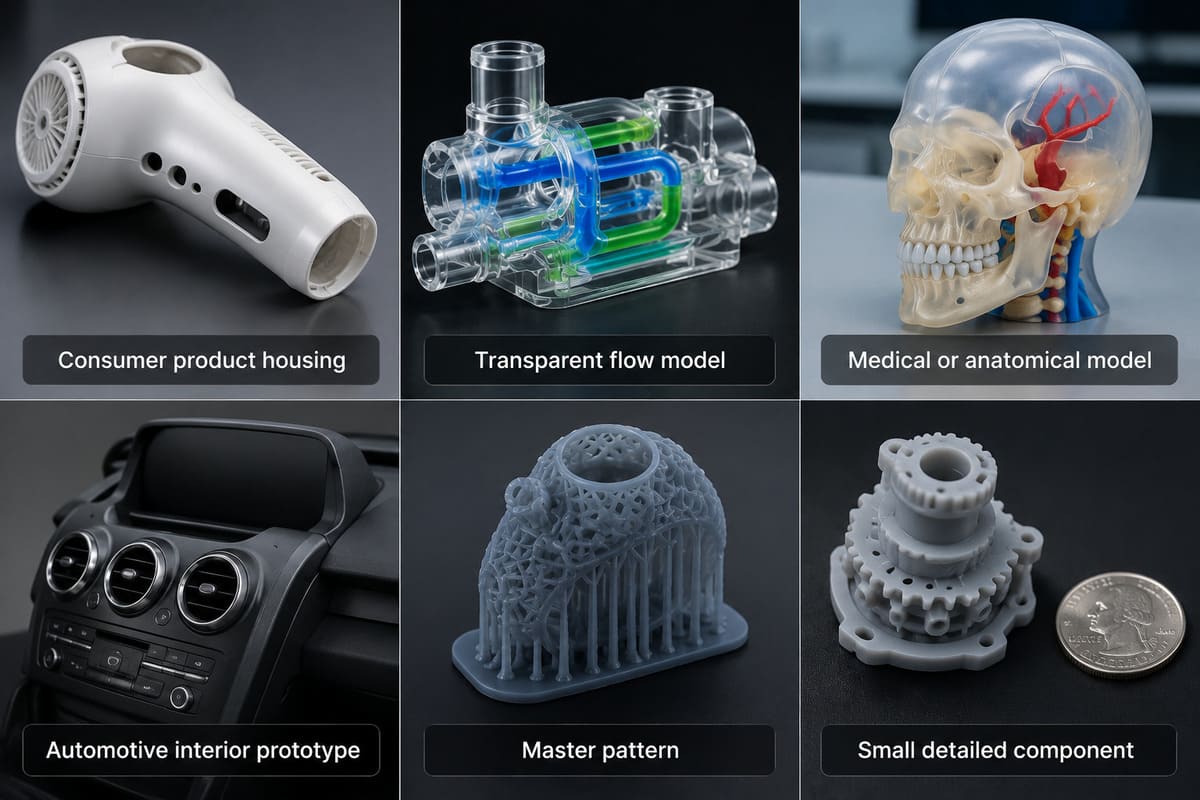

• It is particularly effective for high-detail prototypes. Common applications include appearance models, small housings, medical models, master patterns, transparent prototypes, and parts with intricate features.

What Does SLA Mean in 3D Printing?

SLA stands for stereolithography, one of the earliest and most established additive manufacturing technologies. It belongs to a category known as vat photopolymerization, in which a liquid photosensitive resin is selectively hardened by ultraviolet light to form a three-dimensional object.

During the printing process, the machine follows data from a digital 3D model and cures the resin in a series of very thin layers. Each completed layer bonds to the next until the entire part has been formed. Depending on the machine design, the build platform may move upward out of the resin or downward into the resin as printing progresses.

The material used in SLA is called a photopolymer resin. Unlike the thermoplastic filament used in FDM or the polymer powder used in SLS, SLA resin begins as a liquid and becomes solid through a controlled photochemical reaction. This process allows SLA systems to produce smooth curved surfaces, sharp edges, fine text, and small features with a high level of visual detail.

The term “SLA” is sometimes used broadly to describe resin 3D printing, although not every resin-printing technology works in exactly the same way. Technologies such as DLP and LCD printing also cure liquid photopolymer resin, but they use different light-projection methods. In industrial manufacturing, SLA generally refers to systems that use a precisely controlled laser or light source to cure each layer.

In simple terms, SLA 3D printing turns liquid resin into a solid, detailed component by exposing selected areas to ultraviolet light, one layer at a time.

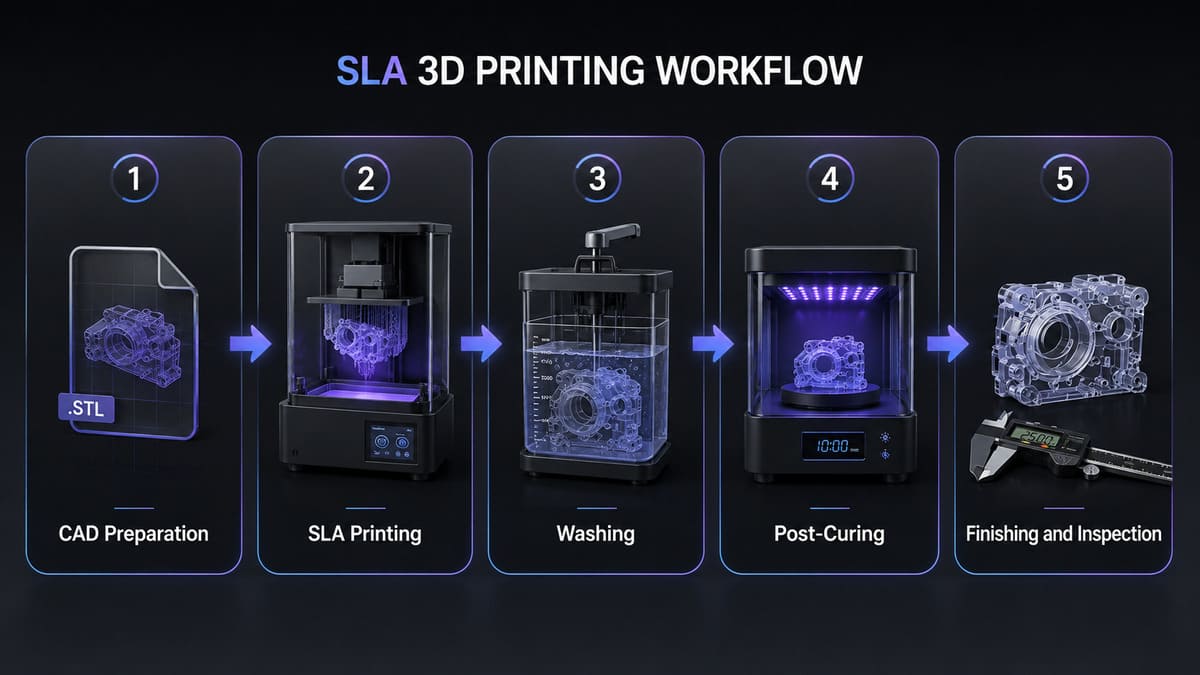

How Does SLA 3D Printing Work?

SLA 3D printing converts a digital model into a physical resin part through a controlled sequence of preparation, printing, cleaning, curing, finishing, and inspection. Although the exact workflow varies between machines and resin systems, most industrial SLA projects follow the same basic stages.

Step 1: Preparing the 3D Model

The process begins with a three-dimensional CAD model. Before printing, the file must be checked for open surfaces, overlapping geometry, incorrect units, and other issues that could prevent the software from generating a valid build.

The part is then positioned within the machine’s build volume. Build orientation is an important engineering decision because it can affect surface quality, dimensional accuracy, support placement, printing time, and material consumption.

For example, placing a cosmetic surface away from support contact points may reduce visible marks, while changing the angle of a thin feature may improve print stability. The preparation software then generates support structures for overhangs, isolated features, and other areas that cannot be printed reliably on their own.

Finally, the model is divided into thin digital cross-sections. These slices tell the printer which areas of resin must be cured at each layer.

Step 2: Curing the Liquid Resin

Inside the printer, a build platform is positioned near the surface or bottom of a vat filled with liquid photopolymer resin. A controlled ultraviolet light source then traces or exposes the shape of the first layer.

Where the resin receives the required amount of light, a photochemical reaction occurs and the liquid material hardens. Areas that are not exposed remain in liquid form.

After one layer has been completed, the build platform moves by a small distance so that fresh resin can flow into the printing area. The machine then cures the next cross-section. This cycle repeats layer by layer until the complete part and its support structures have been produced.

Because SLA can form very thin layers, it is able to reproduce smooth curves, small text, sharp edges, and intricate surface details. However, layer thickness alone does not determine final accuracy. Resin behavior, machine calibration, part geometry, orientation, and post-curing conditions also influence the result.

Step 3: Removing and Washing the Printed Part

When printing is complete, the build platform is removed from the machine and excess liquid resin is allowed to drain away. The part is then carefully separated from the platform.

At this stage, the surface may still contain uncured resin. The component must therefore be washed using a cleaning process that is compatible with the selected material. Thorough cleaning is especially important around holes, channels, recessed features, and support contact areas where liquid resin may remain trapped.

The washing time must be controlled carefully. Incomplete cleaning can leave a sticky or uneven surface, while excessive exposure to cleaning solvents may affect certain fine features or surface properties.

Step 4: Removing Supports and Post-Curing

Support structures are removed either before or after post-curing, depending on the resin, part geometry, and desired surface quality. Removing them before the part becomes fully hardened may make the operation easier, while curing first can provide additional stability for delicate components.

The washed part is then exposed to ultraviolet light, often under controlled temperature conditions. This stage is known as post-curing.

Post-curing completes the resin’s chemical reaction and helps the material achieve its intended strength, stiffness, heat resistance, and dimensional stability. The correct curing cycle depends on the resin formulation and part requirements. Using an unsuitable cycle may leave the component under-cured, cause excessive brittleness, or contribute to distortion.

Step 5: Finishing and Inspection

After curing, any remaining support marks can be sanded or blended into the surrounding surface. Depending on the intended application, the part may also be polished, bead blasted, primed, painted, clear coated, or prepared for another secondary operation.

Clear SLA components often require several finishing stages to improve transparency. Sanding removes visible layer and support marks, while polishing or a transparent coating helps create a more uniform optical surface. Cosmetic prototypes may receive primer and paint to simulate the appearance of an injection-molded product.

More information about these operations is available in our guide to post-processing for resin parts.

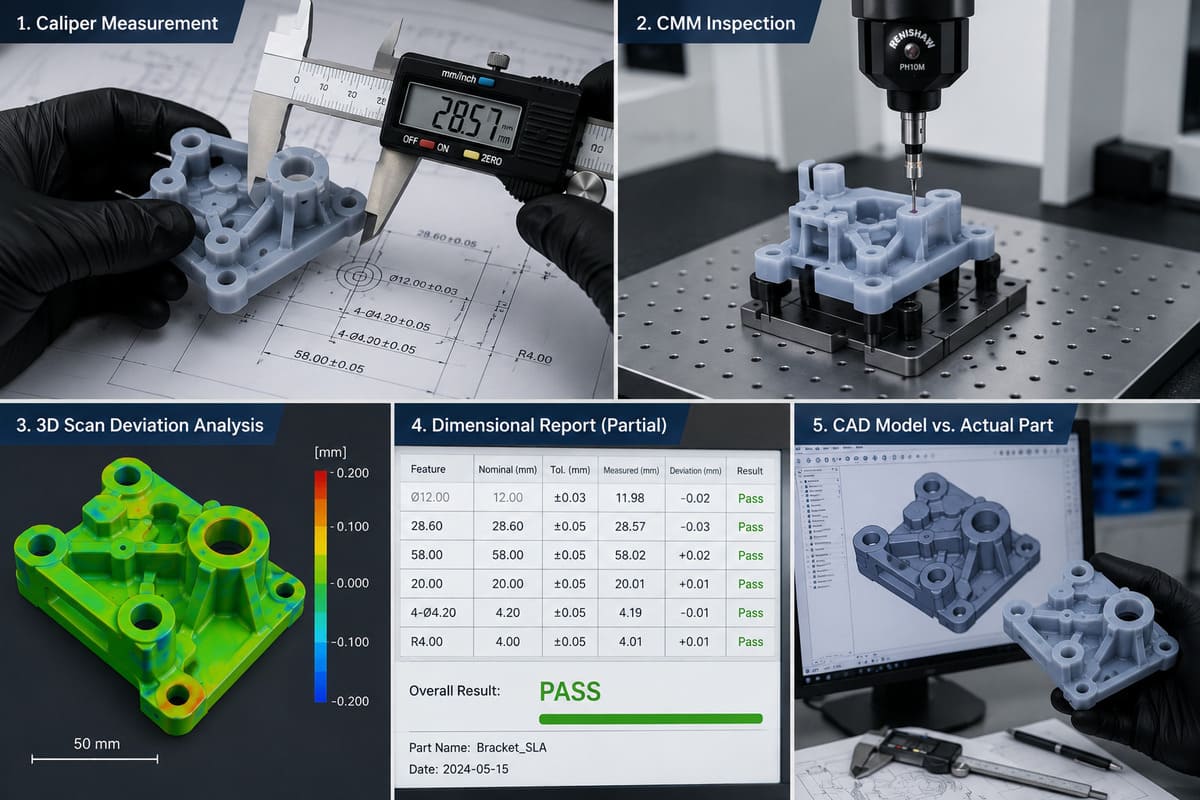

The final stage is inspection. Engineers may check dimensions, surface condition, color, assembly fit, and critical features against the approved CAD model or technical drawing. For parts with specific tolerances, inspection methods may include calipers, gauges, coordinate measuring equipment, or three-dimensional scanning.

A structured approach to dimensional inspection and quality assurance helps confirm that the completed SLA parts meet the project’s functional and cosmetic requirements.

In summary, the SLA workflow involves more than simply exposing liquid resin to ultraviolet light. Model preparation, orientation, support design, washing, post-curing, finishing, and inspection all contribute to the quality and performance of the final part.

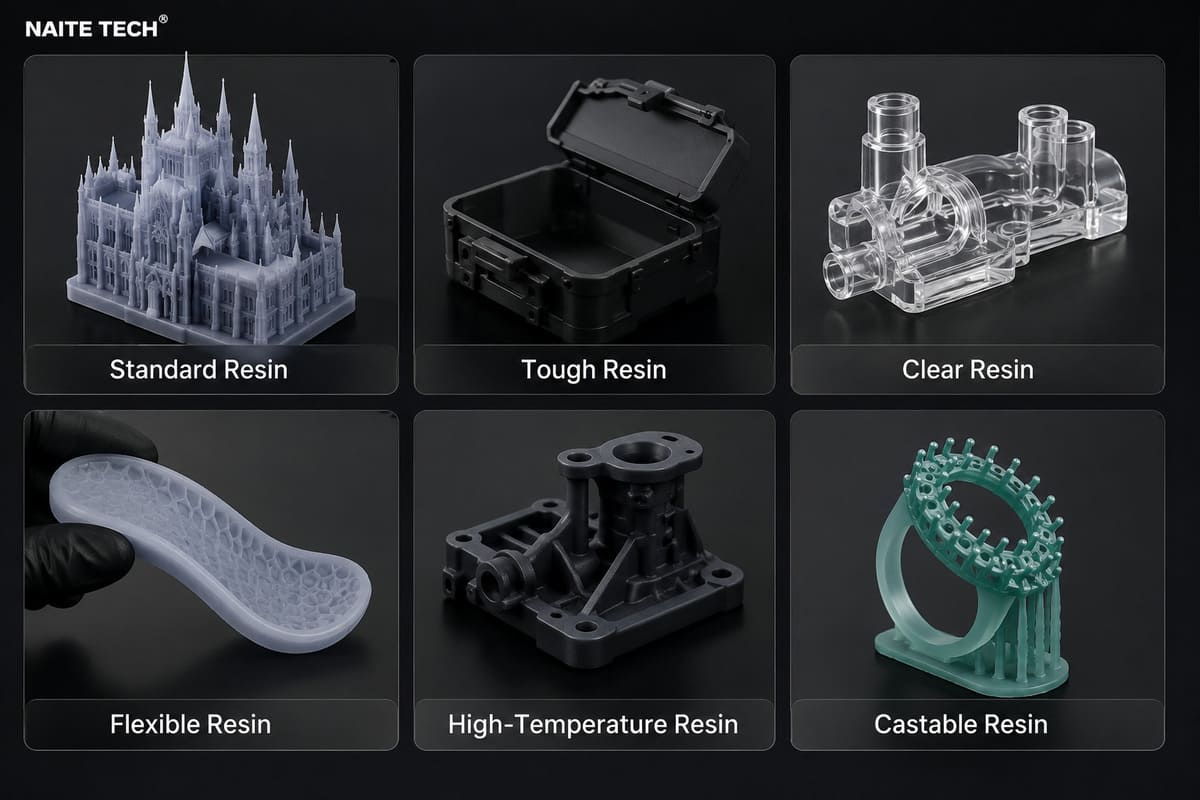

What Materials Are Used in SLA 3D Printing?

SLA printers use liquid photopolymer resins that harden when exposed to a controlled source of ultraviolet light. Unlike conventional thermoplastics, these materials are formulated specifically for light-based curing and are available in different grades to support visual, mechanical, thermal, flexible, transparent, and casting applications.

Choosing the right resin is essential because materials that look similar may behave very differently under load, heat, impact, sunlight, or repeated use. The best option should be selected according to the part’s intended function rather than appearance alone.

Standard Resin

Standard resin is commonly used for visual prototypes and detailed concept models. It produces smooth surfaces, sharp features, and a high-quality appearance, making it suitable for presentation parts, design reviews, and models that will later be painted.

Its main limitation is mechanical performance. Standard formulations may be relatively brittle compared with engineering thermoplastics, so they are generally not the first choice for components exposed to impact, repeated bending, or continuous mechanical load.

Tough and Durable Resins

Tough and durable resins are formulated to provide better impact resistance, elongation, or wear performance than standard materials. They are often used for functional housings, clips, brackets, assembly components, and prototypes that must survive handling or basic mechanical testing.

The terms “tough” and “durable” are not interchangeable across every supplier. One formulation may prioritize stiffness and impact strength, while another may be designed for repeated deformation. Engineers should review the relevant material data and consider the actual loading conditions before making a selection.

These resins can simulate some characteristics of molded plastics, but they should not automatically be treated as direct replacements for ABS, polypropylene, or other production thermoplastics.

Clear Resin

Clear resin is used to create transparent or translucent prototypes, including covers, lenses, light guides, fluid channels, and display components. However, parts do not normally leave the printer with perfect optical clarity.

Support marks, layer transitions, surface texture, and internal geometry can scatter light. To improve transparency, clear SLA parts may require careful orientation, wet sanding, polishing, or a transparent coating. Thick walls, curved surfaces, internal channels, and trapped air can also influence the final appearance.

Clear resin is therefore most effective when the required level of transparency is defined before production begins. A visual model, a fluid-flow demonstration part, and an optical component may require very different finishing standards.

Flexible Resin

Flexible resin is designed for parts that need soft-touch or rubber-like behavior. Common applications include grips, seals, pads, protective covers, flexible joints, and ergonomic prototypes.

Material selection should consider Shore hardness, elongation, tear resistance, compression behavior, wall thickness, and the number of expected loading cycles. A flexible resin that works well for a soft grip may not be suitable for a thin sealing feature or a component exposed to continuous compression.

Flexible SLA materials are useful for prototype evaluation, but long-term performance should be tested carefully when the final product will use molded silicone, TPU, or another production elastomer.

High-Temperature Resin

High-temperature resin is developed for applications where standard photopolymers may soften, deform, or lose dimensional stability. It can be used for thermal testing, heat-resistant fixtures, mold-related applications, and prototypes placed near warm components.

Temperature resistance alone does not determine suitability. Engineers must also consider impact strength, brittleness, load duration, wall thickness, and whether the part will experience continuous or intermittent heat exposure.

A resin with a high heat-deflection value may still perform poorly under impact or long-term mechanical stress. For this reason, thermal requirements should always be evaluated together with the part’s structural demands.

Castable Resin

Castable resin is formulated for investment-casting workflows. It is commonly used to produce detailed patterns for jewelry, decorative components, and small metal parts.

During casting, the printed pattern is placed inside an investment material and later removed through a controlled burnout cycle. A suitable castable resin should burn out cleanly while minimizing ash or residue that could affect the final metal surface.

Successful results depend on more than the printed material. Part design, wall thickness, support removal, investment selection, burnout schedule, and casting conditions all contribute to the quality of the finished component.

How to Select the Right SLA Resin

A suitable resin should be selected by reviewing the conditions the part will experience, including:

• Mechanical load and impact

• Required stiffness or flexibility

• Operating temperature

• Exposure to sunlight, moisture, or chemicals

• Transparency and cosmetic requirements

• Dimensional tolerances

• Expected service life

• Required post-processing

• Prototype or end-use purpose

For example, a highly detailed appearance model may perform well in standard resin, while an assembly clip may require a tougher formulation. A transparent flow model may need clear resin and extensive polishing, while a heat-testing fixture may require a high-temperature material.

When the requirements are uncertain, providing the CAD model, application details, expected loads, operating environment, quantity, and desired finish allows the manufacturing team to recommend a more appropriate material. NAITE TECH’s available resin materials and finishing options can be reviewed according to the functional and cosmetic needs of each project.

What Are the Benefits of SLA 3D Printing?

SLA 3D printing is widely chosen for prototypes and low-volume parts where appearance, fine detail, and geometric precision are more important than maximum impact strength or the lowest possible unit cost.

Its value is not limited to high resolution. The process can also reduce finishing work, improve design communication, and help product teams evaluate complex features before investing in tooling. The following advantages explain why SLA remains an important technology for engineering and product development.

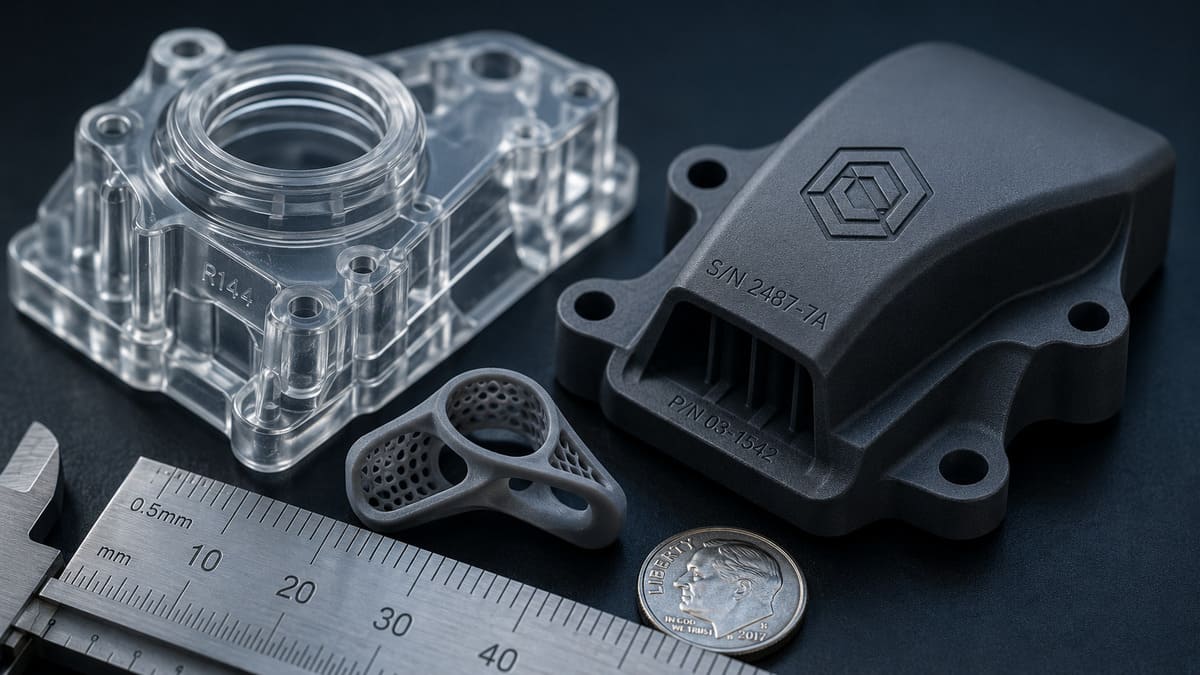

Fine Details and Small Features

One of the most recognizable advantages of SLA is its ability to reproduce small features and intricate geometry.

Because the process cures liquid resin in thin, precisely controlled layers, it can create:

• Fine text and logos

• Sharp edges

• Small holes and openings

• Thin cosmetic features

• Complex curves

• Detailed textures

• Miniature components

This makes SLA particularly useful for products where small visual or geometric details influence the final design. Examples include consumer-electronics housings, medical models, display components, miniature prototypes, decorative parts, and master patterns.

However, the printer’s stated resolution should not be treated as a guarantee that every small feature will print successfully. Minimum wall thickness, feature depth, orientation, support placement, and resin type all affect the result.

For example, an engraved logo may reproduce differently from raised text of the same nominal size. A thin unsupported wall may also distort even when the printer can technically expose a feature at that resolution.

For critical small features, engineers should evaluate the complete geometry rather than relying only on the machine’s pixel size or laser spot size.

Smooth Surface Finish

SLA parts generally have a smoother as-printed surface than parts produced by many filament-based 3D printing processes.

The thin layers and liquid-resin curing method help reduce the visibility of layer lines, especially on curved and cosmetic surfaces. This makes SLA suitable for prototypes that must closely represent the appearance of a molded product.

Common applications include:

• Appearance models

• Presentation prototypes

• Painted housings

• Ergonomic samples

• Product photography models

• Trade-show samples

• Master patterns for molding

A smoother starting surface can also reduce the amount of sanding and filler required before painting. This is especially valuable when several appearance prototypes must be prepared within a short development schedule.

Nevertheless, “smooth” does not always mean “finished.” Support contact points, build orientation, resin drainage, and curved geometry can still affect the surface. Parts intended for close visual inspection may require sanding, primer, polishing, or painting after printing.

The required finishing standard should therefore be specified clearly. An engineering fit-check part may only need support marks removed, while a customer-facing presentation model may require a uniform painted surface with controlled color and gloss.

Good Dimensional Control

SLA is often selected for parts that contain small mating features, detailed housings, precise edges, or closely controlled cosmetic geometry.

Typical examples include:

• Enclosures and covers

• Connector features

• Alignment pins

• Assembly interfaces

• Buttons and controls

• Small brackets

• Fit-check prototypes

The process can provide good dimensional consistency when the part is designed, oriented, printed, cured, and inspected correctly.

However, dimensional accuracy depends on several factors, including:

• Part size

• Resin formulation

• Wall thickness

• Build orientation

• Support strategy

• Post-curing conditions

• Feature location

• Measurement method

Thin walls may move during printing or curing, while large flat surfaces may be more sensitive to distortion. Unsupported features and uneven wall sections can also affect dimensional stability.

For this reason, critical dimensions should be identified on a technical drawing rather than left only in the CAD model. Engineers can then select an appropriate orientation, add machining allowances where necessary, and define a suitable inspection method.

SLA can be highly effective for assembly and fit evaluation, but it is important to distinguish between general prototype accuracy and guaranteed production tolerances.

Transparent and Translucent Prototypes

Clear SLA resin makes it possible to produce transparent or translucent prototypes without machining them from solid plastic or investing in transparent tooling.

These parts are useful for evaluating:

• Fluid flow

• Internal channels

• Light transmission

• Lenses and covers

• Lighting concepts

• Medical-device housings

• Display components

• Product appearance

Transparent prototypes can help engineering teams observe internal features that would otherwise be hidden. For example, a clear flow model may reveal bubbles, leaks, obstructions, or changes in fluid movement during testing.

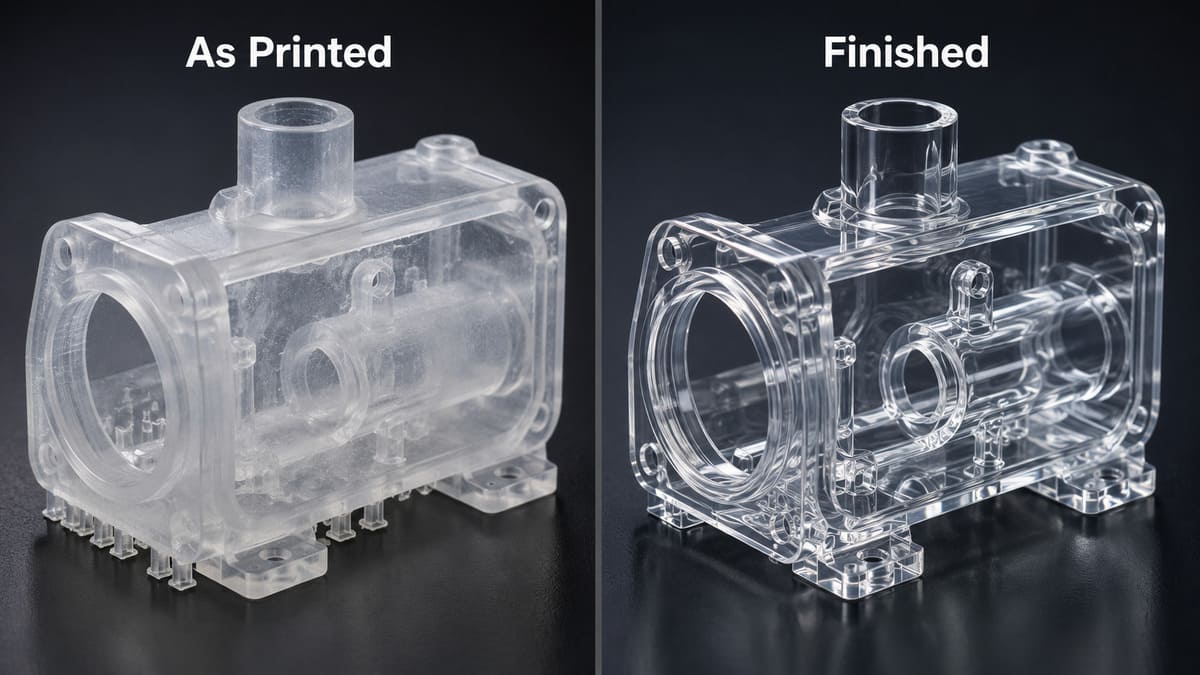

The final level of clarity depends heavily on geometry and finishing. Freshly printed clear-resin parts are often translucent rather than optically transparent. Layer transitions, support marks, curved surfaces, and internal channels may scatter light.

Improving clarity may require:

• Careful build orientation

• Progressive wet sanding

• Mechanical polishing

• Clear coating

• Controlled wall thickness

• Reduction of internal support contact

A transparent demonstration model and a functional optical component have very different quality requirements. The intended use should therefore be explained before manufacturing begins.

SLA is often a practical choice for visual transparency, flow observation, and lighting evaluation, but it may not replace optical-grade molded or machined materials in demanding applications.

High-Quality Cosmetic Prototypes

SLA is particularly effective when a prototype must communicate how the final product will look and feel.

A high-quality appearance model can help teams evaluate:

• Product proportions

• Surface transitions

• Button placement

• Handle geometry

• Branding details

• Parting-line concepts

• Color combinations

• User interaction

After sanding, priming, and painting, SLA prototypes can closely represent the intended appearance of an injection-molded product. Different components can also be finished separately and assembled to simulate production colors, textures, and materials.

This is valuable during internal design reviews, customer presentations, photography, exhibitions, and pre-production approval.

Physical models often reveal issues that are difficult to identify on a screen. A surface may appear balanced in CAD but feel too sharp when held. A button may look properly positioned but prove difficult to operate. A housing may appear compact until its full physical scale is evaluated.

By producing realistic prototypes early, product teams can identify these problems before committing to molds or other expensive manufacturing processes.

Fast Design Iteration Without Tooling

SLA allows product teams to create physical parts directly from CAD data without first producing molds, dies, or dedicated fixtures.

This shortens the time between design changes and physical evaluation. Engineers can modify the model, produce another version, compare the results, and continue refining the design.

A typical development cycle may involve:

1. Printing an initial concept

2. Evaluating form and assembly

3. Identifying design issues

4. Updating the CAD model

5. Printing a revised version

6. Performing another fit or appearance review

This iterative process is useful when product requirements are still changing. It allows teams to learn from physical testing before the design becomes expensive to modify.

SLA is particularly effective for rapid iteration when each version requires:

• Fine detail

• Smooth surfaces

• Small assembly features

• Transparent geometry

• Presentation-quality finishing

Using rapid prototype development, teams can evaluate multiple design directions before moving to CNC machining, soft tooling, injection molding, or another production process.

Wide Range of Visual and Functional Materials

Modern SLA systems offer more than basic display resins.

Depending on the equipment and material supplier, available formulations may support:

• High-detail visual models

• Impact-resistant prototypes

• Flexible features

• Transparent components

• Heat-exposed testing

• Casting patterns

• Medical-model applications

• Short-term functional testing

This material range allows one manufacturing process to support different stages of product development.

For example, a product team might use standard resin for an early appearance model, clear resin for a lighting study, and tough resin for an assembly test. Although these materials do not behave exactly like production thermoplastics, they can provide useful information when selected for a clearly defined test.

The main advantage is flexibility. Teams can choose a resin according to the immediate engineering question rather than using the same material for every prototype.

Efficient Production of Small, Complex Parts

SLA is well suited to small parts with complex external geometry, particularly when those features would be difficult to machine or fabricate manually.

The process can create multiple detailed components in a single build, provided the parts fit within the machine’s working area and the production plan accounts for support structures and post-processing.

Suitable examples include:

• Small housings

• Detailed covers

• Dental or anatomical models

• Decorative components

• Master patterns

• Product miniatures

• Small fluid devices

• Precision presentation samples

For low-volume projects, SLA can eliminate the initial cost and lead time associated with tooling. This makes it useful for prototypes, custom models, design-validation parts, and limited quantities of specialized components.

The economics become less attractive when parts are very large, require extensive support removal, or are needed in high production volumes. In those cases, another additive or conventional manufacturing process may provide a better total cost.

When the Advantages of SLA Matter Most

SLA provides the greatest value when a project requires a combination of:

• Fine visual detail

• Smooth cosmetic surfaces

• Small, complex features

• Transparent or translucent geometry

• Fast design iteration

• Low-volume production without tooling

• High-quality presentation models

• Controlled fit and assembly evaluation

It is especially useful during the early and middle stages of product development, when teams need to evaluate design decisions quickly but are not yet ready to invest in production tooling.

The advantages should always be considered together with the process limitations. A smooth and detailed part may still be unsuitable if it must withstand continuous impact, prolonged outdoor exposure, heavy structural loading, or high-volume production.

SLA is therefore most effective when its material properties, surface quality, geometry, and post-processing requirements align with the specific purpose of the part.

What Are the Limitations of SLA 3D Printing?

SLA can produce highly detailed parts with smooth surfaces, but these advantages come with several design, material, and processing limitations. Understanding these constraints is important because a part that looks excellent after printing may not necessarily provide the mechanical strength, environmental resistance, or production economics required for its intended application.

The most suitable manufacturing process should be selected according to the complete project requirement rather than surface quality alone.

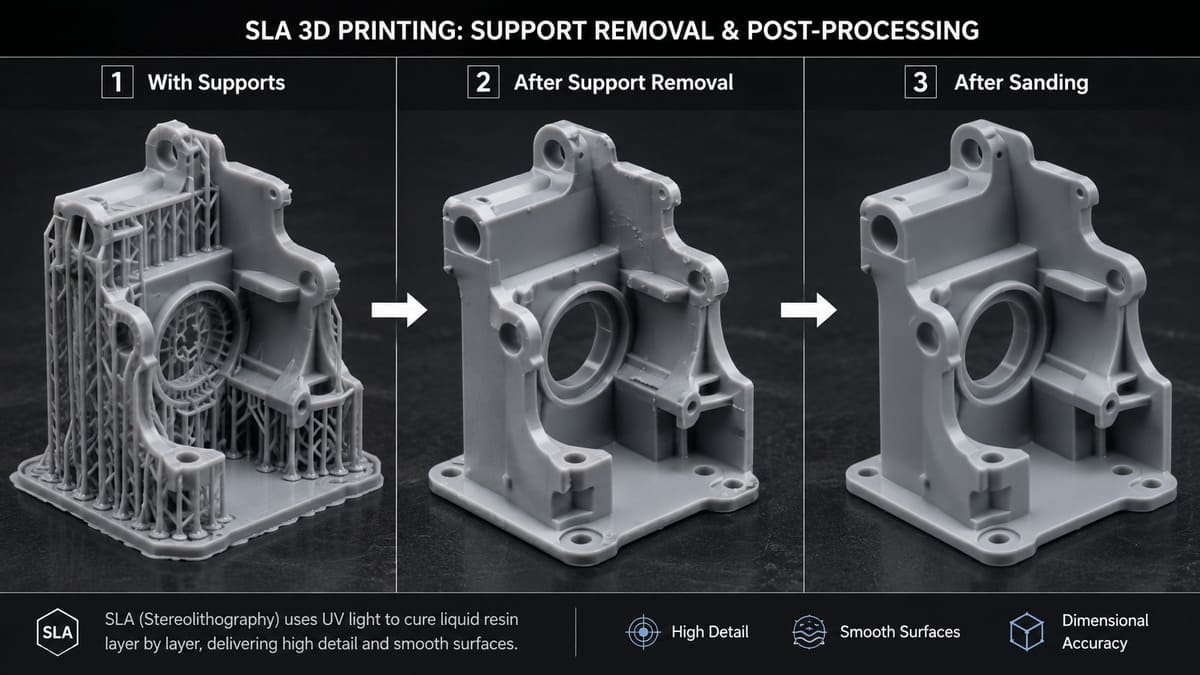

Support Structures Are Usually Required

Most SLA parts require support structures to hold overhangs, isolated features, and areas that would otherwise move or detach during printing.

These supports help stabilize the component, but they also create several practical considerations:

• Additional resin consumption

• Longer preparation and printing time

• Manual support removal

• Visible contact marks

• Increased finishing requirements

• Potential damage to thin features

Support placement is especially important for cosmetic parts. If contact points are positioned on a highly visible surface, removing them may leave small marks, pits, or raised areas that must be sanded and refinished.

Build orientation can reduce these issues, but it often involves trade-offs. Rotating the part to protect one cosmetic surface may increase the number of supports elsewhere, extend the build height, or change dimensional behavior.

For parts with several important surfaces, it may not be possible to hide every support mark completely. Engineers may need to prioritize the most visible or functionally critical areas during build preparation.

Small holes, internal channels, and enclosed cavities also require careful attention. If liquid resin becomes trapped inside a part, drainage holes may need to be added. These openings should be considered during the design stage rather than after the model has already been prepared for printing.

Post-Processing Is Required

An SLA part is not normally ready for use immediately after printing.

The complete workflow usually includes:

1. Draining excess resin

2. Washing the part

3. Removing support structures

4. Post-curing under ultraviolet light

5. Sanding support contact points

6. Inspecting the surface and dimensions

7. Applying optional polishing, painting, or coating

Each stage adds time, labor, and cost to the project.

Washing must remove uncured resin from external surfaces, holes, recessed details, and internal features. Incomplete cleaning can leave sticky areas, discoloration, or an uneven surface. Excessive washing, however, may affect delicate features or material performance.

Post-curing is also essential. The printed part may not achieve its intended strength, stiffness, or heat resistance until the recommended curing cycle has been completed.

The curing conditions must be controlled because excessive heat or ultraviolet exposure can contribute to brittleness, discoloration, or dimensional movement. Thin walls and large flat sections may be particularly sensitive.

For presentation models, additional finishing may take longer than printing itself. A smooth painted prototype may require several rounds of sanding, primer application, surface inspection, color coating, and final assembly.

This means that comparing SLA suppliers only by machine printing time can be misleading. The complete lead time should include file preparation, printing, washing, curing, finishing, quality inspection, and packaging.

Some SLA Resins Can Be Brittle

Standard SLA resin is known for visual detail and surface quality, but it may be more brittle than common production thermoplastics.

A part can appear rigid and strong during normal handling while still being vulnerable to:

• Sudden impact

• Thin-feature breakage

• Repeated bending

• Stress concentration

• Long-term loading

• Dropping or rough assembly

Sharp internal corners, thin tabs, unsupported walls, and small snap-fit features can be particularly sensitive.

Tough, durable, and flexible resins can improve certain mechanical characteristics, but no single material provides the best performance in every category. A tougher resin may offer better impact resistance but lower stiffness. A flexible material may survive repeated bending but provide insufficient dimensional stability for a rigid housing.

Material names can also be misleading. A resin described as “ABS-like” does not necessarily reproduce every property of injection-molded ABS. The printed material may differ in impact behavior, heat resistance, fatigue life, chemical resistance, or long-term aging.

When a prototype must survive functional testing, engineers should define the actual loading conditions instead of requesting a material based only on a familiar plastic name.

Useful information includes:

• Direction and magnitude of the load

• Expected impact or drop conditions

• Number of operating cycles

• Required flexibility

• Temperature exposure

• Contact with oils, cleaners, or chemicals

• Expected service life

This information allows the resin and part geometry to be evaluated together.

Mechanical Properties May Change Over Time

Photopolymer resins can continue to change after printing and post-curing. Their long-term behavior may be influenced by light, heat, humidity, and environmental exposure.

Depending on the formulation and application, aging may cause:

• Increased brittleness

• Color changes

• Yellowing of clear parts

• Loss of flexibility

• Surface degradation

• Dimensional movement

• Reduced impact resistance

These effects are particularly important for components used outdoors, near windows, inside vehicles, or close to heat-generating equipment.

Protective paint or clear coating may reduce direct exposure and improve cosmetic durability, but it does not automatically turn a prototype resin into a long-term outdoor engineering material.

For products that require extended service life, environmental testing should be carried out under conditions that reflect the real application. Short-term indoor testing cannot always predict performance after months or years of ultraviolet, temperature, or chemical exposure.

Heat Resistance Depends on the Resin

SLA materials are available with different thermal properties, but standard resin is generally not intended for continuous high-temperature use.

At elevated temperatures, some materials may:

• Soften

• Warp

• Lose stiffness

• Creep under load

• Change dimensions

• Become more brittle after repeated exposure

High-temperature resin can improve thermal performance, but it may introduce other compromises such as increased brittleness or more demanding curing requirements.

It is also important to distinguish between a published heat-deflection temperature and actual operating performance. A material may withstand a short laboratory test at a certain temperature but behave differently under continuous load, cyclic heating, or contact with hot fluids.

When evaluating a heat-exposed component, engineers should specify:

• Maximum operating temperature

• Normal operating temperature

• Exposure duration

• Whether the part is under load

• Heating and cooling cycles

• Required dimensional stability

• Contact with fluids or chemicals

For applications involving sustained heat and structural loading, a production thermoplastic, machined material, or metal component may be more appropriate.

Chemical and Moisture Resistance Must Be Verified

SLA resins do not all respond to chemicals in the same way. Contact with alcohols, fuels, oils, cleaning agents, acids, bases, or industrial fluids may cause swelling, cracking, softening, discoloration, or loss of mechanical performance.

Even the solvents used during post-processing must be controlled according to the selected resin.

A material that performs well during a short splash test may not be suitable for continuous immersion. Chemical resistance should therefore be evaluated according to:

• Chemical type

• Concentration

• Contact duration

• Operating temperature

• Mechanical load

• Cleaning frequency

Moisture and humidity may also influence dimensional stability or mechanical properties. For sealing, fluid-handling, or laboratory applications, the supplier should review the specific exposure conditions before manufacturing.

Large Parts May Be Less Economical

SLA is especially effective for small and medium-sized components that require detail and surface quality. As part size increases, several challenges become more significant.

Large SLA parts may require:

• More resin

• Longer print times

• Extensive support structures

• Additional drainage planning

• Greater handling care

• More sanding and finishing

• Sectioning and bonding

Large flat surfaces can also be more sensitive to distortion during printing or post-curing. Maintaining uniform wall thickness, adding structural features, and selecting an appropriate orientation can help, but these design changes may increase complexity.

For a large, relatively simple prototype, large-format plastic prototype printing may provide a more economical alternative. FDM can be particularly suitable when the main priorities are overall size, basic form, functional thermoplastic material, or lower cost rather than a highly refined as-printed surface.

The decision should be based on the complete requirement. A large model with critical cosmetic details may still justify SLA, while a simple enclosure used only for space verification may not.

Internal Cavities Can Trap Resin

Hollow parts can reduce material consumption and part weight, but enclosed geometry creates additional design requirements.

Uncured resin must be able to escape from the interior. Without suitable drainage and ventilation openings, resin may remain trapped inside the component.

Trapped material can cause several problems:

• Continued leakage after delivery

• Incomplete internal curing

• Added weight

• Internal pressure

• Cracking over time

• Difficult cleaning

• Unpredictable dimensional behavior

Drain holes should be large enough and positioned according to the build orientation so that resin and cleaning fluid can flow through the part.

Complex internal channels may also be difficult to inspect or polish. If the application requires clean, smooth, or precisely measured internal passages, the limitations of the washing and inspection process should be considered early in the design.

Dimensional Accuracy Is Geometry-Dependent

SLA is capable of producing detailed and dimensionally controlled prototypes, but accuracy is not identical across every feature of a part.

The final dimensions can be influenced by:

• Resin shrinkage

• Support forces

• Build orientation

• Post-curing

• Wall thickness

• Part size

• Feature shape

• Temperature

• Measurement location

A small solid component may behave differently from a thin-walled enclosure. Holes may not reproduce exactly at their nominal CAD diameter, while unsupported edges can move during printing or curing.

This is why a general tolerance statement should not replace a review of the actual geometry.

Critical dimensions should be identified on a technical drawing. Depending on the requirement, some features may need additional allowance, a design adjustment, reaming, drilling, or another secondary operation after printing.

Surface Quality Is Not Uniform on Every Area

SLA is recognized for smooth surfaces, but the finish can vary across one part.

Upward-facing, downward-facing, vertical, curved, and support-contact surfaces may have different appearances. Layer orientation can also influence how light reflects from cosmetic areas.

Common surface variations include:

• Support scars

• Minor layer lines

• Gloss differences

• Sanding transitions

• Resin drainage marks

• Small pits

• Uneven transparency

Paint and primer can hide many cosmetic variations, but they add processing time and may affect dimensions around small holes, assembly interfaces, text, or fine details.

For appearance prototypes, the customer should identify Class A surfaces or critical viewing areas. This allows the manufacturing team to prioritize orientation, support placement, and finishing effort.

SLA Is Not Always Cost-Effective for Production Volumes

SLA eliminates tooling costs, making it attractive for prototypes, customized components, and low-volume production. However, the cost per part does not fall in the same way as it does with injection molding.

Each printed component continues to consume:

• Machine capacity

• Resin

• Support material

• Washing time

• Curing time

• Manual labor

• Inspection effort

As quantity increases, injection molding or another production method may provide a lower unit cost, especially for standard geometries that require limited customization.

There is no universal quantity at which molding becomes more economical. The break-even point depends on:

• Part size

• Geometry

• Resin consumption

• Required material

• Tool complexity

• Surface finish

• Tolerance

• Production schedule

• Expected design changes

SLA may remain competitive for complex, customized, or frequently revised parts. For a stable design required in large quantities, the value of production tooling should be evaluated.

When SLA May Not Be the Best Choice

Another manufacturing process may be more suitable when the project requires:

• High impact resistance over a long service life

• Continuous outdoor exposure

• Sustained structural loading

• Production-grade thermoplastic behavior

• Very large parts at a low cost

• Support-free internal channels

• High-volume repeat production

• Direct exposure to aggressive chemicals

• Minimal manual post-processing

• Tight tolerances on large, thin geometries

SLA should not be rejected simply because one of these conditions is present. In some cases, specialized resins, design modifications, coatings, secondary machining, or careful process control can make the application feasible.

The important step is to identify the limitations before production begins.

A successful SLA project balances detail and surface quality against mechanical performance, environmental exposure, post-processing effort, part size, and production quantity. When these factors are considered together, engineers can determine whether SLA is the right process or whether FDM, SLS, MJF, CNC machining, or injection molding would offer a better result.

What Is SLA 3D Printing Used For?

SLA 3D printing is used across product development, engineering, healthcare, consumer products, automotive design, model making, and casting because it can reproduce fine details and smooth surfaces without requiring production tooling.

The process is particularly valuable when the purpose of a prototype is to evaluate appearance, geometry, assembly, transparency, or user interaction. It can also support short-term functional testing when the correct engineering resin is selected.

However, the suitability of SLA depends on more than the application name. Two parts used in the same industry may require completely different materials and finishing processes. A painted display model, for example, has very different requirements from a load-bearing bracket or a component exposed to heat.

The following applications show where SLA provides the greatest practical value.

Appearance and Presentation Prototypes

One of the most common applications of SLA is the production of appearance prototypes. These models are created primarily to evaluate how a product will look rather than how it will perform under long-term mechanical loading.

Typical appearance prototypes include:

• Consumer-electronics housings

• Control panels

• Handheld devices

• Appliance components

• Automotive interior parts

• Product packaging models

• Cosmetic containers

• Display and exhibition samples

SLA is well suited to these applications because it can reproduce smooth curves, fine branding details, small openings, and subtle transitions between surfaces.

After printing, the parts can be sanded, primed, painted, polished, or clear coated. Individual components may be finished in different colors and assembled to represent the intended production design.

This gives product teams a realistic physical model for internal reviews, customer presentations, photography, trade shows, and approval meetings.

Appearance prototypes can reveal issues that may not be obvious in CAD. The physical part may show that a housing feels too bulky, an edge is too sharp, a button is difficult to reach, or a surface transition creates an unexpected reflection.

Identifying these problems before tooling helps reduce the risk of expensive design changes later in the project.

Fit and Assembly Prototypes

SLA can also be used to evaluate whether components fit together correctly before moving to production.

Common fit-check applications include:

• Enclosures and covers

• Buttons and control features

• Connector openings

• Alignment pins

• Internal mounting features

• Small brackets

• Clips and closures

• Multi-part assemblies

These prototypes allow engineers to assess clearances, interference, alignment, accessibility, and overall assembly sequence.

For example, an electronics enclosure can be printed to verify whether the circuit board, battery, connectors, display, and fasteners fit within the available space. A handheld product can be assembled to check whether buttons move correctly and whether seams between parts appear consistent.

SLA is particularly useful when the assembly contains small details that may not reproduce clearly with a lower-resolution process.

However, fit-check results should be interpreted carefully. Resin parts may not flex, deform, or recover in exactly the same way as the intended production material. A snap-fit that works in tough SLA resin may behave differently when molded in polypropylene or ABS.

The prototype should therefore be designed around the purpose of the test. Dimensional fit, assembly sequence, and user access can often be evaluated effectively, while long-term fatigue or production-material behavior may require another process or additional testing.

Transparent and Fluid-Visualization Models

Clear SLA resin is commonly used for prototypes that must reveal internal geometry.

Applications include:

• Fluid-flow models

• Transparent housings

• Lighting concepts

• Light guides

• Lenses and covers

• Medical-device components

• Laboratory equipment

• Internal channel demonstrations

A transparent prototype can help engineers observe fluid movement, bubbles, leaks, blockages, mixing behavior, or internal component placement.

For example, a clear manifold may be used to examine how liquid moves through several channels. A transparent medical-device housing may allow designers to assess internal tubing and component clearance. A lighting prototype may help evaluate how light travels through a cover or guide.

The achievable transparency depends on the resin, geometry, orientation, wall thickness, and finishing process. As-printed clear parts are often translucent rather than fully transparent.

Improving clarity may require:

• Careful support placement

• Progressive wet sanding

• Polishing

• Transparent coating

• Uniform wall thickness

• Smooth internal geometry

Complex internal channels can be difficult to polish, so their surface may remain more translucent than the exterior.

Clear SLA is useful for visual evaluation and demonstration, but it should not automatically be treated as an optical-grade replacement for machined acrylic, polycarbonate, or molded optical materials.

Medical and Anatomical Models

SLA is frequently used to produce anatomical models and medical-device development prototypes because it can reproduce complex organic geometry with a high level of visual detail.

Common applications include:

• Anatomical demonstration models

• Surgical-planning models

• Medical-device housings

• Instrument prototypes

• Training aids

• Patient-specific visual models

• Transparent fluid-path models

• Dental and laboratory models

Anatomical models may be created from medical imaging data and used to help teams understand complex structures before a procedure or device-development activity.

Detailed physical models can support communication between engineers, clinicians, educators, and patients. They may also help product teams evaluate how a device interacts with a specific anatomical shape.

For medical-device development, SLA can be used to test enclosure geometry, assembly, ergonomics, visibility, and component placement.

Material selection must be handled carefully. Not every SLA resin is suitable for skin contact, sterilization, implantation, or clinical use. Biocompatibility and sterilization compatibility depend on the specific material, processing conditions, documentation, and intended contact category.

A prototype used only for visual evaluation has very different requirements from a component intended to contact a patient. Medical applications should therefore include a clear review of intended use and regulatory requirements before manufacturing.

Master Patterns for Molding

SLA is often used to create smooth, detailed master patterns for silicone molding and other replication processes.

A master pattern is the original model used to form a mold. Once the mold has been created, multiple copies can be cast in polyurethane, silicone, wax, or another material.

SLA is suitable for master patterns because it can produce:

• Smooth external surfaces

• Fine textures

• Small logos

• Sharp edges

• Complex curves

• Consistent decorative details

Before molding, the printed master may be sanded, primed, polished, and sealed. The required finish depends on the final cast part because any defect on the master can be transferred to the mold and repeated on every copy.

This workflow is commonly used for:

• Product-design samples

• Small-batch housings

• Decorative components

• Figurines and models

• Flexible silicone parts

• Marketing samples

• Pre-production evaluation

Using an SLA master can reduce the time and cost of producing small quantities compared with machining a pattern or manufacturing a metal mold.

However, the master must be designed with the molding process in mind. Draft, parting lines, undercuts, venting, and material shrinkage may all affect the final result.

Investment-Casting Patterns

Castable SLA resins can be used to produce detailed patterns for investment casting.

The printed pattern is surrounded by an investment material. During a controlled burnout cycle, the resin pattern is removed, leaving a cavity that can be filled with molten metal.

Typical applications include:

• Jewelry

• Decorative metal parts

• Small mechanical components

• Complex custom designs

• Low-volume metal parts

• Detailed artistic pieces

SLA is valuable in this workflow because it can create patterns with fine details and complex geometry without requiring wax tooling.

The quality of the final casting depends on several factors beyond print resolution. These include:

• Pattern wall thickness

• Support removal

• Surface finishing

• Investment material

• Burnout cycle

• Gate and runner design

• Casting temperature

• Metal shrinkage

Castable resin must be selected specifically for the intended casting process. A standard SLA resin may leave residue or expand during burnout, which can damage the investment mold.

Small and Intricate Components

SLA is effective for small parts containing fine features that may be difficult to machine or reproduce with a coarse-layer printing process.

Examples include:

• Miniature housings

• Small covers

• Connector details

• Fine fluid channels

• Decorative elements

• Scale models

• Small mechanical prototypes

• Detailed product components

The process can reproduce fine text, logos, surface textures, recessed features, and complex curved geometry.

This is especially useful when a component’s visual identity depends on small details. It can also help engineers evaluate whether miniature features are accessible, manufacturable, or practical before moving to tooling.

Small features still require design review. A feature may be visible in the CAD model but too thin, fragile, or poorly oriented to print reliably.

Minimum wall thickness, text depth, hole diameter, spacing, support access, and cleaning access should all be considered.

Product Photography and Marketing Models

SLA appearance models are frequently used before production parts are available.

A finished prototype can support:

• Product photography

• Advertising campaigns

• Packaging design

• Trade-show displays

• Crowdfunding presentations

• Sales demonstrations

• Customer approval

• Internal launch preparation

These models may be painted to match intended production colors and assembled with buttons, screens, labels, or decorative features.

A well-finished SLA model can help marketing and sales teams prepare launch materials while tooling and production planning are still in progress.

The prototype should be clearly treated as a visual representation rather than a production sample. Surface color, texture, weight, and mechanical behavior may differ from the final manufactured product.

Customized and Low-Volume Parts

Because SLA does not require dedicated tooling, it can be used for custom parts and low-volume production.

Potential applications include:

• Personalized products

• Custom-fit components

• One-off presentation models

• Replacement covers

• Specialized laboratory parts

• Exhibition models

• Custom fixtures

• Limited-edition designs

The same digital workflow can produce different geometries without changing a physical mold. This makes SLA suitable for projects where every part is slightly different or where demand does not justify tooling.

The economics depend on part size, resin consumption, support requirements, finishing, and inspection. SLA is generally more attractive for small, detailed components than for large, simple parts.

For repeated production, teams should also consider consistency, material aging, traceability, and post-processing control.

When SLA Applications Deliver the Most Value

SLA is usually a strong choice when the part requires:

• High visual detail

• Smooth surfaces

• Small geometric features

• Transparent or translucent material

• Realistic painted finishing

• Fast iteration without tooling

• Complex organic shapes

• Short production quantities

• Accurate physical communication of a design

The process is less suitable when the primary requirement is high structural impact, long-term outdoor use, very large size, production thermoplastic behavior, or high-volume manufacturing.

A successful application begins by identifying what the prototype must prove. If the goal is to evaluate appearance, fit, internal visibility, fine geometry, or a molding pattern, SLA may provide an effective combination of quality and speed.

When material performance, environmental resistance, or production economics are more important, the project should also be compared with FDM, SLS, MJF, CNC machining, or injection molding before a final process is selected.

How Accurate Is SLA 3D Printing?

SLA 3D printing is widely used for detailed prototypes, small mechanical features, precise housings, and parts that must fit into an assembly. Its ability to cure thin layers of liquid resin allows it to reproduce complex surfaces and fine geometry with a high level of detail.

However, SLA accuracy cannot be described by one universal number. The final result depends on the printer, resin, part size, geometry, build orientation, support strategy, post-curing cycle, and inspection method.

A small solid component may print very consistently, while a large thin-walled enclosure may be more sensitive to warping or dimensional movement. For this reason, engineers should evaluate accuracy according to the actual part rather than relying only on a machine specification.

Accuracy, Resolution, Precision, and Tolerance Are Different

Several technical terms are often used interchangeably when discussing SLA performance, but they describe different aspects of the printing process.

A printer may have a very fine layer thickness but still produce a dimension that differs from the CAD model. Similarly, a tiny feature may be visible on the part without meeting a strict dimensional tolerance.

Resolution describes the capability of the printing system, while accuracy describes the final result. Tolerance is the acceptable range defined by the designer or engineer.

This distinction is important because a highly detailed surface does not automatically guarantee that every hole, wall, or mating feature will be produced at its nominal size.

What Affects SLA Dimensional Accuracy?

The dimensional result of an SLA part is influenced by several connected factors. These should be considered during design preparation and quotation.

Part Size

Smaller parts are generally easier to control than large components with long unsupported walls or broad flat surfaces.

As the overall dimensions increase, the effects of resin shrinkage, support forces, thermal changes, and post-curing may become more noticeable. A large enclosure may therefore require more design and orientation planning than a small connector or detailed model.

Large dimensions should not automatically be assumed to scale with the same accuracy as small features.

Part Geometry

Geometry has a significant effect on print behavior.

Features that may be more difficult to control include:

• Long, thin walls

• Large flat surfaces

• Unsupported edges

• Narrow pins

• Deep holes

• Thin rings

• Tall slender features

• Uneven wall sections

• Large hollow bodies

A compact and well-supported geometry is often more dimensionally stable than a thin shell with broad unsupported surfaces.

Abrupt changes in wall thickness may also create uneven stress during curing. Using more uniform walls, gradual transitions, ribs, fillets, and suitable support can help reduce deformation.

Build Orientation

The orientation of a part inside the printer affects support placement, surface quality, printing height, and dimensional behavior.

A feature positioned vertically may print differently from the same feature positioned horizontally or at an angle. Orientation can influence:

• Layer transitions

• Support forces

• Drainage

• Surface finish

• Hole shape

• Edge definition

• Warping

• Post-processing access

For example, a circular hole built at an unsuitable angle may not remain perfectly round. A broad flat surface positioned parallel to the build platform may also require extensive support and may be more sensitive to distortion.

There is rarely one orientation that optimizes every requirement. Engineers normally balance accuracy, appearance, build time, support placement, and finishing effort.

Support Design

Support structures hold the part in position during printing, but they can also affect dimensional results.

Too little support may allow thin sections to move. Excessive support may create removal marks or introduce stress into delicate features.

Support contact points should be positioned carefully around:

• Thin edges

• Cosmetic surfaces

• Small holes

• Mating areas

• Flexible features

• Precision interfaces

After removal, support locations may require sanding or blending. This finishing work can slightly alter the local dimensions, particularly on small surfaces.

For critical interfaces, supports should be placed away from the measurement area whenever possible.

Resin Selection

Different SLA resins have different shrinkage behavior, stiffness, flexibility, curing response, and dimensional stability.

A rigid standard resin may hold a small detailed feature well but be vulnerable to brittle failure. A flexible resin may withstand deformation but may be more difficult to measure consistently. A high-temperature formulation may require a specific curing cycle to achieve its intended properties.

The most accurate-looking material is not always the most suitable material for the application. Mechanical and environmental requirements must also be considered.

Material data should be reviewed together with the part geometry, especially when the project includes tight fits, thin walls, heat exposure, or repeated loading.

Layer Thickness

Thinner layers can improve the appearance of curved and angled surfaces, but they do not automatically guarantee better dimensional accuracy in every direction.

Layer thickness mainly affects:

• Stair-stepping on angled surfaces

• Vertical feature definition

• Curved surface appearance

• Printing time

• Fine surface transitions

A thinner layer may improve visual detail while having limited effect on a large hole diameter or an unsupported wall.

The appropriate layer setting should therefore be selected according to the geometry and quality requirements rather than choosing the thinnest possible layer for every project.

Washing and Post-Curing

SLA parts continue through several operations after printing, and these steps can influence final dimensions.

During washing, uncured resin must be removed without damaging fine features. During post-curing, the part is exposed to ultraviolet light and often controlled heat so that the resin can reach its intended mechanical properties.

An unsuitable curing cycle may contribute to:

• Warping

• Shrinkage

• Increased brittleness

• Uneven dimensions

• Surface discoloration

• Movement of thin walls

Parts should be supported appropriately during curing, especially when they contain large flat areas or slender features.

Measurements taken before post-curing may not represent the final delivered dimensions. Inspection should normally be performed after all required curing and finishing operations have been completed.

Secondary Finishing

Sanding, polishing, priming, painting, and coating can change the dimensions of small features.

Sanding removes material, while paint and coatings add material. These effects may be minor on a large cosmetic surface but significant around:

• Small holes

• Snap-fit features

• Thin slots

• Connector openings

• Alignment pins

• Press-fit interfaces

• Fine engraved text

Critical functional areas should be identified before finishing begins. They may need to be masked, measured separately, or finished with a controlled process.

A presentation model and a precision assembly prototype should not automatically receive the same finishing workflow.

How Accurate Are SLA Holes and Openings?

Holes are among the most common features affected by the printing process.

A hole may print slightly smaller or less circular than its nominal CAD dimension because of light exposure, resin behavior, orientation, support placement, or trapped material.

Deep or narrow holes may also be difficult to clean completely. If uncured resin remains inside, it can affect the opening and interfere with assembly.

For critical holes, engineers may consider:

• Increasing the CAD diameter slightly

• Changing the build orientation

• Adding cleaning access

• Printing a test coupon

• Drilling or reaming after printing

• Specifying the final dimension on a drawing

The best approach depends on the hole size, depth, orientation, and required fit.

A clearance hole for a visual prototype may be acceptable directly from the printer, while a bearing seat or precision alignment hole may require secondary machining.

How Accurate Are Thin Walls and Flat Surfaces?

Thin walls can reproduce well in SLA, but their success depends on height, length, orientation, and support.

A short thin wall may remain stable, while a tall unsupported wall of the same thickness may bend or distort. Large flat panels may also move during printing or post-curing.

Design improvements may include:

• Increasing wall thickness

• Adding ribs

• Using curved surfaces

• Adding fillets

• Reducing unsupported spans

• Maintaining uniform wall sections

• Adjusting build orientation

The minimum printable wall thickness should not be confused with the minimum reliable wall thickness. A machine may be able to create a very thin wall, but that feature may not survive washing, support removal, shipping, or normal handling.

Functional design should therefore consider the complete manufacturing and use cycle.

How Should Critical Tolerances Be Specified?

Critical dimensions should be marked on a two-dimensional technical drawing rather than communicated only through the CAD model.

The drawing should identify:

• Nominal dimensions

• Permitted tolerances

• Critical assembly features

• Inspection locations

• Datum references

• Surface requirements

• Hole and thread specifications

• Features requiring secondary machining

Not every dimension needs a tight tolerance. Applying strict tolerances to noncritical surfaces can increase preparation, inspection, rework, and cost without improving the part’s function.

A practical tolerance strategy separates features into categories:

• Critical functional dimensions

• Assembly and fit dimensions

• Cosmetic dimensions

• General reference dimensions

This allows the manufacturing team to focus inspection and process control on the areas that matter most.

For projects with defined dimensional requirements, part inspection and dimensional verification can be planned according to the CAD model, technical drawing, sample quantity, and acceptance criteria.

Can SLA Parts Be Machined After Printing?

Yes. Certain SLA features can be drilled, reamed, tapped, sanded, or otherwise adjusted after printing.

Secondary machining may be useful when a part requires:

• Accurate mounting holes

• Controlled bores

• Threaded inserts

• Flat mating surfaces

• Precision interfaces

• Improved assembly fit

However, machining brittle or thin resin parts requires care. The component must have enough wall thickness and structural support to withstand cutting forces.

Machining allowances should be included in the CAD model before printing. Attempting to correct an undersized or unsupported feature after production may damage the part.

For demanding interfaces, SLA can be used to create the overall complex geometry while secondary machining controls the most critical dimensions.

How to Improve SLA Printing Accuracy

Designers can improve dimensional results by following several practical guidelines:

• Use uniform wall thickness where possible

• Add fillets at sharp internal corners

• Avoid large unsupported flat surfaces

• Identify critical dimensions on a drawing

• Provide suitable clearance for assemblies

• Allow access for resin drainage and washing

• Keep support contacts away from precision surfaces

• Select resin according to functional requirements

• Use secondary machining for demanding features

• Inspect parts after curing and finishing

• Test critical fits before ordering a large batch

For a new design, producing a small initial quantity is often more effective than moving directly into a larger order. The first parts can be measured, assembled, and evaluated before the final design or process settings are approved.

Is SLA Accurate Enough for Functional Prototypes?

SLA is often accurate enough for housings, appearance models, assembly checks, ergonomic studies, small mechanisms, and many functional prototypes.

It is particularly effective when the project requires a combination of:

• Detailed geometry

• Smooth surfaces

• Small features

• Controlled mating interfaces

• Fast design iteration

• Low production quantity

However, accuracy alone does not determine whether the part is suitable.

A component may match the CAD dimensions but still fail because the resin is too brittle, flexible, heat-sensitive, or chemically incompatible. Functional testing should therefore evaluate both geometry and material performance.

For applications with demanding mechanical loads, long-term exposure, or production-level requirements, SLA results should be compared with SLS, MJF, FDM, CNC machining, or molded parts.

In summary, SLA offers strong dimensional capability for detailed prototypes, but reliable results depend on the complete workflow. Part design, material selection, build orientation, support strategy, washing, post-curing, finishing, and inspection all contribute to the final accuracy.

The most effective approach is to define the critical dimensions clearly and review them before production rather than relying on a general printer-resolution specification.

How Does SLA Compare With Other 3D Printing Processes?

SLA is one of several additive manufacturing technologies used for prototypes and low-volume parts. Its main difference is that it cures liquid photopolymer resin with ultraviolet light, allowing it to produce fine details, smooth surfaces, and high-quality cosmetic models.

FDM builds parts by depositing melted thermoplastic filament layer by layer. It is often selected for larger prototypes, structural models, and projects where material cost is more important than achieving a smooth as-printed surface. Readers who want to understand this process in more detail can review how FDM 3D printing works.

SLS uses a laser to fuse polymer powder, most commonly nylon. Because the surrounding powder supports the part during printing, SLS can produce complex geometries without conventional support structures. This makes functional nylon powder-bed printing especially suitable for durable components, interlocking features, and low-volume production parts.

SLA is generally the better choice when fine surface details, smooth cosmetic areas, small features, or transparent materials are priorities. FDM may be more suitable when the project requires a larger part, a lower-cost thermoplastic prototype, or material behavior closer to common production plastics. SLS is often preferred when the component requires durable nylon, complex internal geometry, or freedom from support-contact marks.

The correct process should be selected according to the part’s geometry, size, material requirements, surface finish, tolerances, quantity, and intended use. For projects involving several possible technologies, reviewing the available custom additive manufacturing options can help identify the most suitable process before production begins.

When Should You Choose SLA 3D Printing?

SLA is usually the right choice when a project requires high visual quality, fine details, smooth surfaces, or complex small features. It is especially valuable during product development, when engineers need to evaluate the appearance, fit, and geometry of a design before investing in tooling.

Choose SLA When You Need:

• Fine text, logos, textures, or intricate surface details

• Smooth cosmetic surfaces with minimal visible layer lines

• Transparent or translucent prototypes

• Small housings, connectors, covers, or precision features

• Painted appearance models for presentations or photography

• Anatomical models or complex organic geometry

• Master patterns for silicone molding or investment casting

• Low-volume parts without the cost of dedicated tooling

• Fast design changes and repeated prototype iterations

For projects that require these characteristics, an industrial SLA printing service can help review the CAD model, resin choice, support strategy, build orientation, and finishing requirements before production begins.

Consider Another Process When You Need:

• Very large parts at the lowest possible cost

• Long-term outdoor durability

• High resistance to repeated impact or heavy structural loads

• Production-grade thermoplastic behavior

• Support-free internal channels or interlocking geometry

• High-volume repeat production

• Continuous exposure to aggressive chemicals

• Minimal manual post-processing

For example, FDM may be more suitable for large thermoplastic prototypes, while SLS may offer better results for durable nylon parts with complex geometry. CNC machining or injection molding may also be more appropriate when the project requires production materials, very tight tolerances, or large quantities.

The decision should not be based on surface finish alone. Engineers should also review:

• Part size

• Required material properties

• Operating temperature

• Mechanical loads

• Environmental exposure

• Dimensional tolerances

• Surface requirements

• Production quantity

• Delivery schedule

SLA delivers the greatest value when detail, appearance, and design flexibility are more important than maximum impact strength or large-scale production economics.

When several manufacturing methods could meet the basic requirements, comparing the available custom additive manufacturing processes can help identify the best balance of material performance, surface quality, lead time, and cost.

How to Prepare a Part for an SLA Quote

A clear and complete request for quotation helps the manufacturing team evaluate whether SLA is suitable for the part, select an appropriate resin, identify potential design risks, and provide a more accurate price and lead time.

Sending only a 3D model may be sufficient for a basic estimate, but it does not always communicate the functional, dimensional, and cosmetic requirements of the project. Two parts with the same geometry may require very different materials and production workflows depending on how they will be used.

Before requesting a quote from an SLA rapid prototyping provider, prepare the following information whenever possible.

Provide a Complete 3D CAD File

The 3D model is the primary reference used to evaluate part geometry, calculate material consumption, plan the build, and prepare the component for production.

Common file formats include:

• STEP or STP

• STL

• OBJ

• IGES or IGS

• Parasolid formats, where supported

STEP files are generally preferred for engineering review because they preserve accurate geometric surfaces. STL files describe the model as a triangular mesh and may lose detail if exported at a low resolution.

Before sending the file, check that:

• The model uses the correct units

• All surfaces form a closed, watertight solid

• There are no duplicated or overlapping bodies

• Thin walls are intentional

• Internal cavities include drainage access where required

• Small details are large enough to manufacture

• The exported mesh does not contain visible faceting

For multi-part products, identify whether the components should be quoted separately or printed and delivered as an assembly.

A future CAD file preparation guide for 3D printing can provide more detailed instructions on export resolution, model repair, wall thickness, and file verification.

Include a Technical Drawing for Critical Dimensions

A CAD model defines the nominal geometry, but it does not always show which dimensions are functionally important.

If the part includes mating features, precision holes, controlled gaps, flat interfaces, or specific tolerance requirements, provide a two-dimensional technical drawing alongside the 3D file.

The drawing should identify:

• Critical dimensions

• Required tolerances

• Datum references

• Hole specifications

• Thread requirements

• Flatness or parallelism requirements

• Inspection locations

• Features requiring secondary machining

• General dimensional standards

Not every feature requires a tight tolerance. Clearly separating critical dimensions from general geometry allows the manufacturing team to focus process control and inspection on the areas that affect performance.

For projects requiring documented measurements, dimensional inspection and quality control should be discussed during quotation rather than after the parts have already been printed.

Explain the Intended Application

The intended use of the part is one of the most important pieces of information in an SLA quotation.

A supplier cannot recommend the most appropriate resin based on geometry alone. The same housing could be used as a visual presentation model, an assembly prototype, a heat-testing component, or a short-term functional part. Each application may require a different material and finishing process.

Explain whether the part will be used for:

• Appearance evaluation

• Fit and assembly testing

• Functional testing

• Fluid-flow visualization

• Ergonomic evaluation

• Medical or anatomical demonstration

• Silicone molding

• Investment casting

• Product photography

• Exhibition or customer presentation

When functional testing is required, describe the expected load, impact, movement, temperature, chemical exposure, and operating duration.

This information helps the engineering team determine whether a standard, tough, flexible, clear, or high-temperature resin is more appropriate.

Define the Required Material Performance

You do not always need to specify an exact resin name. In many cases, explaining the required performance produces a better recommendation.

Useful requirements may include:

• Rigid or flexible behavior

• Impact resistance

• Heat resistance

• Transparency

• Surface hardness

• Elongation

• Dimensional stability

• Short-term chemical resistance

• Low-friction movement

• Clean burnout for casting

Avoid requesting an “ABS-like” or “PP-like” resin without explaining which properties are important. These terms may describe a general behavior, but they do not guarantee that the printed material will match every property of molded ABS or polypropylene.

For example, a customer asking for an ABS-like material may actually need one of several different characteristics:

• High stiffness

• Drop resistance

• Snap-fit performance

• Heat resistance

• A smooth painted appearance

Clarifying the intended behavior allows the material to be selected more accurately.

State the Required Quantity

The quantity affects build planning, cost, inspection, finishing, and delivery.

Specify whether you need:

• One concept model

• A small prototype batch

• Several design variations

• A pilot production quantity

• Recurring low-volume orders

For multiple design versions, identify the required quantity of each file or revision.

A quantity of one may be positioned differently from a batch of 20 parts. Larger batches may benefit from more efficient build arrangement, but they also require additional post-processing and quality-control planning.

When the design has not yet been validated, ordering a small initial batch is often recommended. The first parts can be inspected and tested before moving to a larger quantity.

A future 3D printing RFQ checklist can help engineering and procurement teams organize file revisions, quantities, inspection requirements, and delivery details.

Specify Surface Finish and Color Requirements

The phrase “smooth finish” can mean different things to different customers.

An engineering prototype may only require support removal and basic sanding, while a presentation model may require a uniform painted finish that closely represents an injection-molded product.

Specify whether the part should be delivered:

• As printed

• With support marks removed

• Sanded

• Polished

• Primed

• Painted

• Clear coated

• Dyed or colored, where applicable

• Assembled with other components

For painted parts, provide the required color reference whenever possible. This may include a RAL, Pantone, or physical color sample, depending on the project.

Also identify cosmetic surfaces that will be visible during normal use. These areas can then be prioritized during orientation, support placement, and finishing.

Available prototype surface finishing options should be reviewed according to the required appearance, texture, gloss, transparency, and dimensional sensitivity.

Clarify Transparency Requirements

If clear resin is required, explain what “clear” means for the application.

Possible requirements include:

• Basic translucency

• Visibility of internal components

• Fluid-flow observation

• Presentation-quality transparency

• Optical light transmission

• A polished exterior with unfinished internal channels

These are not equivalent finishing standards.

A part used to observe fluid movement may not require the same clarity as a display cover. Similarly, exterior surfaces can often be polished more effectively than deep internal channels.

Providing a reference photo or physical sample can help communicate the desired result.

The quotation should account for any additional sanding, polishing, or clear coating needed to achieve the requested appearance.

Identify Assembly and Fit Requirements

If the SLA part will connect to another component, provide information about the mating geometry.

Relevant details may include:

• Required clearance

• Press-fit features

• Snap-fit elements

• Screw locations

• Threaded inserts

• Alignment pins

• Sliding interfaces

• Sealing surfaces

• Components supplied by another manufacturer

Whenever possible, provide the mating-part CAD file or the dimensions of the interface.

This allows the engineering team to review whether the designed clearance is appropriate for SLA and whether specific features need dimensional compensation or secondary machining.

For critical assemblies, it may be useful to print a small test section or fit coupon before manufacturing the complete part.

Describe the Operating Environment

Environmental conditions can significantly affect resin selection.

State whether the part will be exposed to:

• Direct sunlight

• Elevated temperatures

• High humidity

• Water

• Oils

• Fuels

• Alcohol-based cleaners

• Acids or alkaline solutions

• Continuous mechanical load

• Repeated bending or impact

Also specify whether the exposure is temporary, intermittent, or continuous.

A resin that performs adequately during a short indoor test may not be suitable for months of outdoor use or prolonged contact with industrial fluids.

When long-term environmental durability is a primary requirement, the project may need to be evaluated using another additive or conventional manufacturing process. The available industrial 3D printing technologies can be compared according to material performance, geometry, quantity, and operating conditions.

Provide the Required Delivery Date

Include the date when the parts must arrive, not only the date when printing should begin.

The total lead time may include:

• File review

• Quotation approval

• Build preparation

• Printing

• Washing

• Post-curing

• Support removal

• Surface finishing

• Inspection

• Packaging

• International shipping

Complex finishing, transparent polishing, painting, or dimensional reports may require more time than standard as-printed parts.

If the project supports a design review, exhibition, customer meeting, or product test, communicate the fixed deadline during the initial quotation.

Urgent production may be possible, but feasibility depends on machine availability, material stock, finishing capacity, and shipping destination.

Information Checklist for an SLA Quotation

Before submitting the request, confirm that you have provided:

• A valid 3D CAD file

• A technical drawing for critical dimensions

• Required quantity

• Intended application

• Material or performance requirements

• Surface finish

• Color requirements

• Transparency requirements

• Assembly and fit information

• Operating temperature

• Chemical or environmental exposure

• Inspection requirements

• Delivery destination

• Required arrival date

Providing this information at the beginning reduces follow-up questions and helps avoid assumptions that could affect price, material selection, or part quality.

To receive a project review, upload your CAD files and manufacturing requirements. Include the quantity, intended use, critical dimensions, resin preferences, surface requirements, and target delivery date so the engineering team can evaluate the most appropriate manufacturing approach.

Conclusion: Is SLA 3D Printing Right for Your Project?

SLA is a resin-based additive manufacturing process that uses ultraviolet light to cure liquid photopolymer material one layer at a time. Its ability to reproduce fine details, smooth surfaces, complex curves, and small cosmetic features makes it a valuable option for product development and prototype manufacturing.

The process is particularly effective for:

• Appearance and presentation models

• Small, detailed housings

• Transparent or translucent prototypes

• Fit and assembly verification

• Anatomical and medical demonstration models

• Master patterns for molding or casting

• Low-volume customized parts

However, SLA should not be selected based on surface quality alone. Resin properties, support structures, post-curing, environmental exposure, part size, production quantity, and finishing requirements all influence whether the process is suitable.

Standard resins may provide excellent detail but limited impact resistance. Tough, flexible, clear, and high-temperature formulations can improve specific characteristics, although each material still involves performance trade-offs. Large parts, long-term outdoor components, heavily loaded structures, and high-volume production may be better suited to another manufacturing process.

The most reliable approach is to define what the part must achieve before choosing the technology. Engineers should consider:

• Intended application

• Mechanical loading

• Temperature and chemical exposure

• Required surface appearance

• Critical dimensions and tolerances

• Transparency requirements

• Quantity

• Delivery schedule

• Expected service life

When detail, appearance, and fast design iteration are the main priorities, SLA can provide an effective balance of quality, flexibility, and lead time.

When mechanical durability, part size, production material, or batch economics are more important, reviewing alternative industrial 3D printing technologies can help identify a more suitable manufacturing route.
