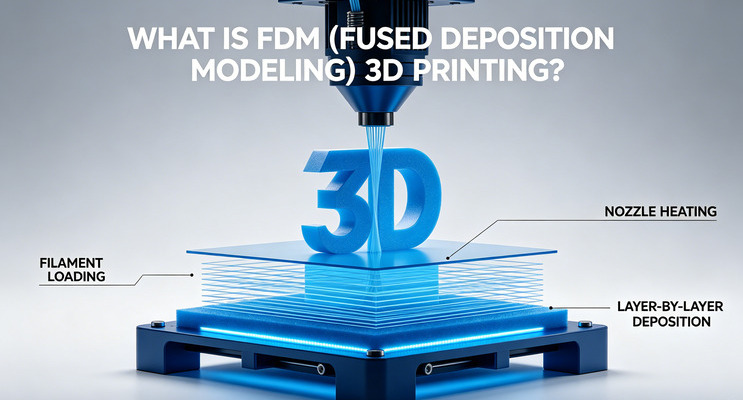

What Is FDM (Fused Deposition Modeling) 3D Printing?

FDM (Fused Deposition Modeling) is one of the most widely used 3D printing technologies for prototyping, product development, and low-volume production. In this guide, you'll learn how FDM printing works, common materials, key advantages and limitations, and when it is the right choice for your project.

In This Guide, You’ll Learn

✓ What FDM 3D printing is and how it works
✓ Common FDM materials such as PLA, ABS, PETG, and Nylon
✓ Advantages and limitations of FDM printing
✓ Differences between FDM, SLA, and SLS 3D printing
✓ Best applications for prototyping and functional parts

Intro Paragraph

FDM 3D printing is often the first additive manufacturing process engineers and product teams explore when developing new parts.

By extruding thermoplastic filament layer by layer, FDM printers can quickly produce prototypes, concept models, jigs, fixtures, and functional components at relatively low cost.

Because of its accessibility, material variety, and fast turnaround, FDM remains a popular choice for early-stage product development, design verification, and low-volume manufacturing across industries such as consumer products, robotics, automotive, and industrial equipment.

Whether you're evaluating FDM for prototyping or production, understanding the process capabilities, material options, and design constraints is essential before selecting the right manufacturing method.

What Is FDM 3D Printing?

FDM, short for Fused Deposition Modeling, is a 3D printing process that creates physical parts by extruding melted thermoplastic filament layer by layer according to a digital CAD model.

It is one of the most widely used additive manufacturing technologies due to its affordability, material versatility, and accessibility.

Unlike traditional subtractive methods such as CNC machining, which remove material from a solid block, FDM builds parts by depositing material only where needed. This layer-by-layer approach makes it possible to quickly produce prototypes, concept models, fixtures, and functional parts without tooling.

FDM printing is commonly used across industries such as:

• Product development

• Consumer electronics

• Automotive

• Robotics

• Education

• Industrial equipment

Because of its relatively low cost and fast turnaround, FDM is often the first choice for early-stage prototyping and design validation.

As part of broader rapid prototyping services, FDM helps teams move from concept to physical prototype quickly while reducing development cost.

What Does FDM Stand For?

FDM stands for Fused Deposition Modeling.

The process works by heating a thermoplastic filament until it reaches a semi-molten state, then extruding it through a nozzle onto a build platform.

The material is deposited layer by layer until the part is complete.

Each layer bonds to the previous one as the material cools and solidifies.

This relatively simple workflow makes FDM one of the most accessible and scalable 3D printing technologies available today.

How Is FDM Different from Traditional Manufacturing?

Traditional manufacturing processes such as machining, molding, and casting typically require tooling, molds, or material removal operations.

FDM differs because it builds parts directly from digital files without dedicated tooling.

This provides several advantages during product development:

• Faster design iterations

• Lower upfront cost

• No tooling investment

• Greater design flexibility for prototypes

For example, a prototype enclosure can often be produced with FDM within days, while injection molding may require weeks for tooling preparation.

However, FDM is not intended to replace all manufacturing methods.

For projects requiring:

• Tight tolerances

• Superior surface finish

• High-volume production

processes such as custom CNC machining services or molding may still be more suitable.

Why Is FDM So Popular?

FDM remains popular because it offers a practical balance between cost, speed, and functionality.

Key reasons include:

• Low material cost

• Fast prototype turnaround

• Broad material selection

• Easy design iteration

• Suitable for both hobby and industrial use

Compared with other additive processes such as SLA or SLS, FDM is often easier to adopt and more economical for general prototyping applications.

This makes it especially attractive for startups, engineers, and product teams developing early-stage hardware products.

What Is FDM Commonly Used For?

FDM is widely used for both visual and functional applications.

Common use cases include:

• Concept models

• Functional prototypes

• Enclosures and housings

• Jigs and fixtures

• Low-volume production parts

• Design verification models

In industrial environments, FDM is often combined with downstream processes such as surface finishing services or machining depending on functional requirements.

For example, an FDM prototype may be used for design validation before transitioning to injection molding or precision CNC machining for production.

FDM is often the starting point for product teams evaluating additive manufacturing because it offers a fast and cost-effective way to test ideas in physical form.

For many early-stage projects, it provides enough speed and flexibility to shorten development cycles without significant manufacturing investment.

How Does FDM 3D Printing Work?

FDM 3D printing converts a digital design into a physical part by heating and extruding thermoplastic filament through a nozzle.

The material is deposited layer by layer until the final geometry is built.

Although the workflow is relatively straightforward, print quality and part performance depend heavily on design preparation, material selection, and print settings.

Below is a typical FDM printing workflow.

Step 1 – Create the 3D CAD Model

The process starts with a 3D CAD model created using design software such as:

• SolidWorks

• Fusion 360

• Creo

• Siemens NX

The model is designed according to the intended function, dimensions, and assembly requirements.

At this stage, designers should consider FDM-specific design constraints such as:

• Wall thickness

• Overhang angles

• Support requirements

• Part orientation

FDM is widely used during early product development because design revisions can be implemented quickly without tooling.

Many teams include FDM as part of their rapid prototyping services workflow.

Step 2 – Export and Slice the Model

Once the CAD model is complete, it is exported into a printable format such as:

• STL

• OBJ

• 3MF

The file is then imported into slicing software.

The slicer converts the 3D model into thin printable layers and generates machine instructions for the printer.

At this stage, key print parameters are defined, including:

• Layer height

• Infill density

• Print speed

• Nozzle temperature

• Bed temperature

• Support structures

These settings directly influence:

• Surface quality

• Print strength

• Print time

• Material consumption

Step 3 – Heat the Filament

FDM printers use thermoplastic filament as raw material.

The filament is fed into a heated extruder where it softens to a semi-molten state.

Common materials include:

• PLA

• ABS

• PETG

• TPU

• Nylon

• Polycarbonate

The extrusion temperature depends on material type.

For example:

• PLA prints at lower temperatures

• Nylon and PC require higher temperatures and more controlled environments

Stable temperature control is essential for layer bonding and dimensional consistency.

Step 4 – Extrude Material Layer by Layer

The heated nozzle deposits molten material onto the build platform following the sliced toolpath.

The first layer is printed directly onto the build plate.

As each layer is completed:

• The print head moves according to X-Y coordinates

• The build platform or print head shifts vertically

This process repeats layer by layer until the full geometry is complete.

Because the material is added incrementally, FDM can efficiently produce parts with minimal material waste compared with subtractive methods such as CNC machining.

Step 5 – Cooling and Layer Bonding

After extrusion, the material cools and solidifies.

Each new layer bonds to the previous layer through thermal adhesion.

Proper cooling is important for:

• Dimensional stability

• Layer bonding strength

• Surface quality

• Reduced warping

Cooling settings vary depending on material.

For example:

• PLA typically benefits from active cooling

• ABS often requires reduced cooling to prevent cracking or warping

Layer bonding quality strongly affects mechanical performance in FDM printed parts.

Step 6 – Support Removal and Post-Processing

After printing is complete, the part is removed from the build platform.

If supports were generated, they are removed manually or mechanically.

Additional finishing may include:

• Sanding

• Vapor smoothing

• Painting

• Surface coating

• Assembly fitting

For prototype presentation models or functional parts, manufacturers may also offer surface finishing services to improve appearance and usability.

Depending on the application, FDM printed parts may undergo light machining or fitting adjustments after printing.

Typical FDM Workflow Summary

The complete workflow can be summarized as:

CAD Design → File Export → Slicing → Filament Heating → Layer-by-Layer Printing → Cooling → Support Removal → Finishing

This relatively simple process is one of the reasons FDM remains one of the most accessible and cost-effective additive manufacturing technologies.

It allows teams to move from digital design to physical prototype quickly, making it highly practical for product development and early-stage testing.

Common Materials Used in FDM Printing

Material selection has a direct impact on print quality, strength, flexibility, heat resistance, and end-use performance.

Different thermoplastics are suitable for different applications, from basic concept models to functional engineering components.

Choosing the right filament depends on:

• Mechanical requirements

• Temperature resistance

• Surface appearance

• Flexibility

• Chemical resistance

• Budget

Below are some of the most commonly used materials in FDM 3D printing.

PLA

PLA (Polylactic Acid) is one of the most popular FDM materials, especially for general prototyping and visual models.

It is easy to print, cost-effective, and produces good dimensional stability.

Advantages:

• Easy to print

• Low warping

• Good surface quality

• Affordable

Common applications:

• Concept models

• Design verification

• Educational projects

• Display parts

Limitations:

• Lower heat resistance

• Lower impact strength compared with engineering plastics

PLA is often used when appearance and speed are more important than mechanical performance.

ABS

ABS is a stronger and more heat-resistant material compared with PLA.

It is commonly used for more functional applications.

Advantages:

• Better impact resistance

• Higher temperature resistance

• Improved toughness

Common applications:

• Functional prototypes

• Enclosures

• Automotive interior parts

• Consumer product housings

Limitations:

• Higher warping risk

• Requires heated bed

• Can be more difficult to print consistently

ABS remains a common choice for product development and engineering prototypes.

PETG

PETG combines some of the ease-of-use advantages of PLA with improved strength and durability.

Advantages:

• Good layer adhesion

• Better toughness than PLA

• Moisture resistance

• Chemical resistance

Applications:

• Functional parts

• Mechanical components

• Containers

• Protective housings

PETG is often selected for parts requiring a balance of printability and functional durability.

TPU

TPU is a flexible filament commonly used for soft or elastic components.

Advantages:

• Flexibility

• Impact absorption

• Abrasion resistance

Applications:

• Seals

• Gaskets

• Protective covers

• Flexible connectors

• Wearable products

Because of its softness, TPU requires adjusted print settings and slower speeds.

Nylon

Nylon is an engineering thermoplastic known for strength, toughness, and wear resistance.

Advantages:

• High toughness

• Wear resistance

• Good mechanical performance

• Functional durability

Applications:

• Gears

• Fixtures

• Mechanical prototypes

• Structural functional parts

Limitations:

• Moisture sensitivity

• More challenging print conditions

Nylon is commonly used for more demanding functional applications and low-volume engineering parts.

Polycarbonate (PC)

Polycarbonate is a high-performance thermoplastic with strong mechanical and thermal properties.

Advantages:

• High strength

• Heat resistance

• Impact resistance

Applications:

• Engineering components

• Functional housings

• Industrial parts

Limitations:

• Higher print temperature requirements

• More difficult processing

PC is generally used when stronger performance is required beyond standard consumer materials.

Carbon Fiber Reinforced Materials

Carbon fiber reinforced filaments combine polymer matrices with chopped carbon fibers.

Common variants include:

• Carbon fiber nylon

• Carbon fiber PETG

• Carbon fiber polycarbonate

Advantages:

• Improved stiffness

• Reduced weight

• Better dimensional stability

Applications:

• Robotics parts

• Lightweight brackets

• Fixtures

• Functional engineering components

These materials are commonly used when higher rigidity is needed without significantly increasing weight.

Material Selection Guide

Choosing the right material depends on project goals.

Material selection should always align with both performance requirements and downstream finishing needs.

For production-like prototypes or tighter tolerance features, FDM parts may still be combined with CNC machining or finishing processes.

Which FDM Material Is Best?

There is no single best FDM material.

A material that works well for a concept model may not be suitable for functional testing or production use.

As a general guideline:

Choose PLA for:

• Fast prototypes

• Visual models

• Low-cost iterations

Choose ABS or PETG for:

• Functional prototypes

• General engineering parts

Choose Nylon or PC for:

• Mechanical performance

• Higher durability requirements

Choose TPU for:

• Flexible parts

Selecting the right material early helps reduce redesign cycles and improve prototype quality.

As part of professional 3D printing services, material recommendations are often based on both design intent and end-use requirements.

Material selection is one of the most important decisions in FDM printing.

Even with the same printer, changing material can significantly affect print strength, appearance, and performance.

Advantages and Limitations of FDM 3D Printing

FDM remains one of the most widely adopted 3D printing technologies because it offers a practical balance between cost, speed, and usability.

However, like any manufacturing process, FDM also has technical limitations.

Understanding both sides helps determine whether it is the right solution for a specific project.

Advantages of FDM 3D Printing

Lower Production Cost

FDM is generally one of the most cost-effective additive manufacturing methods.

Compared with technologies such as SLA or SLS, FDM typically offers:

• Lower machine cost

• Lower material cost

• Lower setup requirements

This makes it well suited for:

• Early-stage prototypes

• Concept models

• Budget-sensitive projects

For teams developing new products, FDM can reduce iteration cost significantly.

Fast Turnaround

FDM allows parts to be produced directly from digital files without tooling.

This shortens development cycles and makes it easier to test ideas quickly.

Common use cases include:

• Prototype iteration

• Design validation

• Engineering review models

As part of broader rapid prototyping services, FDM is often used to accelerate product development.

Broad Material Availability

FDM supports a wide range of thermoplastics.

This gives engineers flexibility when selecting materials based on:

• Strength

• Flexibility

• Heat resistance

• Chemical resistance

• Budget

Common material options include:

• PLA

• ABS

• PETG

• TPU

• Nylon

• Polycarbonate

This versatility makes FDM suitable for both visual and functional applications.

Easy Design Iteration

Because no tooling is required, design changes can be implemented quickly.

Benefits include:

• Faster revisions

• Lower redesign cost

• Shorter development cycles

This is especially useful for startups, product teams, and engineering departments refining part geometry before production.

Suitable for Functional Prototypes

Although FDM is often associated with basic models, it is also widely used for functional parts.

Applications include:

• Enclosures

• Fixtures

• Assembly test parts

• Mechanical prototypes

Depending on material selection, FDM can provide sufficient performance for many low-stress applications.

Minimal Material Waste

Because FDM deposits material only where needed, waste is typically lower than subtractive processes such as CNC machining.

This can improve material efficiency during prototyping and low-volume manufacturing.

Limitations of FDM 3D Printing

Visible Layer Lines

FDM parts are built layer by layer, which naturally creates visible layer lines.

This can affect:

• Surface appearance

• Tactile feel

• Cosmetic quality

Additional finishing may be required for presentation models or customer-facing products.

Common finishing options include:

• Sanding

• Priming

• Painting

• Vapor smoothing

Manufacturers may also provide surface finishing services for improved appearance.

Lower Resolution Compared with SLA

FDM generally produces lower resolution and less detail than SLA printing.

This makes it less suitable for:

• Very fine details

• Smooth cosmetic surfaces

• Small intricate features

For applications requiring higher precision or surface quality, other technologies may be more appropriate.

Anisotropic Strength

Because parts are built layer by layer, strength is not always uniform in all directions.

Layer adhesion can become a weak point under certain loading conditions.

This means:

• Z-axis strength is often weaker than X-Y strength

Proper part orientation is therefore critical when printing functional parts.

Support Structures May Be Required

Overhangs and complex geometries often require support structures.

Supports increase:

• Material consumption

• Print time

• Post-processing effort

Poorly designed supports can also affect surface finish after removal.

Warping and Shrinkage

Some materials, especially ABS, Nylon, and PC, are prone to:

• Warping

• Shrinkage

• Cracking

These issues are more likely without proper environmental control.

Industrial printing environments often use:

• Heated beds

• Enclosed chambers

• Temperature control

to improve print consistency.

Limited for High-Volume Production

FDM is generally not the most efficient process for large-scale manufacturing.

As production quantity increases, traditional methods often become more economical.

Examples include:

• Injection molding

• CNC production

• Vacuum casting

FDM is typically strongest in prototyping, customization, and low-volume production.

When FDM Is a Good Choice

FDM is usually a strong option when your project requires:

• Fast prototypes

• Low-cost iteration

• Functional concept parts

• Small production quantities

• Material flexibility

It is especially useful during early product development before transitioning to production methods.

When FDM May Not Be the Best Option

FDM may not be ideal if your project requires:

• Ultra-smooth surfaces

• Very fine details

• High-volume production

• Extremely tight tolerances

In these cases, alternative manufacturing methods such as SLA, SLS, or custom CNC machining services may be more appropriate.

FDM is often the most practical starting point for many hardware projects.

Its strengths lie in speed, affordability, and flexibility—not in replacing every manufacturing process.

Used appropriately, it can significantly reduce development time and improve iteration efficiency.

FDM vs Other 3D Printing Technologies

FDM is often the first 3D printing process teams consider because it is affordable, fast, and widely available.

But depending on surface quality, material performance, and functional requirements, FDM is not always the best option.

Processes such as SLA and SLS can offer better detail, smoother surfaces, or stronger end-use performance in certain applications.

Choosing the right technology depends less on which process is “better” and more on what your part actually needs.

FDM vs SLA

FDM and SLA are both popular for prototyping, but they solve different problems.

FDM builds parts by extruding thermoplastic filament layer by layer.

SLA uses liquid resin cured by UV light, which generally produces smoother surfaces and finer detail.

FDM is typically better for:

• Lower-cost prototypes

• Larger parts

• Functional concept models

• Faster design iteration

• General engineering applications

SLA is typically better for:

• Smooth cosmetic parts

• High-detail prototypes

• Small precision features

• Presentation models

• Mold masters

If your priority is quick functional prototyping, FDM is often the more practical choice.

If appearance, fine detail, or presentation quality matters more, SLA is usually a better fit.

FDM vs SLS

SLS is often chosen for more advanced functional applications.

Unlike FDM, SLS uses powder-based materials and does not typically require support structures.

This allows more design freedom for complex geometries.

FDM is typically better for:

• Lower budget projects

• Faster low-cost prototyping

• Simpler functional parts

• Larger concept models

SLS is typically better for:

• Complex geometries

• Interlocking parts

• Better isotropic strength

• Production-grade nylon parts

For teams validating designs quickly, FDM is often sufficient.

For more demanding functional parts or production-like nylon components, SLS may be a stronger option.

FDM vs CNC Machining

FDM and machining are often compared during prototype and low-volume production planning.

These processes are fundamentally different.

FDM adds material layer by layer.

CNC machining removes material from a solid block.

Choose FDM when you need:

• Fast prototypes

• Lower upfront cost

• Complex internal geometry

• Quick design changes

Choose CNC machining when you need:

• Tight tolerances

• Better surface finish

• Production-grade materials

• Higher mechanical consistency

In many projects, FDM is used for early validation, followed by machining once the design is finalized.

This hybrid workflow is common in hardware development.

Which 3D Printing Process Should You Choose?

There is no universal best process.

A simple decision framework is usually more helpful.

Choose FDM if you need:

• Fast prototypes

• Lower cost

• General functional testing

• Early-stage iteration

Choose SLA if you need:

• Smooth appearance

• Fine details

• Cosmetic prototypes

Choose SLS if you need:

• Strong nylon parts

• Complex geometry

• Production-like prototypes

Choose CNC machining if you need:

• Precision tolerances

• Better finishes

• Production materials

• Functional end-use parts

For many development projects, the most efficient path is not choosing one process forever.

It is choosing the right process at each stage.

A concept may start with FDM, move to SLA for presentation samples, and eventually transition to custom CNC machining services or tooling for production.

Best Applications for FDM 3D Printing

FDM is widely used because it offers a practical balance between speed, cost, and functional performance.

While it may not be the right solution for every part, it is often the most efficient choice during early development and low-volume manufacturing.

Below are some of the most common applications where FDM delivers strong value.

Functional Prototypes

Functional prototyping is one of the most common uses of FDM printing.

Instead of waiting for tooling or machining, teams can quickly validate:

• Form and fit

• Assembly compatibility

• Basic functionality

• Ergonomics

• Mechanical concept testing

This helps reduce development risk before committing to production processes.

FDM is frequently used as part of rapid prototyping services to accelerate hardware development cycles.

Common prototype parts include:

• Product housings

• Internal brackets

• Covers

• Mounting components

• Test assemblies

Concept Models and Design Validation

Early-stage product teams often need physical models to review designs before moving forward.

FDM is well suited for:

• Industrial design reviews

• Investor demonstrations

• Marketing samples

• Engineering discussions

Compared with traditional manufacturing methods, FDM allows physical parts to be produced quickly from CAD files without tooling.

This makes design changes much easier during concept development.

Jigs and Fixtures

FDM is widely used in manufacturing environments for custom production aids.

Common examples include:

• Assembly jigs

• Inspection fixtures

• Positioning tools

• Drill guides

• Workholding accessories

Benefits include:

• Fast production

• Low cost

• Easy customization

Instead of machining every fixture, manufacturers often print tools as needed and revise designs quickly.

This reduces lead time and operational cost.

Low-Volume Production Parts

Although FDM is primarily known for prototyping, it is also suitable for low-volume manufacturing in certain applications.

This is common when:

• Quantities are small

• Tooling investment is not justified

• Lead time is critical

• Customization is required

Typical low-volume parts include:

• Small housings

• Mounting brackets

• Covers

• Replacement components

For early-stage products or niche equipment, FDM can bridge the gap between prototype and production.

Custom Enclosures and Housings

FDM is frequently used to produce enclosures for electronics and embedded systems.

Applications include:

• Sensor housings

• Controller boxes

• Device enclosures

• Battery housings

• Robotics casings

Advantages:

• Fast customization

• Internal feature flexibility

• Cable routing integration

• Quick iteration

This is especially useful during electronics development, where enclosure changes are common.

Robotics and Automation Components

FDM is a practical choice for many robotics projects.

Common printed parts include:

• Sensor mounts

• Cable guides

• End effectors

• Protective covers

• Structural brackets

Robotics teams often prioritize:

• Fast iteration

• Lightweight parts

• Low-cost customization

This aligns well with FDM capabilities.

For higher precision or load-bearing requirements, printed parts may later transition to CNC machining metal manufacturing.

Educational and Engineering Testing Models

FDM is also widely used for testing and communication.

Examples include:

• Training models

• Demonstration assemblies

• Structural mockups

• Fit-check models

These applications benefit from:

• Fast lead times

• Affordable material cost

• Easy replacement or revision

Bridge Manufacturing Before Mass Production

For many startups and hardware teams, FDM serves as a temporary production solution before scaling.

This is useful when:

• Demand is still uncertain

• Product design is evolving

• Tooling investment is premature

Instead of waiting for molds, teams can begin shipping low quantities while continuing product refinement.

This reduces time to market.

Once design stability and volume justify it, teams often transition to injection molding or custom CNC processing services depending on the application.

When FDM Is Most Practical

FDM is usually a strong fit when your project needs:

• Fast iteration

• Lower upfront cost

• Functional prototypes

• Low-volume parts

• Design flexibility

It is less ideal when your project requires:

• Premium cosmetic finish

• Extremely tight tolerances

• Mass production economics

Understanding the intended application is usually the fastest way to determine whether FDM is the right manufacturing process.

Design Tips for Better FDM Prints

A good FDM print starts long before the printer is turned on.

Part quality, print success rate, and overall production cost are heavily influenced by design decisions made during the CAD stage.

Designing specifically for FDM can reduce failed prints, improve strength, shorten print time, and minimize post-processing.

Below are some practical guidelines for achieving better FDM printing results.

Use Appropriate Wall Thickness

Wall thickness directly affects part strength, print stability, and material consumption.

Walls that are too thin may lead to:

• Weak structures

• Poor layer bonding

• Print failure

General recommendations:

Thicker walls generally improve durability but also increase print time and material cost.

Design thickness should match the intended function of the part.

Minimize Unsupported Overhangs

FDM prints build upward layer by layer.

Large unsupported overhangs can create:

• Sagging

• Poor surface quality

• Support dependency

As a general rule:

• Angles above 45° are easier to print

• Larger overhangs often require supports

Reducing unsupported geometry helps:

• Improve surface quality

• Reduce material waste

• Shorten post-processing time

Self-supporting geometry is usually more efficient.

Optimize Part Orientation

Print orientation has a major influence on both strength and surface finish.

A poorly oriented part can lead to:

• Visible support marks

• Longer print times

• Reduced mechanical performance

Good orientation can help:

• Reduce supports

• Improve appearance on critical surfaces

• Increase structural strength in key directions

Because FDM parts are anisotropic, orientation should align with expected load direction whenever possible.

Design with Layer Strength in Mind

FDM parts are generally strongest within layers and weaker between layers.

This means part performance depends partly on how forces are applied.

For example:

• Tensile loading across layers can increase failure risk

• Compression and in-plane loading often perform better

When designing functional parts, consider:

• Load direction

• Assembly forces

• Connection points

Proper design can significantly improve part reliability.

Use Infill Strategically

Infill controls the internal density of a printed part.

Higher infill increases:

• Strength

• Weight

• Print time

• Material usage

Typical ranges:

100% infill is rarely necessary and often increases cost without meaningful benefit.

Use denser infill only where function requires it.

Avoid Excessively Small Features

Very small features can be difficult to print accurately depending on nozzle size and material.

Potential issues include:

• Poor edge quality

• Incomplete extrusion

• Fragile details

Examples of difficult features:

• Very thin tabs

• Tiny holes

• Sharp unsupported tips

Design features should respect printer resolution limitations.

Allow Tolerance for Assembly Parts

Printed dimensions may vary slightly due to shrinkage, material behavior, and machine calibration.

For mating or assembled parts, additional clearance is usually required.

Typical considerations:

• Snap fits

• Lid engagement

• Insert components

• Sliding mechanisms

Designing too tightly can create fitment issues.

Critical assemblies may still require secondary finishing or CNC machining.

Reduce Unnecessary Supports

Support material increases:

• Print time

• Material usage

• Labor cost

• Surface cleanup requirements

To reduce supports:

• Split complex parts when appropriate

• Add chamfers instead of sharp overhangs

• Use self-supporting angles

Less support usually means more efficient printing.

Design for Post-Processing

Not all printed parts are used directly as-printed.

Some parts require additional finishing depending on use case.

Common post-processing includes:

• Sanding

• Priming

• Painting

• Assembly preparation

For customer-facing prototypes or presentation models, manufacturers may offer surface finishing services to improve appearance and surface quality.

Planning for finishing early helps avoid redesign later.

Good FDM design is not only about whether a part can print.

It is about whether the part can print reliably, efficiently, and with acceptable end-use performance.

Small design adjustments often make a significant difference in both print quality and project cost.
