SLA is often the better starting point for prototypes that prioritize fine detail, smooth surfaces, or visual presentation. SLS is often a stronger candidate for complex nylon prototypes intended for handling, repeated assembly, or functional evaluation.

The right choice depends on what your prototype must prove. A model that communicates a product’s appearance may not reproduce its mechanical behavior. A durable functional sample may need additional finishing before it represents the intended production surface.

When comparing SLA vs SLS, define the test first. Then evaluate the material, geometry, dimensional requirements, post-processing, and total cost needed to produce a useful result.

SLA vs SLS: The Quick Answer

Use these starting points to narrow your choice:

  • Start with SLA when the main goal is to evaluate appearance, small details, a smooth exterior, or a clear prototype.

  • Start with SLS when the main goal is to evaluate a complex nylon component through handling, repeated assembly, or appropriate functional testing.

  • Evaluate both when fit, stiffness, and dimensional consistency matter more than appearance alone.

  • Consider separate prototypes when appearance and mechanical testing require different material characteristics.

These are screening recommendations. Engineering resins can support specific functional tests, while an SLS nylon prototype still needs validation against its intended conditions.

The key question is: Which process and material combination can provide reliable evidence for your next design decision?

What Is the Difference Between SLA and SLS?

Stereolithography, or SLA, uses light to cure liquid photopolymer resin. Selective laser sintering, or SLS, uses a laser to fuse polymer powder.

Traditional SLA uses a laser. Some suppliers also use “SLA” broadly for resin processes such as DLP or MSLA, so confirm the actual equipment and material when comparing quotations. This guide discusses polymer SLS rather than metal powder bed fusion.

SLA: Resin Prototypes with Detailed Surfaces

SLA parts require cleaning and, depending on the material, post-curing to achieve their intended properties. Support removal and surface finishing also influence the delivered result. These processing stages are described in Formlabs’ SLA technical guide.

Our SLA 3D printing service provides a starting point for reviewing detailed resin prototype requirements.

SLS: Polymer Parts Supported by the Powder Bed

In SLS, surrounding powder supports the build, generally eliminating dedicated support structures. Unfused powder must still be removed, including from accessible internal features. Formlabs’ SLS process guide explains this distinction.

Review our SLS 3D printing service when evaluating functional nylon prototypes and complex polymer geometry.

SLA vs SLS Comparison Table

Comparison Factor

SLA

SLS

Why It Matters for Your Prototype

Materials

Photopolymer resins, including engineering grades

Polymer powders, commonly nylon grades

Compare exact materials rather than process labels

Surface and detail

Often a useful starting point for fine features and smooth visible surfaces

Typically has a more textured unfinished surface

Appearance requirements can change finishing work

Accuracy and fit

Depends on geometry, orientation, material, and processing

Depends on geometry, thermal behavior, material, and processing

Confirm critical dimensions on the actual drawing

Functional evaluation

Requires a resin suited to the proposed test

Suitable nylon grades are candidates for handling and mechanical evaluation

Match properties to the expected failure mode

Supports and cleaning

Plan support access, drainage, washing, and curing

Plan depowdering and access to internal cavities

Inaccessible features can make a design unsuitable

Post-processing

Support removal and material-specific processing; optional finishing

Cooling, depowdering, and specified finishing

Compare the delivered condition

Cost drivers

Material, geometry, supports, finishing, and quantity

Material, build utilization, geometry, cleaning, and quantity

Neither process is universally cheaper

Lead time

Includes preparation, printing, required processing, and inspection

Includes preparation, printing, cooling, cleaning, and inspection

Printing time alone is not delivery time

Surface Finish and Detail: Which Better Represents the Final Product?

Start by evaluating SLA when fine visible features and a smooth presentation surface are central to the review. For SLS, establish whether its unfinished texture is acceptable or whether additional finishing is required.

Surface results depend on the equipment, material, orientation, and post-processing method. These variables are discussed in a manufacturer’s surface-finish comparison, reinforcing why sample evaluation is more useful than a universal process ranking.

SLA vs SLS surface finish and finishing options.

Define What “Good Appearance” Means

Specify what people will assess: overall proportions, lettering, edge definition, color, transparency, texture, or tactile response.

A housing used for close-up product photography may need a different finish from a prototype used to assess grip and packaging space. Identify visible surfaces and explain whether sanding, painting, or assembly is acceptable.

For a painted model, include preparation and painting in the quotation. Comparing an unfinished SLS part with a fully finished SLA model does not isolate the difference between the printing processes.

Include Finishing in the Selection

Review compatible surface finishing options before selecting the manufacturing route.

Use a reference appearance where possible. Mark areas that may be sanded or coated and surfaces where finishing must not interfere with fit.

For a clear component, specify the purpose of transparency. Seeing internal features, demonstrating fluid movement, and meeting an optical requirement are different goals. “Clear resin” alone does not define the acceptable finished result.

Accuracy and Fit: Which Better Validates Your Assembly?

Either process may be suitable for an assembly prototype. Choose against the dimensions and mechanical behavior that determine whether the assembly works.

A smooth exterior does not establish that every hole, mating face, or locating feature meets its tolerance.

Separate Fine Detail from Dimensional Accuracy

Fine detail concerns how small features are reproduced. Dimensional accuracy concerns how closely manufactured features match their specified geometry.

For a two-piece enclosure, the relevant questions may include:

  • Do the mating edges align?

  • Does the fastener pattern match the internal component?

  • Is there sufficient clearance after finishing?

  • Can the parts be assembled without excessive force?

  • Does the assembly remain stable during handling?

Layer height does not answer these questions. Identify critical features on the drawing and ask the supplier to confirm capability for the proposed material and process.

Specify Critical Fits in the Finished Condition

Separate general dimensions from functional interfaces.

The outside of a housing may allow more variation than a locating bore. Applying the bore’s requirement to the entire part can restrict the manufacturing route without improving the test.

Define whether acceptance applies after curing, cleaning, coating, or other finishing. Where fit is decisive, combine dimensional inspection with assembly against the intended mating component.

Also distinguish one-time fit checks from repeated assembly. A prototype that assembles successfully once has not necessarily demonstrated reliable retention or durability.

Diagnose Fit Problems Before Changing Processes

If a prototype looks accurate but fails to assemble, inspect the mating features before switching from SLA to SLS or vice versa.

Determine whether the problem comes from:

  • Dimensional deviation from the drawing.

  • Insufficient clearance in the design.

  • Surface interference or finishing buildup.

  • Deformation during assembly.

  • Variation in the mating component.

Changing the printing process will not necessarily correct a clearance error in the CAD model. Identify the cause, then decide whether to change the design, material, orientation, finishing, or process.

Materials and Strength: Which Better Supports Functional Testing?

Compare specific material grades and processing conditions. “SLA resin” and “SLS nylon” are too broad to predict how a prototype will behave.

Compare Specific Resins and Nylon Grades

Request the exact proposed material and its technical data sheet.

An engineering resin may suit a particular fixture, enclosure, or assembly test. However, descriptions such as “ABS-like” do not establish equivalence to a specified production thermoplastic.

Reported properties also depend on sample preparation. For example, Formlabs’ Tough 2000 Resin V2 data sheet identifies the printing, washing, and post-curing conditions used for its material data.

SLS materials likewise require grade-specific comparison. EOS lists separate tensile, elongation, impact, and thermal properties across its polymer material portfolio. A single strength value cannot represent all of these behaviors.

Use material data to screen candidates, then establish what the actual prototype must demonstrate.

Evaluate Repeated Flexing, Impact, and Temperature

Define failure before choosing a material.

Prototype Function

Key Question

Suggested Acceptance Approach

Locating fixture

Does deflection affect positioning?

Measure displacement under the intended load

Snap-fit clip

Does retention remain acceptable after repeated use?

Test a defined assembly sequence and cycle target

Protective cover

Does it survive the intended impact?

Use a representative impact or drop procedure

Heated enclosure

Does it retain fit during exposure?

Test at the specified temperature, duration, and load

Fluid-handling component

Does it meet flow and leakage requirements?

Test the finished part under defined conditions

A locating fixture can fail through excessive bending without breaking. A clip may need repeated flexibility rather than maximum stiffness. A cover may need to absorb impact rather than carry a steady load.

These differences should drive material selection.

Understand What a Printed Prototype Can Validate

A prototype can provide useful evidence without reproducing every characteristic of the final product.

Before testing, record which conclusions it can support. A sample may validate packaging space and mounting access while leaving fatigue life or long-term environmental performance unresolved.

If the final component will be injection molded, identify which material and manufacturing differences could affect the result. Confirm remaining requirements through an appropriate production-representative test plan.

Geometry and Post-Processing: What Can Rule Out Each Process?

A suitable process must provide a complete route from CAD model to clean, finished, inspectable prototype.

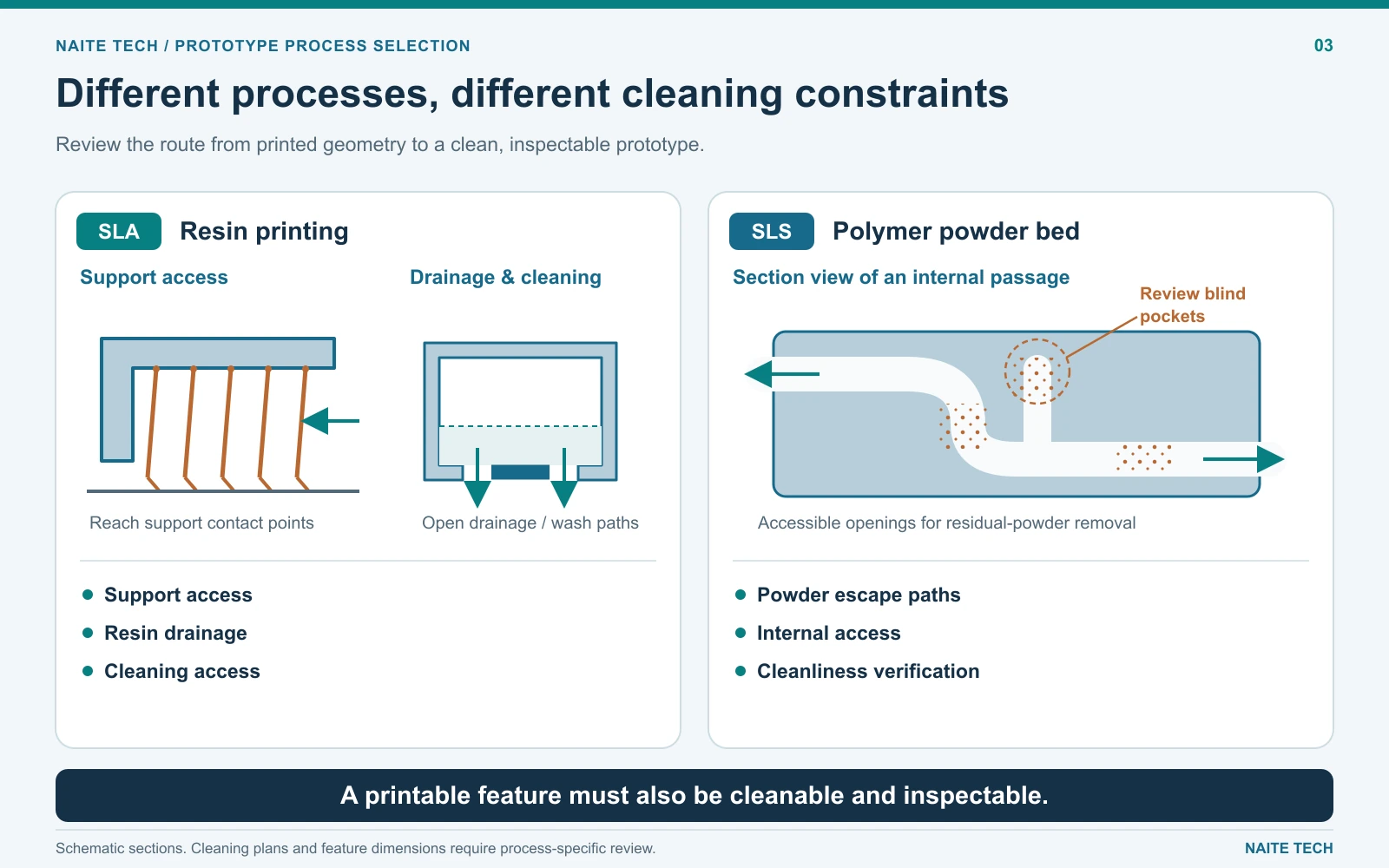

SLA support removal and resin drainage compared with SLS powder removal from an internal channel..webp

SLA: Plan Support Removal, Drainage, and Cleaning

Review where supports will contact the part and whether those locations can be reached.

Pay particular attention to visible faces, small recesses, fragile details, and enclosed geometry. Ask how residual resin will be removed and how required processing will be completed.

For a cosmetic enclosure, agree on support placement before production. For a functional interface, establish whether support removal could affect its acceptance condition.

If an internal feature cannot be processed properly, revise the geometry or consider another manufacturing route.

SLS: Plan Powder Removal and Access to Internal Features

The absence of dedicated build supports does not eliminate cleaning constraints.

Review powder escape paths, internal passages, recessed features, and assemblies that become difficult to access after printing.

For a duct, specify the required internal condition and how cleanliness will be checked. A channel visible in the CAD model is not automatically a channel that can be cleared and accepted.

Consider a revised passage or a split-and-assembled design when cleaning access cannot be resolved.

SLA vs SLS Cost and Lead Time: Compare Finished Prototypes

Neither SLA nor SLS is always cheaper or faster. Compare quotations for the same usable result.

Compare the Complete Scope

Ask both quotations to cover the same:

  • Design revision and quantity.

  • Material requirements and permitted substitutions.

  • Critical dimensions.

  • Surface finish and color.

  • Cleaning and required material processing.

  • Inserts or secondary operations.

  • Inspection, documentation, and delivery.

An unfinished functional sample and a painted presentation model are different purchases, even when they begin with the same CAD file.

For a presentation model, compare cost after surface preparation and painting. For a functional assembly, compare cost after cleaning, inserts, and inspection.

The lower-cost process can change when the acceptance requirements change, even if the geometry stays the same.

Separate Single-Sample and Batch Decisions

Request prices for the quantities relevant to development: an initial sample, a test set, and a repeat order.

Identify whether the order contains identical components or several designs. Ask whether production scheduling or combining parts in a build affects the quotation.

Avoid choosing from a universal quantity threshold. Any batch advantage must be assessed alongside individual finishing, inspection, and handling requirements.

Compare the Date the Prototype Can Be Used

Request a delivery schedule that includes preparation, production, processing, inspection, and shipping.

If the project requires sample approval before the remaining parts are made, state that requirement explicitly. Include time for testing and possible revision.

The relevant milestone is the availability of an acceptable prototype, not the moment printing finishes.

Which Process Should You Choose for Your Prototype?

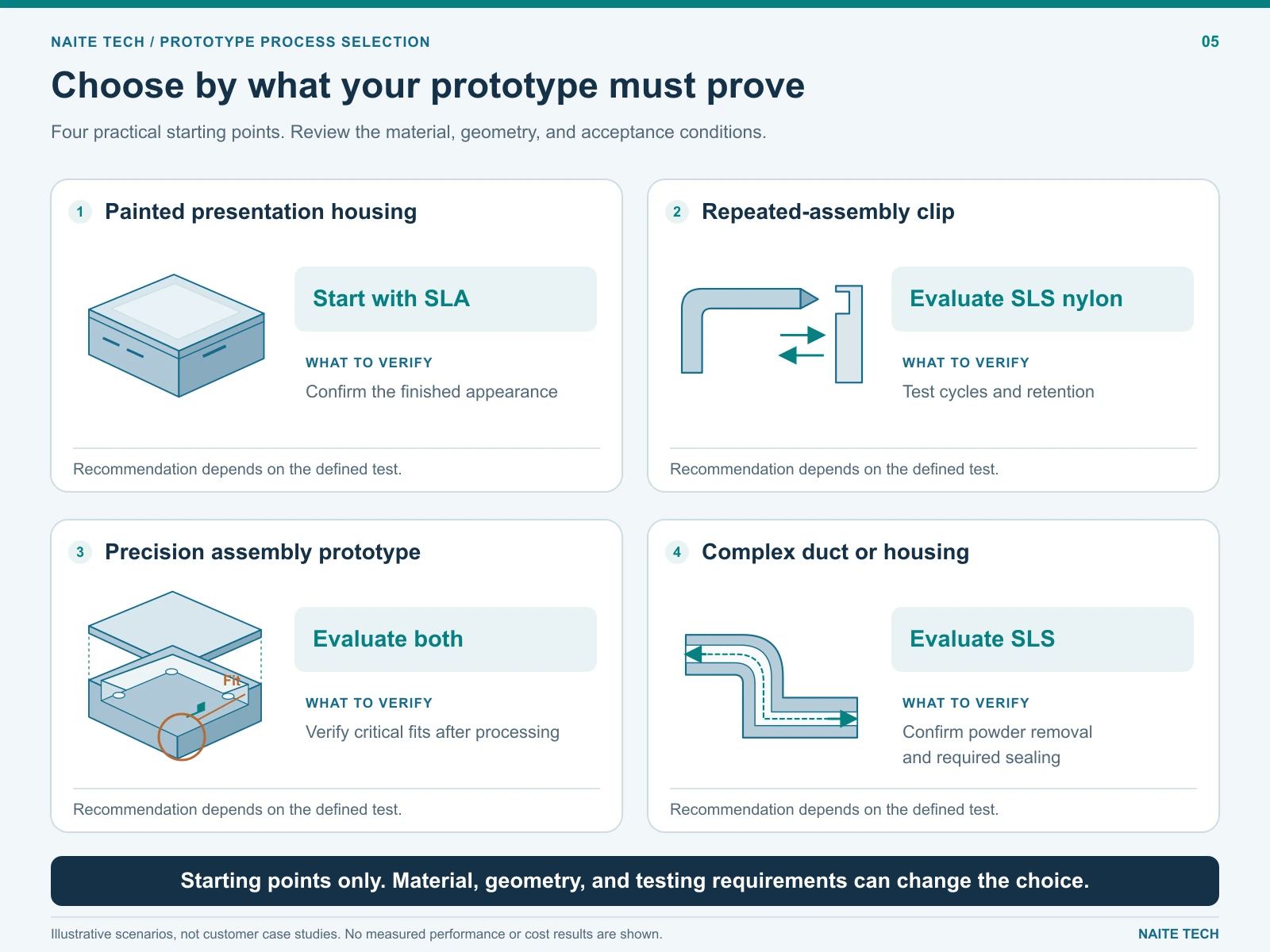

Start with the design decision that the prototype will inform. The following comparison and examples show how that decision changes the preferred route.

What Changes When the Same Prototype Is Printed in SLA and SLS?

Printing the same CAD model in SLA and SLS does not produce interchangeable test specimens. The nominal geometry may be identical, but the material, surface condition, processing history, and dimensional results can differ.

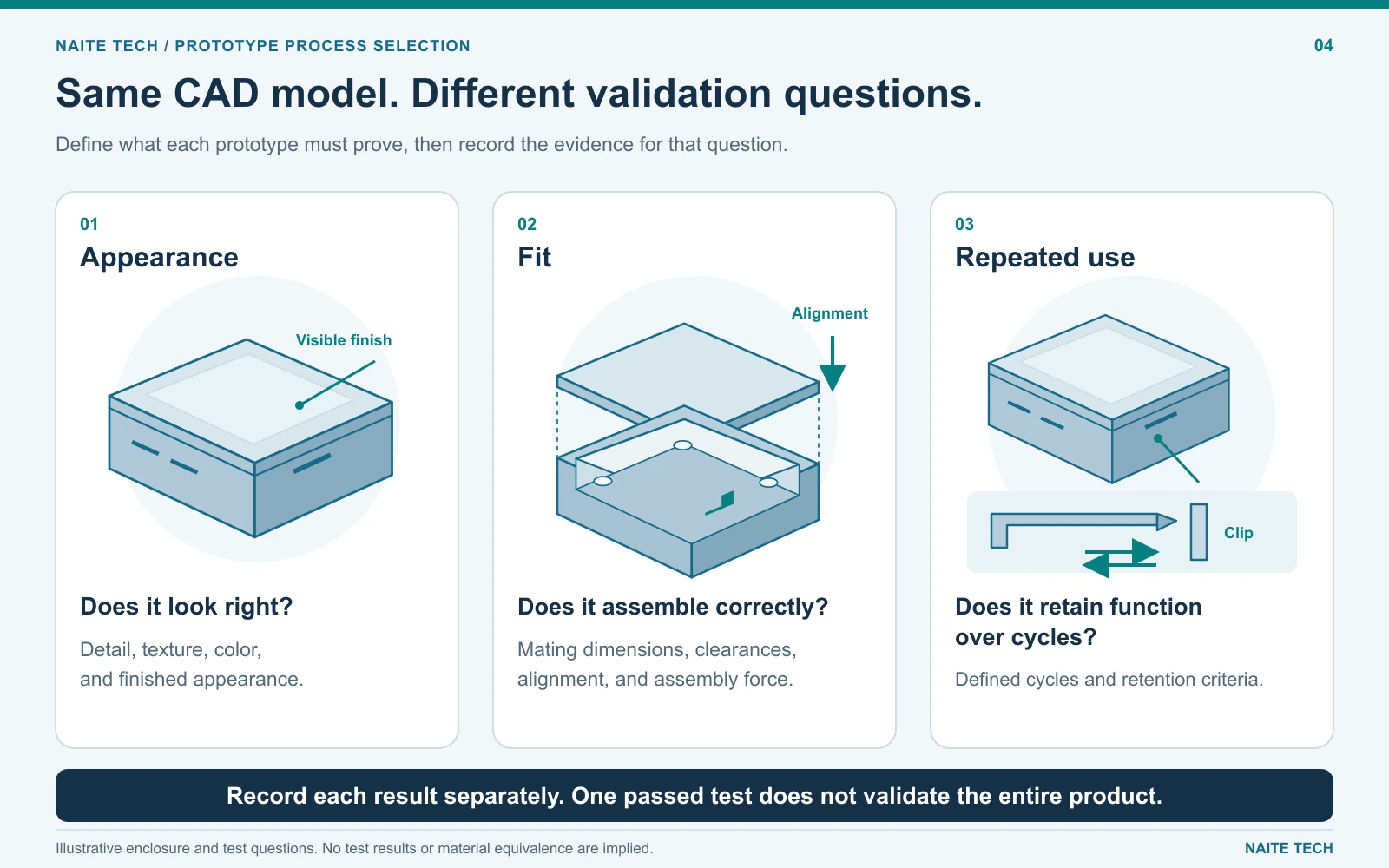

One enclosure design evaluated for appearance, assembly fit, and repeated clip use as separate validation goals..webp

For a snap-fit enclosure, separate the questions:

Validation Question

What to Compare

Does the housing communicate the intended appearance?

Visible detail, surface texture, finishing, and color

Do the halves assemble correctly?

Measured mating dimensions, clearances, and assembly force

Do the clips survive repeated use?

Material grade, clip geometry, cycle count, and retention

Will the final molded part behave the same way?

Differences from the intended production material and process

Use each prototype to answer a defined question.

If an SLA sample passes an appearance review and an SLS sample passes an assembly test, record those as separate findings. Neither result alone establishes complete product validation.

The following scenarios are illustrative, not customer case studies or measured process comparisons.

Painted Presentation Housing: Start with SLA

Goal: Evaluate a single-color housing’s exterior form and visible detail after painting.

Starting choice: SLA, with surface preparation and painting included.

Reason: The prototype is judged primarily on appearance, so the selected route should support that finish efficiently.

What changes the recommendation: Repeated clip testing or demanding temperature exposure introduces additional material requirements. A separate functional sample may be appropriate.

Acceptance: Review the agreed visible surfaces, overall form, color, and finish under the intended viewing conditions.

Repeated-Assembly Clip: Start by Evaluating SLS Nylon

Goal: Explore a clip that must engage and release repeatedly while maintaining useful retention.

Starting choice: A suitable SLS nylon grade, with geometry and test conditions reviewed together.

Reason: The decision centers on repeated mechanical use rather than presentation quality.

What changes the recommendation: An engineering resin may also be a candidate if its properties and validated processing suit the test. If the goal is to establish final injection-molded part life, neither printed route should be assumed equivalent.

Acceptance: Test against the intended mating component, with a defined cycle count and retention criterion.

Assembly Prototype: Evaluate Both SLA and SLS

Goal: Check several mating faces, locating features, and fastener positions.

Starting choice: Compare both processes against the critical dimensions and required assembly behavior.

Reason: Surface appearance alone does not determine whether the assembly test will succeed.

What changes the recommendation: Fine cosmetic details may favor evaluating SLA first. Repeated handling or flexible features may shift attention toward a suitable SLS material or engineering resin.

Acceptance: Combine dimensional checks with the actual assembly sequence. Record excessive force, interference, deformation, and alignment issues.

Complex Duct or Functional Housing: Start by Evaluating SLS

Goal: Evaluate packaging, mounting, and functional behavior in a complex polymer component.

Starting choice: SLS, subject to material suitability and a workable powder-removal plan.

Reason: The geometry may benefit from the powder-supported build approach.

What changes the recommendation: Inaccessible passages, mandatory transparency, or unmet surface and material requirements can change the choice.

Acceptance: Verify the interfaces and internal condition, then conduct required flow or leakage testing on the finished component.

Selection guide for presentation housings, assembly clips, precision assemblies, and complex ducts using SLA or SLS..webp

What to Confirm Before Ordering SLA or SLS Prototypes

Provide enough information for the supplier to recommend a process and explain any remaining uncertainty.

Information

What to Include

Prototype purpose

Appearance, fit, repeated assembly, or defined functional testing

CAD and drawing

Current revision, critical dimensions, datums, and mating features

Material requirements

Specified grade or mandatory properties

Operating conditions

Loads, temperature, exposure, and test duration

Surface requirements

Visible faces, color, texture, transparency, and finishing

Quantities

First sample, test set, and expected repeat demand

Acceptance

Dimensional checks, assembly tests, and documentation

Timing

Delivery date and approval stages

Agree on dimensional inspection requirements before production, especially where the prototype will be used to approve an assembly or revise tooling-related dimensions.

If neither SLA nor SLS meets your material, geometry, or testing requirements, broaden the shortlist before ordering. Our guide to choosing the right 3D printing process for your part explains how to evaluate alternatives such as FDM, MJF, PolyJet, and metal additive manufacturing.

NAITE TECH coordinates 3D printing through specialist manufacturing partners and manages quotation, production coordination, agreed inspection requirements, and delivery. Our in-house CNC capability also supports projects where a different or combined manufacturing route is appropriate.

Submit your CAD files and prototype requirements to discuss a suitable option. Include what the prototype must prove so the review can focus on the decision you need to make.

Frequently Asked Questions

Is SLS Always Stronger Than SLA?

No. Compare specific materials and the property relevant to failure. Tensile strength, stiffness, impact resistance, and repeated-flex performance are different measures. Build and processing conditions also matter. A process label alone cannot determine which prototype will perform better.

Can SLA Be Used for Functional Prototypes?

Yes, when a suitable resin and processing route meet the intended test requirements. Define the loads, exposure conditions, test duration, and acceptance criteria. Do not assume that a standard appearance resin is appropriate for a demanding mechanical test.

Can SLS Produce Transparent Parts?

Conventional SLS nylon is not the usual choice for an optically clear prototype. Evaluate a suitable clear resin process if visibility through the part is required. Confirm the finished clarity, surface treatment, wall geometry, and any optical acceptance criteria before ordering.

Which Process Is Better for Snap-Fit Prototypes?

A suitable SLS nylon is a useful starting candidate for repeated assembly evaluation, but engineering resins may also be suitable. The decision depends on clip geometry, required deflection, retention force, and cycle life. Test representative parts with the intended mating component.

Should I Use Both SLA and SLS During Product Development?

Sometimes. One prototype can address appearance while another investigates assembly or mechanical behavior. Separate samples are useful when combining all requirements would compromise the test. Record what each sample demonstrates and what still needs validation.

Content in this article
Contact us

*Please upload only step/stl/pdf/dwg files. Size limit is 25MB.

If there are any CNC machining issues.
Please contact us.
Capabilities
Service
Support
COPYRIGHT © 2025 CHANGZHOU NAITE METAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.
