Custom T300 Carbon Fiber Car Emblem for a US Customer

Views: 0     Author: Site Editor     Publish Time: 2026-07-28      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

This case study covers the production of a custom carbon fiber car emblem for a customer in the United States. The part was CNC machined from glossy T300 3K twill carbon fiber and designed for adhesive installation on a vehicle.

The emblem featured sharp tips, narrow connecting sections and intersecting contours, making edge quality and profile accuracy especially important. According to the customer’s requirements, the chamfered edge surfaces were painted, while the rear bonding face was left unpainted for the subsequent adhesive application.

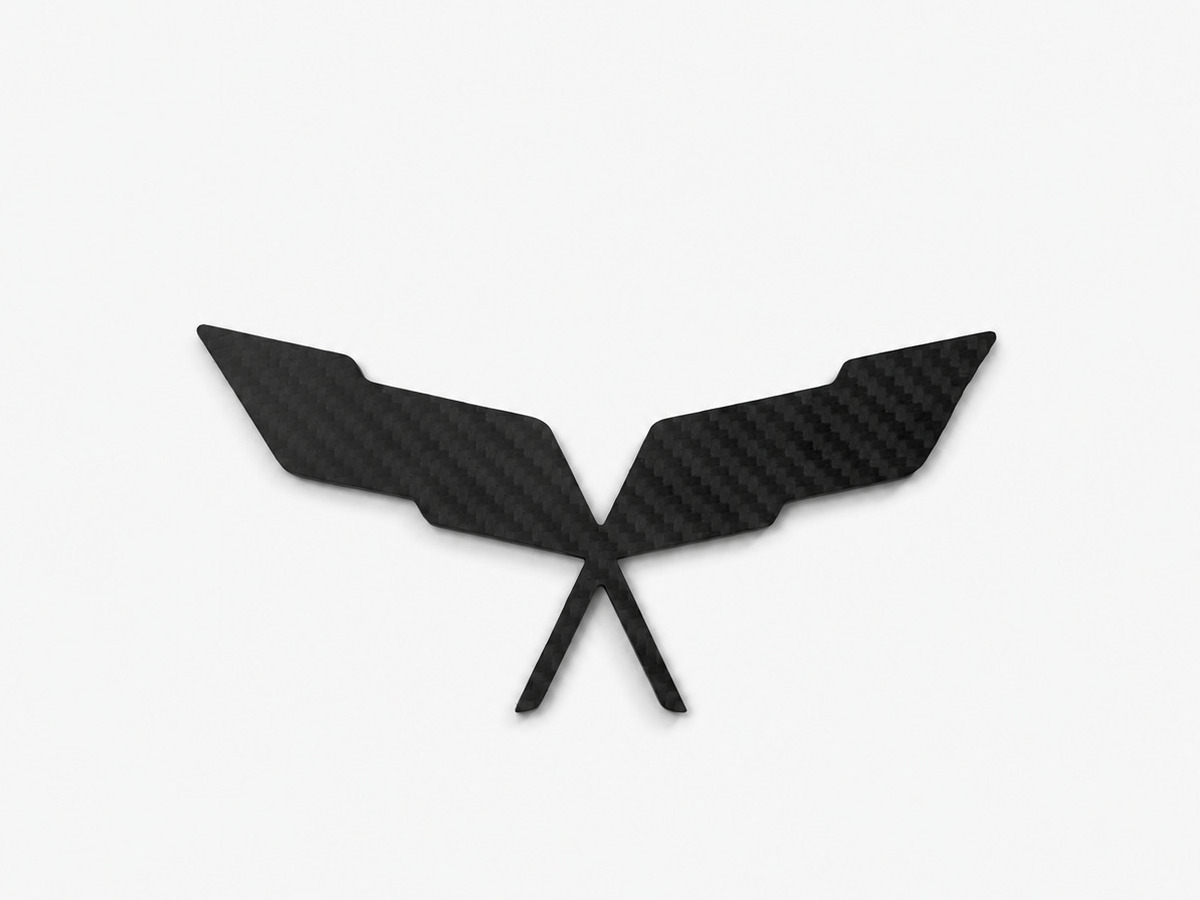

Finished custom T300 3K twill carbon fiber car emblem.jpg

Project Overview

Customer Requirements

The customer needed a custom automotive emblem rather than a standard molded or mass-produced badge. The shape had to follow the supplied design while retaining the natural woven appearance of real carbon fiber.

The main requirements included:

  • T300 carbon fiber material

  • Glossy 3K twill surface

  • CNC profile cutting

  • Clean sharp corners and narrow sections

  • Chamfered edge surfaces

  • Painted finish on the chamfers

  • An unpainted rear bonding face

  • Suitability for adhesive installation on the vehicle

Because the emblem would be used as a visible automotive decoration, appearance was as important as dimensional accuracy. The glossy front face needed to remain clean and free from scratches, paint contamination and machining damage.

The customer also wanted the painted chamfers to create a clear transition between the carbon fiber face and the outer profile. At the same time, the rear surface had to remain suitable for bonding after production.

Product Specifications

Specification

Details

Product

Custom carbon fiber car emblem

Customer Location

United States

Application

Automotive exterior decoration

Material

T300 carbon fiber

Weave Pattern

3K twill

Surface Finish

Glossy

Main Process

CNC profile cutting

Secondary Process

Edge chamfering

Painted Area

Chamfered edge surfaces

Rear Surface

Left unpainted

Installation

Adhesive bonding

Production Type

Custom manufacturing

Why T300 3K Twill Carbon Fiber Was Selected

Material and Appearance Requirements

This emblem was primarily an appearance component rather than a structural or load-bearing part. The material therefore needed to provide a premium visual effect, sufficient rigidity and reliable machining performance.

Glossy T300 3K twill carbon fiber met these requirements. Its diagonal woven pattern created the recognizable carbon fiber appearance commonly used in performance and customized automotive applications.

The glossy finish increased the visual depth of the weave and allowed the pattern to reflect light from different viewing angles. This made the emblem more noticeable after installation and complemented its sharp, angular design.

Carbon fiber also helped keep the part lightweight. This was beneficial because the emblem would be mounted with adhesive instead of bolts or other mechanical fasteners.

Another advantage was the rigidity of the cured carbon fiber sheet. Although the design included long pointed sections and narrow connections, the finished emblem could maintain a well-defined profile during handling and installation.

The selected material was also compatible with the required secondary operations, including CNC cutting, chamfering, masking and localized edge painting.

Key Machining Challenges

Weave Alignment and Surface Protection

The direction of the 3K twill weave had a direct effect on the final appearance of the emblem. Unlike a plain-colored sheet, carbon fiber has a visible diagonal pattern that becomes part of the product design after cutting.

Before machining, the emblem outline was positioned carefully on the carbon fiber sheet. The layout considered the direction of the weave, the orientation of the emblem after installation and the visual balance between its left and right sections.

The glossy sheet was also inspected for scratches, resin marks or other cosmetic defects. Since the front face would remain visible, the part had to be placed within a clean section of material.

Surface protection continued throughout machining and handling. Carbon fiber dust, loose fixtures or rough contact surfaces could easily leave marks on the glossy finish.

Sharp Corners, Narrow Sections and Edge Quality

The emblem contained multiple pointed ends, narrow connections and rapid changes in contour direction. These details made the part more difficult to machine than a simple rounded profile.

Sharp tips have limited surrounding material and can chip or break if the cutting force is too high. Narrow sections may also vibrate or become unstable as the surrounding sheet is removed.

Carbon fiber presents an additional challenge because the cutting tool passes through both reinforcing fibers and cured resin. Poorly controlled machining can produce:

  • Edge fraying

  • Fiber pull-out

  • Chipping

  • Burrs

  • Local delamination

For this project, edge quality was particularly important because the machined profile would later be chamfered and painted. A damaged edge could affect both the consistency of the chamfer and the appearance of the paint finish.

The cutting strategy therefore focused on maintaining part stability and reducing sudden tool loads around delicate areas.

Consistent Chamfering

The chamfer was a visible design feature rather than only an edge-breaking operation. Once painted, any variation in chamfer width would become more noticeable.

The chamfer needed to remain consistent along straight sections, angled contours, sharp tips and narrow transitions. Excessive material removal near a pointed end could shorten or round the original design.

For this reason, the profile cutting stage first had to produce a clean and accurate edge. The chamfering process could then follow the completed contour with better visual consistency.

CNC Machining Process

Drawing Review and Material Preparation

Production started with a review of the customer’s design file. The outline was checked for open paths, overlapping curves, narrow features and areas that could be difficult to reproduce with the selected cutting tool.

The overall dimensions, installation direction and final orientation of the emblem were also confirmed before toolpath preparation.

After the drawing was prepared, the glossy T300 3K twill sheet was inspected and positioned according to the required weave direction. The material layout prioritized visual balance and surface quality rather than material utilization alone.

The sheet was then secured to the CNC engraving and cutting machine. The workholding method needed to keep the material flat and stable without scratching or marking the glossy surface.

Before cutting, the setup was checked for:

  • Correct material orientation

  • Stable workpiece positioning

  • Adequate tool clearance

  • Surface protection

  • Dust extraction access

CNC Profile Cutting

The CNC machine followed the programmed toolpath to create the complete outline of the custom carbon fiber car emblem.

The cutting sequence was arranged to keep the part supported for as long as possible, particularly around the pointed ends and narrow connecting sections. Controlled tool movement helped reduce vibration and unnecessary stress on delicate features.

A suitable cutting tool and machining parameters were selected according to the carbon fiber sheet thickness and the complexity of the profile. The objective was to achieve clean edges rather than maximize cutting speed.

Dust was removed continuously during machining. Carbon fiber cutting produces fine abrasive dust, which can reduce visibility around the cutting path and scratch the glossy surface if allowed to accumulate.

Once the profile was complete, the emblem was separated carefully from the surrounding sheet. Extra force was avoided around the narrow sections and sharp tips.

Post-Machining Inspection

After CNC cutting, the part was cleaned and inspected before moving to the finishing stage.

The inspection focused on:

  • Overall profile accuracy

  • Completeness of sharp tips

  • Condition of narrow sections

  • Edge chipping or fraying

  • Local delamination

  • Surface scratches

  • Visible machining marks

Only a stable and accurately machined profile could support a uniform chamfer and a clean painted finish.

Chamfering and Painted Edge Finishing

Chamfer Machining

The specified edges were chamfered after the main profile had been completed.

Chamfering created a visible transition between the glossy carbon fiber front face and the outer edge of the emblem. It also provided a more suitable surface for the required paint finish.

The machining depth was controlled to maintain a balanced chamfer width around the design. Particular attention was given to sharp corners and pointed ends, where excessive cutting could alter the original shape.

After chamfering, the surfaces were checked for continuity, loose fibers and uneven tool marks.

Masking and Edge Painting

The customer requested paint only on the chamfered surfaces. The glossy 3K twill face therefore needed to be protected before painting.

The visible carbon fiber area was masked carefully, leaving only the required chamfered sections exposed. This helped prevent overspray and maintained a clear boundary between the carbon fiber face and the painted edge.

The chamfers were then coated to create a more uniform and finished outline. The paint also reduced the visibility of the raw machined composite edge.

After curing, the masking was removed and the part was inspected for:

  • Even paint coverage

  • Clean paint boundaries

  • Missed areas

  • Runs or excessive paint buildup

  • Overspray on the glossy face

Unpainted Bonding Surface

The rear face of the emblem was intentionally left unpainted.

Since this side would be used for adhesive mounting, avoiding an additional paint layer helped preserve a direct bonding surface. It also prevented the adhesion performance from depending on the strength of the paint-to-carbon-fiber interface.

Before delivery, the rear face was kept clean and free from finishing residues so that the customer could apply a suitable automotive adhesive or backing tape during installation.

Quality Inspection

Profile, Surface and Paint Inspection

As an automotive appearance part, the emblem required inspection of both its geometry and cosmetic finish.

The final quality check covered the following areas:

Profile and dimensions:
The overall outline, pointed ends, narrow connections and intersecting contours were compared with the approved design.

Carbon fiber surface:
The glossy 3K twill face was checked for scratches, contamination, resin defects and damage caused during machining or handling.

Machined edges:
The edges were examined for fraying, chipping, loose fibers and visible delamination.

Chamfer consistency:
The chamfer width and continuity were reviewed from different viewing angles, especially around sharp transitions.

Paint finish:
The painted surfaces were checked for uniform coverage, clean boundaries, overspray, missed areas and visible paint defects.

Bonding face:
The rear surface was confirmed to be unpainted, flat and clean for the customer’s subsequent adhesive installation.

Finished Product and Project Results

Final Appearance

The completed emblem retained the clear diagonal pattern of glossy 3K twill carbon fiber across its visible face.

Its long angular sections, sharp tips and central intersecting contours remained well defined after machining. The painted chamfers created a clean visual border around the part and increased the contrast between the front surface and the edges.

The combination of real carbon fiber, a glossy finish and a customized profile gave the emblem a lightweight and performance-oriented appearance suitable for automotive decoration.

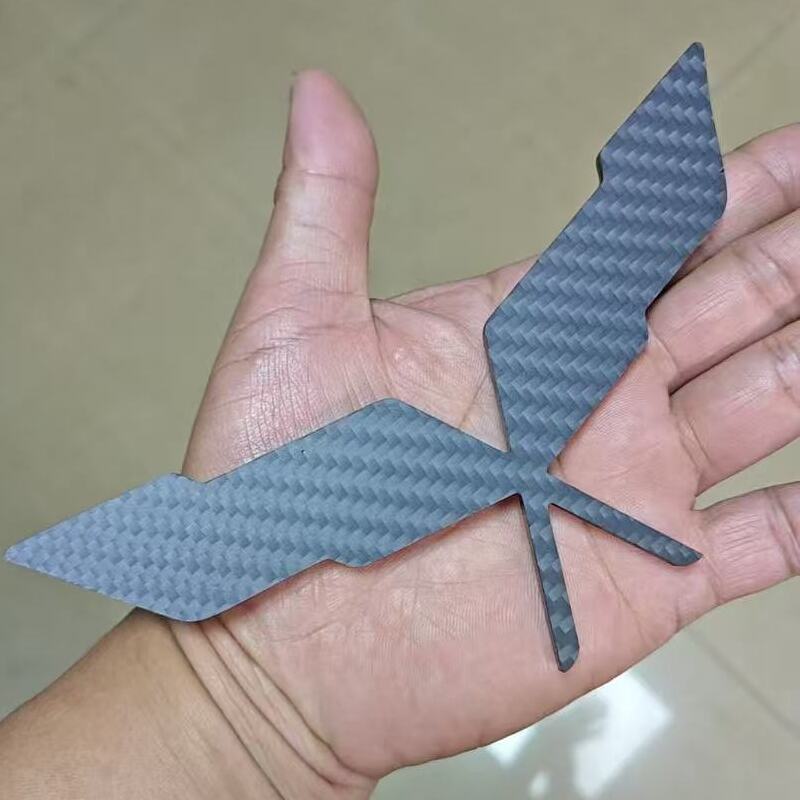

Handheld custom carbon fiber automotive emblem showing actual size.jpg

Adhesive Vehicle Installation

The finished part was designed to be attached directly to the vehicle with adhesive.

Before installation, the vehicle surface should be cleaned and prepared according to the adhesive supplier’s instructions. The adhesive or backing tape should also be selected according to the mounting surface, operating temperature and exterior-use requirements.

The unpainted rear face provided the required surface for this installation method without the need for holes or mechanical fasteners.

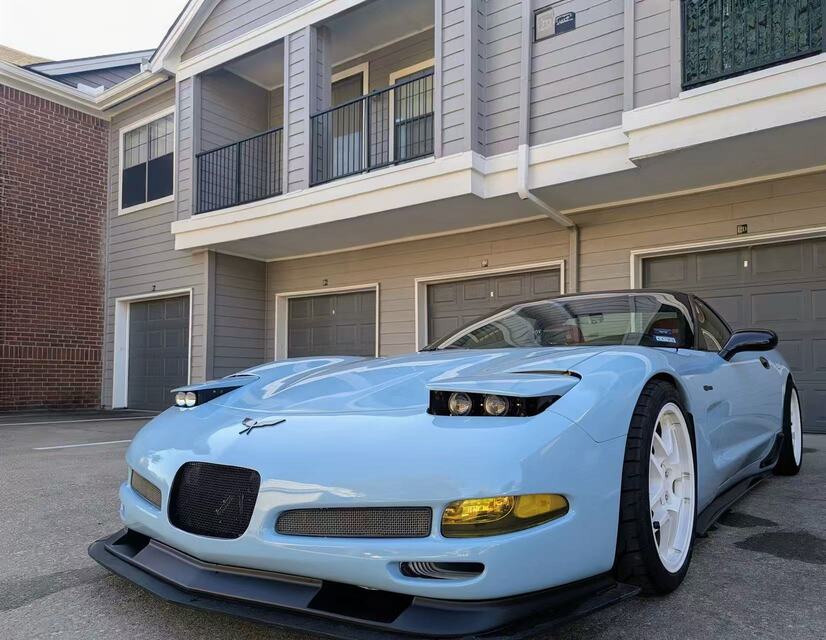

CNC-machined T300 3K twill carbon fiber car emblem after installation.jpg

Requirements Achieved

The completed project met the customer’s key requirements:

  • Custom emblem profile produced from the supplied design

  • Glossy T300 3K twill carbon fiber material

  • Controlled weave orientation

  • Clean CNC-machined sharp corners and narrow sections

  • Consistent chamfered edges

  • Painted chamfer surfaces

  • Protected glossy carbon fiber face

  • Unpainted rear bonding surface

  • Suitable for adhesive mounting on the vehicle

The project demonstrated how CNC machining and localized finishing can be combined to produce a customized carbon fiber automotive emblem with both detailed geometry and a refined appearance.

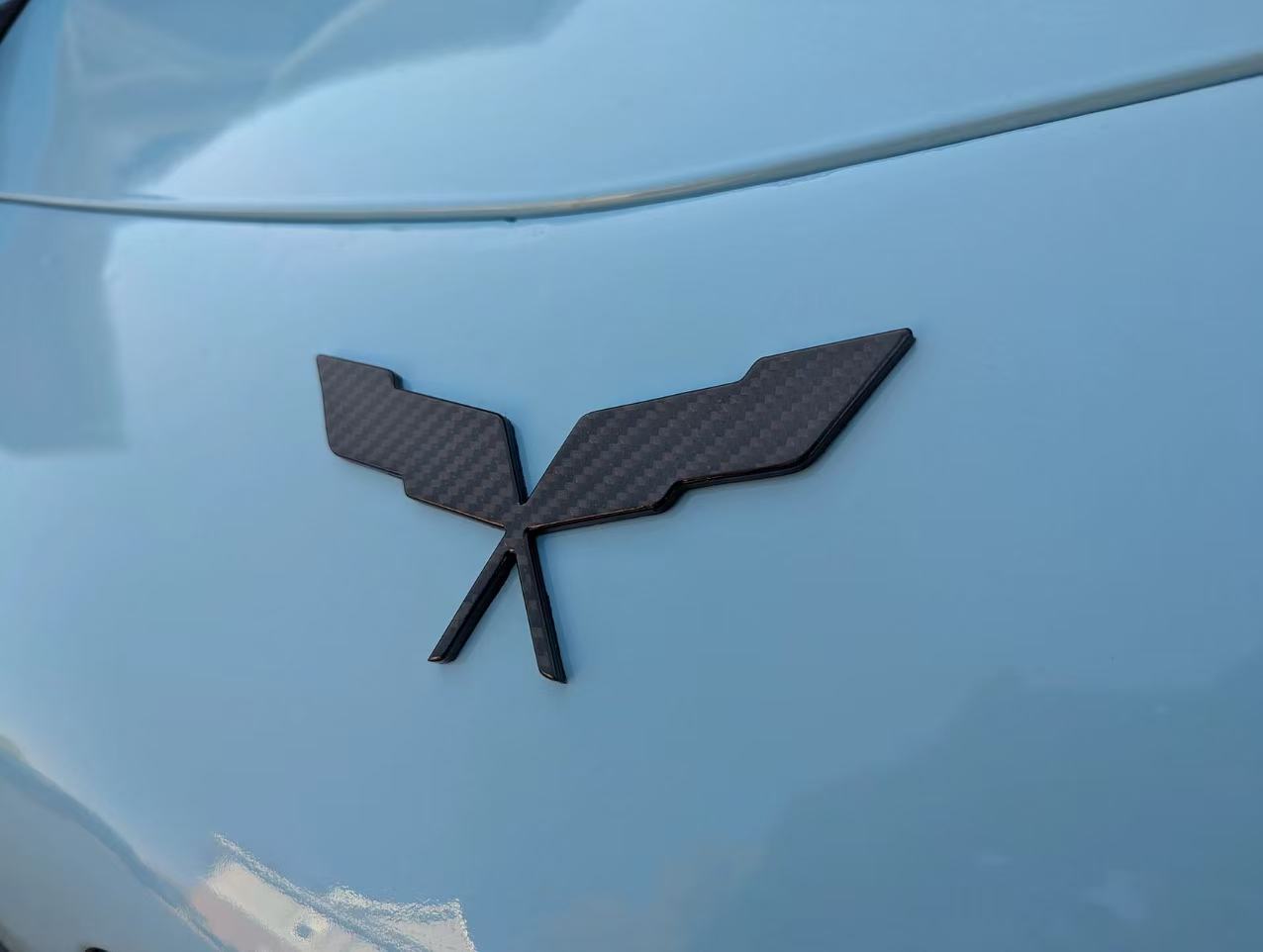

Light blue sports car featuring a custom CNC-machined carbon fiber emblem.jpg
