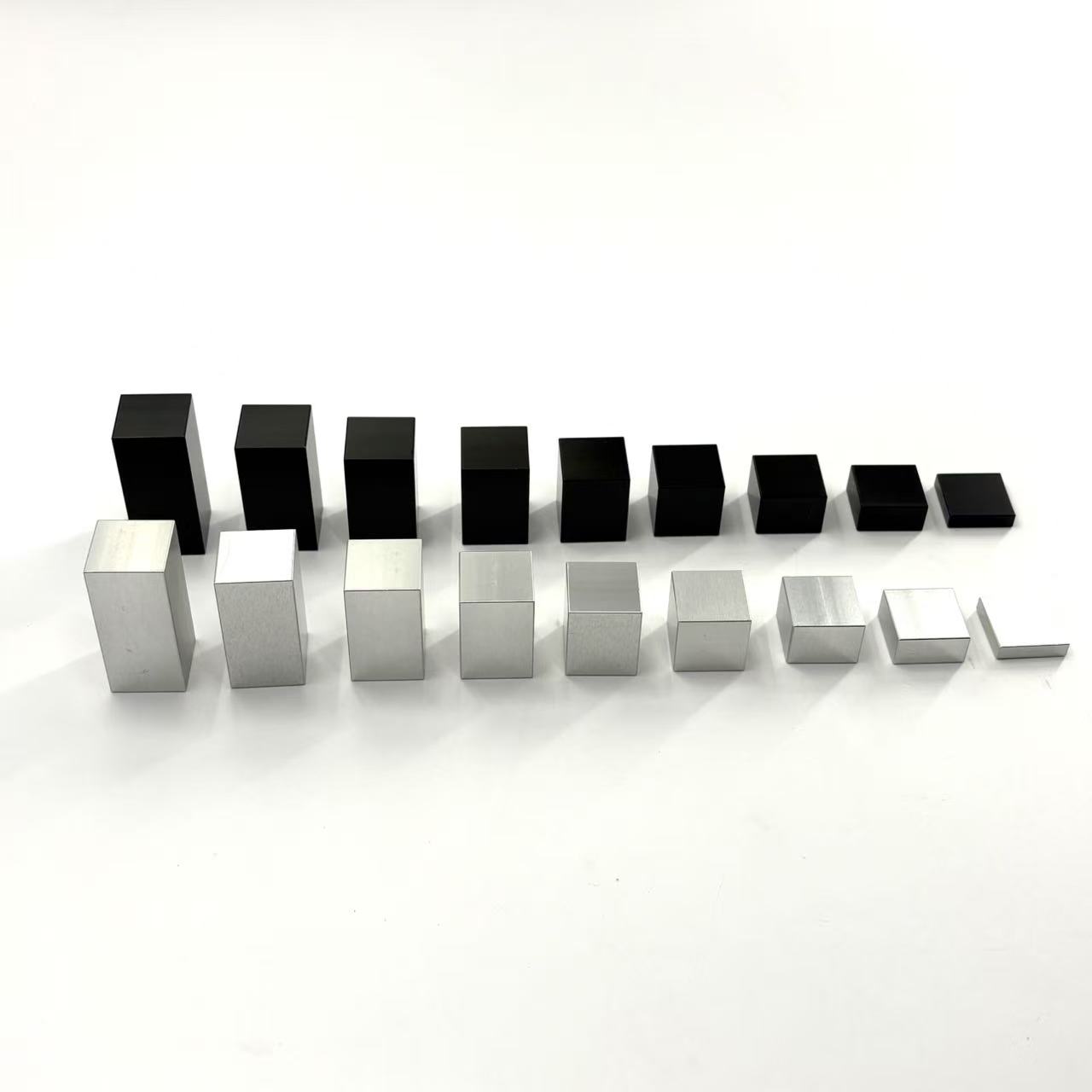

This CNC machining case study showcases how NAITE TECH produced high-precision aluminum blocks for a gaming equipment manufacturer in the Czech Republic. The project required tight tolerances, premium surface finishing, and stable medium-batch production to ensure both structural strength and visual quality for gaming device components.
--------------------------------------------------------------------------------------------------------------------------------------------------------------
| Item | Details |
|---|---|
| Product Name | Gaming Aluminum Block |
| Industry | Gaming Equipment / Entertainment |
| Client Location | Czech Republic |
| Material | Aluminum Alloy (AL6061-T6) |
| Manufacturing Process | CNC Milling |
| Surface Finish | Sandblasting + Anodizing (Custom Color) |
| Tolerance Requirement | ±0.01 mm |
| Production Volume | Medium Batch Production |
| Application | Structural & Functional Component for Gaming Device |
| Delivery Mode | Air Freight |
◆ High-precision CNC milling with tolerance up to ±0.01 mm
◆ Premium sandblasted anodized finish for visual consistency
◆ Stable medium-batch CNC production capability
◆ Optimized machining strategy for aluminum gaming components
--------------------------------------------------------------------------------------------------------------------------------------------------------------
In this CNC machining project, the Czech gaming equipment manufacturer required precision aluminum blocks used as structural components in a gaming device. The project presented several manufacturing challenges:
◆ Tight tolerance requirements to ensure accurate assembly with internal gaming hardware
◆ High cosmetic standards for visible aluminum components
◆ Consistent anodizing color across medium-batch production
◆ Efficient machining strategy to maintain cost control while meeting precision requirements
These requirements demanded both advanced CNC machining capability and stable finishing quality.
--------------------------------------------------------------------------------------------------------------------------------------------------------------
NAITE TECH provided a comprehensive CNC machining solution designed to achieve both precision and appearance quality.
Our engineering team implemented the following strategies:
◆ Performed DFM analysis to optimize machining paths and minimize unnecessary tool movement
◆ Selected high-precision CNC milling centers suitable for aluminum alloy machining
◆ Applied optimized cutting parameters to reduce tool wear and maintain dimensional accuracy
◆ Introduced uniform sandblasting preparation before anodizing to ensure consistent surface texture
◆ Controlled anodizing parameters to achieve the client's required custom color finish
This integrated process ensured both structural precision and premium visual quality.
◆ CNC Equipment: High-precision 3-axis CNC milling centers
◆ Primary Operations:
CNC rough milling
Precision finish milling
Drilling and tapping
◆ Surface Treatment Process:
Sandblasting for uniform texture
Custom anodizing for corrosion resistance and appearance
◆ Quality Inspection:
Dimensional inspection using precision gauges
Visual inspection for anodizing consistency
Final quality verification before packaging
This machining strategy ensured stable dimensional accuracy and consistent cosmetic quality throughout production.
| Stage | Time Required |
|---|---|
| Engineering Review & DFM Analysis | 1–2 Days |
| CNC Programming & Fixture Preparation | 2 Days |
| CNC Machining Production | 5–7 Days |
| Surface Treatment (Sandblasting + Anodizing) | 3–4 Days |
| Quality Inspection & Packaging | 1 Day |
| International Shipping (Air Freight) | 3–5 Days |
To ensure consistent dimensional accuracy and surface quality, NAITE TECH implemented a multi-stage inspection process during production.
Inspection Methods Used
First Article Inspection (FAI) before batch production
In-process dimensional inspection during CNC machining
Surface finish inspection before anodizing
Final visual and dimensional inspection before shipment
Measurement Tools
Digital calipers
Height gauges
Precision micrometers
All parts were inspected to ensure they met the ±0.01 mm tolerance requirement specified by the client.

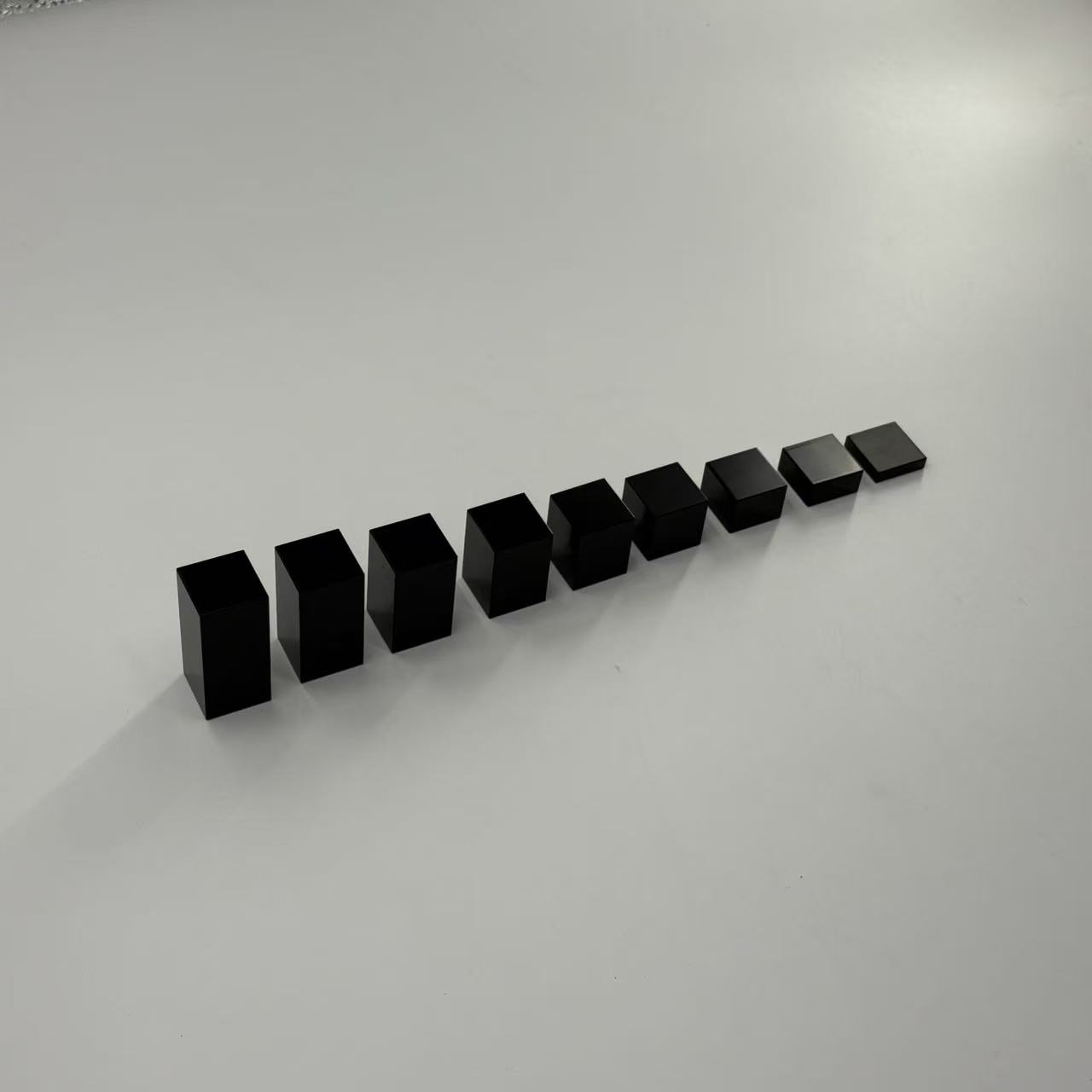

The gaming aluminum blocks required both structural precision and high cosmetic quality. To achieve this, the parts underwent a two-step surface finishing process.
Sandblasting
Sandblasting created a uniform matte texture across the aluminum surface. This process removes minor machining marks and improves the consistency of the final anodized finish.
Anodizing (Custom Color)
After sandblasting, the parts were anodized with a custom color specified by the client. Anodizing provides:
Improved corrosion resistance
Enhanced wear resistance
Premium visual appearance suitable for gaming devices
This finishing combination is commonly used in high-end electronic and gaming hardware components.
◆ Tolerance Achievement: Stable precision maintained at ±0.01 mm
◆ Surface Finish Quality: Uniform sandblasted anodized finish across all parts

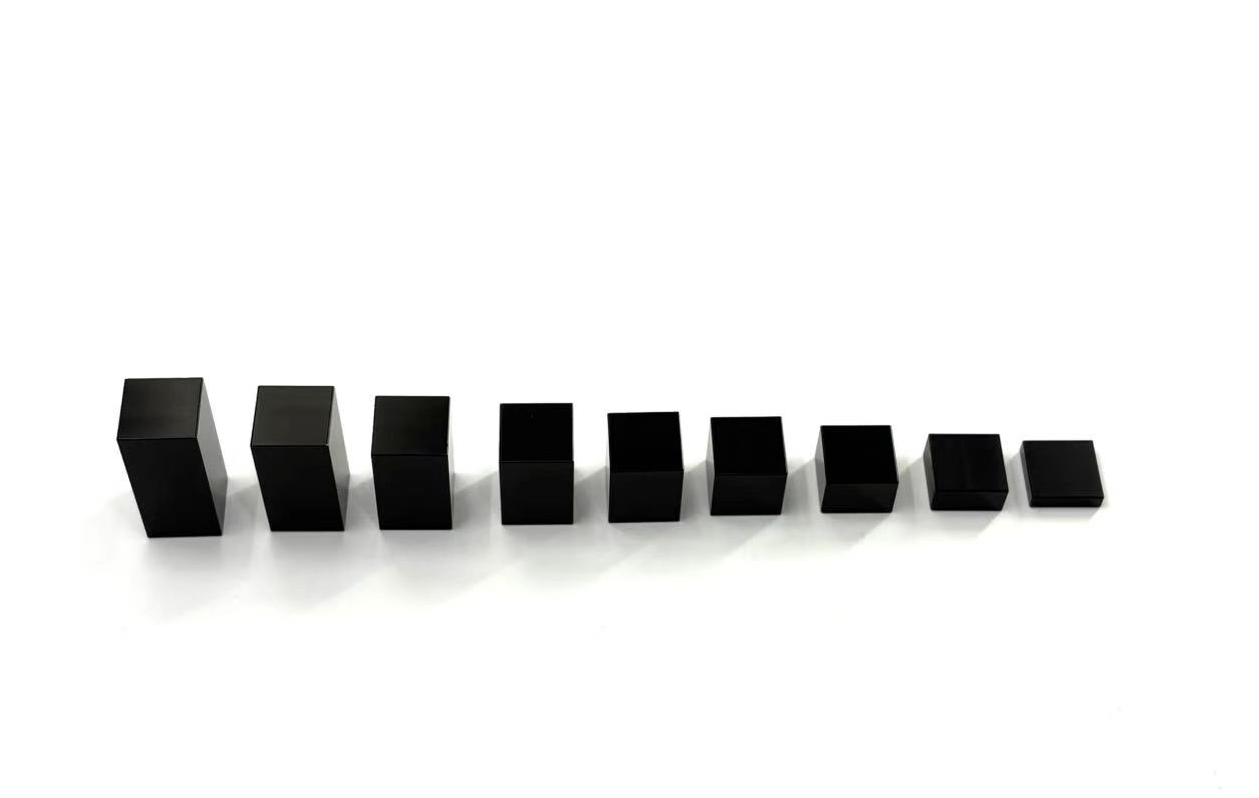

◆ Production Stability: Consistent quality throughout the entire medium-batch production
◆ Customer Satisfaction: Components met both structural and aesthetic requirements
This CNC machining case study highlights NAITE TECH’s ability to produce high-precision aluminum components for gaming and entertainment equipment manufacturers.
Similar CNC machined aluminum components are widely used in:
◆ Gaming machine structural parts
◆ Electronic device housings
◆ Entertainment equipment components
◆ Precision aluminum mechanical assemblies
--------------------------------------------------------------------------------------------------------------------------------------------------------------
This project demonstrates NAITE TECH’s strengths in:
◆ Precision CNC machining of aluminum components
◆ Cosmetic-grade anodized aluminum finishes
◆ Medium-batch CNC production for hardware manufacturers
◆ Engineering support to optimize manufacturability
