Custom 6061-T6 Aluminum Intake Manifold Machined for a Canadian Customer

Project Overview

This project involved the prototype manufacturing of a custom billet aluminum intake manifold for an automotive modification customer in Canada. The complete component was machined from a solid block of 6061-T6 aluminum using five-axis CNC equipment, rather than being cast or fabricated from several welded sections.

The intake manifold combined multiple demanding features in one part, including a large enclosed plenum, several intake runners, precision mounting flanges, threaded ports, external mounting features, and a machined throttle-body interface. Its internal cavities and curved passages also required machining from several directions.

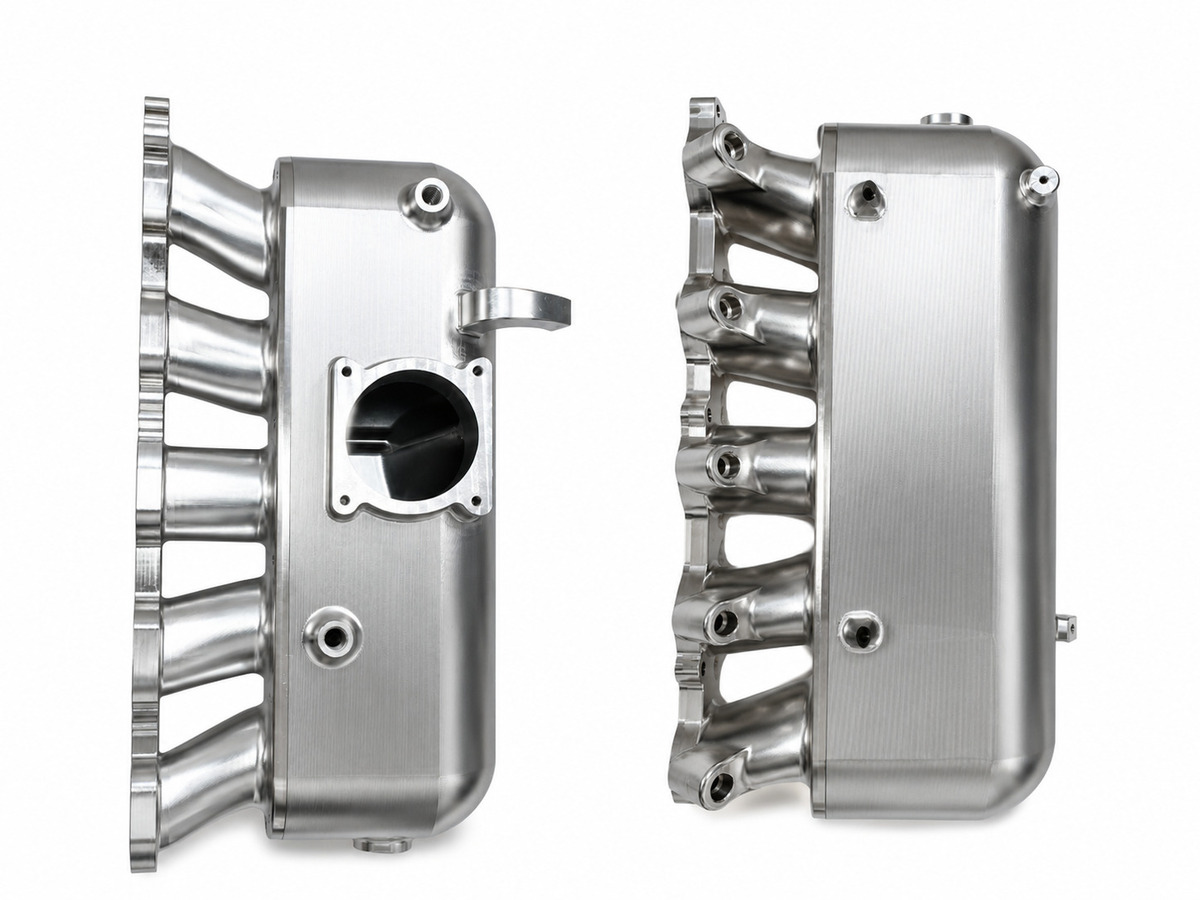

At first glance, the finished manifold may look like a polished automotive component with a relatively straightforward rectangular plenum. Look closer, however, and the manufacturing challenge becomes clear. Nearly every surface serves a purpose. The runners must connect correctly, the ports must align with mating components, and the mounting features must remain in the correct position after a large amount of material has been removed.

The project formed part of our custom automotive parts manufacturing work, supporting the customer from prototype evaluation toward planned batch production.

Because this was a functional automotive prototype, appearance alone was not enough. The customer placed particular importance on two requirements: the critical dimensions had to match the supplied design, and the customer-specified logo had to be engraved clearly in the correct position.

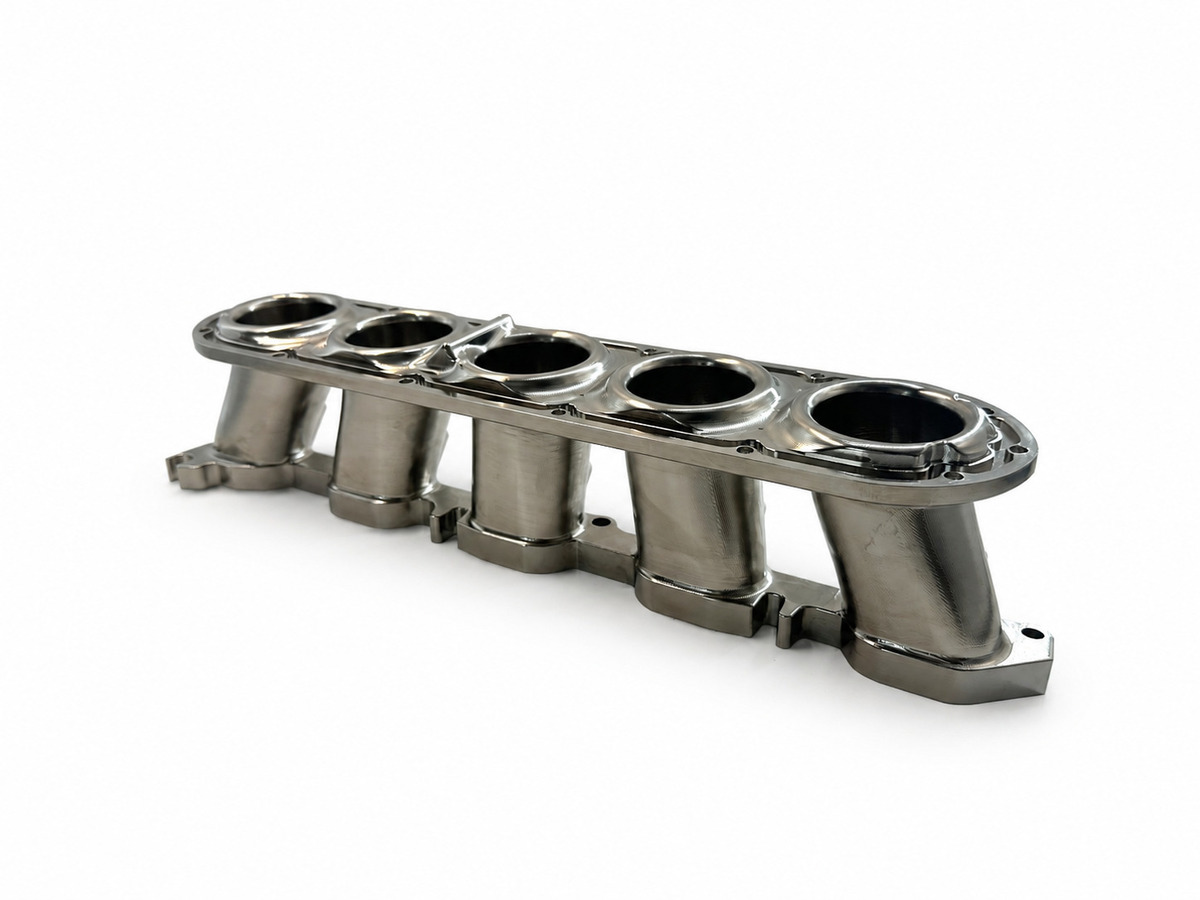

Once machining and inspection were complete, the part received an electroless nickel-plated finish. The final treatment created a consistent metallic appearance across the manifold’s external surfaces, runners, ports, and detailed machined features.

Customer Requirements

The Canadian customer needed a custom intake manifold for an automotive modification project. The first order was intended as a functional prototype that could be reviewed before moving into batch production.

The main project requirements included:

• Manufacturing the intake manifold from solid 6061-T6 aluminum billet

• Using five-axis CNC machining for the complex multi-sided geometry

• Maintaining the critical mounting dimensions from the supplied design

• Accurately machining the plenum, intake runners, flanges, ports, and internal cavities

• Producing correctly positioned mounting holes and threaded features

• Engraving the customer-specified logo with clean and recognizable details

• Removing machining burrs and residual chips from internal and external areas

• Applying an electroless nickel-plated finish after machining and inspection

• Producing a prototype suitable for evaluation before batch manufacturing

One of the customer’s main concerns was dimensional correctness. An intake manifold cannot be judged only by how clean or attractive it looks. The mounting faces, ports, holes, and interfaces must align correctly with the related automotive components.

A small positional error in a decorative part may only affect appearance. In an intake manifold, that same type of error may interfere with assembly. That is why the project required careful control of the relationship between the different machined surfaces, rather than inspection of each feature in isolation.

The logo also needed special attention. Its position, orientation, depth, and edge definition had to match the approved design. It also needed to remain clearly visible after electroless nickel plating, so the engraving could not be treated as a minor final detail.

Component Specifications

Machining the part from a single block allowed the customer’s custom geometry to be produced without relying on a standard casting or a welded multi-piece construction. It also meant that the plenum, runners, ports, and mounting features had to be planned as one connected machining project.

After receiving and reviewing the completed prototype, the customer was satisfied with its machining quality, dimensional result, engraved details, and final plated appearance. Based on this prototype evaluation, the customer is preparing to move the project into batch production.

Why the Manifold Was Machined from Solid 6061-T6 Aluminum

Material and construction method had a direct influence on how this prototype could be manufactured.

Instead of using a cast intake manifold or welding several separately machined sections together, the customer required the component to be produced from a solid block of 6061-T6 aluminum. This billet construction allowed the complete plenum, intake runners, mounting faces, ports, bosses, and external features to be developed around the supplied three-dimensional design.

That approach created more machining work, but it also gave the customer greater freedom over the final geometry. The component did not need to follow the limitations of an existing casting pattern or a standard production manifold.

For a custom automotive prototype, that flexibility was important. The part included a combination of enclosed cavities, angled runners, mounting interfaces, and external details that needed to function as one connected component.

Billet Construction Instead of Casting or Welding

The prototype was machined from one solid aluminum billet. It was not produced as a casting, and the main body was not assembled by welding multiple runners and plenum sections together.

This distinction matters because each manufacturing method creates different design and production considerations.

Casting can be suitable for larger production quantities, but it normally requires dedicated tooling and a design developed around the casting process. For a prototype or custom automotive project, producing casting tooling may add time and cost before the first functional component can be evaluated.

A fabricated intake manifold can be built from separate tubes, plates, and plenum sections. However, this approach introduces welded joints and additional assembly operations. The position of each section must be controlled during fabrication, and the welded assembly may still require machining afterward to finish critical mounting surfaces and interfaces.

Billet machining followed a different route. We started with a solid block and progressively removed material until the required external and internal geometry remained.

You can think of it as revealing the finished component from inside the raw material. Every runner, mounting boss, flange, threaded port, and cavity had to be considered during the machining plan.

The billet approach offered several practical advantages for this project:

• The geometry could follow the customer’s CAD design closely.

• Critical features could be referenced within one machining plan.

• The part did not depend on casting tooling.

• The main structure did not contain welded joints.

• Design changes could be introduced through revised machining data.

• The prototype could establish a reference for future batch production.

The main trade-off was material removal. A large portion of the original aluminum billet had to be machined away to create the enclosed plenum and runner geometry.

This made process planning especially important. If too much material were removed from one area too early, the remaining structure could lose stability. The roughing sequence therefore needed to preserve suitable support while preparing the part for later precision finishing.

Billet construction also increased the importance of tool access. Some surfaces were positioned at different angles, while others were located inside the plenum or around the runners. Five-axis CNC machining allowed the tool to approach these areas from multiple directions without treating the part as a series of unrelated faces.

Why 6061-T6 Aluminum Was Suitable for the Prototype

6061-T6 aluminum was selected for the intake manifold because it was compatible with the project’s machining, structural, and finishing requirements.

The material could be used for both heavy roughing and detailed finishing operations. This was necessary because the manufacturing process involved two very different stages.

During rough machining, the CNC equipment needed to remove a large amount of material from the solid billet. During finishing, the same component required accurate mounting faces, ports, threads, curved runner surfaces, and engraved details.

Our aluminum CNC machining services support parts with this combination of deep cavities, multi-directional features, precision interfaces, and detailed surface requirements.

6061-T6 was suitable for machining features such as:

• Large internal cavities

• Curved intake runners

• Precision mounting flanges

• Threaded ports

• Bolt holes

• External bosses

• Throttle-body interfaces

• Customer-specified logo engraving

The material also supported the customer’s requirement for electroless nickel plating after machining.

Surface treatment could not be considered separately from the base material. The machining process needed to produce clean edges, prepared surfaces, and accurately formed features before the part entered plating.

Any remaining burr, embedded chip, damaged thread, or poorly finished interface could affect the final result. For that reason, the 6061-T6 component had to be fully machined, deburred, cleaned, and inspected before surface treatment.

Weight was another practical consideration. An intake manifold includes a relatively large plenum and several runners, so the material choice affects the mass of the completed component. Aluminum allowed the customer to obtain a rigid machined assembly without using a substantially heavier metal for the entire part.

However, this prototype was not evaluated through material selection alone. Choosing 6061-T6 did not automatically guarantee a successful result.

The final quality depended on how the material was machined:

• Roughing had to remove material efficiently without compromising later reference surfaces.

• Deep cavities needed effective chip evacuation.

• Long tool reach had to be controlled to reduce vibration.

• Mounting faces needed to remain dimensionally accurate.

• Threads and ports required correct position and orientation.

• Cosmetic surfaces had to be suitable for plating.

• The engraved logo needed to remain clear after finishing.

In other words, the material provided the foundation, but the machining strategy determined whether the finished component met the customer’s requirements.

By combining solid-billet construction, 6061-T6 aluminum, and five-axis CNC machining, we were able to produce a functional prototype with customized geometry while retaining the accuracy needed for assembly and customer evaluation.

Key Challenges in Five-Axis CNC Machining

Machining an intake manifold from a solid block of aluminum is not simply a matter of removing material until the outside shape looks correct.

The part combines deep internal cavities, curved runners, mounting faces, threaded ports, and cosmetic features within one connected structure. Each machining step can affect the surfaces produced later, so the process must be planned as a complete sequence rather than a collection of separate operations.

For this prototype, the main challenges were reaching the complex geometry, maintaining the critical mounting dimensions, controlling the component as large amounts of material were removed, and producing a clean customer-specified logo that would remain visible after electroless nickel plating.

Complex Plenum and Intake Runner Geometry

The intake manifold included a large enclosed plenum connected to several individual runners. These features created a combination of deep cavities, curved surfaces, narrow transitions, and surfaces positioned at different angles.

A standard top-down machining approach would not provide efficient access to every area. Some runner surfaces needed to be approached from the side, while other features required the tool to follow angled or curved geometry around the main body.

Our five-axis CNC machining services allowed the cutting tool to approach the manifold from multiple directions while maintaining the required relationship between the plenum, runners, ports, and mounting features.

Five-axis machining was particularly useful for:

• Reaching angled runner surfaces

• Machining the external plenum geometry

• Accessing features around different sides of the component

• Producing curved transitions between connected surfaces

• Reducing unnecessary repositioning between operations

• Maintaining the relationship between multiple machined faces

This did not mean that the entire component could simply be completed without planning or additional positioning. The part still required a carefully developed sequence, stable workholding, and suitable reference surfaces.

The shape of the runners also affected the choice of tools and toolpaths. A short rigid tool may provide good stability but may not reach a deep internal area. A longer tool provides greater access, but the additional extension may increase vibration.

The machining strategy therefore needed to balance reach, rigidity, chip removal, and surface quality.

The plenum presented a similar challenge. Large cavities require significant material removal, but the remaining walls and surrounding structures must stay stable during the process. Roughing too aggressively could create vibration or affect the material left for finishing.

Instead of treating the cavity as one large volume to remove as quickly as possible, the roughing sequence needed to leave controlled material around the important surfaces until the component was ready for finishing.

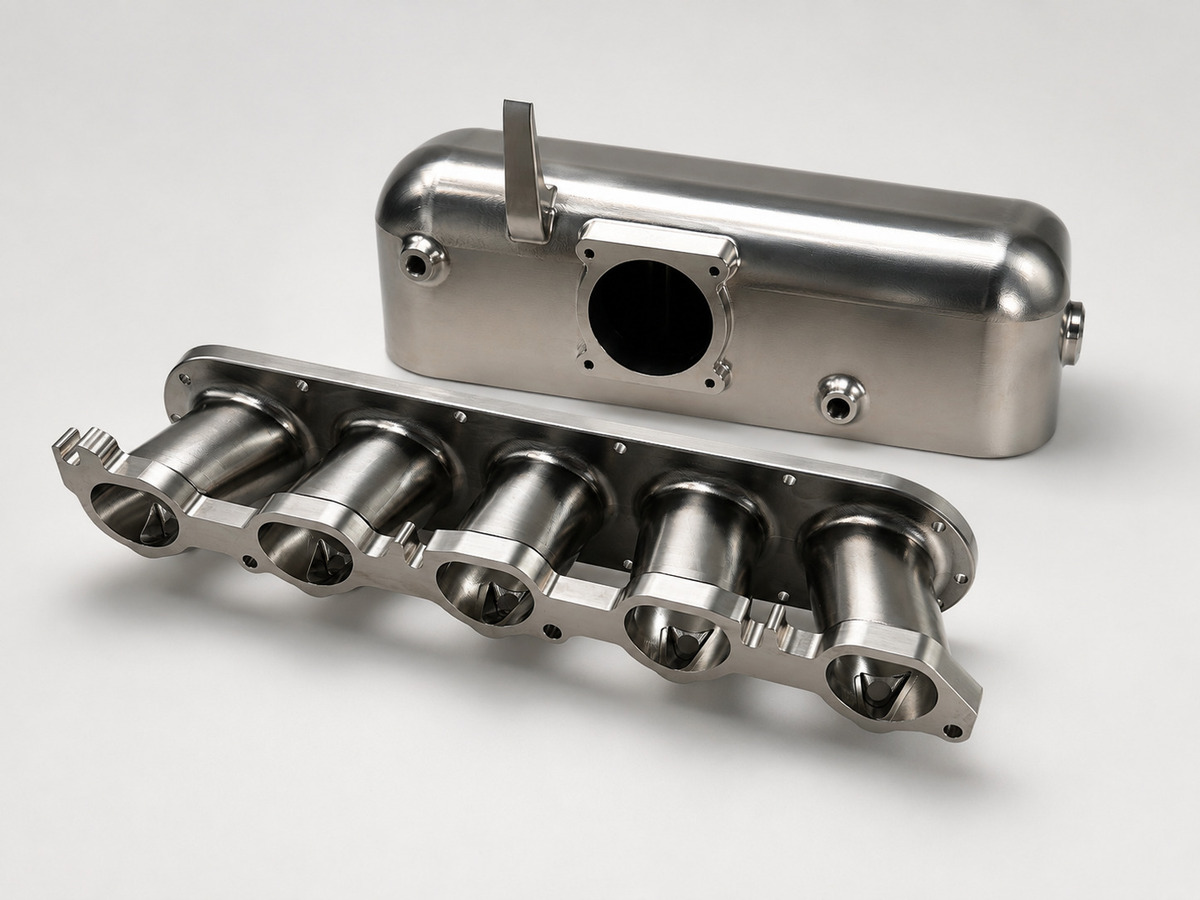

Maintaining Critical Mounting Dimensions

For a custom intake manifold, a good-looking finish is not enough. The component must also fit correctly with the related automotive hardware.

The customer emphasized that the dimensions needed to match the supplied design. This included more than the overall length and width of the part.

The critical relationships included:

• The positions of the intake ports

• The locations of mounting holes

• The throttle-body interface

• The orientation of threaded ports

• The spacing between runners

• The position of the flange surfaces

• The relationship between different mounting faces

• The alignment of external bosses and connection features

Why is this more difficult than checking one hole or one surface?

Because each feature is connected to the rest of the component. A port may be machined to the correct diameter but still create an assembly problem if its position is incorrect relative to the mounting flange. Likewise, an individual face may be flat, but it may not align correctly with another interface on the opposite side of the manifold.

The machining process therefore relied on stable datum references and a controlled sequence.

Reference surfaces were established and preserved so that later features could be machined according to the same coordinate relationship. Each time the tool approached the component from a new direction, the position of that operation still needed to remain connected to the approved model.

The mounting faces also required attention after heavy rough machining. Removing a large volume of material changes the stiffness of the workpiece. A surface machined too early could shift slightly as more surrounding material was removed.

For that reason, critical faces were not treated as isolated early operations. The sequence allowed major material removal to take place before the final finishing of important installation features.

This approach helped maintain the intended relationship between the manifold’s runners, ports, flanges, and external connections.

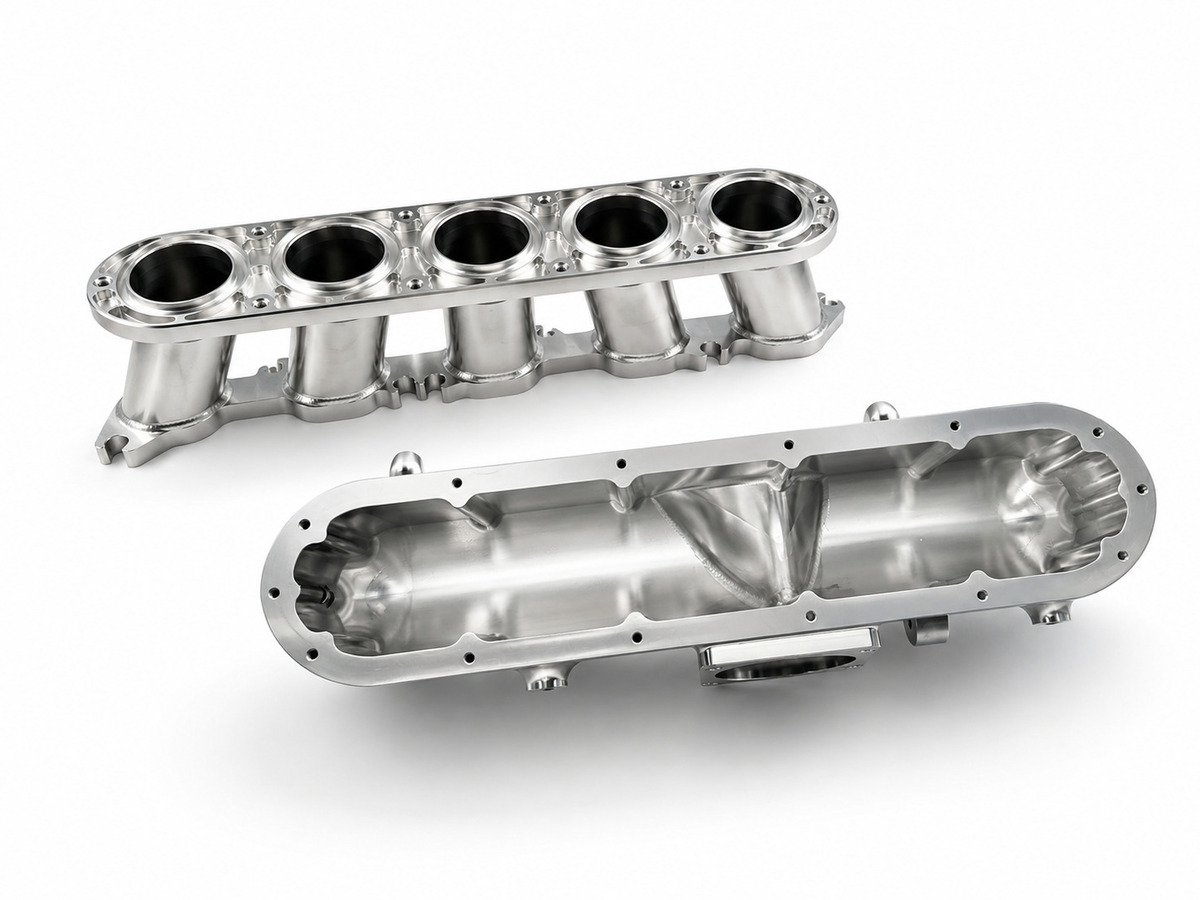

Deep Cavity Machining and Chip Evacuation

The enclosed plenum created a deep internal cavity that required both effective tool access and reliable chip evacuation.

As the tool cuts deeper into an aluminum billet, chips have fewer paths to leave the machining area. If they remain inside the cavity, they may be recut by the tool.

Recutting chips can affect:

• Internal surface quality

• Tool performance

• Cutting temperature

• Process stability

• Visibility during inspection

The problem becomes more noticeable in corners, around curved transitions, and near the bottom of a deep cavity.

Imagine trying to clean a deep container while continuing to add more debris. Unless the removed material has somewhere to go, the work area quickly becomes crowded.

The CNC process therefore needed suitable chip-clearing methods and machining paths that did not trap excessive material inside the plenum.

Tool extension was another consideration. Deeper areas may require a longer reach, but increasing the tool length can reduce rigidity. Excessive vibration may leave visible tool marks or affect the accuracy of the finished surface.

The process balanced several factors:

• Tool diameter

• Tool length

• Cutting depth

• Machining direction

• Material-removal rate

• Chip evacuation

• Remaining wall thickness

• Final finishing allowance

Rough machining removed the majority of material while leaving a controlled amount for later finishing. The finishing passes then produced the required cavity and transition surfaces without relying on aggressive cutting loads.

Internal inspection was also important. Once machining was complete, the cavity needed to be checked for remaining chips, loose burrs, and areas that had not been fully cleaned.

A chip left inside an external pocket is easy to notice. A chip trapped deep inside an intake manifold is much easier to miss. The internal cleaning process therefore formed part of the quality control rather than being treated as a basic cosmetic step.

Controlling Movement During Heavy Material Removal

Starting with a solid aluminum billet meant that a large percentage of the original material had to be removed.

At the beginning of the process, the billet was thick and rigid. As the plenum, runners, external surfaces, and ports were progressively machined, the remaining component became lighter and less uniform.

This change can affect machining stability.

Sections that were well supported during early roughing may become more sensitive after nearby material has been removed. Wide surfaces, thinner walls, and extended runner areas may respond differently to cutting forces than the original solid block.

The machining sequence was therefore planned to preserve rigidity where possible.

This included:

• Maintaining stable clamping areas during roughing

• Removing material progressively

• Leaving finishing allowance on critical surfaces

• Avoiding unnecessary heavy cutting near completed features

• Completing important dimensions after major roughing operations

• Checking reference surfaces before final machining

The goal was not to claim that aluminum never moves during machining. Rather, the process was designed to reduce unnecessary variation and maintain reliable reference surfaces as the geometry developed.

This was especially important because the finished prototype needed to support customer evaluation and potential batch production. A successful prototype should not only look correct once; it should also establish a machining approach that can be repeated consistently.

Logo Engraving and Position Accuracy

The customer-specified logo was a small feature compared with the overall intake manifold, but it remained an important visual requirement.

Logo engraving can easily appear simple. The tool follows a graphic path, creates the marking, and the operation is complete. In practice, the final quality depends on several details.

The engraving needed to have:

• The correct position

• The correct orientation

• Clear line definition

• Consistent depth

• Clean edges

• Suitable spacing from surrounding features

• Sufficient visibility after plating

The logo was positioned according to the approved design rather than placed by visual estimation.

Its location needed to work with the surrounding machined surfaces. If it were too close to an edge, port, or curved transition, the marking could appear unbalanced or become difficult to machine cleanly.

Engraving depth also required control. A marking that was too shallow might lose definition after surface finishing. A marking that was too deep could create unnecessarily heavy edges or affect the intended appearance.

The logo operation was completed after the major external geometry had been established. This reduced the risk of later heavy machining affecting the engraved area.

After engraving, the marking was checked for:

• Complete graphic outlines

• Missing sections

• Edge burrs

• Uneven depth

• Incorrect orientation

• Surface scratches around the logo

The final electroless nickel-plated finish needed to cover the engraved area while leaving the customer’s design clearly recognizable.

In this project, the logo was not treated as decoration added at the last moment. It was included in the machining and inspection plan from the beginning, alongside the mounting dimensions and functional interfaces.

Five-Axis CNC Machining Process

Once the material, geometry, and critical dimensions had been reviewed, the project moved into production.

Because the intake manifold was machined from a solid block of 6061-T6 aluminum, the process involved much more than finishing a few external surfaces. A large volume of material had to be removed before the plenum, intake runners, mounting interfaces, ports, and internal cavity could take shape.

The complete machining plan was divided into controlled stages:

• CAD and drawing review

• Workholding and datum planning

• Heavy rough machining

• Plenum and runner machining

• Multi-face finishing

• Flange and port machining

• Thread production

• Logo engraving

• Deburring and internal cleaning

• Pre-plating inspection

Each stage prepared the component for the next. This was particularly important because machining one area could change the stiffness or accessibility of another.

CAD Review and Manufacturing Planning

Production began with a review of the customer’s three-dimensional model and technical requirements.

The purpose of this review was not simply to confirm the overall shape. We needed to understand how the functional features related to one another and how the cutting tools could reach them.

The review covered:

• Plenum dimensions

• Intake runner geometry

• Mounting flange positions

• Throttle-body interface

• Internal cavity depth

• Threaded port locations

• Bolt-hole patterns

• External bosses

• Customer-specified logo position

• Surfaces requiring final inspection

• Areas affected by electroless nickel plating

Tool accessibility was especially important.

A feature may look straightforward in a CAD model, yet be difficult to machine because another wall, runner, or flange blocks the cutting tool. Deep cavities can require extended-reach tools, while angled surfaces may need the workpiece or spindle to be repositioned.

Five-axis machining provided more approach directions, but the toolpath still had to avoid collisions between the tool holder, spindle, fixture, and workpiece.

Before machining began, we therefore planned:

• The initial billet orientation

• Workholding locations

• Primary datum surfaces

• Roughing sequence

• Tool lengths and diameters

• Five-axis positioning angles

• Finishing allowance

• Internal chip-removal strategy

• Final inspection references

A stable datum strategy was essential because the manifold contained features on several sides. The intake ports, throttle-body opening, threaded connections, and mounting holes all needed to remain positioned correctly relative to one another.

The machining plan treated the manifold as one complete component rather than a collection of unrelated surfaces.

Rough Machining from a Solid Aluminum Billet

The process began with a solid block of 6061-T6 aluminum substantially larger than the finished intake manifold.

During rough machining, the main objective was to remove excess material efficiently while preserving enough structure for stable later operations.

The initial roughing operations established:

• The main plenum volume

• The basic external profile

• Preliminary runner shapes

• Large open cavities

• Reference surfaces

• Areas reserved for clamping

• Material allowance for precision finishing

A large amount of aluminum had to be removed during this stage.

However, faster material removal was not the only goal. If the cutting strategy were too aggressive, it could create unnecessary heat, vibration, or uneven stress within the remaining component.

The roughing sequence therefore removed material progressively.

Instead of finishing one thin section while the rest of the billet remained solid, material was reduced in a planned order. This helped maintain support around important features and left consistent finishing allowance on critical surfaces.

Think of rough machining as building the foundation of the final part. The surfaces may not yet have their final finish or dimensions, but any error in the foundation can make every later operation more difficult.

Chip evacuation was also important during roughing. Large volumes of aluminum chips were generated as the plenum and external geometry developed. These chips needed to be removed effectively so they would not accumulate around the tool or be recut against machined surfaces.

The workpiece, tool condition, cutting sound, and chip flow were monitored throughout the process.

Five-Axis Machining of the Plenum and Intake Runners

After the majority of excess material had been removed, the intake manifold entered the more detailed five-axis machining stage.

This stage created the connected geometry between the plenum and multiple intake runners.

The runners were not simple straight holes. Their external surfaces, internal transitions, and relationship to the mounting flanges required machining from several directions.

Five-axis positioning allowed the tool to approach the component at more suitable angles for different surfaces. This helped with:

• Angled runner geometry

• Curved external transitions

• Areas between adjacent runners

• Features around the plenum walls

• Multi-directional port surfaces

• Complex corners with restricted access

Reducing unnecessary setups was another benefit.

Every time a component is removed and repositioned, there is a risk of introducing a small alignment difference. Five-axis machining allowed more features to be produced within coordinated setups while maintaining their relationship to the same reference system.

However, fewer setups do not mean no setup planning.

The manifold still needed secure support while allowing access to the surfaces being machined. Fixtures could not block the toolpaths, and clamping forces could not distort partially machined areas.

The internal and external runner surfaces were machined in stages. Roughing removed the main stock, semi-finishing created a more uniform allowance, and finishing produced the final geometry.

This staged approach helped control tool load and surface consistency.

Machining the Internal Plenum Cavity

The internal plenum required separate attention because it combined significant depth with enclosed surfaces and limited visibility.

The machining process needed to reach the cavity floor, side walls, curved transitions, and internal connection areas without damaging nearby features.

Extended-reach tools were used where necessary, but tool length had to remain controlled. A longer tool can reach deeper, yet it is also more sensitive to vibration and deflection.

The toolpath was therefore designed to avoid unnecessary heavy engagement in the deepest areas.

Machining the cavity involved:

• Progressive depth removal

• Controlled wall engagement

• Suitable corner radii

• Continuous chip evacuation

• Finishing passes on functional surfaces

• Inspection for remaining burrs and chips

The cavity could not be considered complete simply because the cutting program had finished. It also needed to be cleaned and visually checked.

Any remaining chip or loose burr could become difficult to remove after plating or assembly. Internal cleanliness was therefore treated as a functional requirement, not merely an appearance issue.

Flange and Mounting-Surface Machining

The intake manifold included several surfaces that would connect to other automotive components.

These mounting interfaces required more precise control than non-functional external areas because their positions affected assembly.

The flange machining stage produced:

• Intake-port openings

• Mounting faces

• Bolt-hole locations

• Sealing surfaces

• External locating features

• Related reference edges

The main mounting surfaces were finished after heavy material removal had been completed.

This sequencing reduced the risk that later rough machining would affect already completed critical faces.

The toolpaths were selected to create consistent surfaces while maintaining the specified geometry around the ports and bolt holes.

Each flange was considered together with the features that referenced it. For example, a mounting hole could not be evaluated only by its diameter. Its position relative to the intake port and flange edge also needed to match the customer’s model.

Throttle-Body Interface Machining

The manifold included a machined throttle-body connection on the plenum.

This interface combined a large circular opening, surrounding mounting features, and nearby external geometry. Its size and position needed to align with the customer’s design.

The machining operation included:

• Producing the main opening

• Finishing the surrounding face

• Machining mounting holes

• Controlling the opening position

• Creating related external bosses

• Checking the transition into the plenum

The throttle-body interface formed one of the most recognizable areas of the finished component, but it was also a functional connection.

For that reason, its appearance and dimensional requirements were considered together.

Threaded Ports and Mounting Holes

The intake manifold contained several smaller holes and threaded ports for mounting or connecting related components.

These features may occupy little surface area, but they can cause significant assembly problems if their specification, depth, or position is incorrect.

The machining plan controlled:

• Hole diameter

• Hole depth

• Thread specification

• Port orientation

• Distance from surrounding features

• Entry-surface condition

• Burr removal

Drilling and threading operations were completed according to the supplied design.

The entry edges were checked for burrs, while the threads were cleaned to remove chips and cutting residue.

Special attention was required for blind holes and ports connected to internal cavities. Chips trapped at the bottom of a hole or inside the plenum could remain hidden during a quick external inspection.

Cleaning therefore included both the visible hole entrance and the internal area beyond it.

Customer-Specified Logo Engraving

After the main geometry and functional surfaces had been established, the customer-specified logo was engraved in the approved location.

The marking operation required control of:

• Logo scale

• Position

• Orientation

• Engraving depth

• Toolpath continuity

• Edge definition

• Relationship to nearby features

The logo file was prepared as a clean machining path before engraving.

The cutting tool then followed the approved graphic while maintaining a consistent depth across the surface. The goal was to produce a marking that looked clean after machining and remained readable after electroless nickel plating.

The engraved area was inspected for incomplete lines, edge burrs, and uneven depth.

A logo may not influence the manifold’s airflow or mounting position, but it has a strong effect on the customer’s perception of the finished product. A complex part with an inaccurate or rough logo can still look unfinished.

That is why the engraving was handled as a controlled machining feature rather than an optional decorative step.

Deburring and Edge Finishing

Once all major machining operations were complete, the intake manifold moved into deburring and edge preparation.

CNC machining can leave small burrs around:

• Port openings

• Bolt holes

• Threaded features

• Flange edges

• Deep cavity transitions

• Engraved details

• Runner intersections

These burrs needed to be removed without changing the required dimensions or rounding important edges excessively.

External features were easier to access, while internal areas required more careful inspection.

The deburring process focused on achieving:

• Clean port edges

• Smooth handling surfaces

• Clear threaded entrances

• Burr-free mounting holes

• Clean internal cavity transitions

• Undamaged engraved details

The purpose was not to polish away every visible machining line. The objective was to remove unwanted sharp material and prepare the component for inspection and plating.

Internal Cleaning Before Inspection

Cleaning was one of the final and most important production steps.

The manifold contained deep cavities, multiple runners, small holes, and threaded ports where chips or cutting-fluid residue could remain trapped.

Before inspection and plating, the component was cleaned to remove:

• Aluminum chips

• Fine particles

• Cutting fluid

• Threading residue

• Loose burr fragments

• Surface contamination

The internal plenum and runners received particular attention.

A part can look completely clean from the outside while still containing debris internally. The component was therefore inspected through the available openings and cleaned from multiple directions.

The threads were also checked after cleaning to ensure they were free from trapped material.

Only after the intake manifold had been machined, deburred, and thoroughly cleaned was it ready for dimensional inspection and subsequent electroless nickel plating.

Dimensional and Visual Inspection

Once machining, deburring, and internal cleaning were complete, the intake manifold moved into dimensional and visual inspection.

For a complex automotive component, inspection cannot focus on only one dimension or one visible surface. The intake runners, mounting flanges, throttle-body interface, threaded ports, internal cavity, and engraved logo all needed to match the approved design as one coordinated assembly.

A feature may be correct by itself but still cause an assembly problem if its position relative to another feature is wrong. That is why we inspected both individual dimensions and the relationships between the manifold’s critical interfaces.

The inspection process focused on four main areas:

• Critical mounting dimensions

• Intake runners and internal cavity

• Threaded ports and machined openings

• Logo engraving and cosmetic condition

Inspection of Critical Mounting Features

The customer identified dimensional accuracy as one of the main project requirements.

The intake manifold needed to connect correctly with related automotive components, so the inspection process paid particular attention to the mounting and alignment features.

The critical inspection items included:

• Overall component dimensions

• Intake-port positions

• Mounting-hole locations

• Bolt-hole spacing

• Flange geometry

• Throttle-body opening size and position

• Threaded port locations

• Relationships between different mounting faces

• Orientation of external bosses and connection features

These features were not evaluated as isolated dimensions.

For example, confirming the diameter of an intake port was only one part of the inspection. The port also needed to be positioned correctly relative to the surrounding mounting holes and flange edges.

The same principle applied to the throttle-body interface. Its circular opening, mounting holes, and surrounding face needed to work together as one functional connection.

Think of the manifold as a three-dimensional puzzle piece. Every individual edge may look correct, but the part will only assemble properly when all mating features align at the same time.

Reference surfaces established during machining were used to verify the location of critical features. This allowed the inspection process to evaluate the component according to the same coordinate relationships used during CNC production.

Mounting Flange and Surface Inspection

The manifold included several machined faces that would contact or connect with other components.

These surfaces required inspection for both geometry and condition.

The review included:

• Mounting-face flatness

• Surface continuity

• Port-to-flange alignment

• Bolt-hole positioning

• Edge condition

• Visible machining marks

• Burrs around holes and openings

A mounting face can appear smooth while still containing a local high point, edge burr, or damaged area that affects installation.

For that reason, the inspection did not rely only on general appearance. The relevant surfaces were checked according to their functional role.

The edges around the intake openings also needed to remain clean. Excessive manual finishing could alter the profile, while insufficient deburring could leave sharp material around the mounting area.

The goal was to remove unwanted burrs while preserving the dimensions created during CNC machining.

Throttle-Body Interface Inspection

The throttle-body interface was inspected as a complete feature group.

The inspection covered:

• Main opening diameter

• Opening position

• Surrounding face condition

• Mounting-hole locations

• Hole spacing

• Transition into the plenum

• Edge and burr condition

Because this interface was positioned on the side of the plenum, its relationship to the rest of the manifold depended on accurate multi-axis machining.

A small angular or positional difference could affect how the related component aligned during installation. The interface was therefore checked relative to the manifold’s established reference surfaces rather than only measured locally.

The transition from the opening into the internal plenum was also reviewed. The area needed to remain free from loose chips, heavy burrs, or visible damage caused during machining and cleaning.

Threaded Port and Hole Inspection

The manifold contained several threaded ports and mounting holes positioned around its external surfaces.

Each one needed to match the specified:

• Diameter

• Thread type

• Depth

• Location

• Orientation

• Entry condition

Threaded features can be easy to overlook because they are small compared with the plenum and runners. However, a damaged or incorrectly positioned thread can prevent the installation of a sensor, fitting, or related component.

The threaded holes were checked for:

• Complete thread formation

• Trapped chips

• Burrs at the entrance

• Surface damage

• Incorrect depth

• Obstruction inside blind holes

Cleaning was especially important after threading. Aluminum chips can remain inside blind holes or enter the internal cavity through connected ports.

Each threaded feature was therefore inspected after the final cleaning stage, not only immediately after machining.

Intake Runner Inspection

The intake runners were among the most visually distinctive and functionally important parts of the manifold.

Their inspection focused on:

• Runner opening dimensions

• Relative spacing

• Position along the mounting flange

• Internal continuity

• External surface condition

• Transition into the plenum

• Edge quality

• Remaining chips or burrs

The runners needed to remain consistent with the supplied design while maintaining the correct relationship to the flange and plenum.

The external runner surfaces were inspected for visible machining defects, dents, or handling damage. The areas between adjacent runners also required attention because they were more difficult to access during both machining and cleaning.

Internal runner inspection was performed through the available openings. The purpose was to confirm that the passages were open, clean, and free from obvious residual material.

A clean external finish does not guarantee a clean internal passage. Since the runners were connected to the enclosed plenum, inspection and cleaning needed to address the full airflow path rather than only the visible entrances.

Internal Plenum and Cavity Inspection

The internal plenum was one of the most difficult areas to inspect because of its depth and enclosed geometry.

After machining, the cavity was checked for:

• Remaining aluminum chips

• Loose burr fragments

• Cutting-fluid residue

• Unmachined areas

• Tool marks caused by chip recutting

• Damage around internal transitions

• Obstructions near connected ports

The available openings were used to inspect the cavity from multiple directions.

Lighting was important during this stage. Deep internal corners can hide small chips or residue that are not visible under general workshop lighting.

The cavity was therefore reviewed carefully after cleaning. When necessary, the part was repositioned so that different areas could be seen and checked.

This inspection was also important before electroless nickel plating. Any contamination remaining inside the component could affect the surface-treatment process or become more difficult to remove afterward.

For that reason, internal cleanliness formed part of the pre-plating acceptance criteria.

Logo Engraving Inspection

The customer-specified logo was inspected separately from the general surface condition.

The review focused on:

• Correct logo position

• Correct orientation

• Complete graphic outline

• Consistent engraving depth

• Clear edges

• Absence of burrs

• No scratches around the marking

• Sufficient definition for subsequent plating

Logo engraving is a cosmetic feature, but it also reflects the overall manufacturing quality of the component.

A well-machined manifold with an incomplete or uneven logo can still appear poorly finished. The logo therefore needed to meet the same visual standard as the surrounding machined surfaces.

The engraving depth was checked to confirm that the design would remain recognizable after electroless nickel plating. At the same time, the marking could not be so deep that it produced heavy edges or trapped finishing residue.

The area around the logo was cleaned carefully so that no loose chips or burrs remained inside the engraved lines.

External Surface and Cosmetic Inspection

Before plating, the complete exterior of the manifold was examined for visible manufacturing or handling defects.

The cosmetic inspection included:

• Scratches

• Dents

• Clamp marks

• Unexpected tool marks

• Edge damage

• Residual burrs

• Surface contamination

• Uneven manual finishing

Not every visible machining line needed to be removed. The component was not intended to look polished before plating.

However, scratches, gouges, or local damage could remain visible after the final surface treatment. Obvious defects therefore needed to be identified before the manifold entered the plating process.

The inspection also confirmed that the external surfaces had been cleaned consistently. Oil, cutting fluid, marker residue, and fingerprints could interfere with later surface preparation.

Pre-Plating Approval

Only after the dimensional, internal, threaded, engraved, and cosmetic features had been reviewed was the manifold approved for electroless nickel plating.

The pre-plating checklist confirmed that:

• Critical mounting dimensions matched the approved design

• Flanges and interfaces were complete

• Intake runners were clean and unobstructed

• Internal cavities contained no visible machining debris

• Threaded ports were clean and usable

• Burrs had been removed

• The customer-specified logo was clear

• External surfaces were ready for finishing

This stage served as an important quality checkpoint.

Surface treatment can improve the final appearance, but it cannot correct an incorrectly positioned hole, incomplete runner, damaged thread, or inaccurate mounting face.

By completing the dimensional and visual inspection before plating, we ensured that the prototype entered the finishing stage only after its machined features had been reviewed and accepted.

Electroless Nickel-Plated Finish

After the intake manifold passed dimensional and visual inspection, it moved to the final surface-treatment stage.

The customer specified electroless nickel plating to create a clean and consistent metallic appearance across the machined aluminum component. This finishing process needed to cover far more than a simple flat exterior surface.

The intake manifold included:

• A large plenum body

• Multiple curved intake runners

• Deep internal cavities

• Threaded ports

• Mounting holes

• External bosses

• Flange surfaces

• A throttle-body opening

• Customer-specified logo engraving

Each of these features created different coating-access and preparation requirements.

The plated finish could not compensate for machining errors or incomplete preparation. Any burr, trapped chip, oil residue, damaged thread, or visible scratch could affect the final result. For this reason, surface finishing was treated as an extension of the machining process rather than an unrelated final step.

As part of our CNC machining and surface finishing services, the prototype was fully machined, inspected, deburred, and cleaned before being released for electroless nickel plating.

Preparation Before Electroless Nickel Plating

Proper preparation was essential because the finished coating would follow the condition of the underlying aluminum surfaces.

Before plating, the manifold was checked again for:

• Residual cutting fluid

• Aluminum chips

• Dust and fine particles

• Fingerprints and handling contamination

• Burrs around ports and holes

• Residue inside threaded features

• Loose material in the plenum

• Damage around the engraved logo

• Scratches on visible exterior surfaces

The internal cavity and runners received particular attention.

A flat plate can be cleaned and inspected easily because nearly every surface is visible. An intake manifold is different. Its internal passages, recessed corners, and connected ports can trap chips or cleaning residue.

Think of the manifold as a network of connected rooms and tunnels. Cleaning the entrance does not mean every internal corner is ready. Each accessible opening needed to be considered during the cleaning process.

The threaded ports also required inspection before plating. Any remaining chip inside a blind thread could become more difficult to remove later. Thread entrances needed to remain clean, while the thread form itself had to remain usable after the finishing process.

The logo area was prepared carefully as well. Its engraved lines needed to remain free from burrs and debris so that the final marking would retain clear definition.

Only after these areas had been reviewed was the component considered ready for plating.

Why Electroless Nickel Plating Was Used

Electroless nickel plating applies a nickel-based coating through a controlled chemical process rather than relying solely on an electrical current applied directly to the part.

For a component with complex geometry, this type of process can help achieve a more consistent coating appearance across surfaces that face different directions.

This was relevant because the intake manifold included:

• External flat surfaces

• Curved runners

• Recessed pockets

• Internal transitions

• Small bosses

• Circular ports

• Engraved details

• Difficult-to-reach areas

A simple decorative finish applied only from the outside would not address all these surfaces in the same way.

The customer selected electroless nickel plating as the final finish for this prototype. Our role was to ensure that the machined component entered the finishing process with clean geometry, prepared surfaces, and inspected functional features.

The final article should not state a specific coating thickness, hardness, or corrosion-resistance rating unless those values were included in the customer’s specification and verified through documentation or testing.

For this project, the confirmed result was a uniform metallic finish that covered the machined aluminum surfaces while preserving the visibility of the component’s detailed features.

Finishing Complex Internal and External Geometry

The shape of the intake manifold made the finishing stage more demanding than plating a simple bracket or flat enclosure.

The external plenum provided relatively broad surfaces, but the runners introduced curved and partially recessed areas. The throttle-body opening created another large internal transition, while the small threaded ports and bolt holes added local details that needed to remain clear.

The internal plenum also required attention because contamination or trapped residue could interfere with the final finish.

Consistent preparation helped the plating process address:

• Broad exterior surfaces

• Curved runner walls

• Areas between adjacent runners

• Port openings

• Internal cavity walls

• Recessed corners

• Engraved logo lines

• Small machined bosses

The objective was not to make every surface reflect light in exactly the same way. The shape and angle of each feature naturally affect its appearance.

Instead, the goal was to avoid obvious finishing inconsistencies such as:

• Uncoated areas

• Visible contamination

• Heavy local buildup

• Rough spots caused by trapped particles

• Damage around threaded openings

• Loss of detail in the logo

• Clearly different surface conditions between connected areas

The final metallic appearance helped visually connect the many different features into one complete component.

Preserving Critical Dimensions and Threads

Surface treatment needed to be considered together with dimensional control.

The manifold contained mounting holes, threaded ports, flange interfaces, and precision-machined openings. These features had already been produced according to the approved model before plating.

The finishing process therefore needed to preserve their intended function.

Before the part was released for surface treatment, the team confirmed:

• The threaded features were correctly machined

• Hole entrances were free from burrs

• Critical interfaces had passed inspection

• Internal ports were clean

• No loose chips remained in recessed areas

• Functional surfaces were ready for the specified finishing process

The finished part was inspected again after plating to confirm that the visible ports, threads, holes, and interfaces remained complete.

This did not replace detailed assembly testing by the customer, but it provided an important final manufacturing check.

A surface finish should support the part’s function, not interfere with it. A visually attractive coating would offer little value if a thread became obstructed or an important interface was damaged.

Maintaining the Customer-Specified Logo

The engraved logo was one of the most visible details on the finished manifold.

Before plating, the logo had clean outlines and controlled engraving depth. After surface treatment, it still needed to remain recognizable.

The finishing process covered the engraved area along with the surrounding aluminum surface. Because the marking had been planned and machined correctly, its shape remained visible through the final metallic finish.

The post-plating inspection checked:

• Logo readability

• Complete engraved lines

• Edge definition

• Surface consistency around the marking

• Absence of trapped residue

• No obvious damage during handling

This detail mattered because the logo represented the customer’s product identity.

The main intake manifold geometry demonstrated the machining capability, but the engraved marking helped make the prototype feel like a finished customer-specific component rather than a generic engineering sample.

Final Appearance After Plating

After electroless nickel plating, the intake manifold presented a consistent silver-gray metallic appearance across its complex geometry.

The finished surfaces highlighted the component’s main design features:

• The large enclosed plenum

• The row of machined intake runners

• The throttle-body interface

• The mounting flanges

• The threaded connection ports

• The external bosses

• The engraved customer logo

The coating also gave the different machined surfaces a more unified appearance.

Before plating, the component displayed the natural appearance of CNC-machined aluminum, including variations between rough-machined, finish-machined, and manually deburred areas. After treatment, these surfaces appeared more visually coordinated.

The finish did not hide the precision of the machining. The runner profiles, mounting openings, logo engraving, and edge transitions remained clearly defined.

The completed appearance was suitable for a custom automotive performance component and gave the customer a clearer view of how the part could look in future batch production.

Post-Plating Inspection

Once the plated manifold was returned, it received a final visual review.

The inspection focused on:

• Overall finish consistency

• Visible coverage across complex surfaces

• Condition of the intake runners

• Appearance of the plenum

• Threaded port condition

• Mounting-hole cleanliness

• Logo visibility

• Handling marks

• Surface damage

• Internal cleanliness

The component was examined from several angles because light can reveal finish differences that are not obvious from a single viewpoint.

Curved runners, recessed features, and flat faces reflect light differently, so the inspection looked for actual defects rather than natural changes caused by geometry.

The final review confirmed that the prototype maintained its machined details and achieved the metallic appearance required by the customer.

With machining, dimensional inspection, logo verification, cleaning, and surface treatment complete, the custom intake manifold was ready for customer evaluation.

Prototype Results and Customer Feedback

The completed intake manifold represented more than a finished aluminum component. It was the customer’s first opportunity to evaluate the custom design as a physical, functional prototype before committing to batch production.

During the prototype stage, the customer needed to confirm several important points:

• Whether the overall geometry matched the supplied design

• Whether the critical mounting features were positioned correctly

• Whether the internal plenum and runner structure had been machined completely

• Whether the threaded ports and connection interfaces were usable

• Whether the customer-specified logo appeared clean and correctly positioned

• Whether the electroless nickel-plated finish achieved the expected appearance

This is exactly why prototype production matters.

A three-dimensional model can show the intended geometry, but it cannot fully replace a physical part. Once the component is machined, the customer can inspect its scale, weight, interfaces, surface finish, and overall manufacturing quality in a real-world form.

Our rapid prototyping services help customers complete this evaluation before moving complex CNC-machined components into repeat or batch production.

Completed Prototype

The prototype was successfully machined from one solid block of 6061-T6 aluminum using five-axis CNC equipment.

The completed component included:

• A large enclosed plenum

• Multiple machined intake runners

• Precision mounting flanges

• A throttle-body interface

• Threaded connection ports

• External mounting bosses

• Deep internal cavities

• Customer-specified logo engraving

• An electroless nickel-plated finish

Machining the intake manifold from solid billet required substantial material removal. The process transformed a rectangular aluminum block into a complex automotive component with connected internal and external features.

The finished part retained the important details of the customer’s design. The intake runners remained clearly defined, the mounting interfaces were completed, and the smaller threaded features were positioned according to the approved model.

The customer-specified logo also remained visible after plating. This was important because the marking needed to appear as an intentional part of the product rather than an engraving added without consideration for the final surface treatment.

The electroless nickel finish gave the prototype a uniform silver-gray metallic appearance. It visually connected the plenum, runners, ports, bosses, and engraved details while allowing the machined geometry to remain clear.

Functional and Visual Requirements Achieved

The project achieved the primary manufacturing requirements established at the beginning of the prototype order.

These included:

• Manufacturing from solid 6061-T6 aluminum billet

• Five-axis CNC machining of complex multi-sided geometry

• Controlled machining of the plenum and intake runners

• Accurate positioning of mounting and connection features

• Clean machining of deep cavities

• Correctly produced threaded ports and mounting holes

• Customer-specified logo engraving

• Complete deburring and internal cleaning

• Electroless nickel plating

• Final visual inspection before delivery

The dimensional requirement remained one of the most important aspects of the project.

A custom intake manifold may have an impressive external shape, but that shape has little value if the part cannot align with its mating components. For that reason, the mounting faces, port positions, hole patterns, and connection features were treated as functional interfaces rather than decorative details.

The finished prototype provided the customer with a physical reference for evaluating both the machining result and the final plated appearance.

Customer Satisfaction

After receiving and reviewing the prototype, the Canadian customer expressed satisfaction with the completed component.

The feedback covered the key areas that had guided the project:

• Machining quality

• Critical dimensions

• Overall geometry

• Logo appearance

• Electroless nickel-plated finish

This was an important milestone because the prototype had been produced as the first stage of a larger manufacturing plan.

A successful sample does not automatically mean that batch production has already begun. However, it gives the customer the information needed to make that decision with greater confidence.

Instead of evaluating only drawings, renders, or machining proposals, the customer could now review the real component and compare it with the intended application.

Planned Batch Order

Based on the completed prototype evaluation, the customer plans to proceed with a batch order.

At this stage, the batch order should be described as planned rather than formally completed. This keeps the case study accurate while still showing the commercial result of the prototype project.

The move from prototype to batch production may involve reviewing:

• Final order quantity

• Delivery schedule

• Inspection requirements

• Plating specifications

• Packaging method

• Approved drawing revision

• Any feedback from trial installation

• Batch consistency requirements

The prototype provides a practical reference for these discussions.

Its dimensions, machining sequence, surface condition, logo position, and plated appearance can be used as the baseline for future production.

Why Prototype Approval Matters Before Batch Production

Producing one complex intake manifold is different from manufacturing a consistent batch.

During prototype development, the main question is often:

Can this design be machined successfully and meet the customer’s requirements?

Once the prototype has been approved, the question changes:

Can the same result be reproduced consistently across multiple parts?

That transition requires additional production planning.

A process that works for one part must be reviewed for:

• Repeatable workholding

• Stable machining references

• Tool-life control

• Consistent dimensional inspection

• Predictable deburring

• Internal cleaning

• Logo positioning

• Surface-treatment consistency

• Packaging and handling

The successful prototype provided valuable information for each of these areas.

For example, the initial machining process showed which tools and approach angles were suitable for the deep cavity and runner geometry. It also confirmed which surfaces needed additional attention during deburring, cleaning, and pre-plating inspection.

This information can help reduce uncertainty when the project moves into batch manufacturing.

Preparing the Machining Process for Repeat Production

For future production, the prototype process can be converted into a more standardized workflow.

This may include:

• Confirming the final CAD and drawing revision

• Documenting the approved workholding method

• Standardizing the roughing and finishing sequence

• Identifying critical inspection dimensions

• Defining the logo engraving location

• Establishing pre-plating acceptance requirements

• Confirming the final electroless nickel appearance

• Developing appropriate packaging protection

The machining program also provides a foundation for repeat production.

However, repeat manufacturing is not simply a matter of running the same CNC program again. Raw-material condition, tool wear, fixture setup, chip evacuation, and inspection all influence production consistency.

The process must therefore include controls that maintain the approved result from one component to the next.

Inspection Priorities for the Planned Batch

The prototype helped identify which features should receive the most attention during batch inspection.

These priorities include:

• Intake-port locations

• Mounting-hole patterns

• Throttle-body interface

• Flange relationships

• Threaded port positions

• Internal cavity cleanliness

• Runner condition

• Logo clarity

• Plated surface consistency

Not every dimension carries the same functional importance.

A cosmetic exterior surface may allow more variation than a mounting interface. Similarly, the position of a threaded connection may be more important than a non-functional contour on the outer plenum.

By defining inspection priorities before batch production, the process can focus resources on the features that have the greatest effect on assembly and customer acceptance.

Surface-Finish Consistency in Batch Production

Electroless nickel plating will also require consistency across the future order.

The approved prototype provides a visual reference for:

• Overall color

• Metallic appearance

• Logo visibility

• Surface uniformity

• Internal and external coverage

• Handling quality

• Acceptable cosmetic variation

Before batch production begins, the approved finish can be used to align expectations between machining, inspection, surface treatment, and final quality control.

This is especially important for a complex component because flat faces, curved runners, internal transitions, and engraved areas naturally reflect light differently.

The objective is not to make every surface appear identical under every lighting condition. The goal is to ensure that each completed manifold meets the agreed quality standard and remains consistent with the approved prototype.

Prototype-to-Production Value

This project demonstrates the practical value of a structured prototype-to-production process.

The customer did not need to commit immediately to a full batch of complex five-axis-machined intake manifolds. Instead, the project began with one prototype that could be reviewed for dimensions, appearance, machining quality, and finish.

That approach reduced uncertainty on both sides.

The customer gained a physical component for evaluation, while the manufacturing team gained direct experience with:

• The solid-billet material removal

• The complex five-axis toolpaths

• The deep internal cavity

• The runner geometry

• The critical mounting features

• The logo engraving

• The deburring and cleaning requirements

• The electroless nickel-plating preparation

The completed sample therefore served two purposes.

It was the customer’s prototype, but it was also the manufacturing reference for the planned batch order.

Project Outcome

The project resulted in a custom intake manifold that met the customer’s principal prototype requirements.

The final outcome can be summarized as follows:

The successful prototype showed that the customer’s complex intake manifold design could be manufactured from solid billet while maintaining the required geometry, detailed engraving, and final plated appearance.

It also established a practical foundation for the next stage: converting a one-off prototype into a repeatable batch-production process.

Custom Five-Axis CNC Automotive Parts Manufacturing

This intake manifold project shows how five-axis CNC machining can support automotive components that combine complex geometry, critical mounting interfaces, deep cavities, threaded features, and customer-specific branding.

Not every automotive part needs five-axis machining. A simple bracket or flat mounting plate may be produced efficiently with conventional three-axis equipment. However, when a component includes angled surfaces, curved passages, deep internal features, and machined details on several sides, five-axis machining can provide a more practical manufacturing route.

For this prototype, the technology helped us machine the plenum, intake runners, throttle-body interface, mounting features, and detailed external geometry from one solid block of 6061-T6 aluminum.

The project also demonstrated the importance of looking beyond the cutting operation itself. A successful custom automotive component depends on the complete manufacturing process:

• Design and drawing review

• Material selection

• Workholding planning

• Rough and finish machining

• Dimensional inspection

• Logo engraving

• Deburring and internal cleaning

• Surface-treatment preparation

• Final quality inspection

• Prototype feedback and batch-production planning

Each stage affects the final result. A precise toolpath cannot compensate for poor workholding, just as a high-quality plated finish cannot correct an incorrectly positioned mounting hole.

Automotive Components We Can Manufacture

Our five-axis CNC machining capabilities can support a range of custom automotive and performance-related parts, including:

• Custom aluminum intake manifolds

• Billet aluminum plenums

• Throttle-body adapters

• Engine and transmission housings

• Valve covers and engine covers

• Turbocharger and intercooler components

• Sensor and fitting adapters

• Automotive mounting brackets

• Suspension and chassis components

• Custom fluid and air-management parts

• Prototype engine components

• Low-volume performance parts

The most suitable manufacturing process depends on the part geometry, material, tolerances, surface requirements, and expected production quantity.

For example, a prototype intake manifold machined from solid billet may be the right approach when the customer needs to validate a custom geometry before committing to tooling or larger-volume manufacturing.

A simpler automotive bracket may require fewer machining operations. A housing with deep angled features may benefit from five-axis machining, while a flat cover might be produced more efficiently with three-axis equipment.

The goal is not to use the most complex machine for every project. It is to select a process that matches the actual manufacturing challenge.

Materials and Finishing Options

In addition to 6061-T6 aluminum, custom automotive components can be manufactured from other materials according to the application and design requirements.

Available options may include:

• Aluminum alloys

• Stainless steel

• Carbon steel

• Tool steel

• Brass

• Copper

• Titanium

• Engineering plastics

• Carbon fiber sheet and composite materials

Surface-finishing options may include:

• Electroless nickel plating

• Anodizing

• Hard anodizing

• Powder coating

• Painting

• Polishing

• Bead blasting

• Brushing

• Passivation

• Black oxide

• Laser marking

• CNC engraving

The correct finish should be selected according to the base material, functional requirements, installation environment, and desired appearance.

For this intake manifold prototype, electroless nickel plating was selected according to the customer’s specification. The machining and inspection process was therefore planned with the final plating operation in mind from the beginning.

Prototype and Low-Volume Production Support

Complex automotive projects often begin with a prototype rather than a full production order.

This allows the customer to evaluate:

• Overall dimensions

• Mounting compatibility

• Connection interfaces

• Internal geometry

• Weight and handling

• Logo placement

• Surface appearance

• Assembly requirements

Once the prototype has been reviewed, the design can either proceed into production or be updated according to test and installation feedback.

This approach is particularly useful for customized engine and performance components. Changes are easier to introduce before a complete batch has been manufactured.

For repeat production, the approved prototype can serve as the reference for:

• Final drawing revision

• Machining programs

• Workholding setup

• Tool selection

• Inspection criteria

• Engraving position

• Surface-finish standard

• Packaging requirements

The Canadian customer in this case was satisfied with the completed intake manifold prototype and plans to proceed with a batch order. The prototype process therefore provided both a finished evaluation part and a practical manufacturing foundation for future production.

Information Required for a Quotation

To review a custom intake manifold or another automotive CNC machining project, we normally need the following information:

• A 3D CAD model

• A two-dimensional drawing, when available

• Overall component dimensions

• Material specification

• Critical tolerances

• Thread and hole requirements

• Surface-finish requirements

• Logo or marking files

• Prototype or production quantity

• Required delivery schedule

• Application or assembly information

Common file formats include:

• STEP

• STP

• IGES

• IGS

• X_T

• STL

• DWG

• DXF

• PDF

A three-dimensional model helps us understand the complete geometry, while a two-dimensional drawing can identify critical dimensions, threads, tolerances, and surface requirements that may not be fully defined in the CAD file.

Clear information at the quotation stage allows potential machining risks to be identified before production begins.

Request a Quote for Your Automotive Component

Are you developing a custom intake manifold, billet aluminum plenum, engine housing, or another complex automotive component?

Upload your CAD files and project requirements for a manufacturing review and quotation.

Please include the material, dimensions, tolerances, required quantity, surface finish, and any critical mounting or inspection requirements. For parts with customer branding, you can also provide the approved logo or engraving file.

You may also email your project directly to naiteservice@naitetech.com.

Our team will review the geometry, machining accessibility, workholding requirements, finishing process, and production quantity before recommending a suitable manufacturing approach.

Conclusion

This custom intake manifold project combined complex geometry, strict dimensional requirements, detailed logo engraving, and a demanding final finish within one solid-billet component.

Starting with a block of 6061-T6 aluminum, we used five-axis CNC machining to produce the enclosed plenum, curved intake runners, mounting flanges, throttle-body interface, threaded ports, internal cavities, and external branding features.

The project also showed why a complex automotive component cannot be evaluated by appearance alone. Clean machining marks and a polished metallic finish are valuable, but the part must first meet its functional requirements. Mounting holes must align, ports must remain in the correct position, threaded features must be usable, and all related surfaces must maintain the required dimensional relationship.

The customer-specified logo introduced another layer of control. Its position, orientation, depth, and edge quality needed to remain consistent throughout machining, cleaning, and electroless nickel plating.

After all CNC operations were completed, the manifold underwent deburring, internal cleaning, dimensional inspection, and visual review. Electroless nickel plating was then applied to create a uniform silver-gray appearance across the plenum, runners, ports, and engraved details.

The Canadian customer was satisfied with the completed prototype and is planning to move forward with a batch order. This result confirmed not only that the design could be manufactured successfully, but also that the prototype process could provide a practical foundation for repeat production.

For future batches, the approved sample can serve as a reference for:

• Machining sequence and workholding

• Critical dimensional inspection

• Thread and port verification

• Logo engraving position

• Internal cleaning requirements

• Electroless nickel-plating quality

• Final appearance and packaging

From solid billet to finished automotive component, every stage contributed to the final result. Five-axis CNC machining created the complex geometry, inspection protected the critical dimensions, and surface finishing completed the customer-specific appearance.

This is the value of a well-planned prototype: it turns a digital design into a physical part that the customer can inspect, approve, and confidently move toward production.
