CNC milling is a highly versatile and widely used manufacturing process that allows engineers and manufacturers to produce complex, high-precision components from a broad range of materials, including metals, plastics, and composites. By employing computer-controlled motion to guide cutting tools along multiple axes, CNC milling ensures repeatability, accuracy, and efficiency, making it an indispensable process for both prototyping and large-scale production.
In modern manufacturing, CNC milling is more than just a machining process; it is a critical enabler of innovation, bridging the gap between design concepts and functional, production-ready components. This chapter provides a comprehensive overview of CNC milling, including its principles, applications, and advantages in engineering and industrial contexts. It also highlights how NAITE TECH leverages advanced CNC milling technologies to deliver high-quality parts while optimizing cost and lead time.
This guide is structured to provide a holistic understanding of CNC milling, combining technical depth, practical application, and business insights. Readers will gain knowledge in areas such as:
Fundamental principles: How CNC milling works, including machine motion, material removal, and tool interaction.
Operations and machine types: Detailed breakdowns of milling operations (face milling, pocket milling, profile milling, etc.) and machine configurations (vertical, horizontal, multi-axis).
Material selection: How metals, plastics, and composites behave under milling conditions and guidance on choosing the right material for specific applications.
Design considerations: DFM strategies, tolerance specifications, surface finishes, and the integration of GD&T principles for precision parts.
Cost analysis and production planning: Factors influencing CNC milling costs, including design complexity, machine selection, volume, materials, and finishing options.
Real-world applications and case studies: Examples from aerospace, automotive, medical, and industrial sectors demonstrating practical usage.
NAITE TECH services: Insight into how our advanced milling capabilities, engineering support, and quality assurance systems help clients achieve reliable, high-performance components.
By the end of this guide, readers will understand not only how CNC milling works, but also how to integrate it effectively into engineering projects, ensuring both functional and cost-efficient outcomes.
CNC milling continues to be a foundational process in modern manufacturing because of its precision, versatility, and scalability. Even with the emergence of additive manufacturing and other advanced technologies, CNC milling maintains unique advantages that are difficult to replicate:
Precision and Repeatability: CNC milling achieves tolerances as tight as ±0.005 mm, making it ideal for aerospace components, medical devices, and high-performance automotive parts.
Material Versatility: It is capable of machining a wide range of metals, plastics, and composites, including aluminum alloys, stainless steel, titanium, PEEK, and engineering plastics.
Surface Finish Quality: CNC milling produces smooth, uniform finishes that often reduce or eliminate the need for additional post-processing.
Scalability: Suitable for both prototype production and high-volume runs, maintaining consistent quality across every part.
Structural Integrity: CNC-milled components are fully dense and retain mechanical strength, unlike some additive manufacturing methods.
Cost Efficiency for Functional Parts: When designed correctly, CNC milling reduces material waste, shortens production lead times, and avoids costly rework.
The combination of engineering reliability and process flexibility ensures that CNC milling remains a core choice for industries where quality, accuracy, and repeatability cannot be compromised.
At NAITE TECH, we provide professional-grade CNC milling services that bridge the gap between engineering design and manufacturing execution. Our approach combines state-of-the-art machinery, engineering expertise, and quality management to ensure every part meets exact client specifications. Key capabilities include:
Multi-Axis Machining: 3-, 4-, and 5-axis CNC milling machines enable production of complex geometries, deep cavities, and intricate profiles with micron-level precision.
Material Support: Over 40 types of metals and plastics are supported, including aerospace-grade aluminum, stainless steel, titanium alloys, PEEK, and other engineering plastics.
Engineering & DFM Support: NAITE TECH engineers provide design-for-manufacturability recommendations, toolpath optimization, and process consulting to minimize cost and maximize part performance.
Quality Assurance: Every part undergoes rigorous quality control, including CMM inspections, surface roughness measurements, and traceable documentation.
Rapid Lead Times: From prototype to full-scale production, our processes are optimized to deliver high-quality parts on schedule.
Custom Solutions: We tailor milling strategies to the client’s design, material, and functional requirements, ensuring optimal performance for specific applications.
Through the integration of advanced technology, material expertise, and engineering consultation, NAITE TECH helps clients turn innovative concepts into functional, high-quality components efficiently and reliably.
CNC milling, also known as computer numerical control milling, is a subtractive manufacturing process in which a rotating cutting tool removes material from a workpiece to create a desired shape or geometry. Unlike manual milling, CNC milling relies on pre-programmed computer instructions that precisely control the movement of the machine along multiple axes, enabling the production of highly complex parts with superior accuracy and repeatability.
CNC milling is widely used across industries such as aerospace, automotive, medical, electronics, and industrial machinery due to its ability to handle intricate designs, tight tolerances, and a wide range of materials. It bridges the gap between engineering concepts and production-ready components, making it a critical process in modern manufacturing workflows.
CNC milling distinguishes itself from other machining processes through several key characteristics:
Computer-Controlled Motion: The movement of the cutting tool along X, Y, and Z axes (and in multi-axis machines, additional rotational axes) is precisely controlled by a CNC program.
High Repeatability: Once programmed, CNC milling machines can produce hundreds or thousands of identical parts with consistent quality.
Subtractive Process: Material is gradually removed from the workpiece using rotary cutters, end mills, drills, and other specialized tooling.
Complex Geometries: Multi-axis CNC milling allows for the creation of intricate features such as undercuts, pockets, ribs, and curved surfaces.
Scalable Production: Suitable for single prototypes, small batches, and high-volume production runs.
These characteristics make CNC milling an essential tool for engineers who need precision, consistency, and versatility in manufacturing complex components.
While both CNC milling and CNC turning are computer-controlled subtractive processes, there are significant differences:
CNC Milling: The workpiece is typically held stationary on a table while the rotating cutting tool moves across it to remove material. It is ideal for complex geometries, pockets, and intricate surfaces.
CNC Turning: The workpiece rotates while a stationary cutting tool removes material, primarily used for axisymmetric parts such as shafts, cylinders, and threads.
Understanding these differences helps engineers select the right process based on part geometry, tolerances, and production requirements. CNC milling is often preferred when multiple faces, complex shapes, or high-precision features are required.
CNC milling provides several advantages over traditional manual milling and other conventional machining methods:
Enhanced Precision: Computer control eliminates human error and allows for extremely tight tolerances.
Improved Efficiency: Automated machining reduces operator involvement and enables continuous production.
Flexibility: CNC programs can be modified quickly to adapt to design changes or different part geometries.
Consistent Quality: Parts are uniform, reducing scrap rates and improving reliability in assembly.
Integration with CAD/CAM: Direct use of 3D CAD models streamlines the transition from design to production, shortening lead times.
These advantages make CNC milling the preferred choice for industries that demand high-quality, high-performance, and repeatable parts.
At NAITE TECH, CNC milling is more than a process—it is a complete engineering solution. Our team combines advanced multi-axis milling machines with experienced engineers to ensure that parts are designed, manufactured, and inspected to meet the most stringent specifications.
Key elements of our approach include:
CAD/CAM Integration: Seamless translation of client designs into precise machine code for optimal toolpaths.
Material Optimization: Selection of metals and plastics that best suit part functionality and manufacturability.
Process Consultation: DFM analysis to minimize machining time, material waste, and production costs.
Quality Control: Comprehensive inspection protocols, including CMM, surface roughness measurement, and tolerance verification.
Scalable Production: From one-off prototypes to large production runs, NAITE TECH maintains consistent quality and delivery reliability.
By integrating technology, engineering expertise, and process optimization, NAITE TECH ensures that CNC milling delivers both performance and value for every client project.
CNC milling is a subtractive manufacturing process that transforms raw materials into precise, functional components through a combination of computer-controlled motion, cutting tools, and material removal strategies. The process relies heavily on CAD/CAM software, skilled programming, and optimized machining setups to ensure accuracy, efficiency, and repeatability.
Understanding how CNC milling works is crucial for engineers, designers, and manufacturers to maximize part performance, reduce production costs, and maintain tight tolerances. This chapter outlines the step-by-step workflow of CNC milling, highlighting each stage from design to post-processing.
The foundation of CNC milling begins with a digital design. Engineers create detailed 2D drawings or 3D models of the part using CAD (Computer-Aided Design) software. Key considerations at this stage include:
Dimensional Accuracy: Ensure all critical dimensions, tolerances, and fits are defined.
Feature Clarity: Clearly specify pockets, holes, ribs, chamfers, and fillets.
Material Selection: Identify the appropriate material to ensure machinability and part performance.
Design for Manufacturability (DFM): Optimize geometry to reduce machining time, minimize tool wear, and simplify fixturing.
By carefully preparing the CAD model, engineers set the stage for efficient programming, machining, and high-quality results.
Once the CAD model is finalized, it must be converted into a format compatible with CNC machines, typically a standard file type like STEP, IGES, or STL.
CAM Software Integration: The CAD file is imported into CAM (Computer-Aided Manufacturing) software, where toolpaths, cutting strategies, and machine parameters are defined.
Toolpath Generation: CAM software calculates the movement of the cutting tool along multiple axes to remove material efficiently while maintaining precision.
Simulation and Verification: Before machining, simulations are run to detect collisions, overcuts, or potential toolpath errors.
This step ensures the design intent is accurately translated into machine instructions, reducing errors, scrap, and production delays.
Proper machine setup is critical for achieving precision and repeatability. This includes:
Workpiece Fixturing: Secure the raw material to the machine table using clamps, vices, or custom fixtures to prevent movement during machining.
Tool Selection and Installation: Choose appropriate cutting tools (end mills, drills, face mills, etc.) based on material type, operation, and required tolerances.
Machine Calibration: Set zero points, tool offsets, spindle speeds, feed rates, and coolant flow for optimal cutting performance.
Operator Oversight: While CNC machines are automated, skilled operators monitor the process, make real-time adjustments, and ensure adherence to safety standards.
At NAITE TECH, our engineers combine precise machine setup with optimized toolpath strategies, ensuring that every part is produced to specification with minimal variation.
With the machine setup complete, material removal begins:
Roughing Operations: Remove bulk material quickly while maintaining safe distances from finished surfaces.
Finishing Operations: Perform precise cuts to achieve final dimensions, smooth surfaces, and required tolerances.
Multi-Axis Machining: Utilize 3-, 4-, or 5-axis machines to reach complex geometries and intricate features without additional fixturing.
Coolant Application: Continuous coolant flow reduces heat, prevents tool wear, and improves surface finish.
Every step is carefully monitored to maintain part integrity, dimensional accuracy, and surface quality.
After milling, parts often require secondary operations to meet functional or aesthetic requirements:
Deburring: Remove sharp edges, burrs, or machining marks.
Surface Treatment: Apply anodizing, polishing, plating, or coating depending on material and application.
Inspection: Measure critical dimensions, tolerances, and surface roughness using tools like CMM (Coordinate Measuring Machines) and profilometers.
Assembly Preparation: For components that will be integrated into larger assemblies, ensure proper fit, alignment, and functional performance.
NAITE TECH emphasizes comprehensive post-processing and inspection, ensuring that every milled part is ready for immediate use or assembly.
CNC milling offers a variety of operations that allow manufacturers to produce parts with complex geometries, high precision, and tailored surface finishes. Understanding the types of milling operations is essential for engineers and designers to select the most appropriate method for their components. Each operation has its unique cutting strategy, tooling requirements, and application scenarios.
Face milling is a process in which the cutting tool rotates perpendicular to the surface of the workpiece, removing material to produce flat surfaces or large-area finishes.
Key Features:
Efficient removal of material from large surfaces.
Produces high-quality flatness and smooth surface finishes.
Typically uses multi-tooth cutting tools, known as face mills, to maximize productivity.
Applications:
Machining of large metal plates and aerospace components.
Preparing workpiece surfaces for further finishing operations.
Automotive body panels and mechanical bases requiring tight flatness tolerances.
Face milling is often one of the first steps in a milling sequence, providing a precise reference surface for subsequent operations.
Plain milling, also called slab milling, involves the cutting tool rotating parallel to the workpiece surface, removing material along a linear path.
Key Features:
Best for machining long, flat surfaces with straight or slightly curved profiles.
Produces consistent surface finishes but requires careful feed and speed management.
Can use either up-milling or down-milling techniques depending on material and finish requirements.
Applications:
Structural metal components in machinery and construction.
Tooling bases and plates requiring uniform thickness.
Industrial equipment parts where surface flatness is critical.
Angular milling involves machining a surface that is at an angle to the workpiece rather than parallel or perpendicular.
Key Features:
Creates sloped surfaces, bevels, chamfers, and other angled features.
Requires specialized cutters or tilting machine tables to maintain precision.
Applications:
Aerospace brackets and engine components with angled features.
Mechanical parts requiring chamfers for assembly or stress reduction.
Precision housings where mating parts must fit at specific angles.
Form milling uses specialized cutters to create complex profiles, contours, and shapes on a workpiece.
Key Features:
Can machine curves, grooves, threads, and intricate profiles.
Requires precise toolpath planning and often multi-axis machining.
Produces both functional and aesthetic surfaces.
Applications:
Automotive molds and dies.
Gear profiles and sprockets.
Custom components with complex 3D shapes in industrial equipment.
In addition to the main operations listed above, CNC milling encompasses other specialized techniques:
Slot Milling: Creating keyways, slots, or grooves in components.
Profile Milling: Cutting the outer contour or profile of a part.
Pocket Milling: Removing material from internal cavities without affecting surrounding surfaces.
Thread Milling: Producing internal or external threads with precise tolerances.
Chamfer Milling: Producing angled edges for aesthetics or assembly.
Each of these operations is selected based on part geometry, material type, and functional requirements. NAITE TECH engineers carefully choose the optimal milling operation to balance efficiency, precision, and surface quality for every project.
CNC milling machines come in a variety of configurations, each tailored to different part geometries, production volumes, and precision requirements. Choosing the right machine is critical for maximizing efficiency, ensuring part quality, and reducing production costs. This section explores the main types of CNC milling machines, their capabilities, and typical applications.
A vertical milling machine has a vertically oriented spindle that moves up and down while the workpiece is fixed on the table.
Key Features:
Ideal for flat surfaces, slots, and cavities.
Simplified setup and easier tool changes compared to other machines.
Supports multi-axis operations when integrated with advanced controls.
Applications:
Die and mold making.
Aerospace brackets and housings.
Precision components for industrial equipment.
NAITE TECH Advantage: Our vertical CNC mills are equipped with high-speed spindles and precision linear guides, ensuring micron-level accuracy even for complex parts.
Horizontal milling machines feature a horizontally oriented spindle that allows the cutting tool to rotate parallel to the workpiece surface.
Key Features:
Excellent for slotting, grooving, and cutting deep pockets.
Typically more rigid than vertical machines, making them suitable for heavy-duty cutting.
Often equipped with rotary tables for multi-angle operations.
Applications:
Automotive gearbox components.
Industrial machinery base plates.
Aerospace structural components requiring high material removal rates.
NAITE TECH Advantage: Our horizontal mills optimize cutting efficiency while maintaining tight tolerances and smooth surface finishes, even for large, heavy parts.
Multi-axis CNC mills provide enhanced flexibility by adding additional rotational axes, allowing the cutting tool or workpiece to move in complex patterns.
Moves along X and Y axes.
Suitable for simple planar milling and slotting operations.
Adds Z-axis movement for vertical depth control.
Standard configuration for most CNC milling tasks.
Ideal for pockets, slots, and 3D surfaces.
Adds a rotational axis (A-axis) to the standard 3-axis setup.
Allows machining of cylindrical parts or continuous rotation features.
Reduces setup time and increases part complexity capability.
Adds an additional rotational axis (B-axis or C-axis), enabling simultaneous multi-directional machining.
Capable of producing highly complex geometries in a single setup.
Ideal for aerospace, medical implants, and high-precision prototypes.
NAITE TECH Advantage: Our multi-axis CNC mills support complex, intricate parts with minimal fixturing, reducing setup time and increasing production efficiency while maintaining micron-level tolerances.
Turret milling machines have a spindle that can rotate and pivot, allowing access to multiple sides of the workpiece without repositioning.
Key Features:
Provides flexibility for machining features on multiple faces.
Suitable for small to medium-sized parts with varying angles.
Allows faster setup for parts with multiple features.
Applications:
Custom machinery components.
Small automotive and mechanical parts.
Prototyping applications requiring multiple surface operations.
Bed mills, or column-and-bed machines, feature a stationary worktable while the spindle moves along various axes.
Key Features:
Extremely rigid design for heavy-duty milling.
Suitable for large, heavy workpieces.
Supports high material removal rates and deep cuts.
Applications:
Aerospace structural components.
Industrial equipment bases.
Large mold and die plates.
NAITE TECH Advantage: Bed mills at NAITE TECH combine stability and precision, allowing us to machine large-scale components without compromising tolerances.
Understanding the components of a CNC milling machine is essential for engineers, operators, and production managers. Each part plays a critical role in ensuring precision, stability, and efficiency during milling operations. This section provides an in-depth look at key machine components and their functions.
The frame, or machine base, provides structural support and ensures the rigidity of the CNC mill.
Key Features:
Supports the weight of the spindle, cutting tools, and workpiece.
Minimizes vibration during machining to maintain precision.
Typically constructed from cast iron, steel, or polymer concrete to absorb cutting forces.
NAITE TECH Advantage: Our CNC frames are engineered for maximum rigidity and thermal stability, ensuring consistent accuracy across long production runs.
The spindle is the heart of the CNC milling machine, holding and rotating the cutting tool at precise speeds.
Key Features:
Can rotate at speeds ranging from a few hundred to tens of thousands of RPM.
Supports a wide variety of tool holders and cutting tools.
Direct-drive spindles provide higher precision and reduced maintenance.
Applications:
High-speed finishing for aerospace parts.
Heavy cutting of metal molds and dies.
NAITE TECH Advantage: Our spindles are optimized for high torque, minimal runout, and consistent performance, enabling machining of both soft plastics and hard metals with micron-level tolerances.
CNC milling machines operate along multiple axes to guide the cutting tool relative to the workpiece.
Key Features:
Standard 3-axis movement: X (horizontal), Y (longitudinal), Z (vertical).
Multi-axis machines add rotational axes (A, B, C) for complex geometries.
Linear motion controlled by high-precision ball screws or linear guides.
NAITE TECH Advantage: Our multi-axis systems allow simultaneous machining on multiple faces, reducing setups and increasing throughput without sacrificing accuracy.
Columns provide vertical support for the spindle and upper machine assembly.
Key Features:
Maintain spindle alignment during heavy cutting.
Designed to minimize vibration and thermal expansion.
Often integrated with machine frames for enhanced rigidity.
Applications:
Critical in vertical and bed mills for maintaining precision over large surfaces.
The CNC control panel is the interface between the operator and the machine, controlling movement, spindle speed, and tool selection.
Key Features:
Programmable via G-code or proprietary CAM software.
Real-time monitoring of spindle load, feed rate, and coolant flow.
Touchscreen or keypad interfaces allow operators to load programs, make adjustments, and start/stop operations.
NAITE TECH Advantage: Our control panels feature user-friendly interfaces and advanced diagnostics, allowing rapid setup, monitoring, and troubleshooting for both prototyping and production runs.
The ATC is a mechanical system that automatically swaps tools during machining.
Key Features:
Supports multiple tools in a carousel or chain configuration.
Reduces downtime by eliminating manual tool changes.
Essential for multi-operation parts requiring several cutting tools.
Applications:
Complex aerospace components with multiple operations.
High-volume production requiring uninterrupted machining.
NAITE TECH Advantage: Our ATCs allow fast, precise tool changes, ensuring continuous operation and minimal cycle time for complex jobs.
Tool holders secure cutting tools to the spindle and ensure precision alignment and stability.
Key Features:
Different types: collet, hydraulic, shrink-fit, and modular holders.
Ensure minimal runout and high rigidity.
Critical for achieving tight tolerances and surface finish.
NAITE TECH Advantage: We use high-precision tool holders to guarantee consistent cutting performance and extend tool life.
The table supports the workpiece and can move along various axes in CNC mills.
Key Features:
Provides precise X, Y, and sometimes rotational movement.
May include T-slots, fixtures, or clamps for workpiece mounting.
Must be stable and rigid to prevent vibration or deflection.
Applications:
Machining multi-face parts in a single setup.
Supporting large, heavy components in bed mills.
The coolant system maintains thermal stability and lubricates the cutting process.
Key Features:
Reduces heat buildup, preventing material distortion.
Flushes away chips for clean cutting surfaces.
Enhances tool life and surface finish quality.
NAITE TECH Advantage: Our CNC systems integrate high-efficiency coolant delivery, ensuring both tool longevity and high-quality part surfaces.
Selecting the right material is one of the most critical decisions in CNC milling. Material choice directly affects machining performance, surface finish, tolerances, part functionality, and overall production costs. CNC milling can handle metals, plastics, and composites, each with unique characteristics. The table below provides a comprehensive comparison of common CNC milling materials, their machinability, typical applications, and key notes for production.
| Material Type | Specific Material | Key Properties | Machinability | Typical Applications | NAITE TECH Notes |
|---|---|---|---|---|---|
| Metal | Aluminum | Lightweight, corrosion-resistant, good thermal conductivity | Excellent | Aerospace brackets, automotive parts, molds | Optimized for high-speed milling and tight tolerances; ideal for both prototyping and production |
| Metal | Steel | Strong, wear-resistant, various grades (carbon, alloy, stainless) | Moderate | Structural components, machinery parts, die plates | High rigidity machines recommended to maintain precision; coolant management critical |
| Metal | Titanium | High strength-to-weight ratio, corrosion-resistant, biocompatible | Difficult | Medical implants, aerospace components, high-performance automotive | Requires specialized tooling and advanced coolant strategies to prevent work hardening |
| Metal | Brass/Copper | Excellent electrical and thermal conductivity, corrosion-resistant | Good (brass), moderate (copper) | Electrical components, valves, decorative parts | Tool selection is critical for copper to avoid sticking; brass is easier to machine with high finish quality |
| Plastic | ABS | Durable, impact-resistant, cost-effective | Excellent | Prototypes, consumer products, housings | Easy to machine and post-process; suitable for functional prototypes and assembly testing |
| Plastic | Polycarbonate (PC) | High impact resistance, heat-resistant, transparent | Moderate | Safety shields, transparent components, electronics housings | Moderate feed rates to prevent melting; allows fine details with consistent surface finish |
| Plastic | Nylon | Low friction, wear-resistant, flexible | Moderate | Gears, bushings, functional prototypes | Hygroscopic—drying before machining ensures dimensional stability; excellent for mechanical testing |
| Plastic | PEEK | High-performance engineering plastic, chemical & thermal resistant | Challenging | Aerospace, medical devices, industrial high-temp components | Best for precision parts in demanding environments; machining requires sharp tooling and controlled speeds |
| Composite | Carbon Fiber Reinforced Plastic (CFRP) | High stiffness, lightweight, thermoset matrix | Moderate | Aerospace, automotive structural components | Requires sharp cutting tools and reduced feed rates to avoid delamination; excellent for weight-sensitive parts |
| Composite | Glass Fiber Reinforced Plastic (GFRP) | Strong, cost-effective, lightweight | Moderate | Industrial enclosures, structural supports | Cost-effective alternative to CFRP with good strength-to-weight ratio; careful machining prevents surface fiber fraying |
Beyond the basic properties, engineers must consider critical factors that affect both machining and part performance:
Mechanical Properties: Strength, hardness, fatigue resistance, and stiffness determine part longevity.
Machinability: Tool wear, cutting speed, feed rate, and ease of chip removal impact production efficiency.
Surface Finish Requirements: Some materials machine to very smooth surfaces, while others may require additional finishing.
Thermal & Chemical Resistance: For aerospace, medical, or industrial applications, materials must withstand operating conditions.
Cost Efficiency: Material cost, machining time, and potential scrap must be balanced for budget-conscious projects.
Application-Specific Requirements: Load-bearing parts, electrical conductivity, or biocompatibility guide final selection.
At NAITE TECH, we offer comprehensive material consultation services to help clients select the optimal material for their CNC-milled parts:
Evaluate project requirements, environmental conditions, and performance criteria.
Recommend cost-effective solutions without compromising quality.
Ensure high repeatability and minimal post-processing for production-scale runs.
Provide guidance for hybrid material strategies, combining metals, plastics, and composites for optimal functionality.
By leveraging our engineering expertise and advanced CNC capabilities, NAITE TECH ensures that every part is machined with precision, durability, and optimal material performance, whether for prototyping, small-batch production, or high-volume manufacturing.
CNC milling has become a cornerstone of modern manufacturing due to its precision, flexibility, and efficiency. To help engineers, designers, and procurement specialists make informed decisions, the key advantages and disadvantages can be clearly summarized in the following table, along with typical applications and NAITE TECH’s value-added insights.
| Category | Advantages | Disadvantages | Typical Applications | NAITE TECH Notes |
|---|---|---|---|---|
| Precision & Repeatability | Micron-level accuracy; consistent part quality | Requires skilled operators and careful setup | Aerospace brackets, medical implants, automotive precision parts | Multi-axis CNC and advanced CAM simulation ensure minimal errors and high repeatability across batches |
| Versatility | Can machine metals, plastics, composites; complex geometries possible | Tool wear may increase with hard materials or composites | Prototypes, industrial machinery, custom components | Material-specific tooling and coolant strategies maximize efficiency and surface finish |
| Cost & Lead Time | Reduces manual labor; fast prototyping; efficient cycle times | High initial machine investment; large parts may increase setup costs | Small-to-medium batch production, custom prototypes | NAITE TECH optimizes machine selection, operation planning, and workflow to reduce production time |
| Surface Finish | Achieves high-quality surfaces; reduces post-processing | Some surfaces may require additional finishing or coating | Mold plates, housings, functional prototypes | Advanced cutting strategies, toolpath optimization, and coolant management improve surface finish consistency |
| Flexibility & Scalability | Easy design changes; supports prototyping and production runs | Multi-axis programming complexity may extend setup time | Multi-feature aerospace and automotive components | NAITE TECH integrates CAM simulation to minimize setups and improve efficiency |
| Digital Integration | Compatible with CAD/CAM workflows, toolpath simulation, collision detection | Requires CAM expertise | High-precision engineering components | Our engineers simulate every toolpath to prevent errors and optimize production before machining begins |
Precision & Repeatability: CNC milling ensures parts are consistently manufactured to tight tolerances, critical in industries like aerospace, medical, and high-end automotive. Using NAITE TECH’s multi-axis machines, clients can achieve repeatable quality across hundreds or thousands of parts without manual adjustment.
Versatility: CNC milling can handle a wide range of materials and geometries, from soft plastics to hardened metals and composite laminates. Complex features like angled slots, pockets, threads, and 3D surfaces are machined in a single setup with advanced 4- or 5-axis machines.
Cost & Lead Time Efficiency: Automation reduces labor requirements and shortens production cycles. NAITE TECH engineers optimize cutting paths, feed rates, and tool selection, lowering costs for prototyping and small-to-medium production runs.
Surface Finish Quality: Advanced CNC milling can achieve smooth surfaces that often require little or no post-processing, saving time and cost. Using high-speed spindles, proper tooling, and precise coolant application ensures consistent finishes across multiple parts.
Flexibility & Scalability: Design modifications are straightforward, with CNC programs updated directly from CAD models. Multi-axis machines allow machining of multiple faces and features simultaneously, minimizing setups and enhancing productivity.
Digital Integration: Modern CNC mills integrate seamlessly with CAD/CAM software, allowing toolpath simulation, collision detection, and virtual verification. NAITE TECH uses these capabilities to prevent costly errors and streamline production workflows.
High Initial Investment: CNC milling machines, especially multi-axis models, represent a significant capital cost. Operators must also be trained to handle complex software and setups.
Tooling and Material Limitations: Hard-to-machine metals like titanium or carbon fiber composites require specialized tooling, which may increase wear and operational costs. NAITE TECH carefully selects tools and coolant strategies to mitigate these challenges.
Programming Complexity: Multi-axis operations demand advanced CAM programming. Incorrect setup can result in part defects, collisions, or scrap. NAITE TECH engineers simulate all toolpaths prior to machining to avoid such issues.
Large Parts Challenges: Extremely large components require specialized machinery and handling, which can increase production cost and cycle time. NAITE TECH offers gantry or bed mills for oversized workpieces with optimized fixturing.
Post-Processing Requirements: Certain surfaces may still require polishing, deburring, or coating to achieve final tolerances or aesthetics. Our team integrates post-processing services where necessary to deliver ready-to-use components.
CNC milling is widely used across multiple industries because of its precision, versatility, and ability to handle complex geometries. From aerospace to medical devices, CNC milling enables the production of components that meet strict tolerances and performance standards. The following sections highlight key industries and typical applications.
Aerospace components demand extreme precision, high strength, and lightweight construction. CNC milling allows manufacturers to produce:
Wing brackets, fuselage frames, and bulkheads are machined from aluminum alloys or titanium.
Multi-axis CNC milling ensures tight tolerances and high surface finish critical for assembly.
Turbine blades, housings, and mounts are machined from high-temperature alloys.
NAITE TECH uses 5-axis CNC machines to achieve complex geometries in a single setup, reducing errors and lead times.
CNC milling allows lightweight, precise enclosures for electronics.
Supports rapid prototyping of new designs and low-volume production.
CNC milling is essential in automotive production for prototyping, custom parts, and small-batch components.
Engine blocks, cylinder heads, and gear housings require precise machining and high surface quality.
High-speed CNC milling ensures repeatable quality for small-to-medium batch production.
Custom brackets, mounts, and suspension arms can be machined from aluminum, steel, or composites.
NAITE TECH optimizes toolpaths and fixturing for complex geometries, reducing cycle time and scrap.
CNC milling allows functional prototypes to test mechanical properties and assembly fit before full-scale production.
Agricultural machinery often requires durable, wear-resistant, and corrosion-resistant components. CNC milling applications include:
Tractor and combine harvester parts such as gear housings, mounting brackets, and PTO components.
Machined tooling and molds for plastic parts or cast metal components.
NAITE TECH ensures parts meet strict dimensional tolerances to withstand heavy-duty environments.
The medical industry relies on CNC milling for high-precision, biocompatible, and complex parts.
Forceps, clamps, and custom tools require fine tolerances and polished surfaces.
Machined from stainless steel or titanium for corrosion resistance and biocompatibility.
Orthopedic plates, hip/knee implants, and spinal components require precise geometry and smooth finishes.
NAITE TECH utilizes 5-axis milling to produce complex implant shapes directly from CAD models.
CNC milling produces custom jigs, holders, and instrument housings for lab automation and medical testing.
CNC milling supports manufacturing in machinery, robotics, and electronic enclosures:
Machine housings, brackets, and precision gears.
Heat sinks, control panels, and custom enclosures for electronic devices.
NAITE TECH integrates multi-material milling for functional prototypes and production parts.
CNC milling is versatile enough for aerospace, automotive, medical, agriculture, and industrial components.
Multi-axis machines allow complex parts to be machined in fewer setups, reducing lead times and assembly errors.
NAITE TECH’s engineering consultation and process optimization ensure that clients receive high-quality, production-ready parts tailored to their application requirements.
CNC milling costs depend on several key factors, including part design, production volume, machine type, material selection, and surface finishing. To help engineers, designers, and procurement teams understand, compare, and optimize costs, the following table provides a structured overview.
| Cost Factor | Impact on Cost | Optimization Strategy | NAITE TECH Approach |
|---|---|---|---|
| Part Design (Geometry) | Complex features increase toolpaths, setups, and machining time | Simplify geometry where possible; optimize toolpaths | NAITE TECH engineers simulate multi-axis machining to reduce cycle time and scrap |
| Part Design (Tolerances) | Tighter tolerances require higher precision, specialized tooling, and slower cutting speeds | Relax tolerances where function allows; prioritize critical dimensions | We balance tolerance requirements with machining efficiency to maintain quality and cost-effectiveness |
| Production Volume | Low-volume runs have higher per-part costs; high-volume runs benefit from amortized setup costs | Batch production; scalable processes | NAITE TECH supports both prototype and production runs with optimized setups and toolpaths |
| Machine Type | Multi-axis machines (4- or 5-axis) increase setup complexity and operational costs | Use the simplest machine capable of achieving the required geometry | NAITE TECH selects the right machine and operation strategy for efficiency and precision |
| Material | Hard-to-machine or exotic materials (titanium, composites) increase tool wear and cycle time | Choose machinable materials without compromising part performance | Material consultation ensures an optimal balance of cost, performance, and machinability |
| Surface Finish | Polishing, coating, or other finishing operations add extra cost | Optimize cutting parameters, tooling, and coolant to reduce post-processing | Integrated surface finishing ensures ready-to-use parts while maintaining high quality |
| Additional Completion | Post-processing, inspection, assembly | Plan for integrated QA and finishing | NAITE TECH offers end-to-end services including deburring, QA inspection, and final assembly |
Complex geometries, deep pockets, and multi-surface features increase machining time and tool wear.
Tighter tolerances require precision measurement and controlled cutting, which raises costs.
NAITE TECH engineers evaluate which tolerances are critical and optimize the program to reduce unnecessary machining time.
Low-volume prototyping may have higher per-part costs due to setup and toolpath development.
Medium-to-high-volume production allows setup costs to be amortized across parts, reducing unit cost.
NAITE TECH provides scalable production strategies, from single prototypes to hundreds of units.
2- or 3-axis machines are suitable for simpler parts and lower costs.
4- or 5-axis machines handle complex 3D surfaces but require advanced programming and higher operating costs.
NAITE TECH ensures the most appropriate machine is selected to balance cost and capability.
Aluminum and mild steel are cost-effective and easy to machine.
Titanium, stainless steel, and high-performance composites are more expensive due to tool wear and slower machining.
NAITE TECH provides material recommendations that optimize both cost and performance.
High-quality finishes (polishing, anodizing, coating) increase production cost.
Proper tool selection, spindle speed, and coolant can minimize post-processing needs.
NAITE TECH integrates finishing within the workflow to deliver parts ready for immediate use.
Deburring, inspection, and assembly are additional costs often overlooked.
NAITE TECH offers end-to-end solutions, ensuring every part meets specifications before shipping.
Simplify Part Geometry – Reduce unnecessary features without compromising functionality.
Select Appropriate Materials – Use machinable metals or plastics where possible.
Optimize CAM Toolpaths – Minimize redundant movements and setup changes.
Combine Multi-Axis Operations – Reduce setups and handling errors.
Partner with Experienced Engineers – NAITE TECH applies simulation, tooling expertise, and material consultation to optimize every cost factor.
CNC milling is a highly technical process, and engineers, designers, and procurement professionals often have common questions about capabilities, materials, tolerances, and costs. Here, we answer the most frequently asked questions to help you make informed decisions.
CNC milling can machine a wide range of materials including:
Metals: Aluminum, steel, stainless steel, titanium, copper, brass.
Plastics: ABS, PEEK, polycarbonate, nylon.
Composites: Carbon fiber, fiberglass.
NAITE TECH evaluates material machinability, part geometry, and intended application to recommend the most suitable material while optimizing cost and performance.
CNC milling typically achieves tolerances as tight as ±0.01 mm (±0.0004 in) depending on material, machine, and geometry.
Multi-axis machines, precision tooling, and temperature-controlled environments enhance repeatability.
NAITE TECH provides tolerance recommendations and inspection reports to ensure all parts meet design requirements.
The machining time depends on part size, complexity, material, and surface finish requirements.
Simple parts may take minutes to a few hours, while complex multi-axis parts may require several hours or multiple setups.
NAITE TECH engineers simulate toolpaths in CAM software to optimize cutting speed and minimize machining time without compromising quality.
Costs depend on design complexity, machine type, material, batch size, and finishing requirements.
Using multi-axis machines efficiently can reduce production time and cost.
NAITE TECH provides transparent cost estimates and recommendations for cost-effective manufacturing strategies.
Yes, CNC milling is ideal for both rapid prototyping and small-to-medium production runs.
Prototypes allow testing of fit, form, and function before committing to large-scale production.
NAITE TECH specializes in scalable CNC milling services, enabling seamless transition from prototype to production.
3-axis milling: Moves along X, Y, and Z axes; suitable for simple parts.
4-axis milling: Adds rotational movement (A-axis); ideal for cylindrical or rotational parts.

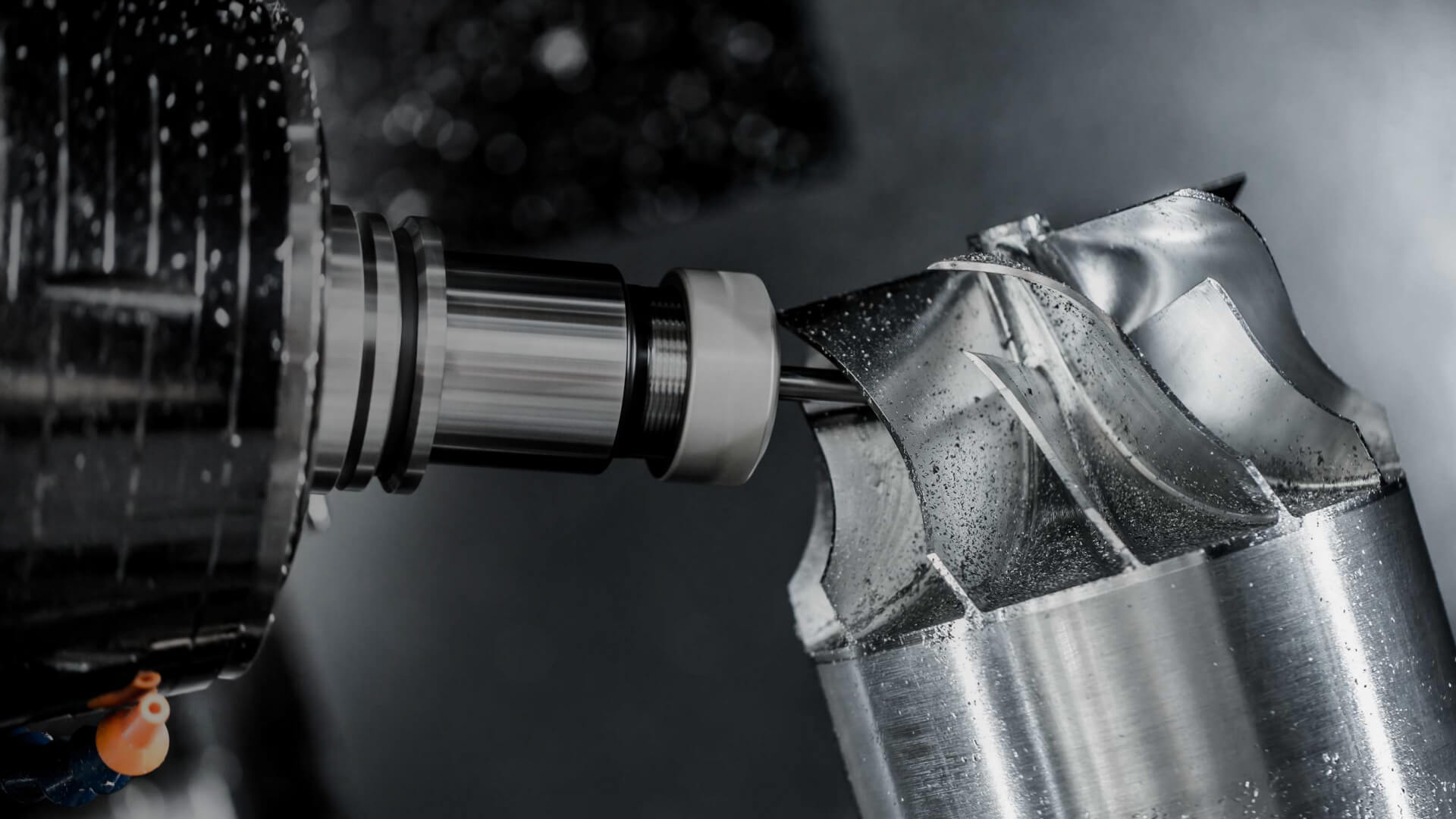

5-axis milling: Adds two rotational axes; can machine complex 3D surfaces and reduce setups.
NAITE TECH uses advanced 5-axis CNC machines to machine intricate parts efficiently, reducing errors and production time.
CNC milling provides high precision, excellent surface finish, and strong material properties, often superior to 3D printing for functional parts.
Unlike injection molding, CNC milling is cost-effective for low-to-medium volume production without the need for expensive tooling.
NAITE TECH helps clients choose the most suitable manufacturing process based on material, volume, and functional requirements.
Yes, proper tooling, spindle speed, feed rate, and coolant can achieve mirror-like finishes suitable for functional or aesthetic parts.
Post-processing like polishing, anodizing, or coating may be applied for enhanced durability or appearance.
NAITE TECH integrates surface finish optimization within the CNC milling workflow for ready-to-use parts.
CNC milling produces less material waste compared to traditional subtractive methods due to optimized toolpaths.
NAITE TECH implements coolant recycling, energy-efficient machines, and lean manufacturing practices to minimize environmental impact.
