Springs are among the most fundamental yet indispensable components in modern mechanical design. Whether used to absorb shock, balance force, store energy, maintain tension, or enable controlled motion, springs play a vital role across automotive systems, aerospace assemblies, medical devices, industrial machinery, consumer electronics, and countless other engineered products. Although seemingly simple, springs are highly engineered elements whose geometry, material selection, and manufacturing quality directly determine the performance, reliability, and lifecycle of an entire system.
In precision engineering, selecting the right spring type is never a trivial decision. Different spring geometries deliver different force-deflection behaviors, load capacities, and fatigue characteristics. A compression spring performs very differently from a torsion spring; a Belleville disk spring behaves differently from a leaf spring stack. Each type serves a specific engineering purpose—absorbing impact, storing rotational torque, returning a mechanism to neutral position, or distributing load over a broader structural area.
For product designers, mechanical engineers, and sourcing managers, a systematic understanding of spring categories and their applications is essential. Project success often hinges on choosing the optimal spring configuration, specifying the correct material, and understanding manufacturing tolerances that influence performance consistency.
At the core of spring design lies the principle of elastic deformation, which describes a material’s ability to return to its original shape after being subjected to a load. This behavior is governed by Hooke’s Law, expressed as F = k × x, where F is the applied force, k is the spring constant or stiffness, and x is the displacement (compression, extension, or rotation).
Practical engineering requires understanding multiple factors that affect spring performance:
Elastic vs. Plastic Deformation: Springs must operate within the elastic range of the material. Exceeding the yield point leads to permanent deformation and compromised performance.
Energy Storage: Springs store mechanical potential energy when deformed and release it upon unloading. Compression, extension, torsion, and disk springs manage energy differently.
Stress Distribution: Design geometry affects stress concentration. Helical compression springs have peak stress at the inner coil, torsion springs at the leg roots, and leaf springs at the fixed end. Proper material and surface treatment reduce fatigue risk.
Fatigue Life: Springs often operate under millions of load cycles. Fatigue resistance depends on material purity, heat treatment, surface finish, load range, and environmental factors.
Damping and Shock Absorption: Springs store and return energy, while damping requires additional components such as elastomers or hydraulic systems.
Linear vs. Non-linear Behavior: Some springs (Belleville washers, variable-pitch coils, composites) exhibit nonlinear responses suitable for specialized applications.

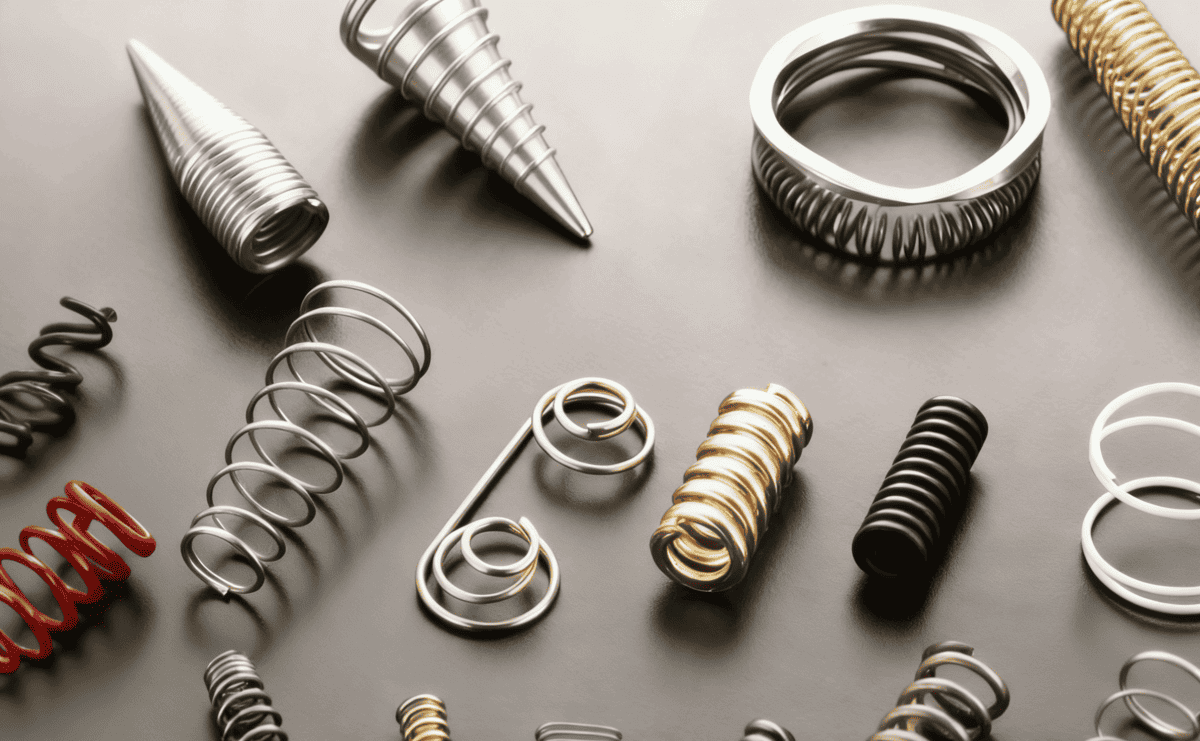

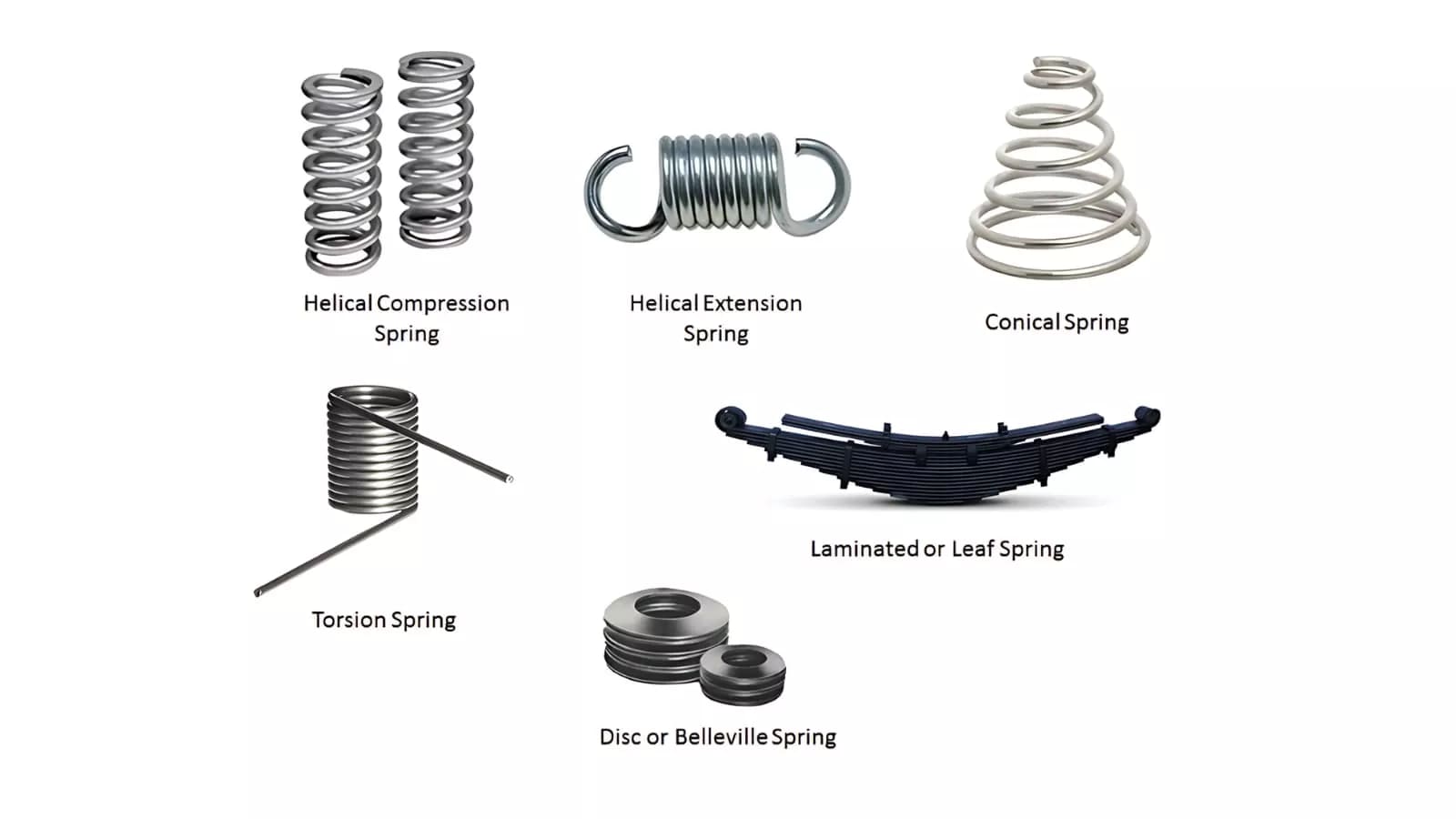

Springs come in various forms, each suited to particular functions, load orientations, and operational environments. The most commonly used mechanical springs are helical springs, leaf springs, and disk springs, each with multiple subtypes.
Helical springs are formed by coiling wire into cylindrical, conical, or barrel shapes. They are versatile, providing predictable linear or progressive load responses and excellent fatigue properties.
Compression springs resist axial loads and store energy when compressed. They are widely used in automotive suspensions, industrial machinery, aerospace actuators, valves, medical devices, and consumer electronics. Design considerations include coil diameter, wire diameter, pitch, end finishing, and buckling prevention. Surface treatment like shot peening enhances fatigue strength.
Extension springs store energy when stretched. They usually have hooks or loops at each end. Common applications include garage doors, fitness equipment, counterbalance mechanisms, and small mechanical assemblies. Engineering challenges include managing initial tension and avoiding hook stress concentration.
Torsion springs store rotational energy and produce torque proportional to angular displacement. They are used in hinges, levers, robotic joints, and automotive interior mechanisms. Design focus is on leg geometry, material strength, and stress distribution.
Spiral springs are flat strips wound into a spiral, delivering rotational torque with nearly constant force. Applications include retractable mechanisms, timers, seat belt retractors, and foldable assemblies. Precision in material treatment and heat processing ensures consistent torque delivery.
Leaf springs are flat, elongated plates that store energy through bending, primarily used in high-load applications because they distribute stress along the spring length.
Forms a full ellipse, used in heavy trucks, railcars, and industrial machinery. Provides high load capacity and durability.
Most common type for buses and commercial vehicles. Offers progressive load-bearing and cost-effective performance.
Half of a semi-elliptical spring, typically used in agricultural machinery, vintage vehicles, and lightweight equipment.
Used in specialized older suspension systems requiring unique load curves.
Mounted laterally across a frame; used in classic cars, lightweight performance vehicles, and custom suspension designs.
Disk springs include Belleville washers, curved disk springs, slotted disk springs, and wave disk springs. They generate high forces with small deflection, widely used in heavy machinery, bolted joints, vibration damping, precision instruments, and aerospace applications.
Most common disk spring type. Nonlinear load-deflection curve, stackable to adjust force/displacement. Used in bolted joints, high-load clamps, vibration damping.
Curved profile offers lower stiffness and smoother force response. Applied in sensitive mechanical assemblies and electrical connectors.
Radial slots reduce stiffness, used where low force and flexibility are needed.
Multiple waves around a washer’s circumference. Ideal for compact axial spring applications, preloading bearings, and motors.
While springs themselves are often formed through wire winding, stamping, or laser cutting, many spring-integrated systems require high-precision components. NAITE TECH supports international clients by providing:
CNC-machined spring seats, retainers, guides, and housings
Custom prototyping for small batches (1–50 pcs) and low-volume production (50–2000 pcs)
Tight tolerance manufacturing (±0.005–0.01 mm)
Load testing, dimensional inspection, and material certification
This integration of engineering support and precision manufacturing ensures predictable spring performance in both prototyping and production stages.
Spring performance depends heavily on material selection. Choosing the right material ensures optimal elasticity, fatigue resistance, temperature tolerance, corrosion resistance, and long-term reliability. Common industrial spring materials include:
Steel Alloys: High strength, elasticity, and fatigue resistance; cost-effective for mass production.
Stainless Steel: Ideal for corrosion-prone environments; widely used in medical, food, and marine applications.
Beryllium Copper: Combines elasticity and electrical conductivity; used in battery contacts and relays.
Rubber/Urethane: Elastomeric springs providing high damping for vibration isolation and sensitive equipment.
Ceramic & Composite Materials: High stiffness-to-weight ratio, temperature resistance; used in aerospace, robotics, and lightweight machinery.
Material selection also involves heat treatment, surface finishing, and coatings to improve fatigue life, wear resistance, and corrosion protection.
Springs offer multiple benefits in engineering systems:
Shock absorption and vibration control
Energy storage and release
Mechanical return and force modulation
Load distribution and positioning
Compact force delivery in minimal space
These advantages make springs indispensable across automotive, aerospace, robotics, medical, and consumer applications.
Despite their versatility, springs have limitations:
Size and weight constraints in high-load applications
Complex design requirements and stress calculations
Fatigue and performance degradation over repeated cycles
Sensitivity to temperature, corrosion, or environmental conditions
Understanding these factors helps engineers avoid system failures and optimize spring performance.
Key factors for effective spring design:
Selecting the appropriate spring type for load and motion
Calculating expected deflection, stress, and safety factors
Material selection based on mechanical and environmental requirements
Ensuring spatial fit and proper mounting
Surface treatments and heat processing for durability
Prototyping, testing, and validation before production
NAITE TECH integrates these considerations with CNC machining and precision prototyping to ensure reliable spring performance in all applications.
Springs are widely applied across multiple industries due to their ability to store energy, absorb shocks, and deliver precise mechanical motion. Each industry has specific requirements, driving the selection of spring types, materials, and manufacturing processes.
Springs play a critical role in vehicle suspensions, clutch systems, braking systems, and seating mechanisms. Leaf springs and helical compression springs are commonly used in truck and bus suspensions for their load-bearing capacity and durability. Torsion springs are frequently applied in seat recliners, hood latches, and pedal mechanisms. Automotive springs must balance comfort, performance, and fatigue life under millions of load cycles.
In aerospace applications, springs are integral to flight control systems, landing gear, actuators, and precision instruments. Disk springs are often used for high-load, compact spaces, providing precise preload in bolted joints. Material selection is critical; stainless steel, titanium alloys, and composite materials ensure strength-to-weight optimization and corrosion resistance in extreme environments.
Medical applications require high precision and reliability. Springs are used in surgical instruments, implantable devices, prosthetics, and diagnostic equipment. Micro compression springs and torsion springs are often fabricated from stainless steel or beryllium copper alloys for biocompatibility, corrosion resistance, and predictable mechanical performance.
Springs in industrial machinery provide energy storage, vibration isolation, and load balancing. Helical compression springs, Belleville washers, and leaf springs support presses, stamping machines, conveyors, and robotic arms. Manufacturing precision and material durability are essential to maintain consistent performance under repeated cycles and heavy loads.
Springs in electronics ensure reliable contact, force modulation, and tactile feedback. Micro springs, extension springs, and spiral springs are widely used in switches, battery contacts, buttons, and small mechanical assemblies. The design emphasis is on compact size, consistent force, and corrosion resistance.
Spring performance depends heavily on manufacturing precision. NAITE TECH integrates traditional and advanced methods to ensure reliability and tolerance compliance.
Cold winding involves forming spring wire at room temperature. It is suitable for most steel alloys and stainless steel springs. Cold-wound springs offer high surface finish quality and dimensional accuracy.
Hot forming is used for large-diameter or high-strength alloy springs. Heating allows shaping without introducing micro-cracks, which ensures better fatigue resistance and performance under heavy loads.
Disk springs and leaf springs are often manufactured using stamping or laser cutting. These processes achieve precise profiles and tolerances while reducing material waste.
CNC machining is used for spring-integrated components such as retainers, guides, seats, and complex assemblies. NAITE TECH provides high-precision machining with tolerances as tight as ±0.005 mm, ensuring that springs operate optimally within assemblies.
Surface treatments such as shot peening, polishing, or coating enhance fatigue life and reduce stress concentrations. Heat treatment adjusts hardness and elasticity, critical for high-cycle or high-load applications.
Springs are essential components in nearly every engineered system, offering energy storage, shock absorption, force modulation, and vibration control. Choosing the correct spring type, material, and manufacturing method is crucial to system reliability and performance. Advanced engineering, precision manufacturing, and thoughtful design integration ensure that springs meet the rigorous demands of automotive, aerospace, medical, industrial, and consumer applications.
NAITE TECH combines deep engineering expertise with high-precision manufacturing capabilities to deliver optimized spring solutions, whether for prototyping, low-volume production, or large-scale industrial deployment.
Consider load type, deflection requirements, available space, environmental conditions, material, and cycle life. Consulting with manufacturing and engineering teams early ensures optimal spring selection.
Steel alloys and stainless steel are common for high-cycle applications. For specialized environments, beryllium copper or composite materials may be used.
Yes. NAITE TECH offers custom prototyping and precision machining to achieve tolerances as tight as ±0.005 mm, ensuring reliable integration into assemblies.
Disk springs provide high force in a compact axial space with nonlinear deflection, whereas compression springs offer linear load-deflection characteristics over longer axial travel.
Heavy-duty automotive, trucks, buses, rail systems, and industrial machinery typically use leaf springs for load distribution and high durability.
