In modern product development, hinges are not just small mechanical components—they are critical elements that define the functionality, durability, and usability of your prototypes. Whether you are designing packaging, electronics enclosures, wearables, robotics joints, or medical devices, the performance of a hinge can make the difference between a functional prototype and a failed test.

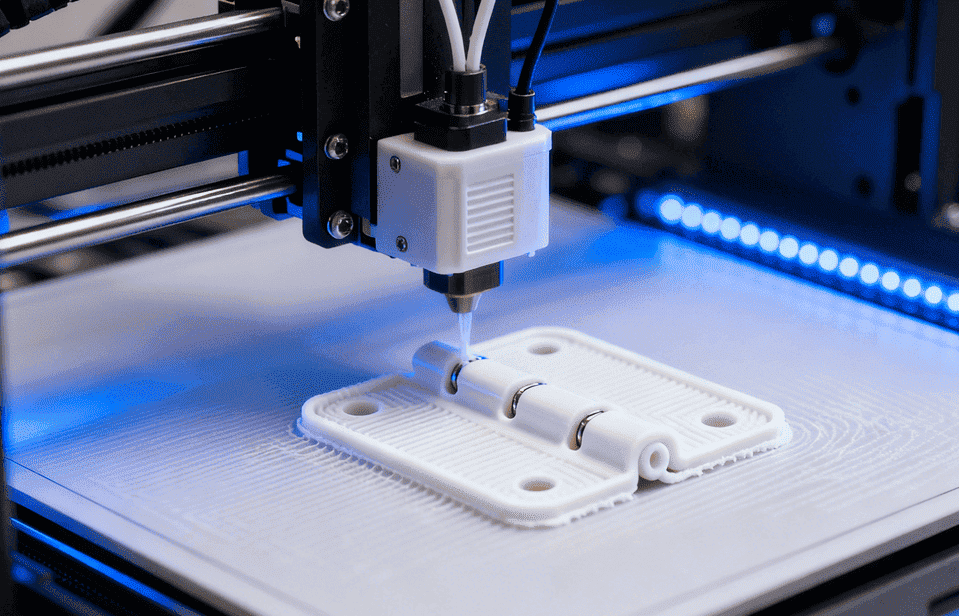

With the rise of additive manufacturing, engineers now have the ability to produce highly customized hinges rapidly, cost-effectively, and with minimal assembly. However, creating a strong, functional, and durable 3D printed hinge requires a deep understanding of material behavior, hinge geometry, load conditions, print orientation, and fatigue performance.
Many beginner-level articles simply describe the “living hinge” and show a thin, bendable section connecting two rigid parts. While this approach works for some packaging prototypes, it fails to address the engineering realities of functional, load-bearing hinges. At NAITE TECH, we focus on engineering-first hinge design, combining mechanical principles with 3D printing expertise to deliver reliable, real-world prototypes.
This guide will cover:
Fundamental concepts of hinge mechanics
Different types of 3D printed hinges
Advantages and limitations of each type
Materials selection for optimal strength and flexibility
Design strategies to maximize hinge life
Practical calculation methods
Real-world case examples
FAQs and design tips for engineers
By following this guide, you will gain the knowledge to design strong, durable, and production-ready hinges that perform under real mechanical loads.
A hinge is essentially a mechanical joint that allows two parts to rotate, bend, or flex relative to each other. In 3D printing, hinges can be broadly categorized into:
Flexural Hinges (Living Hinges) — rely on material bending without additional parts.
Mechanical Hinges — use rotational geometry like pins, knuckles, or articulated joints.
Hybrid or Parametric Hinges — combine flexure, pin rotation, and geometry optimization for high-performance applications.
The choice of hinge type depends on load requirements, motion type, space constraints, print process, and material properties. Unlike conventional injection molding, 3D printing allows you to experiment with complex geometries and one-piece assemblies that are difficult or impossible with traditional methods.

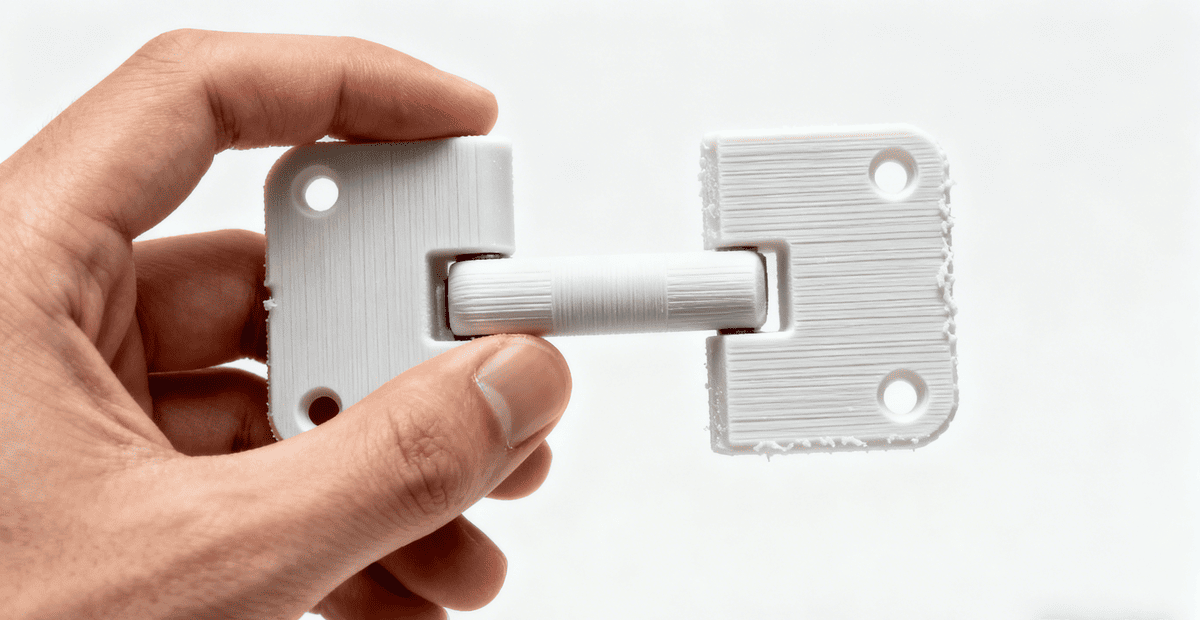

A living hinge is a monolithic, thin, flexible section that connects two rigid components, allowing them to bend repeatedly. Key features include:
Monolithic construction: printed as a single piece
Elastic bending: designed to flex without cracking
Minimal assembly: no pins or fasteners required
High cycle life: capable of thousands of bends if designed correctly
Common applications:
Flip-top caps and lids
Consumer packaging
Enclosures for electronics
Small mechanical devices
Challenges in 3D printing:
FDM: layer lines weaken the Z-axis, reducing hinge life
SLA: resins are often brittle and unsuitable for flexural applications
SLS Nylon: strong and flexible but requires design optimization
Tolerance and clearance must be carefully controlled for multi-part hinges
Hinge Thickness: Optimal thickness ranges from 0.3–0.8 mm for most polymers.
Bending Radius: Larger radii reduce stress concentration and extend hinge life.
Material Selection: Flexible, high-elongation polymers like TPU, PP, PE, or Nylon are ideal.
Print Orientation: Align layers to minimize stress perpendicular to bending.
Stress Distribution: Avoid sharp corners or sudden thickness changes to prevent early failure.
Straight Hinge — uniform cross-section, simplest design
V-Groove Hinge — concentrated bending, easier folding
U-Groove Hinge — wider bending zone, reduced stress
Curved Hinge — smooth stress distribution
Segmented/Multi-Flex Hinge — series of small flex zones for improved fatigue resistance
Tip: The right flexural hinge design can increase cycle life up to 10× compared to generic designs, especially when combined with high-quality SLS or TPU materials.
A hinge is not just a cosmetic feature; it directly affects the prototype’s functional performance, user experience, and mechanical reliability. Incorrect hinge design can lead to:
Early fatigue failure
Part deformation
Increased wear and tear
Prototype unusable for testing
NAITE TECH emphasizes engineering-first hinge design, ensuring every printed hinge can withstand the intended mechanical loads while being manufacturable with additive technologies.
While many articles only list “living hinges,” engineers know that different prototypes require fundamentally different hinge mechanics. A packaging lid does not rely on the same hinge as a robotic arm joint or a load-bearing enclosure. Therefore, a truly engineering-driven guide classifies hinges based on mechanical behavior, load conditions, fatigue life, and 3D printing feasibility, rather than just geometry.
Below is a practical, application-driven classification designed to outperform conventional online guides.
Mechanical Behavior:
Bends elastically without mechanical joints
Stores energy and flexes repeatedly
Best Use Cases:
Packaging prototypes
Wearables
Lids and snap-fit enclosures
Design Tips for 3D Printing:
Wall thickness: 0.3–0.8 mm
Bending radius: larger radius reduces stress concentration
Materials: TPU, PP, PE, or flexible SLS Nylon
Print orientation: align layers to minimize Z-axis bending stress
Advantages:
No assembly required
High cycle life
Minimal part count
Limitations:
Limited load-bearing capability
Sensitive to material selection and printing orientation
Mechanical Behavior:
Rotational motion around a pin
Interlocking knuckle geometry distributes stress
Best Use Cases:
Robotics joints
Device enclosures
Boxes and industrial prototypes
3D Printing Considerations:
SLS Nylon provides isotropic strength for repeated rotations
SLA requires tough resin to prevent brittle failure
FDM hinges need slight clearance (0.25–0.5 mm) to avoid fused parts
Advantages:
High strength and predictable fatigue life
Supports torque and repeated rotation
Compatible with post-assembly pin if needed
Limitations:
Slightly more complex design
Minor post-processing may be required
Mechanical Behavior:
Elastic bending combined with a locking feature
Allows repeated opening and closing
Best Use Cases:
Consumer packaging
Functional prototypes with repetitive usage
Design Tips:
Cantilever snap-fit geometry is ideal
Ensure locking tab thickness supports expected stress
Clearance is critical for proper snap function
Advantages:
Self-locking mechanism reduces assembly
Flexible design allows for prototyping and testing
Limitations:
May fatigue faster than mechanical hinges under high cycles
Sensitive to material choice
Mechanical Behavior:
Uses twisting beams to rotate parts
Stores torsional strain energy
Best Use Cases:
Micro mechanisms
Robotics
Wearables
Design Tips:
Narrow rectangular or circular beams for predictable twist
Use flexible polymers for repeated motion
Advantages:
Provides controlled return motion
Compact design for limited space
Limitations:
Requires careful calculation to prevent overstrain
Not ideal for high-load applications
Mechanical Behavior:
Multiple pivot points create compound motion
Can achieve extended or complex rotation paths
Best Use Cases:
Robotic arms
Folding devices
Kinetic prototypes
Design Tips:
Maintain precise clearances to allow smooth rotation
Use parametric design for optimal joint performance
Advantages:
Flexible motion paths
Can simulate complex mechanisms without assembly
Limitations:
More complex CAD modeling required
Sensitive to print tolerances
Mechanical Behavior:
Geometry optimized based on load, material, and expected cycles
Often generated with CAD algorithms
Best Use Cases:
Precision prototypes
Load-specific or performance-driven designs
Advantages:
Optimized strength-to-weight ratio
Fully tailored for intended application
Limitations:
Requires advanced CAD and simulation skills
Material choice remains critical
Mechanical Behavior:
Fully assembled hinges printed directly
Motion enabled immediately after printing
Best Use Cases:
Rapid prototyping
Demonstration models
Multi-joint systems
Design Tips:
Maintain proper clearance (0.2–0.5 mm depending on process)
Minimize bridging for FDM
Test motion in CAD before printing
Advantages:
Eliminates assembly
Immediate functional testing
Limitations:
Sensitive to layer adhesion and clearance tolerances
Over-tight clearance can fuse moving parts
| Hinge Type | Mechanical Principle | Best Use Case | 3D Printing Considerations |
|---|---|---|---|
| Flexural | Elastic bending | Packaging, lids | TPU, Nylon, PP; orientation critical |
| Barrel | Pivot rotation | Robotics, enclosures | SLS Nylon preferred; clearance 0.25–0.5 mm |
| Snap-Fit | Bending + locking | Consumer products | Cantilever design; flexible materials |
| Torsional | Twisting beam | Micro mechanisms | Flexible polymers; compute strain |
| Multi-Link | Multiple pivots | Folding devices, robotic joints | Tight tolerances; parametric design |
| Parametric | Algorithm-optimized | Precision prototypes | Advanced CAD; material-specific |
| Printed-in-Place | Fully assembled | Rapid prototypes | Clearance and print orientation critical |
3D printing hinges brings several strategic and engineering advantages that make it the preferred method for modern prototyping:
Eliminates tooling and mold costs required for injection molding
No assembly labor for living or printed-in-place hinges
Fast iterations allow testing multiple designs without extra manufacturing costs
Hinge prototypes can be printed in hours rather than days
Enables fast functional testing and early validation
Reduces product development cycle significantly
Complex geometries impossible with traditional methods
Allows one-piece living hinges, snap-fit mechanisms, and parametric designs
Enables tailored hinge stiffness, range of motion, and stress distribution
Printed-in-place hinges remove the need for pins, screws, or adhesives
Minimizes part count and simplifies logistics
Improves repeatability and reduces human error during assembly
Engineers can test actual load-bearing prototypes
Identifies failure points and iterates without expensive tooling
Allows simulation of real-life fatigue and wear scenarios
Despite the advantages, certain limitations exist that must be addressed during design and material selection:
Material Constraints: Some resins and thermoplastics are brittle, limiting flexural hinges
Fatigue Sensitivity: Repeated bending may fail if hinge geometry or material is suboptimal
Print Orientation Effects: Incorrect layer alignment can reduce hinge strength
Dimensional Tolerances: Clearance is critical; too tight causes fusion, too loose reduces functionality
Load Limitations: High torque or heavy load may exceed the strength of a single-piece hinge
| Feature | Living Hinge (Flexural) | Mechanical Hinge (Barrel / Pin) |
|---|---|---|
| Motion Type | Elastic bending | Rotational pivot |
| Strength | Medium | High |
| Fatigue Life | Very high (if properly designed) | Medium–High |
| Assembly Required | None | Often required |
| Best Materials | TPU, Nylon, PP, PE | Nylon, PETG, Metals |
| Print Orientation Sensitivity | High | Moderate |
| Suitable Applications | Packaging, flip-lids, snap-fit prototypes | Robotics, load-bearing enclosures, functional parts |
| Complexity | Low | Medium–High |
Key Insight: Flexural hinges excel in low-to-medium load, high-cycle applications with minimal assembly. Mechanical hinges provide controlled rotation, higher torque capacity, and better alignment in load-bearing prototypes.
Choosing the right material is critical to hinge performance, especially under repeated flexing or rotational load. Key considerations include elongation at break, fatigue resistance, tensile strength, and print compatibility.
| Material | Strength | Flexibility | Best Hinge Type | Notes |
|---|---|---|---|---|
| TPU (Thermoplastic Polyurethane) | Medium | Very High | Flexural / Living Hinges | Excellent fatigue resistance, ideal for elastic bending |
| PP (Polypropylene) | Medium | High | Flexural / Living Hinges | Common for packaging prototypes, high cycle life |
| PE (Polyethylene) | Medium | Medium-High | Flexural | Low friction, cost-effective |
| Nylon (SLS / MJF) | High | Medium | Barrel / Mechanical / Snap-Fit | High fatigue resistance, isotropic-like strength |
| PETG | Medium | Low-Medium | Mechanical hinges | Good stiffness, limited flexural fatigue |
| SLA Tough Resins | Medium-High | Medium | Mechanical / Snap-Fit | Careful orientation required; brittle if thin |
| Metal (DMLS / MIM) | Very High | Low | High-load mechanical hinges | Expensive but strong; suitable for functional prototypes |
NAITE TECH Tip: When designing functional hinges, always match material to hinge type and consider layer orientation and thickness ratios to maximize durability.
Optimize Wall Thickness and Bend Radius
Thicker walls increase strength but reduce flexibility
Use gradual transitions to reduce stress concentration
Align Layers Along Stress Direction
For FDM and SLA, Z-axis bending reduces fatigue life
SLS or MJF offer more isotropic properties
Consider Clearance for Rotating Parts
Pin and barrel hinges: 0.25–0.5 mm depending on material
Avoid fusion during printing
Minimize Sharp Corners
Rounded edges prevent crack initiation
Use chamfers or fillets in high-stress zones
Use Simulation When Possible
FEA (Finite Element Analysis) can predict stress and fatigue
Optimize hinge geometry before printing
3D printed hinges provide cost-efficient, rapid, and flexible prototyping options.
Flexural hinges are ideal for light-duty, high-cycle applications, while mechanical hinges handle higher torque and controlled rotation.
Material selection and print orientation are critical to hinge durability.
NAITE TECH’s engineering expertise ensures optimized hinge geometry, proper material selection, and reliable 3D printing processes for real-world applications.
Creating a functional, durable 3D printed hinge is not simply a matter of reducing its thickness or printing a thin strip. To achieve high cycle life, load capacity, and smooth motion, engineers must combine geometry optimization, material selection, process parameters, and orientation strategies. Below, we outline seven detailed design methods that elevate hinge performance.
Key Points:
Avoid sudden changes in thickness
Use smooth transitions or fillets to reduce stress concentration
Increase bending radius for living hinges
Incorporate gradual curvature in multi-flex hinges
Why it Matters:
Hinge geometry directly affects stress distribution, which in turn impacts fatigue life. For living hinges, a radius increase of just 0.2 mm can double cycle life in TPU or PP. For mechanical hinges, optimizing knuckle spacing reduces torque stress.
Guidelines:
Flexural hinges: 0.3–0.8 mm (dependent on material)
Mechanical hinges: 1–3 mm or more for load-bearing parts
Multi-layer orientation: consider layer adhesion to handle bending
Best Practice:
Run small-scale tests to identify optimal thickness. Overly thick living hinges lose flexibility, while too-thin hinges fracture prematurely.
Selection Criteria:
Elongation at break: critical for flexural hinges
Tensile strength: ensures mechanical hinges withstand torque
Fatigue resistance: ensures long-term performance
Printability: ensures desired resolution and layer bonding
Material Recommendations by Hinge Type:
| Hinge Type | Recommended Material | Notes |
|---|---|---|
| Flexural | TPU, PP, PE | High flexibility, low stress relaxation |
| Mechanical | SLS Nylon, PETG | High strength and moderate flexibility |
| Snap-Fit | TPU, Nylon | Elastic recovery critical |
NAITE TECH Insight:
Always validate hinge performance with small-scale material tests, especially if using custom blends or reinforced filaments.
FDM (Fused Deposition Modeling):
Low-cost, accessible
Layer adhesion critical
Best for larger, less complex hinges
SLA (Stereolithography):
High detail, smooth surface
Brittle resins need careful thickness control
Best for precision hinges with low mechanical load
SLS (Selective Laser Sintering):
High strength and fatigue resistance
Isotropic-like mechanical properties
Ideal for load-bearing living or mechanical hinges
MJF (Multi Jet Fusion):
Excellent dimensional accuracy
Strong functional parts
Suitable for complex multi-part hinges
Tip: Select technology based on hinge type, load requirements, and cycle life expectations.
Impact of Orientation:
Flexural hinges fail quickly if bent perpendicular to layers (Z-axis for FDM)
Rotational hinges experience uneven stress if printed on an improper plane
Printed-in-place hinges require careful orientation to prevent bridging or fusing
Orientation Guidelines:
Align flexing direction with layer plane for maximum strength
For rotational hinges, layers should run parallel to axis of rotation
Multi-part articulated hinges: simulate assembly in CAD to check clearances before printing
Critical Parameters:
Layer height: smaller layers improve resolution and reduce stress risers
Infill density: higher infill for load-bearing hinges; gradient infill for flexural hinges
Print speed & temperature: fine-tune to optimize layer adhesion and minimize warping
Practical Tip:
For functional hinges, always conduct test prints under simulated loads to adjust parameters before full-scale production.
Techniques:
Deburring or sanding: remove rough edges for smoother motion
Annealing (for Nylon/PP): relieves residual stress, increases durability
Lubrication: reduces friction in mechanical hinges
UV curing (SLA): enhances toughness in resin-based hinges
NAITE TECH Advantage:
We incorporate post-processing mechanical testing and optimization, ensuring that hinges not only print successfully but function reliably in real-world applications.
Optimize geometry and bending radius
Correctly size thickness for material and hinge type
Choose material based on elongation, strength, and fatigue
Select proper printing technology (FDM, SLA, SLS, MJF)
Align print orientation with load and motion
Fine-tune process parameters for strength and accuracy
Apply post-processing and testing for real-world performance
Result: Following these seven methods ensures functional, durable, and long-lasting 3D printed hinges, suitable for prototypes that require high reliability and engineering accuracy.
Choosing the right material is one of the most critical factors in ensuring the strength, durability, and functionality of 3D printed hinges. The hinge's performance depends on mechanical properties, fatigue resistance, elasticity, and compatibility with the chosen 3D printing technology. NAITE TECH engineers combine material science expertise with practical prototyping experience to select materials that maximize hinge life.
Key Properties:
High flexibility and elongation (up to 500% in some grades)
Excellent fatigue resistance
Good layer adhesion in FDM and SLS printing
Moderate tensile strength (~25–50 MPa)
Best Applications:
Living hinges requiring repeated bending
Snap-fit hinges in flexible prototypes
Lightweight, elastic components
Advantages:
Can withstand thousands of bending cycles
Flexible yet durable
Compatible with complex geometries
Limitations:
Lower load-bearing capacity
Printing parameters need careful tuning to prevent stringing and warping
Key Properties:
Medium flexibility, elongation 300–400%
High chemical resistance
Lightweight and low-cost
Low friction coefficient
Best Applications:
Packaging prototypes
Consumer products
Snap-fit and flexural hinges
Advantages:
Excellent for monolithic living hinges
Minimal assembly required
Cost-effective for rapid prototyping
Limitations:
Layer adhesion in FDM can be weak
Not suitable for high torque or load-bearing hinges
Key Properties:
Medium flexibility and elongation
Low density
Low friction coefficient, wear-resistant
Best Applications:
Hinges that require smooth rotation
Low-load living hinges
Functional prototype assemblies
Advantages:
Easy to print on most FDM machines
Good for low-load repeated motion
Cost-efficient for bulk prototypes
Limitations:
Less stiff than Nylon or PETG
Limited high-load applications
Key Properties:
High tensile strength (~50–70 MPa)
Moderate flexibility, elongation ~50–150%
Excellent fatigue resistance
Isotropic-like strength when printed via SLS
Best Applications:
Barrel and mechanical hinges
Load-bearing prototypes
Snap-fit hinges with moderate elasticity
Advantages:
Strong and durable
Repeated motion without premature failure
Compatible with complex geometries
Limitations:
Hygroscopic (absorbs moisture)
Requires controlled post-processing for best dimensional stability
Key Properties:
Good tensile strength (~50 MPa)
Low to medium flexibility
Excellent chemical and impact resistance
Best Applications:
Mechanical hinges that do not require high flex
Medium-load rotational hinges
Advantages:
Smooth surface finish
Easy to print
Less brittle than SLA resins
Limitations:
Limited flexural fatigue performance
Less suitable for living hinges
Key Properties:
High resolution and smooth surface finish
Moderate elongation (~20–50%) depending on resin grade
Strong for precision parts
Best Applications:
Mechanical or snap-fit hinges requiring tight tolerances
Demonstration prototypes with controlled motion
Advantages:
Exceptional surface quality
High dimensional accuracy
Limitations:
Brittle if thin; not suitable for flexural hinges
Requires UV post-curing to achieve full strength
Key Properties:
Very high tensile strength (~400–1000 MPa depending on alloy)
Low elongation compared to polymers
Excellent fatigue resistance for high-load applications
Best Applications:
Load-bearing mechanical hinges
High-stress joints for robotics or aerospace
Functional prototypes requiring real-world testing
Advantages:
High strength and durability
Can handle heavy torque and high-cycle applications
Limitations:
Expensive and slower production
Requires specialized equipment and post-processing
Flexural Hinges: TPU > PP > PE
Mechanical / Rotational Hinges: Nylon > PETG > Metal (for high-load)
Snap-Fit Hinges: TPU or Nylon
High-Load / Industrial Prototypes: Metal (DMLS)
NAITE TECH Insight:
Always balance material properties with hinge geometry and printing technology.
Conduct small-scale tests to validate bending cycles, load capacity, and wear resistance.
For hybrid or complex hinges, consider parametric simulation to optimize material and geometry before printing.
| Material | FDM | SLA | SLS | MJF | DMLS / Metal |
|---|---|---|---|---|---|
| TPU | ✅ | ⚠️ | ⚠️ | ⚠️ | ❌ |
| PP | ✅ | ❌ | ⚠️ | ❌ | ❌ |
| PE | ✅ | ❌ | ❌ | ❌ | ❌ |
| Nylon | ⚠️ | ❌ | ✅ | ✅ | ❌ |
| PETG | ✅ | ⚠️ | ❌ | ❌ | ❌ |
| SLA Tough | ⚠️ | ✅ | ❌ | ❌ | ❌ |
| Metal | ❌ | ❌ | ❌ | ❌ | ✅ |
Legend: ✅ Compatible / ⚠️ Limited / ❌ Not recommended
Designing a 3D printed hinge goes beyond geometry and materials — precise calculations are required to ensure optimal length, flexibility, and fatigue resistance. Engineers must balance mechanical stress, bending radius, torque, and material properties to create hinges that function reliably in real-world conditions.
The hinge length directly affects flexibility, stress distribution, and fatigue life.
Basic Formula (Simplified Beam Bending):
Where:
σ = bending stress (Pa)
F = applied force (N)
L = hinge length (m)
w = hinge width (m)
t = hinge thickness (m)
Design Implications:
Longer hinge → lower stress for the same bending angle
Short hinge → stiffer, but higher risk of failure
Always select length to maintain stress below material yield
Practical Tip:
For TPU living hinges, design stress ≤ 20–30% of material tensile strength to maximize cycle life.
Flexibility is the angular rotation a hinge can achieve without permanent deformation.
Approximate Angular Deflection:
Where:
θ = maximum bending angle (radians)
E = Young’s modulus of the material (Pa)
Other parameters as above
Insights:
Thinner hinges → larger deflection
Longer hinges → larger deflection
Higher modulus materials → reduced bending
NAITE TECH Tip:
Use this formula to iterate hinge length and thickness to meet required angular range without overstressing the material.
Repeated bending introduces cyclic stress, which can cause hinge failure over time. Fatigue life depends on stress amplitude, material endurance, and hinge geometry.
S-N Curve (Stress vs Number of Cycles):
TPU, PP, and Nylon have known S-N curves
Determine the maximum allowable bending stress for target cycles (e.g., 10,000–50,000 cycles)
Fatigue Life Estimation:
Where:
Nf= estimated number of cycles before failure
σendurance= material endurance limit
σapplied= applied stress
b = material fatigue exponent (from S-N data)
Practical Use:
For packaging or lid hinges: target 5,000–10,000 cycles
For robotics joints: target 50,000+ cycles
Adjust hinge thickness, length, and material to meet life requirements
For barrel or pin-type hinges:
Torque (T): T=F×r
F = applied force (N)
r = distance from pivot to force application (m)
Pin Shear Stress:
Where J = polar moment of inertia of the pin
Bearing Stress on Hinge Knuckle:
Where A = contact area of knuckle
Engineering Insight:
Design pins and knuckles to handle torque safely, considering safety factor 1.5–2.5.
In 3D printing, layer direction affects stress distribution:
Flexural hinges: stress perpendicular to layers → early delamination
Mechanical hinges: layer orientation along rotation axis → optimal performance
Recommendation:
Incorporate stress analysis in CAD or FEA to identify weak points and refine hinge geometry before printing.
Advanced engineers at NAITE TECH use parametric CAD models:
Adjust thickness, radius, and length dynamically
Run Finite Element Analysis (FEA) to simulate bending and rotational stress
Optimize hinge to maximize strength-to-weight ratio
Benefits:
Reduces material waste
Ensures reliability before printing
Speeds up iteration cycles
Define hinge type and application load
Select material based on flexibility, fatigue, and print compatibility
Estimate hinge length, thickness, and width using bending formulas
Determine max bending angle or torque
Calculate fatigue life to ensure required cycle count
Simulate hinge in CAD/FEA software
Adjust design iteratively for optimum performance
Understanding the theory and calculations behind 3D printed hinges is critical, but real-world application demonstrates their true value. NAITE TECH applies engineering-grade methods to prototype, test, and deliver hinges that meet rigorous industry requirements.
Challenge:
Design a multi-joint hinge for a compact robotic arm prototype
Must endure 50,000+ cycles
Limited space for pins or external assemblies
Solution:
Selected SLS Nylon for mechanical strength and isotropic properties
Designed multi-link hinge with printed-in-place pins
Applied FEA simulation to optimize knuckle thickness and spacing
Oriented hinge along rotation axis to reduce stress on layers
Result:
Prototype successfully withstood 55,000 cycles in lab testing
Reduced assembly time by 80% compared to traditional mechanical hinges
Demonstrated smooth, precise motion across multiple axes
Key Insight:
Material selection, orientation, and parametric simulation are crucial for high-cycle mechanical hinges.
Challenge:
Create a durable living hinge for a flexible polypropylene lid
Low-cost, high-volume prototype
Must maintain flexibility while resisting daily use
Solution:
Optimized hinge wall thickness to 0.6 mm with 1.2 mm bend radius
Chose PP filament for chemical resistance and flexibility
Printed orientation aligned flexural direction with layer plane
Result:
Hinge endured 10,000+ open/close cycles without failure
Reduced material cost by 40% vs injection molding prototype
High customer satisfaction for packaging functionality
Key Insight:
Simple geometric optimization and correct orientation dramatically improve fatigue life in living hinges.
Challenge:
Compact, lightweight hinge for foldable wearable electronics
Must combine high precision, elasticity, and aesthetic finish
Solution:
Parametric CAD design allowed adjustment of thickness, radius, and length in real-time
Material: TPU for flexibility
SLS printing to ensure isotropic strength and smooth motion
Post-processing: sanding and surface finishing for tactile quality
Result:
Device operated smoothly under repeated folding cycles
Custom hinge optimized for user comfort and durability
Achieved market-ready prototype in under 2 weeks
Key Insight:
Parametric design and simulation accelerate development for small, precision-critical devices.
At NAITE TECH, we provide engineering-focused 3D printing solutions that go beyond generic prototyping:
Engineering-Driven Design:
Parametric and FEA-supported hinge design
Material selection optimized for strength, flexibility, and fatigue
Material Expertise:
TPU, PP, Nylon, PETG, SLA Resins, Metal
Matching hinge type to material for long-term reliability
Process Optimization:
FDM, SLA, SLS, MJF, and DMLS
Printing orientation and process parameter tuning for maximum performance
Quality Assurance:
Test cycles for fatigue, torque, and flexural stress
Iterative prototyping to ensure functional, robust hinges
Rapid Turnaround:
Reduced time from design to functional prototype
Cost-effective solutions without compromising engineering accuracy
NAITE TECH Advantage:
Unlike standard service providers, we integrate mechanical engineering, material science, and additive manufacturing expertise, ensuring that every hinge performs in real-world applications, not just in CAD simulations.
Real-world hinge case studies demonstrate engineering-focused design, material selection, and printing optimization
Flexural, mechanical, and parametric hinges can be optimized for strength, fatigue, and function
NAITE TECH’s integrated approach delivers professional-grade 3D printed hinges for prototypes and functional applications
Emphasis on quality assurance, material matching, and process control ensures reliable, repeatable results
Living hinge: a single-piece, flexible hinge that bends elastically; ideal for low-load, high-cycle applications like packaging lids.
Mechanical hinge: a pivot-based hinge (barrel, pin, or knuckle) that rotates around an axis; suited for load-bearing or precise rotational applications.
Engineering Insight: Material selection, geometry, and layer orientation are critical to ensure hinge performance in both types.
Flexural / living hinges: FDM with TPU or PP, SLS with Nylon
Mechanical hinges: SLS or MJF with Nylon, DMLS for metal
SLA resins: best for high-precision mechanical hinges but limited for repeated bending
NAITE TECH Tip: Always match hinge type with material and printing process to maximize fatigue life and strength.
Use beam bending formulas to calculate stress and deflection
Ensure stress is below material yield, ideally 20–30% for flexural hinges
Adjust thickness and length iteratively with parametric CAD models and FEA simulation
Thinner hinges → more flexibility; thicker hinges → higher strength
Increase bending radius and smooth transitions to reduce stress concentration
Use materials with high elongation at break and fatigue resistance (e.g., TPU, Nylon)
Align print layers with stress direction
Post-process via annealing (for Nylon/PP) or UV curing (for SLA resins)
Test small-scale prototypes before full production
Yes, for prototyping and low-to-medium load applications
Offers rapid iteration, reduced assembly, and cost savings
High-load, long-term industrial hinges may still require metal or reinforced designs
NAITE TECH integrates engineering simulations to ensure printed hinges meet real-world requirements
Flexural hinges: TPU, PP, PE
Mechanical / rotational hinges: Nylon (SLS/MJF), PETG
High-load or industrial hinges: Metal (DMLS / MIM)
Always consider layer orientation, hinge geometry, and printing technology alongside material properties
Flexural hinges should bend parallel to layers to avoid delamination
Mechanical hinges should have layers aligned with rotation axis to maximize strength
Improper orientation reduces fatigue life and may cause premature failure
Yes. We provide engineering-driven hinge design, including:
Parametric CAD modeling
FEA simulation for stress and fatigue optimization
Material selection guidance
Process parameter optimization
Our approach ensures functional, durable, and high-precision hinges for prototypes or production-grade parts
Designing strong, functional 3D printed hinges requires a holistic engineering approach. Key takeaways:
Hinge Type Matters: Flexural vs. mechanical hinges have different applications, load limits, and design requirements.
Material Selection is Critical: TPU, PP, Nylon, PETG, SLA resins, and metals each serve specific purposes; aligning material with hinge type ensures durability.
Geometry & Process Optimization: Thickness, bending radius, layer orientation, and printing parameters directly impact hinge performance and fatigue life.
Simulation & Testing: Parametric CAD and FEA simulations, coupled with real-world testing, reduce errors and optimize design.
Post-Processing Enhances Performance: Deburring, annealing, or UV curing improves hinge strength, smoothness, and functional lifespan.
NAITE TECH Engineering Expertise: Our integrated approach combines materials science, mechanical engineering, and additive manufacturing, delivering hinges that are functional, durable, and production-ready.
Whether you are prototyping packaging lids, robotics joints, snap-fit enclosures, or wearable devices, following the methods outlined in this guide ensures strong, reliable, and high-performing 3D printed hinges.
